Business IP Camera System with 10 PoE Cameras and 16TB NVR
This business IP camera system combines ten wired PoE cameras with a 320 Mbps 16-channel NVR for business, retail, office, warehouse, and large-property surveillance. Five 4K cameras cover priority areas with warning lights, siren, microphone, and speaker, while five 2K bullet cameras provide additional outdoor coverage with built-in audio. Local 16TB storage supports continuous and event-based recording while six unused NVR channels provide room for expansion.
Plug-and-Play PoE Setup with 320 Mbps NVR
Each PoE camera connects directly to the NVR through one Ethernet cable carrying video, data, and power. Camius cameras connected to the recorder’s PoE ports support straightforward setup, while the IPVAULT2320PR provides 320 Mbps incoming and outgoing bandwidth. Ten cameras ship with this package, while six additional PoE ports remain available for compatible cameras added later.

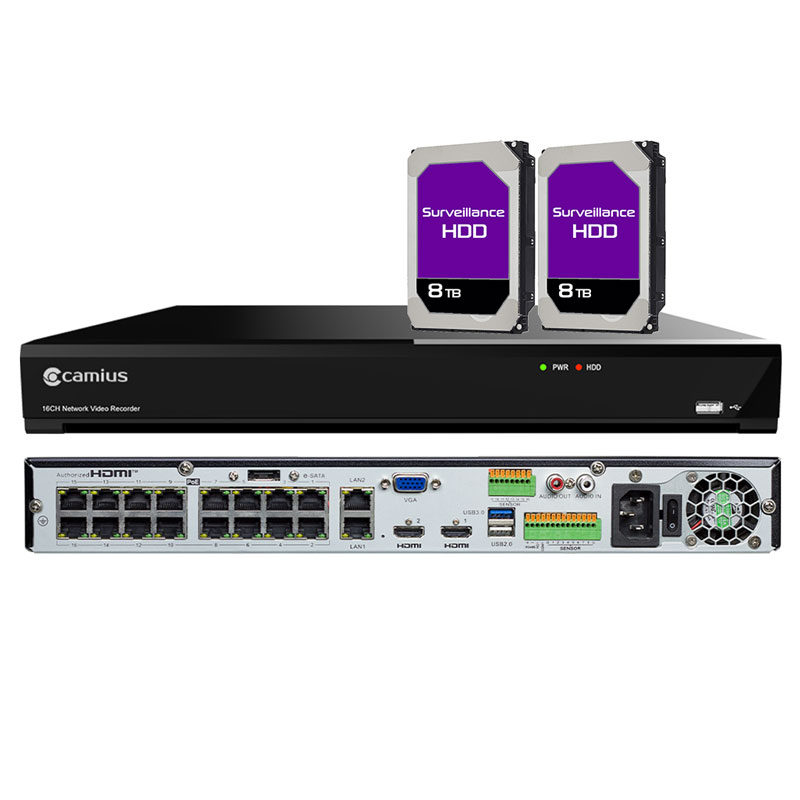

16TB Local NVR Storage Expandable up to 42TB
The NVR ships with 16TB of local storage using two pre-installed 8TB hard drives, so recording starts without purchasing separate internal storage. The recorder supports two internal SATA drives and one external eSATA drive, with up to 14TB supported per drive. Maximum supported capacity equals 14TB x 3 drives = 42TB. Dropbox and Google Drive cloud backup options also support selected event uploads.
To add more storage to the NVR, please check the list of compatible hard drives
View Live and Recorded Video from Phones, Computers and Monitors

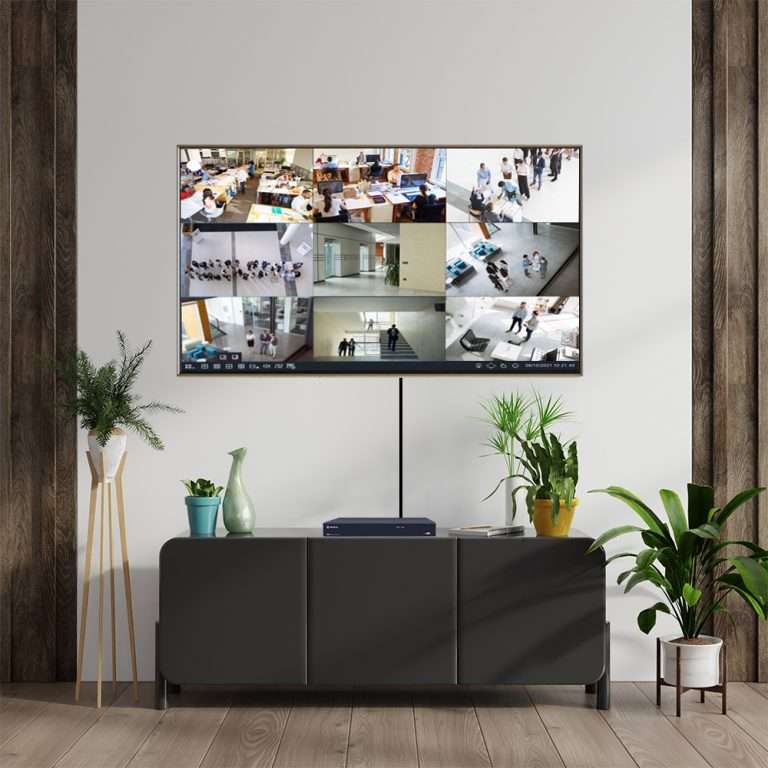

View live and recorded video through the Camius View app on iOS and Android, Camius VMS software on Windows and Mac, supported web browsers, or monitors connected directly to the NVR. The recorder provides a 4K HDMI main output, a secondary HDMI output up to 1080p, and VGA output up to 1080p. Remote access gives authorized users one system for playback, live viewing, alerts, and camera management.
Outdoor PoE Camera System with 5 4K Spotlight Cameras
The Camius 4K PoE Security Camera with Siren, Lights, 2 Way Audio, outdoor, records 4K 3840 x 2160 video at 30 fps through a 2.8mm lens with a 106-degree horizontal field of view. Each camera includes a microphone, speaker, siren, white illumination, and red and blue warning lights for active deterrence. The IP67 metal housing supports outdoor installation, while AI detection includes humans, vehicles, perimeter intrusion, line crossing, and stationary-object detection.
5 2K PoE Bullet Cameras with Audio and 100-Foot Night Vision
The BOLTX536R PoE bullet outdoor camera with 2K 5MP Video, audio recording, sound, vehicle detection records 2K 2880 x 1620 video at 30 fps and include built-in microphones for audio recording. The 3.6mm lens provides a 91-degree horizontal field of view, while SmartIR night vision reaches up to 100 feet. AI functions include face, human, vehicle, perimeter intrusion, line crossing, and cross counting detection. The IP66 housing supports outdoor surveillance installations.
16 Channel NVR Camera System with 24/7 Local Recording

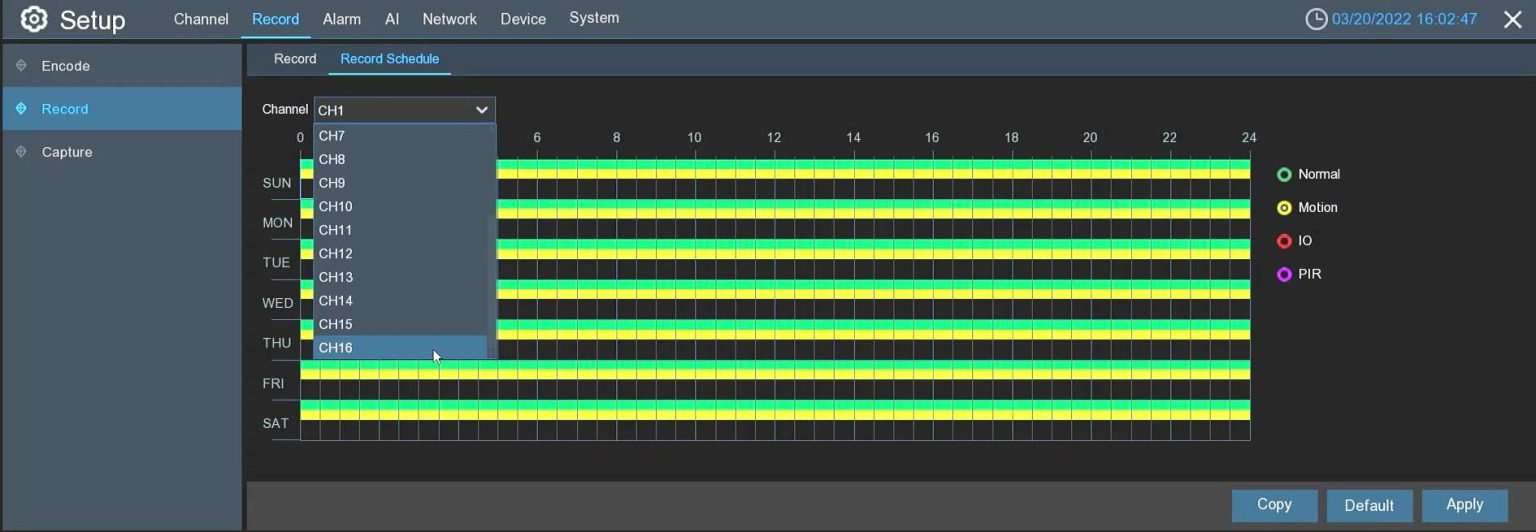

This 16 channel NVR camera system records video locally to the included 16TB storage and supports continuous or event-based recording schedules. Ten cameras are included, while the recorder supports up to 16 connected IP cameras. Local NVR recording requires no monthly recording subscription. Recorded footage stays available through the recorder, Camius View app, VMS software, and supported web browsers based on network access and system settings.
Local NVR Recording with Optional Cloud Event Uploads
Primary video storage stays on the NVR’s local hard drives, giving the system dedicated on-site recording without depending on a cloud subscription. Selected alarm events support uploads to Dropbox or Google Drive when cloud functions are configured. This setup keeps continuous recording on local storage while providing an additional option for selected event files and images.

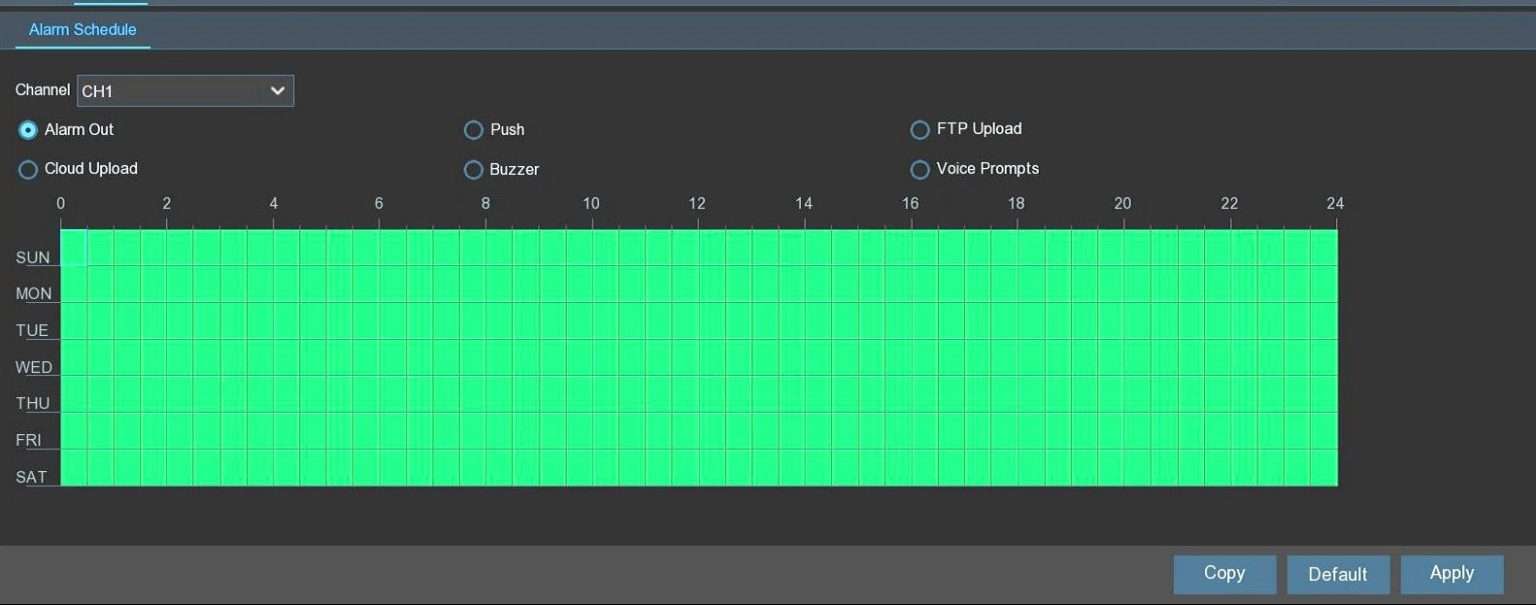

Custom Alerts, Recording Triggers and Push Notifications

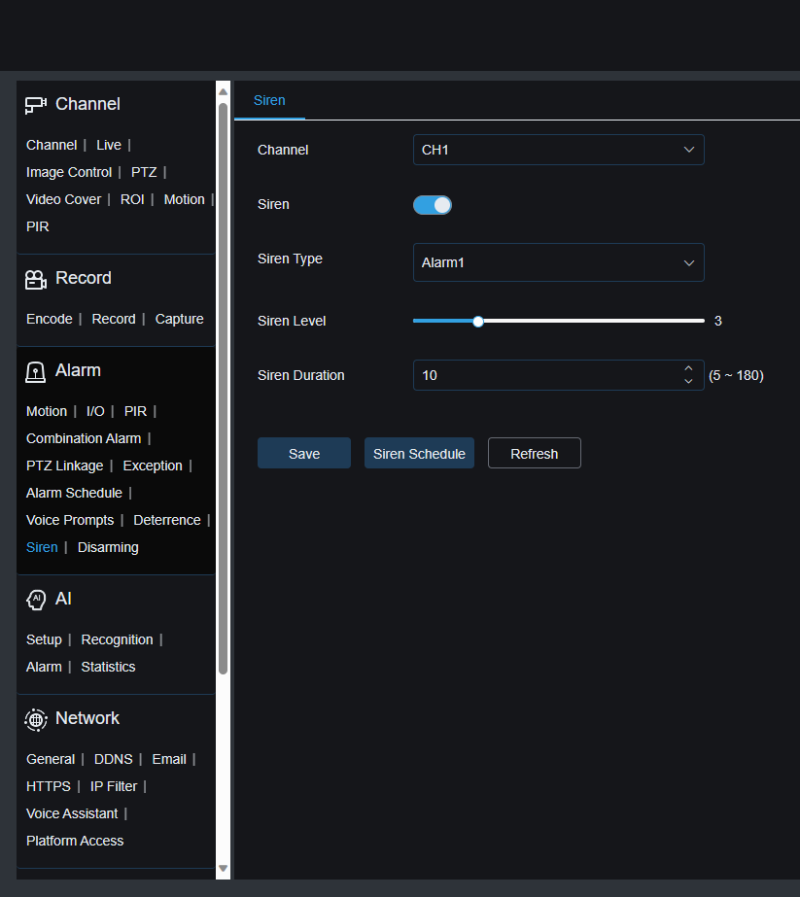

Configure event responses through the NVR for regular video or smart motion, AI detection, and system exceptions. Available responses include NVR buzzer alerts, email notifications, Camius View push notifications, recording triggers, pre-recording, and supported cloud image uploads. Alert settings help separate routine activity from events involving people, vehicles, intrusion zones, line crossings, storage errors, or camera connection problems.
AI Human, Vehicle, Perimeter Intrusion and Line Crossing Detection
Camius PoE cameras support AI detection designed to identify specific events instead of relying only on basic motion changes. Available functions vary by camera model and include human and vehicle detection, perimeter intrusion, line crossing, cross counting, face detection, and stationary-object detection. Detected events support recording, tagging, email alerts, push notifications, and other configured NVR responses.

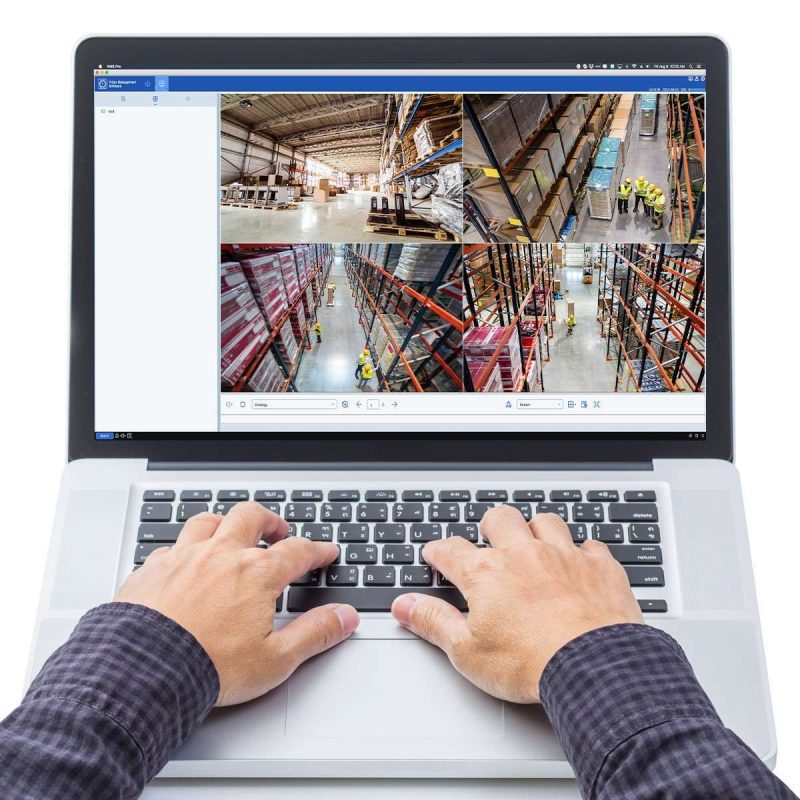

Remote Monitoring with Camius View, VMS Pro and Web Browsers
Manage the system locally or remotely through Camius View for iOS and Android, Camius VMS Pro for Windows and Mac, and supported web browsers. Users with authorized access view live video, search recordings, play recorded footage, and manage supported settings. VMS Pro also supports multiple Camius recorders and cameras, which suits businesses managing surveillance across more than one location.
10 Camera Security System Technical Specifications
Camius NVR IPVAULT2320PR specs (datasheet)
Bandwidth
- Incoming: 320 Mbps
- Outgoing: 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T)
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async (view the guide on how to configure a Spot Monitor for IP Cameras on Camius NVR)
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.
Storage
- Storage: 2 internal SATA bays plus 1 eSATA connection. Maximum supported drive capacity is 14TB per internal or external SATA drive, for up to 42TB total storage.
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
Guides:
- Network Video Recorder Installation Guide
- How to Enable Human and Vehicle Detection with Push Notifications on Camius NVRs
- Reset Camius DVR, NVR Password
Camius IP Cameras Specifications
SPOT828A-RB (Spotlight ) Camera Specifications
- Resolution: 4K 3840×2160 @ 30fps
- Field of View: Fixed 2.8mm lens (Horizontal: 106°, Vertical: 56°, Diagonal: 126°)
- Image Sensor: 1/2.8” Progressive CMOS
- Bitrate: 256Kbps ~ 16Mbps
- Compression: H.265, H.264
- Audio: Built-in microphone and speaker
- Deterrence:
- Warm light range: 66ft (20m)
- Red & blue lights for deterrence
- Siren
- Night Vision:IR range: 82ft (25m)
- Image Control:
- Full Color Mode, Day & Night Mode, Schedule
- Wide Dynamic Range (WDR)
- 3D Digital Noise Reduction (3D DNR)
- White Balance, Electronic Shutter Speed (1/5 ~ 1/20000s)
- Corridor Mode, Angle Adjustment
- Detection:
- Smart Motion and Sound Detection
- AI functions: Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object, Sound, Rare Sound Detection
- Deterrence and Siren triggered by selected events with customizable schedules
- Alarms: Post recording, email notifications, FTP, cloud recording/picture upload, push notifications
- Network:
- RJ45 (10/100BASE-T)
- Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPv6, ONVIF Profile S/G/T
- Access:
- Web Browser Viewer: Chrome, Safari, Firefox, Edge
- Camius Video Management Pro Software (PC & Mac)
- Camius View App (iOS & Android)
- Reset: Hard reset button / via the network
- Power Source: PoE (IEEE802.3af) or DC 12V
- Weatherproof: IP67 rated
- Operating Conditions: -31°F to 140°F (-35°C to 60°C) / ≤ 90% RH
BOLTX536R (Bullet) Camera Specifications
- Shape: Bullet
- Resolution: 2K 2880×1620 @ 30fps
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Image Sensor: 1/2.7” Progressive CMOS
- Bitrate:
- MainStream: 8192Kbps
- SubStream: 4096Kbps
- MobileStream: 1536Kbps
- Video Compression: H.264, H.265, H.264+, H.265+ (Supports MJPEG in SubStream)
- Audio: Built-in microphone
- Audio Compression: G.711A/G.711U
- Night Vision: Up to 100ft (30m) with SmartIR
- Image Control:
- 3D noise reduction
- IR-CUT mode
- Wide Dynamic Range (WDR)
- Backlight compensation
- Highlight compensation (HLC)
- White balance, shutter, mirror, angle adjustment
- Corridor mode
- Detection:
- Smart Motion and Sound Detection
- AI-based (Face, Human, Vehicle, Perimeter Intrusion, Line Crossing, Cross Counting)
- Alarms: Post recording, email notifications, FTP picture upload, cloud picture upload, recording triggers
- Push Notifications: Storage error, AI detections, with Camius NVR integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email notifications for up to 3 receivers, configurable SMTP
- Reset: Hard reset button / via the network
- Power Source: PoE (IEEE802.3af) / DC12V
- Weatherproof: IP66 rated
- Dimensions & Weight: Approx. 14oz (397g), Φ 2.8” x 6” (70.9 x 152.7 mm)
Frequently Asked Questions About This 10 Camera Security System
How many cameras come with this security camera system?

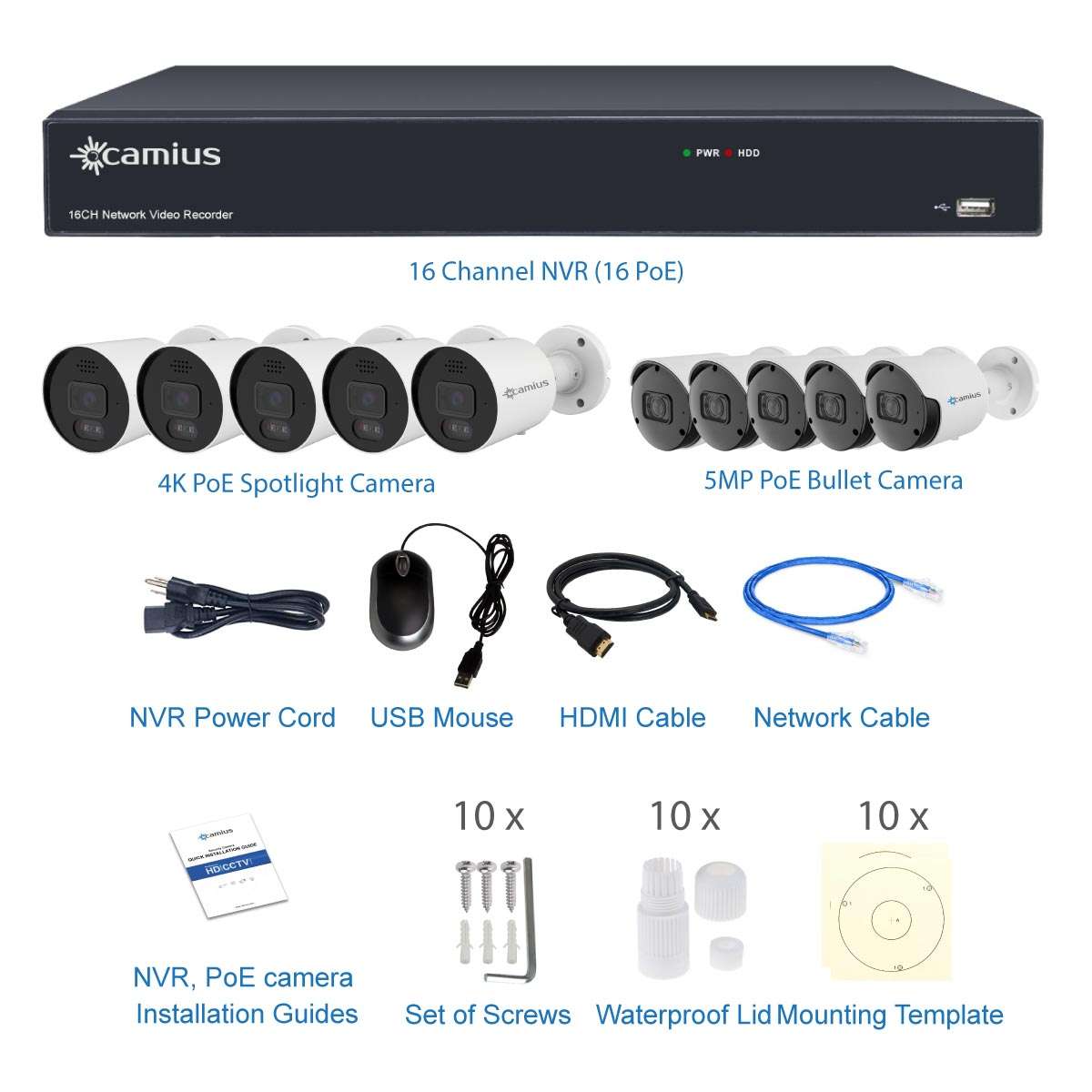

This system includes 10 PoE cameras. Five are 4K spotlight cameras and five are 2K bullet cameras. The included IPVAULT2320PR NVR supports up to 16 IP cameras, leaving six channels available for compatible cameras added later.
Is this a 4K security camera system?
The package combines two camera resolutions. Five included cameras record at 4K 3840 x 2160, while five record at 2K 2880 x 1620. This mixed configuration places higher-resolution 4K cameras in priority areas while providing additional 2K coverage across the property.
How much storage comes with the NVR?
The NVR ships with 16TB of pre-installed local storage using two 8TB hard drives. The recorder supports two internal SATA drives plus one external eSATA drive, with up to 14TB supported per drive. Maximum supported storage equals 14TB x 3 = 42TB.
Does this security camera system require a monthly subscription?
No monthly subscription is required for local NVR recording. Video records to the hard drives installed inside the recorder. The system also supports remote viewing through Camius View, desktop software, and web browsers (Chrome, Edge, Firefox, Safari, Opera, Brave) when network access is configured.
Are Ethernet cables included?
Camera Ethernet cables are not included with this package. Each PoE camera requires an Ethernet connection to the NVR or supported network equipment for power and video transmission. Camius sells Cat5e camera cables separately in multiple lengths.
What AI detection features are included?
Supported AI functions vary between the two included camera models. Features include pedestrian & vehicle detection, perimeter intrusion, line crossing, cross counting, face detection, object detection, sound detection. Detection events support recording and configured alerts through the NVR.
Is this system suitable for business surveillance?
This business IP camera system fits offices, retail locations, warehouses, parking areas, and larger properties requiring multiple wired cameras and local recording. The 320 Mbps 16-channel NVR supports ten included cameras with six channels left for expansion, while 16TB of pre-installed storage provides local recording from installation.
