This 12 camera security system records 2K video and audio with no monthly subscription. The 16 channel PoE NVR runs at 320 Mbps and adds AI detection for people, vehicles, and perimeter breaches. Storage expands up to 42TB, enough space for weeks or months of footage depending on your settings.

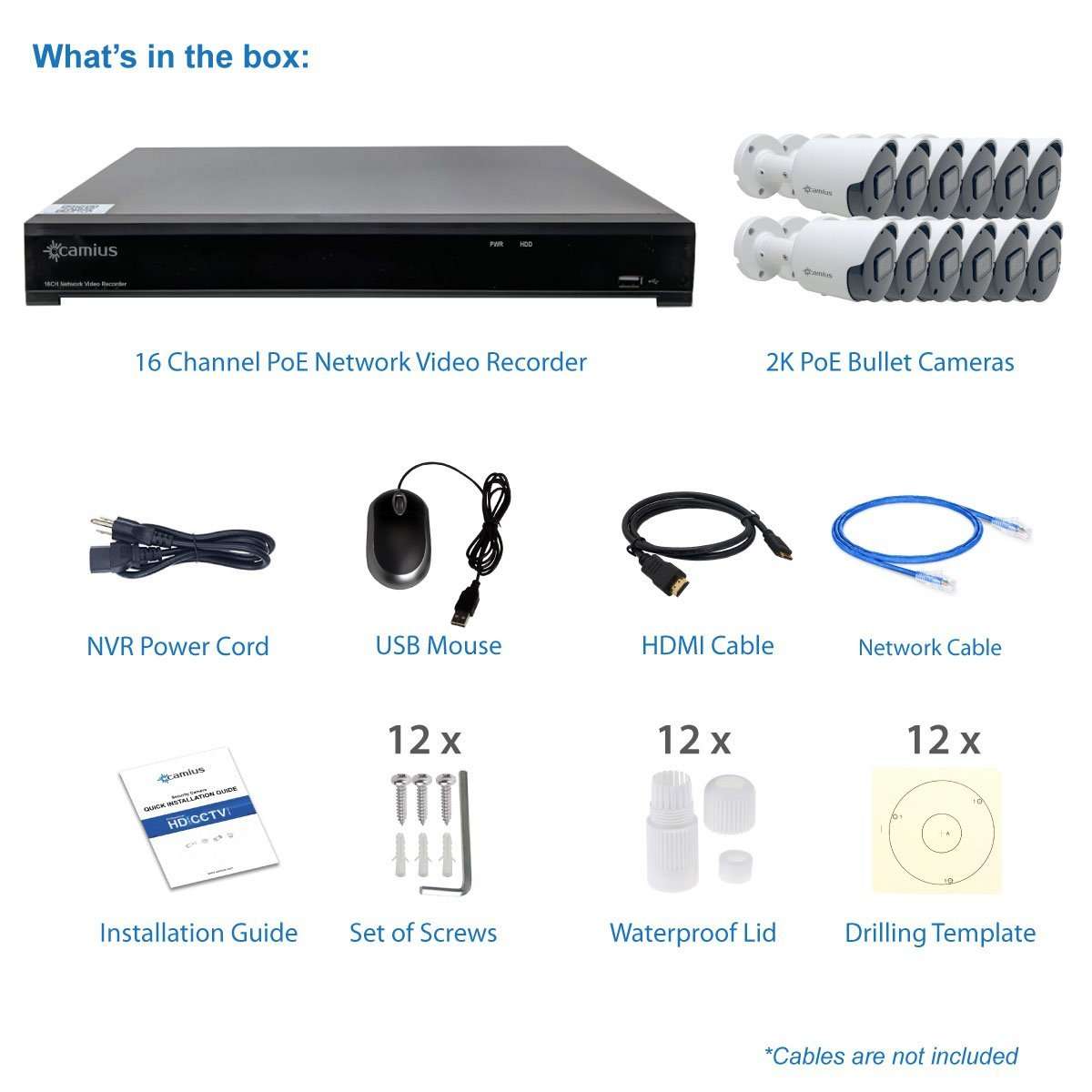

- 16 channel NVR with a pre-installed 4TB hard drive, IPVAULT2320PR 4TB HDD
- 12 x 2K PoE bullet cameras, BOLTX536R
- NVR power cord, HDMI cable, network cable, USB mouse, remote controller, installation guide, and tech support info
Note: This bundle ships with one pre-installed hard drive and no cables. Add an extra 4TB hard drive or Cat5E cables at checkout.
How the 16 Channel PoE NVR Simplifies Camera Installation
The 16 channel NVR (network video recorder) has 16 built-in power-over-ethernet ports, making the setup easy and quick. Camius security NVR assigns a unique IP address to the Camius IP camera. No more complicated IP configuration.
Easy Installation and Full Property Monitoring
Say goodbye to complicated installations and hello to easy setup with our advanced hardwired PoE NVR system. 12 IP cameras with audio monitoring and AI detection provide 24/7 coverage and remote access, so you can monitor your property from anywhere. The 16 channel NVR Recorder with a built-in PoE switch makes installation a breeze. Let Camius handle the IP configurations! Get the best surveillance solution for your business and home today with our Plug and Play PoE IP security camera system.

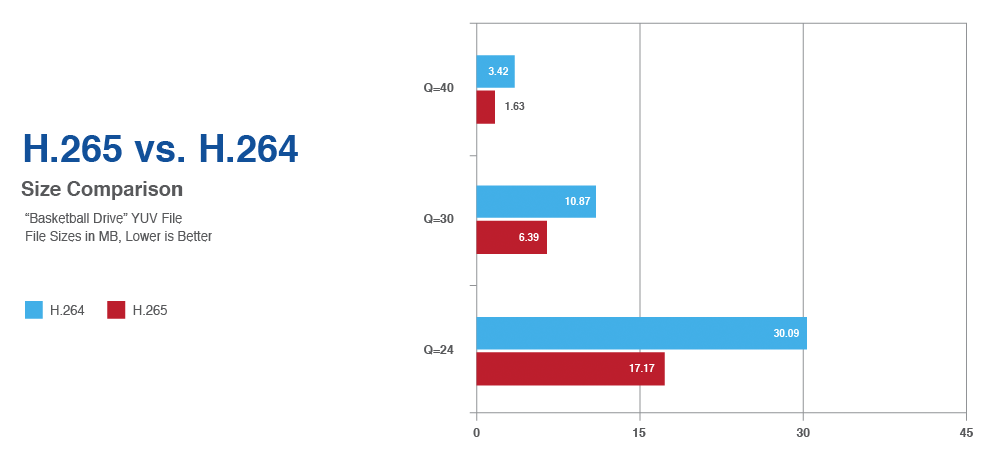

High Bandwidth Recording with H.265 Compression
This NVR records and plays back video at 320 Mbps, fast enough for Ultra HD playback. All Camius systems support H.264, H.265, and H.265+ compression. H.265+ cuts storage use by up to 50 percent compared to older formats, so your 16 channel NVR and hard drive go further.

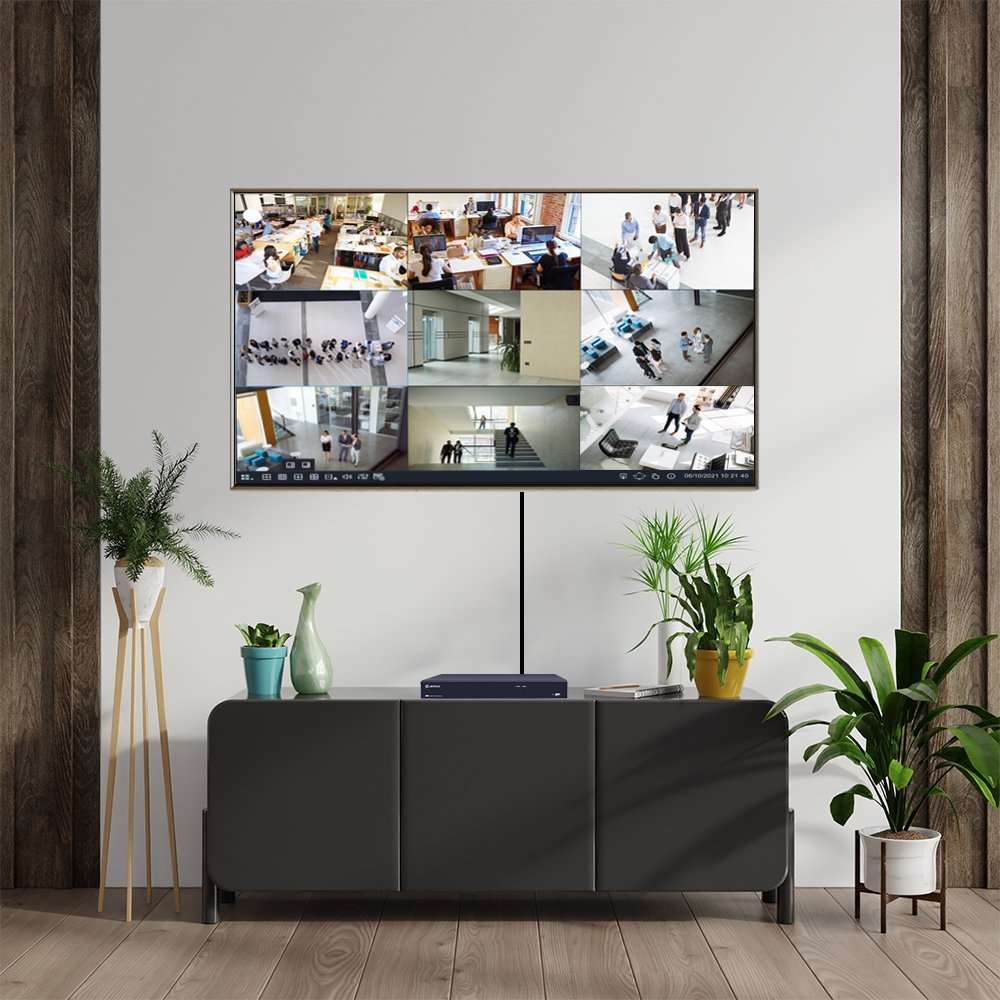

Three Video Outputs for On-Site Monitoring
Camius 16 Channel NVR (network video recorder) comes with 3 video outputs to add a monitor/TV for live view
- 1 x HDMI (HDMI2) output for the primary monitor, which supports 4K video (3840×2160)
- 1 x HDMI (HDMI2) video output for a secondary monitor that supports 1080P display resolution
- 1 x VGA output
Expandable Storage Up to 42TB
The network video recorder fits two internal SATA hard drives with up to 14TB of capacity each, 28TB combined, plus one external eSATA port for further expansion, up to 42TB total.
This 16 channel PoE security camera system also saves images and footage to the cloud through Dropbox or Google Drive.
5 Megapixels Outdoor Use Security Cameras
Camius 2K security IP cameras and Outdoor Bullet PoE Cameras offer 2K resolution (2880 x 1620) at 30 fps, a 91-degree field of view, and a built-in microphone. They feature motion, sound, and AI detection, including human and vehicle detection, 100ft night vision, and a wide dynamic range. Both have special modes (Corridor and Mirror). Camius cameras are stylish and perfect for indoor use, while Outdoor Bullet PoE cameras are durable for outdoor use. Camius cameras also allow IR LED and image control customization.
Business Security Cameras with Audio
These Camius security cameras with audio recording allow you also to listen to audio life. You can also turn on and off the camera’s audio. Sound Detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode.
Customized Alarms and Notifications
You can enable alarm settings using the NVR. Alarms include a recorder’s buzzer sound, sending email alerts, push notifications to the CAMIUS VIEW smartphone camera app, recording, pre-recording, and uploading images to Cloud through the NVR (Dropbox or Google Drive). Note, Voice prompts are in beta.
You can schedule an alarm for each camera and select the following events to trigger select alarms:
- Smart Motion Detection with Pedestrian and Vehicle Detection
Human & Vehicle Detection (PD&VD), - Cross Counting (CC), Perimeter Intrusion detection (PID),
- Line Crossing detection (LCD).
- Exception, that includes No Space on your Hard Drive Disk, Disk error or failure, Video Loss
Smart Motion Detection
Camius NVR network video recorder allows motion detection to monitor and record all the activity in your home and business. You can also select your motion target detection that includes not any video motion but Pedestrian, Vehicle, or Pedestrian & Vehicle as your target. Please note motion detection recording and alarm schedule are not enabled by default and need to be turned on by a user. Follow this guide on how to set motion detection
Sound Detection
Camius 2K IP cameras support Sound Detection in Intelligent mode. Sound detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode. You can set up alarms triggered by Sound detection, and if you click on ‘Intelligent,‘ make sure to enable Sound detection by checking the switch box.
Outdoor Cameras with AI Detection
Camus’s latest 2K security cameras offer detection using AI analysis. It goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. You can activate one of the AI detects for precise detection, alarms, and reports. AI Detection will trigger recording, email, or push notifications in addition to video recording in a unique color and tag.
AI Detection includes:
- Human & Vehicle Detection (PD & VD)
- Perimeter Intrusion Detection (PID)
- Line Crossing Detection (LCD)
- Cross Counting (CC)
- More AI functions are in the Beta version
You can enable Human & Vehicle or Perimeter Intrusion Detection in AI mode and then allow push notifications on your mobile app. Make sure to select Schedule and save it.
12 Camera CCTV System with Remote Apps
NVR software, Browser access
An NVR PoE camera system offers more than an HDMI monitor and a phone app. The free NVR software turns a desktop, laptop, or Mac into a 24 hour surveillance station, with live view, playback, and camera settings on one screen. This software links a Camius NVR or DVR with individual cameras and shows up to 128 cameras across multiple locations. The NVR also works straight from a browser, with no install required, using this web browser viewing guide for Chrome, Firefox, Safari, or Edge.
The Camius View app gives full access to your cameras from any location, on iOS or Android. Follow this guide to add your cameras to the Camius View app. View live video, play back footage, listen to audio, and restart the NVR, all from your phone.
12 Camera Security System Specifications
This system is part of the 12 camera PoE NVR kit line, one of several PoE NVR camera kits Camius offers across channel counts.
16 Channel NVR Specifications, Model IPVAULT2320PR
Bandwidth
- Incoming: 320 Mbps
- Outgoing: 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T)
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.
Storage
- Two Internal SATA Hard Drive Ports: up to 14TB each, 28TB combined, plus 1 eSATA port for further expansion
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
2K Camera Specifications, Model BOLTX536R
- Model: BOLTX536R
- Shape: Bullet
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
12 Camera Security System FAQs
What does the 12 camera security system include?
The kit includes one 16 channel PoE NVR with a 4TB hard drive, 12 outdoor 2K PoE cameras, and the cables needed for setup. An extra hard drive and Cat5E cables are available as add-ons.
How much can the storage expand?
The NVR holds two internal hard drives at up to 14TB each, plus one eSATA port, for storage up to 42TB total.
For more on how drive size affects recording length, see this security camera storage guide.
Does this system need a monthly subscription?
No. Recording, remote viewing, and AI detection alerts all run with no monthly fee.
