Camius 16 Smart 2K Dome Security Cameras for Business with PoE NVRCamius 16 Smart 2K Dome Security Cameras for Business with PoE NVR
16 Smart 2K Dome Security Cameras for Business with PoE NVR
$1,799.00 Add to cart

16 Smart 2K Dome Security Cameras for Business with PoE NVR

$1,799.00

Camius 16 Channel PoE NVR system with  16 Dome Security Cameras for Business delivers super HD 2K video and audio in addition to Sound (in Intelligent Mode), Human & Vehicle Detection, Cross Counting Detection, and more in AI mode with analytics and reports. In addition, the 16 Channel NVR with the highest recording bandwidth will satisfy any business owner’s security requirements. You can add up to 30TB of internal and external storage to this advanced NVR surveillance system to have weeks or months of recorded footage.

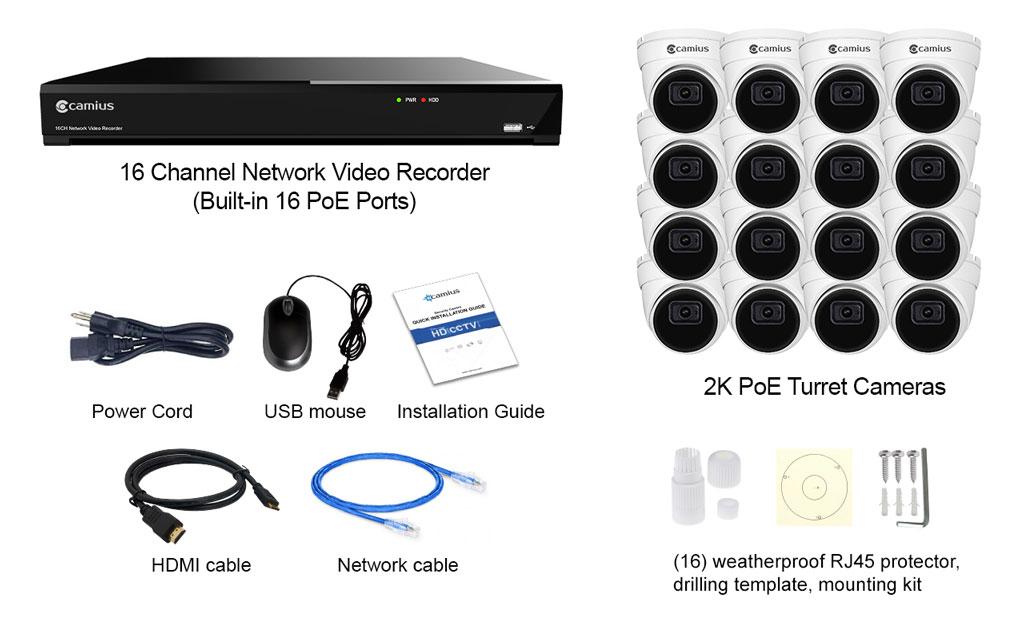

What’s in the box:

  • 16 Channel NVR (IPVAULT2256PR)
  • 16 x  5MP PoE Dome Camera (IRIS528R)
  • NVR’s power cord, USB mouse, HDMI cable, Network cable, Installation Guide, set of screws for hard drives and chassis, Tech support info
  • Note: this bundle doesn’t include any hard drive(s) or cables that can be ordered on Camius.com.

Click here to check compatible cables and hard drives that can be added to the system.

In stock

Camius 16 Channel PoE NVR system with  16 Dome Security Cameras for Business delivers super HD 2K video and audio in addition to Sound (in Intelligent Mode), Human & Vehicle Detection, Cross Counting Detection, and more in AI mode with analytics and reports. In addition, the 16 Channel NVR with the highest recording bandwidth will satisfy any business owner’s security requirements. You can add up to 30TB of internal and external storage to this advanced NVR surveillance system to have weeks or months of recorded footage.

Camius 16 Smart 2K Dome Security Cameras for Business with PoE NVR

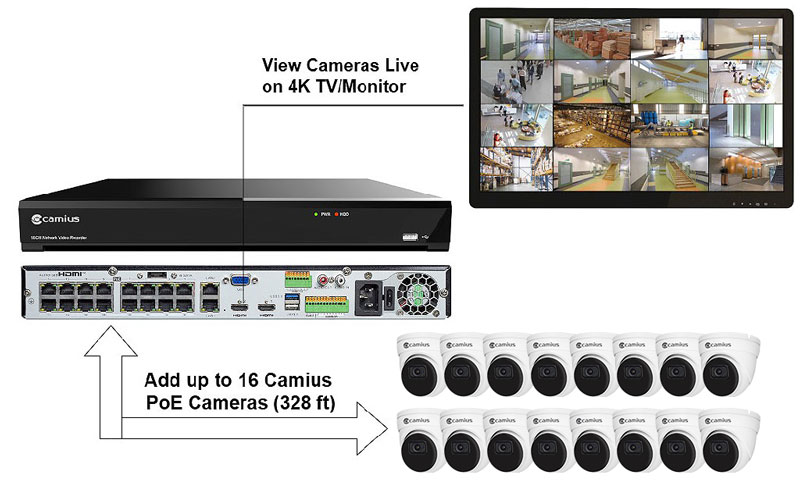

Plug-N-Play Power-over-Ethernet NVR System

The 16 Channel NVR has a 16-port built-in power-over-ethernet interface that makes the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.

IPVAULT2256PR rear panel 1 e1661544560698

IRIS528R features

Power-over-Ethernet NVR and Dome Cameras

The 16-channel NVR Recorder has a built-in power-over-ethernet switch, making the setup easy and quick. Camius security NVR assigns a unique IP address to the Camius IP camera. No more complicated IP configuration.

Note that if you set up the dome cameras’ password before adding it to the NVR, we recommend resetting the camera using the on-camera reset button. If the camera doesn’t have any password set, it will start playing on the NVR in delay (refer to the ‘State’ in green, which means you added the camera successfully.

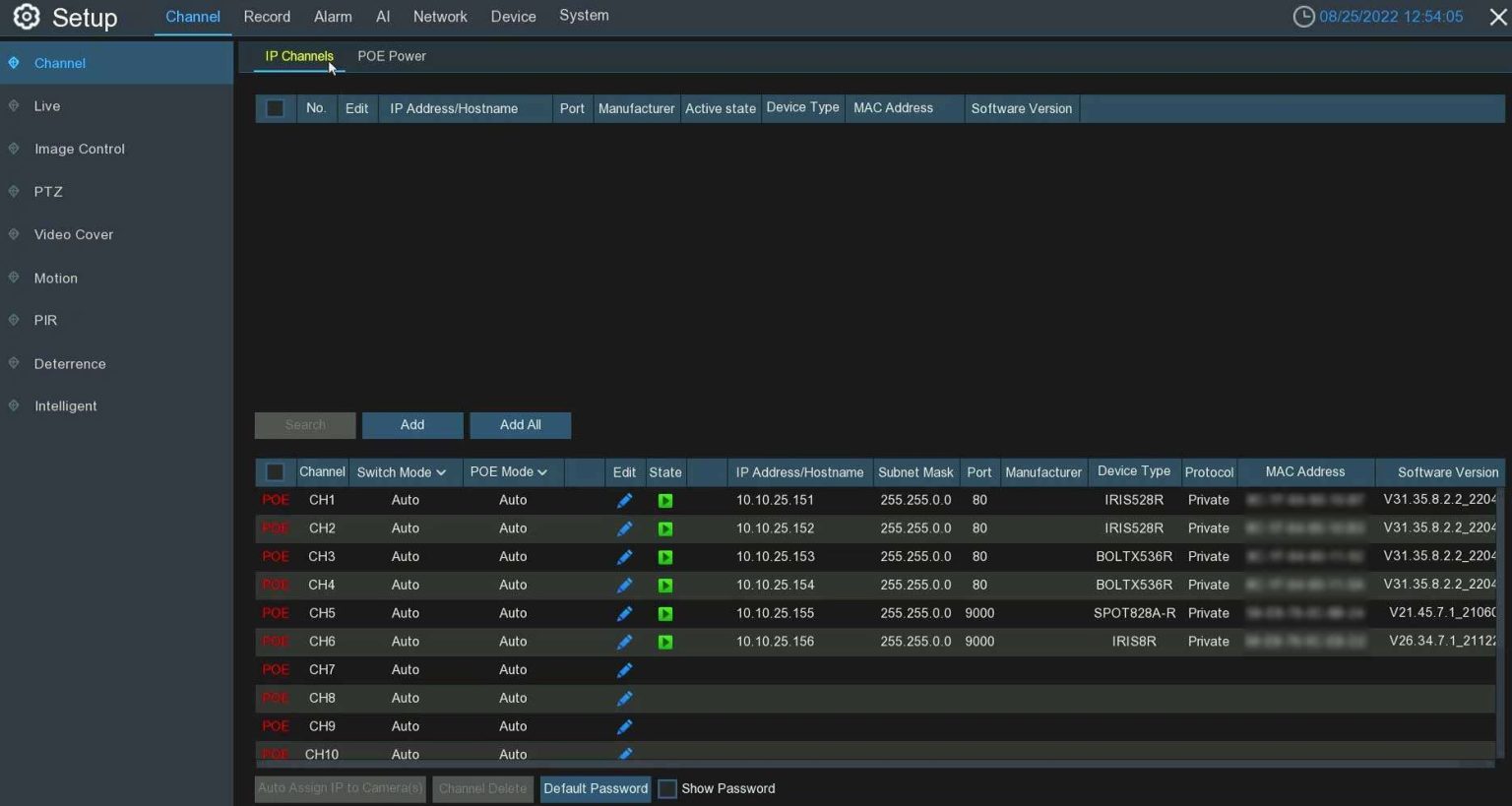

IPVAULT2256PR 6 CAMERAS CHANNELS LIST 2K AND 4K

Once the camera is plugged into the NVR’ PoE port, you will see PoE power consumption by selecting the ‘ PoE Power tab.

IPVAULT2256PR POWER POWER

Camera system for business with high bandwidth & latest video and audio compression

The NVR’s 256Mbps bitrate allows live view and playback videos at Ultra HD resolution. All Camius security systems support H.264 and the latest H.265, H.265+ video and audio compression. It saves up to 50 percent on the recorder’s storage space and improves bandwidth efficiency to maximize your 16 Channel 4K security NVR & internal hard drive storage.

4K Live View

Camius 16 Channel NVR (network video recorder) comes with 3 video outputs to add a monitor/TV for live view

  • 1 x HDMI (HDMI2) output for the primary monitor, which supports 4K video (3840×2160)
  • 1 x HDMI (HDMI2) video output for a secondary monitor that supports 1080P display resolution
  • 1 x VGA output

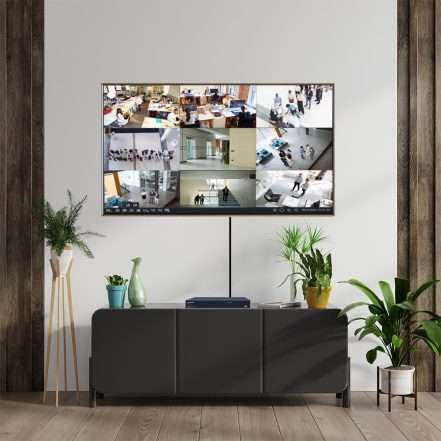

Camius HDTV screen 1000 1000

Choose an output resolution that matches your monitor. The NVR should adjust the output resolution automatically to match the best resolution of your monitor at the system startup.

Resolution resolution range1080p to 4K

Please note that some legacy monitors could fail to communicate their acceptable resolution. In this case, please plug the NVR into a newer monitor and change the resolution manually to the lowest setting, then save and plug the older monitor back to see if it’s supported.

Set the monitor resolution notice

Please note that after completing the Start Wizard, you can adjust the Display Output Resolution further using the following Menu Path: Setup – System – General – Output Configuration.

Select the output resolution suitable for your TV/Monitor. 1080P(1920 x 1080) will suit most monitors. If your NVR supports 4K output resolution, you can select either 2K (2560 x 1440) or 4K (3840 x 2160) to take advantage of the higher resolution that your 4K TV provides.

IPVAULT2256PR HDMI 4k resolution

Camius 16 channel NVR has an additional HDMI output for a secondary monitor that you can customize.

IPVAULT2256PR HDMI 2 1080P

IPVAULT2256PR HDMI 2 as spotout

IPVAULT2256PR HDMI 2 SPOT POLL SETTING

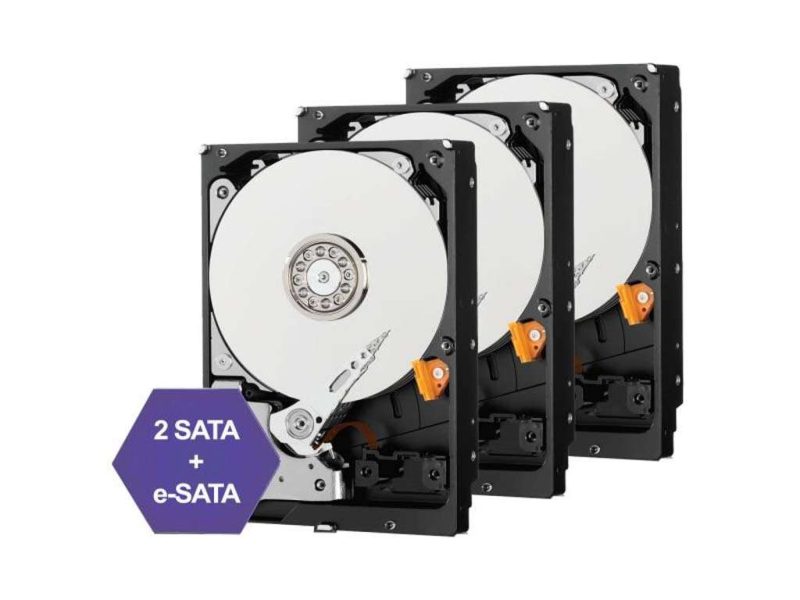

Storage & SMART check

The network video recorder fits two internal SATA hard drives with up to 10 Terabytes of capacity each. In addition, the NVR has one external eSata port for external storage.
The security camera system allows saving images or footage to an FTP or Cloud (Dropbox or Google Drive). But an intelligent security camera system isn’t complete without reliable storage; Camius NVRs offer a dedicated section with details about the health of installed hard drives. The process is named SMART, which is short for Self-Monitoring, Analysis, and Reporting Technology. The advantage of this technology running in the background and on-demand is that the user can stay up to date on the hard drive’s health.
You can also an external hard drive using an e-SATA port.
IPVAULT2320P16N HARD DRIVES 970 600 e1637099033565

Super HD 2K Video Resolution

These Dome PoE cameras record 5 Megapixels of video, which is 2.5 times the pixels as an HD 1080p security camera. Instead of 1920 × 1080, over 2,000,000 pixels, this super HD 2K PoE security camera system can record at a pixel ratio of 2880 x 1620. More pixels delivered by the security camera allow you to get more enhanced picture details when you zoom in.

IPVAULT2256PR ENCODING MAIN STREAM 2K

IPVAULT2256PR ENCODING MAINSTREAM Bitrate 2K

Night Vision

5MP PoE dome cameras offer color night vision view mode in ambient light conditions. Camius cameras automatically adjust the displayed stream to include color on a video at night. This allows the user to distinguish colors on a subject, like a red vehicle or a blue shirt. Even the moon or starlight is enough to keep the camera in Color Night Mode. In complete darkness, cameras deliver a black and white picture. The cameras’ infrared distance is 30 to 100 feet.

Business Security Cameras with Audio

These Camius dome security cameras with audio recording allow you also to listen to audio life. You can also turn on and off the camera’s audio. Sound Detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode.

IPVAULT2256PR encoding audio 6 cameras

Highly customizable image control settings

Camius 2K dome cameras have highly customizable image settings, which you can control directly in the NVR. You can select the best IR settings, including the IR cut mode, IR cut delay, IR LED way, and even the level of IR LED lights (low beam light). In addition, you can also control the camera’s view using the Lens Flip, Angle Flip, selecting Corridor mode, enabling WDR (wide dynamic range), and even more. You can save default settings by clicking on the ‘Default‘ tab.

In addition, the dome camera delivers a 110-degree wide view reducing the number of blind spots.

IPVAULT2256PR IMAGE CONTROL

Alarms

You can enable alarm settings using the NVR. Alarms include a recorder’s buzzer sound, sending email alerts, push notifications to the CAMIUS VIEW smartphone camera app, recording, pre-recording, and uploading images to Cloud through the NVR (Dropbox or Google Drive). Note, Voice prompts are in beta.

IPVAULT2256PR alarms schedule

You can schedule an alarm for each camera and select the following events to trigger it:
  • Motion Detection
  • Stationary Object or Sound Detection in Intelligent mode
  • AI detection includes Human & Vehicle Detection (PD&VD), Cross Counting (CC), Perimeter Intrusion detection (PID), or Line Crossing detection (LCD). You can enable one of the AI functions.
  • ‘Exception’ that includes No Space on your Hard Drive Disk, Disk error or failure, Video Loss

IPVAULT2320P16N IRIS528R Alarm Exception e1661548779112

Smart Motion Detection

Camius NVR network video recorder allows motion detection to monitor and record all the activity in your home and business. You can also select your motion target detection that includes not any video motion but Pedestrian, Vehicle, or Pedestrian & Vehicle as your target.  Please note motion detection recording and alarm schedule are not enabled by default and need to be turned on by a user.

IPVAULT2256PR MOTION DETECTION

Security Camera System for Business with Intelligent Detection

Camius 2K dome cameras support Sound detection in Intelligent mode

Sound detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode. You can set up alarms triggered by Sound detection, and if you click on ‘Intelligent,‘ make sure to enable Sound detection by checking the switch box.

IPVAULT2256PR SOUND DETECTION

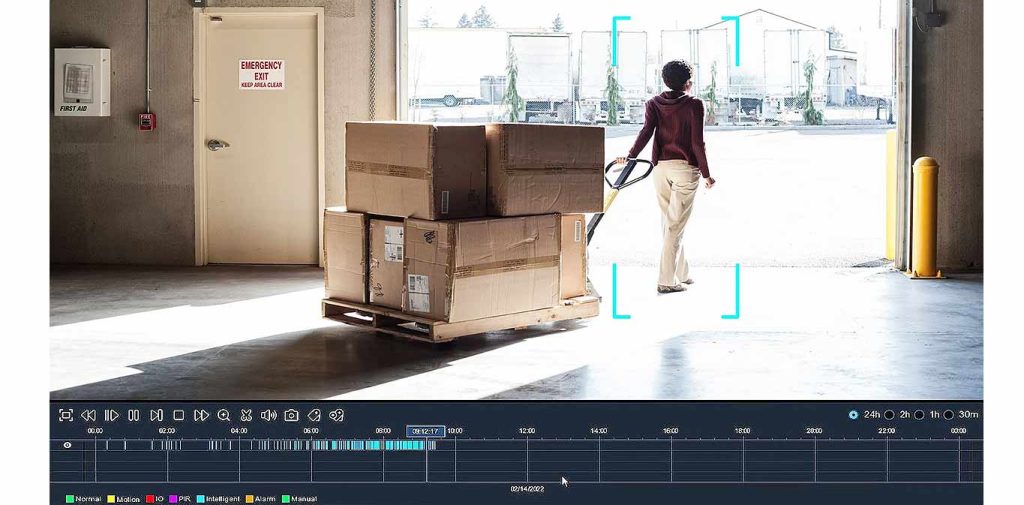

Best Security Cameras for Business with AI Detection

Camus’s latest 2K dome cameras offer detection using AI analysis. It goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. You can activate one of the AI detections to get precise reports and analytics. AI Detection will trigger recording, email, or push notifications in addition to video recording in a unique color and tag.

AI Detection includes:

  • Human & Vehicle Detection (PD & VD)
  • Perimeter Intrusion Detection (PID)
  • Line Crossing Detection (LCD)
  • Cross Counting (CC)
  • More AI functions are in the Beta version

IPVAULT2256PR AI

You can enable Human & Vehicle Detection in AI mode and then allow push notifications on your mobile app. Make sure to select Schedule and save it.

IPVAULT2256PR AI HUMAN AND VEHICLE

Camius Human Detection

Free NVR software and Remote Apps

NVR PoE camera system goes beyond the HDMI monitor and smartphone app. The free NVR software (VMS) can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius DVR or NVR and individual Camius cameras on one screen. The software also displays Up to 128 cameras on the same screen and manages multiple devices from different locations.

Camius DVR NVR IP camera software

Camius View App

The Smartphone Security Camera App Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app.

what is IP camera

The mobile app is available on iOS and Android App stores and is ready to link to your security cameras. You can use your smartphone security camera App to view and playback any Camius security camera;  listen to audio, and control the system entirely, including restarting it remotely.

You can configure your NVR system using your smartphone app.

camius view configuration

Camius View system

For the NVR security system specifications, visit the following links

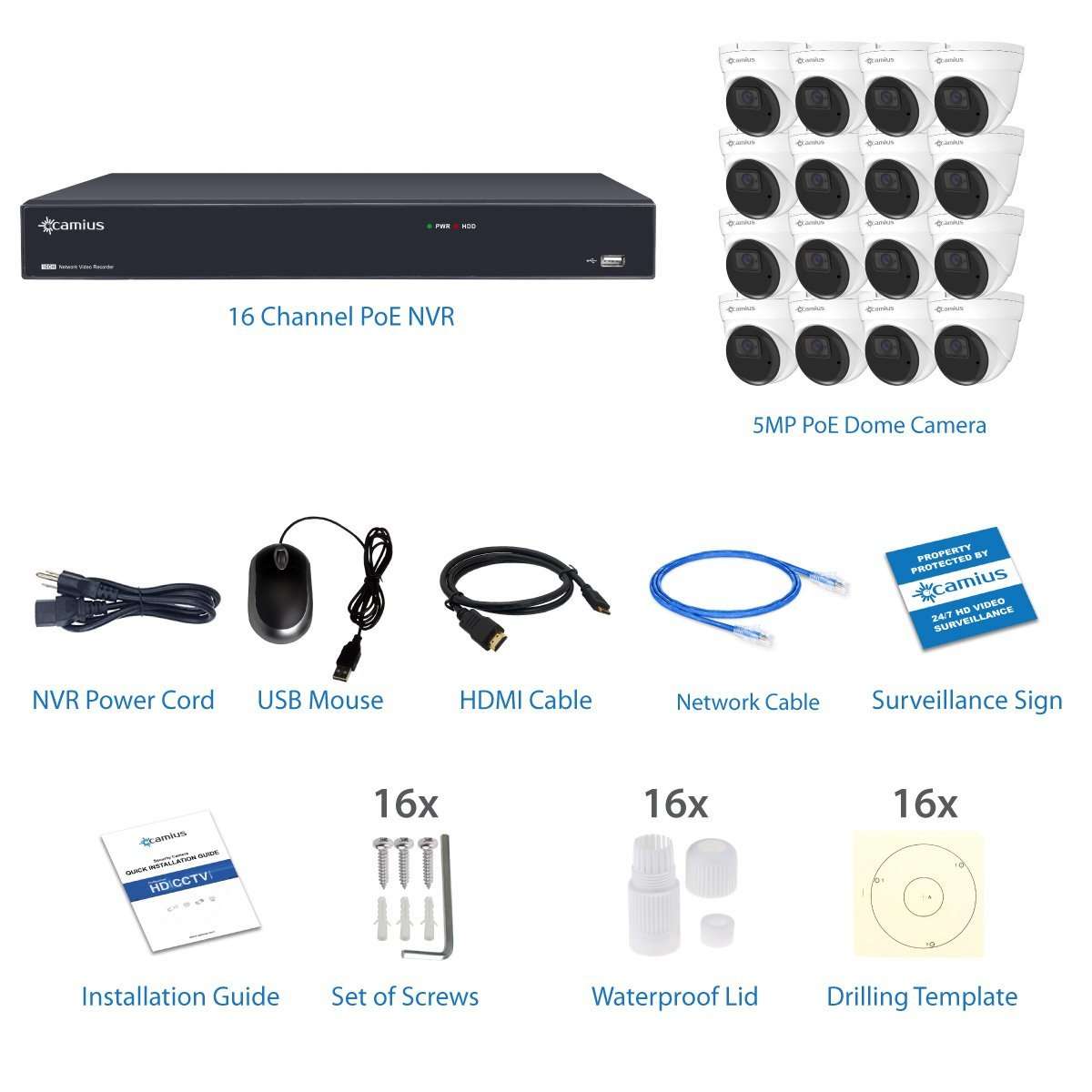

What’s in the box:

  • 16 Channel NVR (IPVAULT2256PR)
  • 16 x  5MP PoE Dome Camera (IRIS528R)
  • NVR’s power cord, USB mouse, HDMI cord, Ethernet cord, Installation Guide, Tech support info
  • Note: this bundle doesn’t include any hard drive(s) or cables you can order on Camius.com. We recommend using CAT5E and higher category cables with 16 Channel PoE NVRs.

Additional information

Weight35 lbs
Dimensions20 × 16 × 14 in
Security System Bundle

NVR Kit

Recorder Type

NVR for IP cameras

Recorder Channels

16 IP

Recorder Built-in PoE Ports

16

Pre-Installed Storage

N/A

Recorder eSATA Port

Yes

Recorder Storage Capacity

10TB each (20TB max), Supports e-SATA (external SATA hard drive)

Bundled Camera Number

16

Bundled Camera Type

Dome

Recorder Video Output

HDMI1 for a primary monitor, HDMI2 for a secondary monitor, VGA

Recorder Total Bandwidth

256Mbps

Android App

Camius View

Recorder Display Split View

4 / 9 / 12 / 16 / 6 / 8 / 10 / 10-1 / 13 / 13-1 / 14

iOS App

Camius View

Mac Software

VMS, VMS Pro

PC Software

VMS, VMS Pro

Browser Access

Supports

Camera Shape

Dome

Camera Resolution

2K 2880×1620 with 30 fps

Camera Built-in Microphone

Yes

Camera Reset

On-Camera Reset Button

Camera Lens

2.8mm (110 degrees wide view)

Camera Power over Ethernet

Yes

Camera Video Analysis

Yes

Cables Included

N/A
