The Camius 4K 16 Channel NVR with 10 cameras is ideal for home and business use, offering ultra HD 2K video and audio along with advanced features like Smart Motion Detection, Sound Detection, Human and Vehicle Detection, and more. With its high recording bandwidth, it meets the security needs of any business owner. This advanced NVR system can accommodate up to 30TB of internal and external storage, allowing you to store weeks or months of recorded footage without any hidden subscription fees.
Easy Install Plug and Play PoE Camera Security System
The 16 Channel NVR has a 16-port built-in power-over-ethernet interface, making the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.
Advanced 16 Channel NVR
Camius 16 channel NVR, or Network Video Recorder, offers a wide range of features and benefits for surveillance purposes. First and foremost, it allows for connecting and recording up to 16 IP cameras, making it ideal for larger installations or businesses with multiple locations. The NVR provides advanced features such as motion detection with vehicles, pedestrian target selection, intelligent AI functions, email and push notifications, and remote access through mobile devices or web browsers. It also often offers advanced recording and storage options that can help ensure data is kept safe and secure. Additionally, the 16 channel NVR often provides a user-friendly interface that makes it easy for administrators to manage and monitor the surveillance system and review footage when needed. The 16 channel NVR can be a valuable tool for maintaining security and surveillance in various settings.
An easy install plug-n-play 16 Channel NVR PoE camera system is a type of surveillance system that can be quickly and easily set up without the need for any extensive technical knowledge or wiring. This system comes with PoE cameras that connected to the network using Power over Ethernet (PoE) technology, which allows not only power and data but audio and video to be transmitted through a single cable. This eliminates the need for separate power cables and simplifies the installation process. Additionally, Camius NVR camera security system comes with software that can be easily configured to allow users to access and view the cameras remotely, making them an ideal choice for home security or small business surveillance.
Note that if you set up Camius IP cameras password before adding it to the NVR, we recommend resetting the camera using the on-camera reset button. If the camera has no password set, it will play on the NVR in seconds (refer to the ‘State’ in green, which means you added the camera successfully).
High-Performance Outdoor Security Camera
The high-performance outdoor security camera is a top-of-the-line surveillance tool offering advanced security features. Its 2K video resolution (2880 x 1620) with 30 frames per second and advanced 1/2.7” Progressive CMOS Image Sensor ensures crystal clear footage. This camera captures a broad perspective with its wide field of view and 3.6mm lens (91° horizontal, 46° vertical, 110° diagonal).
This outdoor security camera also features an enhanced wide dynamic range and special modes (Corridor and Mirror) for diverse surveillance needs. Its durable white metal enclosure makes it ideal for outdoor use, while Power over Ethernet (PoE) convenience simplifies installation. The high-performance outdoor security camera is a reliable and efficient security solution for various settings.

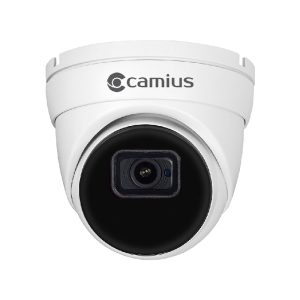

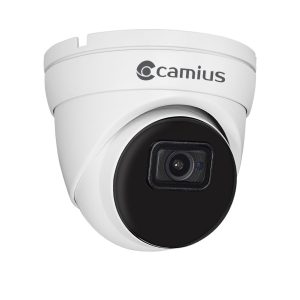

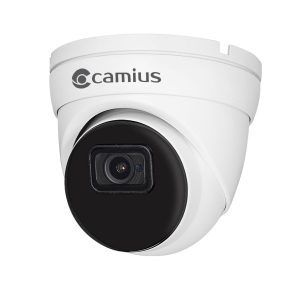

The Powerful 5MP Dome Camera for Enhanced Security
The 5MP dome camera is a top-of-the-line security camera boasts several advanced features to enhance security. It offers superior 2K video resolution (2880 x 1620) with a smooth 30 fps playback, ensuring you can capture every detail in high quality. With its ultra-wide field of view (110° horizontal, 58° vertical, 133° diagonal) and integrated microphone for audio recording and live audio monitoring, you can monitor your surroundings closely.
This camera also boasts a wide dynamic range and versatile modes, including corridor and mirror modes, making it ideal for various environments. Its stylish metal white housing provides a professional look, perfect for stores, offices, and other settings where appearance matters. Overall, the 5MP dome camera is a powerful security tool that can help you protect your property and keep your premises secure.
10 Camera Security System for Home and Business with High Bandwidth & Latest Video and Audio Compression

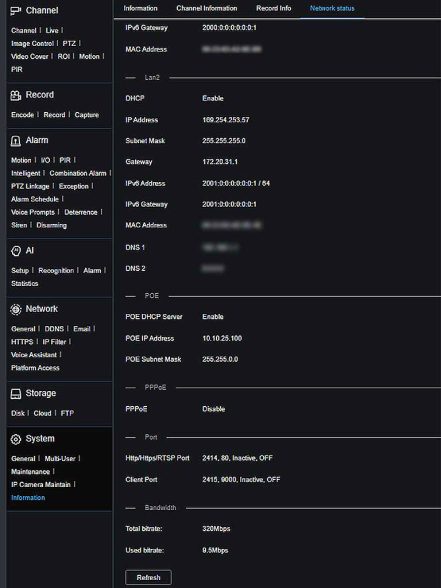

The NVR’s 256Mbps bitrate allows live view and playback videos at Ultra HD resolution. All Camius security systems support H.264 and the latest H.265, H.265+ video and audio compression. It saves up to 50 percent on the recorder’s storage space and improves bandwidth efficiency to maximize your 16 Channel 4K security NVR & internal hard drive storage.
Security System with expandable storage without subscription fees
If you’re a business owner like a retail store or a restaurant looking for a security camera system, you’ll want to ensure enough storage to save your footage. The Camius NVR can hold two internal hard drives, each with a capacity of up to 10 Terabytes. If you need even more storage, the NVR also has an external eSata port you can use. In addition to saving your footage to the cloud with Dropbox or Google Drive, the Camius 16 Channel NVR has a special feature called S.M.A.R.T. that monitors the health of your hard drives. This means you can monitor how your hard drives are doing and take action if needed.
- Follow this guide to add more storage to the NVR
- For the list of compatible hard drives, click here
The NVR camera system comes with a 4 TB hard drive included. To increase internal storage, add a 4TB hard drive to the cart with a note in the order ‘pre-install 4TB HDD” if you would like to receive the NVR with a pre-installed second 4TB hard drive disk.
NVR system with 4K Display Video Output
The Camius 4K 16 Channel NVR has 3 video outputs that allow you to connect a monitor or TV for live viewing. It includes two HDMI video outputs with a video resolution of 4K and 1080P and a VGA output that supports 1080P video (1920×1080). Select the output resolution that matches your monitor during setup to ensure the best resolution. The network video recorder will automatically adjust the output resolution to match the optimal resolution of your monitor at system startup.
In addition, the NVR has two HDMI video outputs with an option to configure the HDMI2 for a Spot monitor.
- You can refer to the provided guidelines for adjusting your monitor’s resolution.
- Follow this how-to guide to configure a Spot monitor for IP cameras
Super HD 5 Megapixels Security Cameras with Audio
Camius PoE cameras record super HD 2K videos, 2.5 times the pixels of an HD 1080p security camera. Instead of 1920 × 1080, over 2,000,000 pixels, this super HD 2K PoE security camera system can record at a pixel ratio of 2880 x 1620. More pixels delivered by the security camera allow you to get more enhanced picture details when you zoom in.
5MP PoE cameras offer color night vision in ambient light conditions. Camius cameras adjust the displayed stream to include color on a video at night. It allows the user to distinguish colors on a subject, like a red vehicle or a blue shirt. Even the moon or starlight is enough to keep the camera in Color Night Mode. In complete darkness, cameras deliver a black-and-white picture. The cameras’ infrared distance is 30 to 100 feet.
The built-in microphone enables audio recording and listen-in capabilities. Its advanced smart motion, sound, and AI features, including human and vehicle statistics reporting, offer additional surveillance capabilities.
Highly customizable image control settings
Camius 2K IP cameras have highly customizable image settings, which you can control directly in the NVR. You can select the best IR settings, including the IR cut mode, IR cut delay, IR LED way, and even the level of IR LED lights (low beam light). In addition, you can also control the camera’s view using the Lens Flip, Angle Flip, selecting Corridor mode, enabling WDR (wide dynamic range), and even more. You can save default settings by clicking on the ‘Default‘ tab.
The camera’s 100ft night vision with color imaging in low-light conditions provides 24/7 protection.
Camius 5MP IP cameras provide a 91 and 110 degree view.
Alarms
You can enable alarm settings using the NVR. Alarms include a recorder’s buzzer sound, sending email alerts, push notifications to the CAMIUS VIEW smartphone camera app, recording, pre-recording, and uploading images to Cloud through the NVR (Dropbox or Google Drive). Note, Voice prompts are in beta.
You can schedule an alarm for each camera and select the following events to trigger it:
- Motion Detection
- Stationary Object or Sound Detection in Intelligent mode
- AI detection includes Human & Vehicle Detection (PD&VD), Cross Counting (CC), Perimeter Intrusion detection (PID), or Line Crossing detection (LCD). You can enable one of the AI functions.
- ‘Exception’ that includes No Space on your Hard Drive Disk, Disk error or failure, Video Loss
Smart Motion & Sound Detection
Camius NVR network video recorder allows motion detection to monitor and record all the activity in your home and business. You can also select your motion target detection that includes not any video motion but Pedestrian, Vehicle, or Pedestrian & Vehicle as your target. Please note motion detection recording and alarm schedule are not enabled by default and need to be turned on by a user.
Camius 2K IP cameras support Sound Detection in Intelligent mode.
Sound detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode. You can set up alarms triggered by Sound detection, and if you click on ‘Intelligent,‘ make sure to enable Sound detection by checking the switch box.
Why Choose Best PoE Camera System with AI Detection
Camus’s latest 2K security cameras offer detection using AI analysis. It goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. You can activate one of the AI detects for precise detection, alarms, and reports. AI Detection will trigger recording, email, or push notifications in addition to video recording in a unique color and tag.
AI Detection includes:
- Human & Vehicle Detection (PD & VD)
- Perimeter Intrusion Detection (PID)
- Line Crossing Detection (LCD)
- Cross Counting (CC)
- More AI functions are in the Beta version
You can enable Human & Vehicle or Perimeter Intrusion Detection in AI mode and then allow push notifications on your mobile app. Make sure to select Schedule and save it.
You can enable alarms in AI mode, including a buzzer sound produced by the NVR. Recording, Post recording, showing a message, sending email, uploading pictures or videos to an FTP folder or Cloud (Dropbox or Google Drive). In addition, on your Camius View app, you can enable push notifications on AI Human and Vehicle Detection.
NVR Software
NVR PoE camera system goes beyond the HDMI monitor and smartphone app. The free NVR software (VMS) can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius DVR or NVR and individual Camius cameras on one screen. The software also displays Up to 128 cameras on the same screen and manages multiple devices from different locations. Click here for the guide to adding the 16 channel NVR camera system to the Camius video management software.
Compatible with Web Browsers
You can access your Camius NVR system using a web browser. For more click here for more information
Camius View App
The Smartphone Security Camera App Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app.
The mobile app is available on iOS and Android App stores and is ready to link to your security cameras. You can use your smartphone security camera App to view and playback any Camius security camera, listen to audio, and control the system entirely, including restarting it remotely.
You can configure and restart your NVR system using your smartphone app.
- 16 Channel NVR with a pre-installed 4TB hard drive (IPVAULT2256PR 4TB HDD)
- (6) 2K PoE bullet cameras (BOLTX536R)
- (4) 2K PoE dome cameras (IRIS528R)
- NVR’s power cord, HDMI cable, Network cable, USB mouse, Installation Guide, Tech support info
Note: this bundle includes only one pre-installed hard drive and no cables. You can order an additional hard drive and Cat5E cables on Camius.com.
Add-ons:
