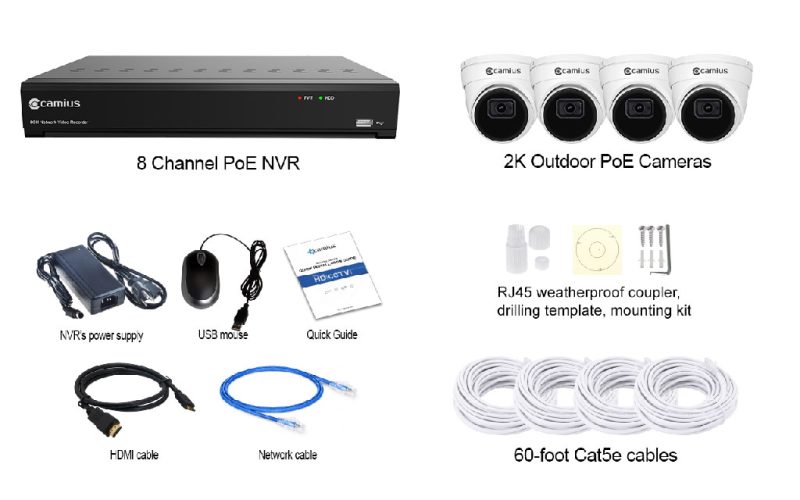

What Comes With This 4 Camera PoE Dome Security System
- IPVAULT1128PR 8 Channel NVR with pre-installed 3 or 4TB hard disk
- 4 x 5MP Dome Security Camera (IRIS528R)
- 4 x 60ft CAT5E cable
- NVR’s power supply with a power cord, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Quick Setup Guide
Resources:
5MP 2K PoE Dome Cameras With Audio and 100 ft Night Vision
The 5MP PoE dome camera system combines super HD video and audio with intelligent detection technologies, including human and vehicle tracking, sound analytics, and cross-counting capabilities for commercial environments.
Plug-and-Play PoE Installation With an 8 Channel NVR
Eliminate complex setup challenges with our Power-over-Ethernet (PoE) dome security camera system. Office camera systems from Camius transform installation from a technical headache to a simple plug-and-play experience. Key advantages include:

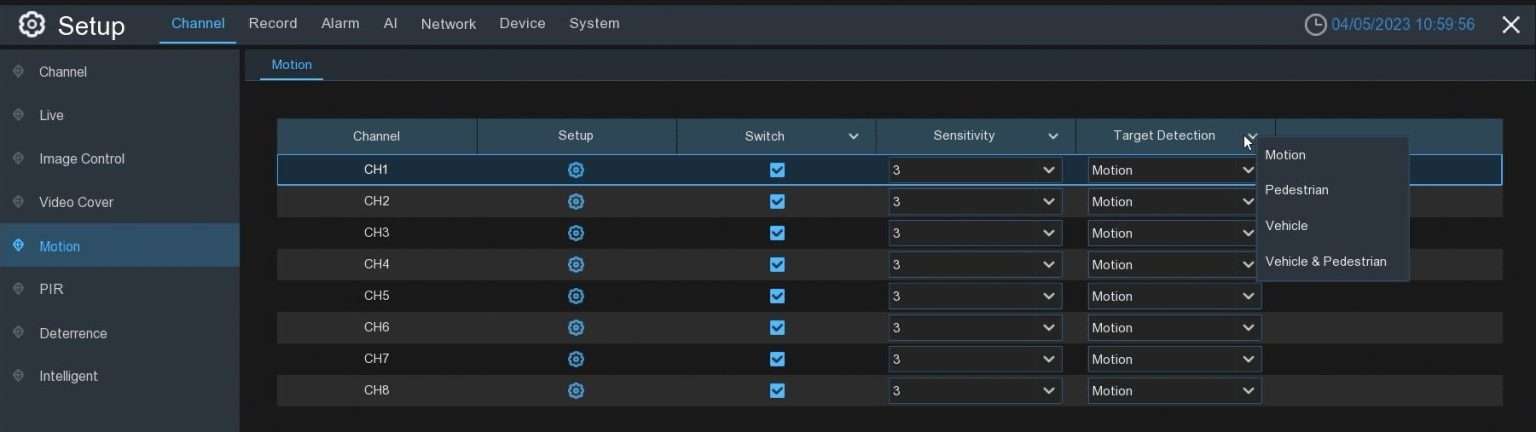

AI Human and Vehicle Detection With Smart Alerts
Camius AI detection identifies human and vehicle activity, helping you focus on important events instead of general motion. The PoE dome camera system with audio also supports perimeter intrusion, line crossing, sound detection, and other analytics. Receive push notifications through Camius View, then review live video or recorded events from your phone, computer, or web browser.
Remote Viewing With the Camius View App and NVR Software
- Free NVR desktop software (Windows and Mac)
- Web browser access
- Camius View mobile app
- Instant push notifications
- Customizable recording schedules
3TB or 4TB Local NVR Storage With No Monthly Fees
Choose a preinstalled 3TB or 4TB hard drive for local video and audio recording without monthly fees. With four cameras recording continuously, the 4TB option stores about 10 days at 8 Mbps per camera, 21 days at 4 Mbps, or 42 days at 2 Mbps. Recording time varies by bitrate, frame rate, scene activity, audio, compression, and recording schedule.
Expand From 4 to 8 PoE Cameras
2K PoE dome camera system supports up to eight 5-megapixel IP cameras, providing unprecedented flexibility for CCTV camera systems for business. Key technical highlights include:
- Support for H.264 and H.265 video compression
- H.265 compression helps reduce storage use compared with less efficient encoding settings. Recording time still depends on bitrate, frame rate, recording schedule, scene activity, and audio.
- The NVR supports up to 128 Mbps total recording bandwidth.

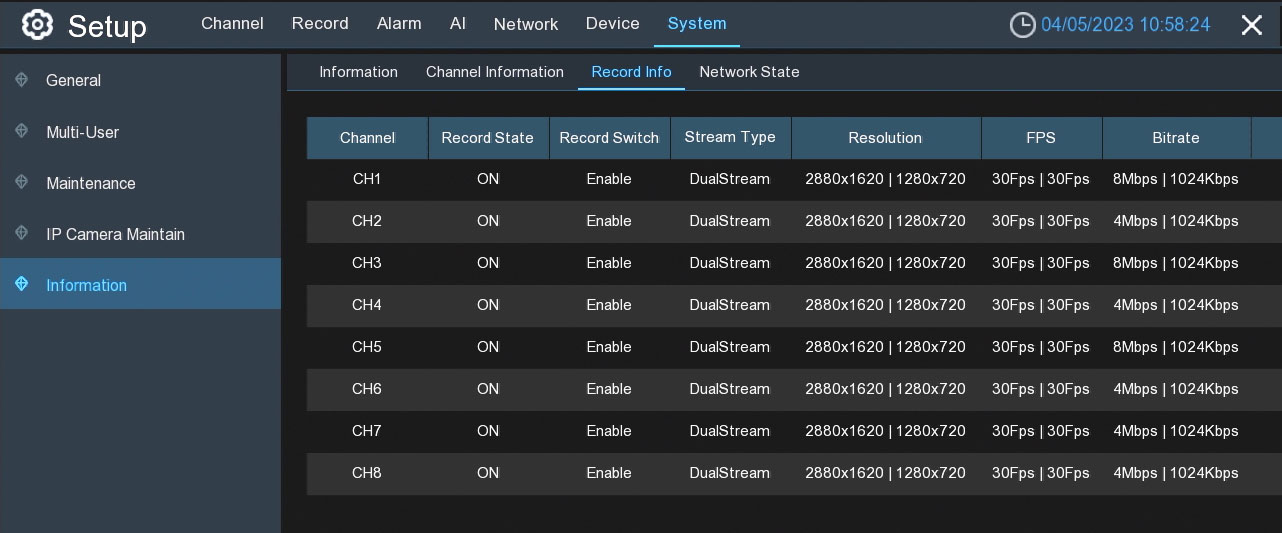

- Full 2K video at 30 frames per second
4 Dome Camera System for Offices, Retail Stores, and Homes
Four wide-angle dome cameras provide practical coverage for offices, retail stores, restaurants, and homes. Monitor entrances, reception areas, sales floors, checkout counters, hallways, stockrooms, garages, and common areas. The discreet dome design, built-in audio, 110-degree viewing angle, and 100 ft night vision support indoor and outdoor monitoring.
4 Camera PoE Dome Security System Specifications
IPVAULT1128PR 8 Channel PoE NVR Specifications
- Model: IPVAULT1128PR
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.

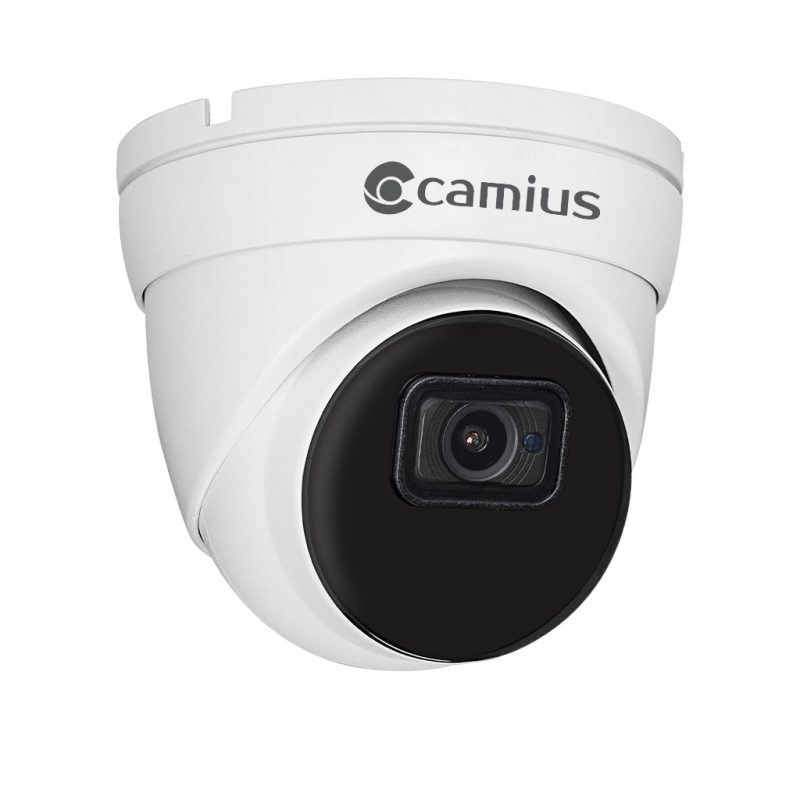

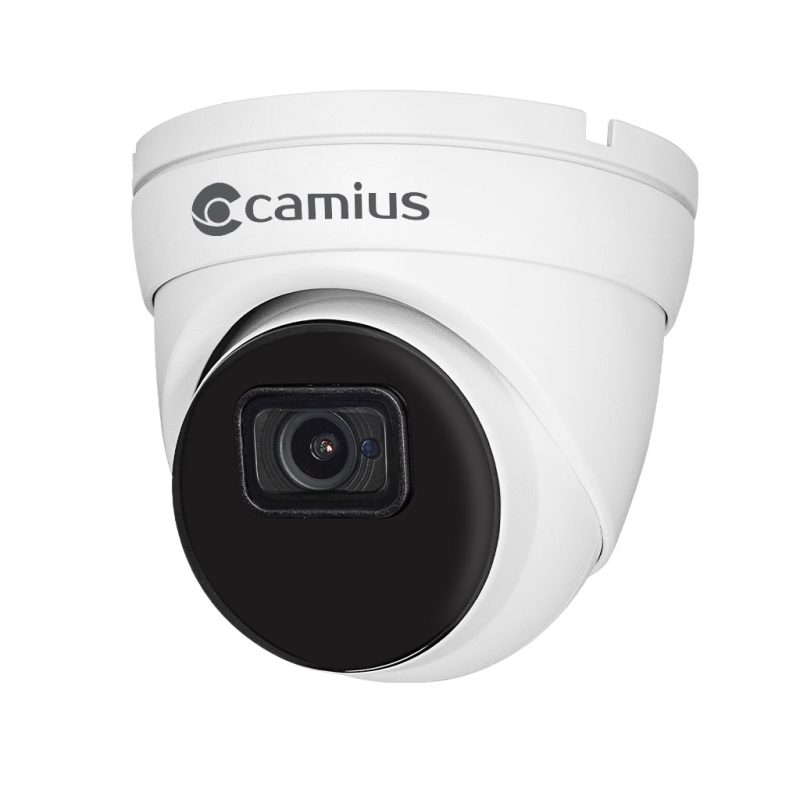

IRIS528R 5MP PoE Dome Camera Specifications
- Camera Model: IRIS528R
- Shape: Dome
- Lens (Field of View): 2.8mm (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
- Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
FAQs About This 4 Camera PoE Dome Security System
What is included with this 4 camera PoE dome security system?
The system includes four 5MP PoE dome cameras with built-in microphones, one 8-channel PoE NVR with your selected 3TB or 4TB hard drive, and four 60 ft Cat5e Ethernet cables. The package also includes an HDMI cable, network cable, USB mouse, NVR power supply, mounting hardware, and setup guides.
Does this dome camera system record audio?
Yes. Each dome camera has a built-in microphone for synchronized video and audio recording. Audio settings and volume are managed through the Camius NVR.
Is this a 4K security camera system?
No. The four included cameras record 5MP 2880 × 1620 video at 30 frames per second, commonly described as 2K. The 8-channel NVR also supports compatible Camius PoE cameras with resolutions up to 4K.
How long does 4TB record video from four cameras?
Camius calculator estimates about 10 days at 8 Mbps per camera, 21 days at 4 Mbps, or 42 days at 2 Mbps during continuous recording. Motion recording and scheduled recording extend retention, while higher bitrates and more activity use storage faster.
Does this security camera system require monthly fees?
No. Local recording to the installed NVR hard drive and remote access through Camius View do not require monthly fees. Optional third-party cloud services follow their own storage plans and terms.
How many cameras does the 8-channel NVR support?
The NVR supports up to eight compatible IP cameras. This kit includes four PoE dome cameras, leaving four PoE ports open for future expansion.
Are Ethernet cables included?
Yes. The package includes four 60 ft Cat5e Ethernet cables, one for each camera. Each cable carries power, video, audio, and network data between the camera and the PoE NVR.
