4K Analog Dome Camera for BNC DVR Systems
The Camius 4K dome security camera connects to analog DVR recorders to deliver ultra high-definition video. This analog dome camera features an IK10 vandal-resistant housing and a 111 degree wide angle view for businesses, retail stores, and homes that need reliable protection. Browse the full lineup of 4K analog CCTV cameras to find other coax-based options for your DVR system.
4K CCTV Dome Camera Features
- This dome camera delivers top-notch 8-megapixel video at a resolution of 3840 x 2160, ensuring exceptional clarity. Engineered to endure outdoor elements, it boasts an IP66 weatherproof rating, guaranteeing water and dust resistance.
- Switching between CVBS, AHD, CVI, and TVI modes is a breeze with the UTC control on the DVR recorder’s display. This flexibility allows easy customization of the camera to suit your specific needs.
- Powered by a 12V DC source, the Camius 4K security camera ensures straightforward installation and usage.
- The maximum video transmission distance for the analog camera is up to 984 feet (300 meters) using a cable with specifications of 5C and 2V.
Wide Angle Analog CCTV Camera
This analog camera is equipped with a 4K high-performance 1/2.7″ image sensor CMOS, delivering high-quality images. More pixels give you more details.
BNC Cam CCTV 4K Dome with 111 Degrees view
The Camius 4K dome analog camera is equipped with a broad 2.8mm fixed lens, providing a generous 111° horizontal, 58.8° vertical, and 134° diagonal field of view. This wide coverage simplifies capturing expansive areas to enhance property security.
4K CCTV Dome Camera Video Resolution
Camius dome CCTV camera records in true 4K resolution, giving you four times more detail than a standard 1080p HD camera. A regular 1080p camera captures about 2 million pixels, while this 8MP dome camera delivers over 8 million pixels at 3840 × 2160 resolution. The higher pixel count means clearer images and sharper details, especially when you zoom in on the video.
For example, paired with a Camius 4K 8 channel DVR or 16 channel DVR running 4K video at 10 frames per second, the dome camera delivers clear, detailed video for full property surveillance.
Recommended DVRs for Camius Analog Dome Surveillance 4K Camera

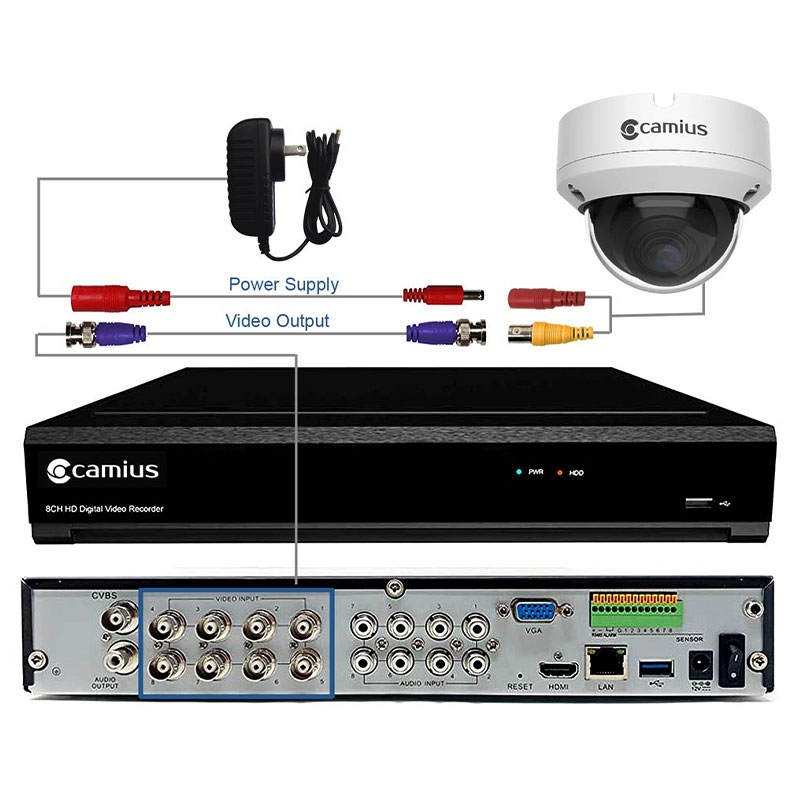

Camius 4K analog camera supports CVBS (960H), AHD, HD TVI, and HD CVI modes. It is recommended to be installed with the Camius Trivault4K series DVR for full functionality, which includes 4K live view, recording, smart motion, and AI detection.
Shop Camius 4K security DVR recorders
4K CCTV Dome Camera Specifications:
- Order model # FD4KATC2
- Camera Type: Analog (BNC connection for DVR systems)
- Video Resolution: 3840 × 2160 (4K Ultra HD)
- Lens: Fixed 2.8mm
- Field of View: 111° horizontal, 58.8° vertical, and 134° diagonal
- Minimum Object Distance: 5.9 ft (1.8 m)
- Microphone: No
- Vandal Resistance: Yes, IK10 rated
- Power consumption: ≤ 4W (with IR on), ≤ 1W (without IR on)
- Dimensions: Ø4.5 x 3.6” (Ø115 x 91.6mm)
- Net weight is approx. 16.9oz (450g)
- Operating temperature: -22°F ~ 131°F (-30°C ~ 55°C)
- Storage Temperature: -22°F to 140°F (-30°C to 60°C)
Contents:
- 4K analog dome camera
- mounting kit
- mounting template
- Installation guide
FAQs About Analog Dome Camera
Are dome cameras any good?
Yes, dome cameras are a strong choice for many security setups. Camius analog dome cameras offer wide angle coverage, vandal-resistant housings, and 4K resolution for clear video. They blend easily into both business and home environments while delivering reliable protection.
What is an analog CCTV camera?
An analog CCTV camera sends video through a coaxial BNC cable to a DVR. Camius analog CCTV cameras include advanced 4K dome and bullet models that work with Camius DVR recorders, providing ultra HD video while supporting existing coaxial cabling for easy upgrades.
Which is better, an IP or an analog CCTV camera?
Both work well, the right choice depends on your existing wiring. Camius IP cameras use PoE, power over ethernet, for a simple plug and play setup and more flexibility in large systems. Camius analog CCTV cameras connect to a DVR over coax and suit upgrading an older wired system to 4K without rewiring. Shoppers who want dome cameras already paired with a matching recorder can also look at the 4k dome security camera system.
