The 8 Channel NVR network video recorder with 8 Power over Ethernet ports is a reliable easy-setup solution that brings out the best in Camius IP cameras. The 4K UHD output and Gigabit WAN port deliver unmatched quality and bandwidth, while the Camius View App and advanced VMS software give you the ability to live view, playback, and control your PoE NVR system remotely and securely.
The high bandwidth of the NVR network video recorder
More bandwidth for transmission and recording means higher quality. Camius offers some of the highest bitrate levels in an NVR or Network Video Recorder, The available bandwidth. Continuous recording for security cameras from Camius can utilize up to 128Mbps recording bandwidth on the Network Video Recorder to provide each channel with enough bandwidth to stream, record, process, and analyze in 4K quality.
8 channels
This 8 Channel NVR supports up to 8 IP PoE surveillance cameras. Built-in 8 Ports LAN (Power-Over-Ethernet) interface allows plug-n-play Camius IP cameras installation. Other manufacturers could be installed using an external PoE network switch.
IP Video Surveillance Solutions with Plug-N-Play Installation
Camius PoE NVR network video recorder works best with PoE IP cameras by Camius. Camius Po NVR system is optimized for Camius PoE IP cameras. A single Ethernet cable is used to deliver power, Video, Audio streams, and Infrared, in addition to bidirectional commands and alerts. Using Power Over Ethernet with IP cameras and NVRs helps centralize power for the entire security system making it more reliable. Cable distance can be up to 300ft, and cable type can be CAT5 and up.
Compression
Video compression is an important factor when choosing a security system. It determines video clarity, hard disk usage, and network bandwidth. Camius security systems support H.265, considered the best video compression standard to optimize all three areas. The video quality of an H.265 stream is higher than that of an H.264 with the same settings. Using H.265 reduces the file size, which means less bandwidth is required to transfer a higher-quality stream. The reduced file size means a longer recording duration on the hard disk. In addition, you can control audio compression as well (applicable to Camius IP cameras with audio capabilities).
Compatible IP Security Cameras
- Camius IP cameras up to 8-Megapixels
- Other manufacturers’ IP cameras’ functionality may be limited
- For plug-n-play installation, Camius PoE 8 Channel NVR must be installed with only Camius PoE IP cameras
Motion, Sound detection
Video Motion Detection saves valuable time while searching for an event or incident in playback. It allows users to set detection areas under setup for IP cameras and NVR recorders; a schedule is available for detection hours and days. Video motion detection triggers recording and other actions on your Camius 8 Channel NVR. You can set motion recording as the only recording method to save disk space or activate motion recording along with normal 24/7 recording to record everything while having easy access to video footage triggered by motion. Sound Detection is triggered when a sudden loud noise occurs near the camera. It alerts the user and records in Intelligent mode
PIR detection
You can control Passive Infrared or PIR detection and alerts triggered by it, such as turning on a buzzer, commencing recording, post-recording, displaying a message, sending an email, uploading a picture or video to an FTP folder or a cloud (Dropbox or Google Drive). You can select hours and days of the week for the PIR sensor to work in the PIR schedule section and areas where PIR motion should trigger an alarm. Users can enable push notifications for PIR triggering on their smartphones.
Intelligent & AI Detection
Camius smart security camera systems offer Intelligent Detection using A.I. analysis. This goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. Intelligent Detection will trigger Push notifications in addition to video recording in a special color and tag. Intelligent Detection includes Perimeter Intrusion, Line Crossing, Stationary objects, Cross Counting, Human Detection & Vehicle Detection.
Time-Lapse Recording
The NVR network video recorder features Time-Lapse recording allowing to the storage of an image every set duration that, when combined into a video file, will produce a Time-Lapse video. Time-Lapse can be used for various purposes like construction, nature, or seasonal change. This feature is controlled using capture images and capture schedules.
Alarms, Email Notifications
Security camera alerts on a smartphone can be customized on the Camius View app. Types of notifications include motion detection, hard disk status, and Intelligent detection. Schedules are available for detection and delivery on the NVR, while the Push Notification section on the Camius View app allows the user to enable or disable specific alerts.
Storage
Camius PoE NVR 8 Channel fits 1 internal SATA hard drive up to 10 Terabyte capacity. Camius NVRs offer a dedicated section with details about the health of installed hard drives. The process is named S.M.A.R.T., which is short for Self-Monitoring, Analysis, and Reporting Technology. The advantage of this technology running in the background and on-demand is that the user can stay updated on the hard drive’s health. For an additional backup, you can add a NAS to your recorder.
Cloud
You can upload pictures and video footage to your Dropbox or Google Drive account, which a selected detection event can trigger.

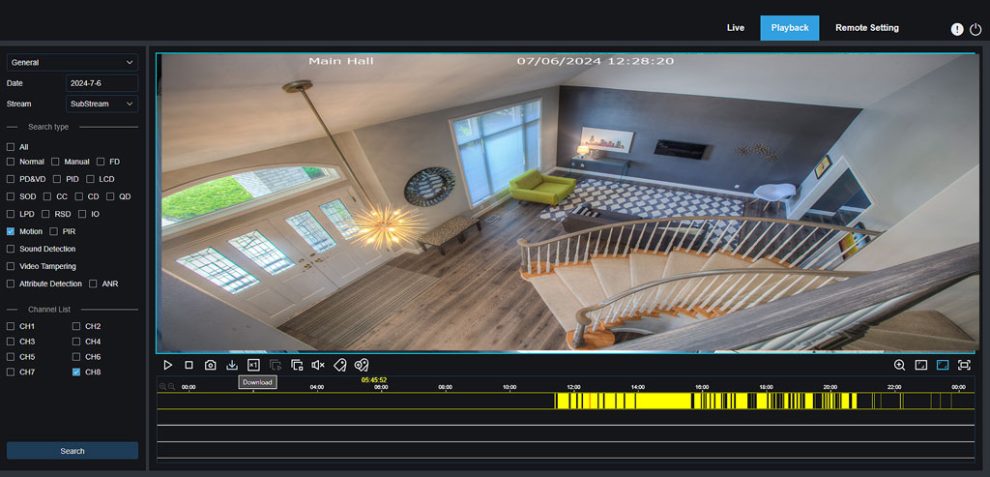

Live View & Playback
Camius PoE Security NVR can display and record ultra HD 4K videos at 45fps (frames per second), 4MP with 90 fps, and full 1080p at 180fps. You can also view live IP cameras in the 1/4/6/9 display split and select auto sequence mode.
Commercial Video Surveillance Software
Camius security systems go beyond the HDMI monitor and smartphone app. The free NVR software can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage IP cameras with access to device settings. This software is great for multiple installations as it combines cameras connected to a Camius NVR and individual Camius cameras on one screen. The software can display Up to 128 cameras on the same screen and manage multiple devices from different locations.
IP Security System with Camius View App

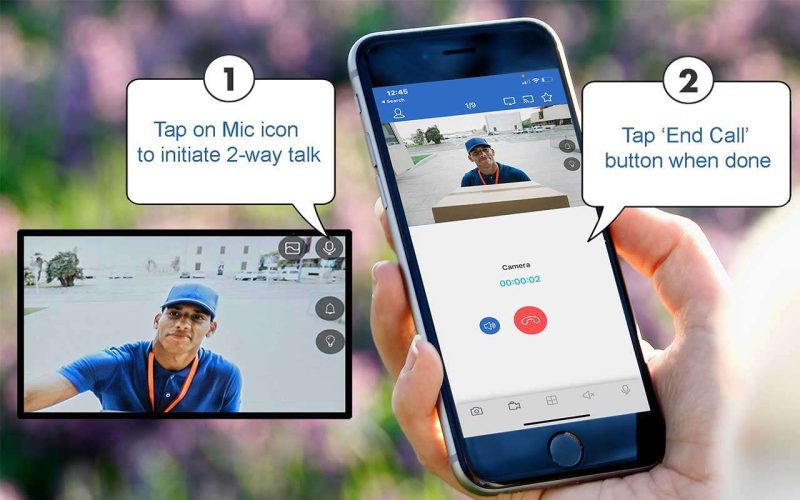

The Smartphone App [Camius View] offers full access to your NVR network video recorder from any location. Like any iPhone, iPad, and Android security camera app, it is available on iOS and Android App stores and is ready to link to your security cameras. You can use your smartphone security camera App to view and playback any Camius security camera; 2-way audio is available for supported cameras, allowing the user to press, talk, and listen to audio. You can remotely activate the spotlight and siren for supported cameras to deter threats.
Network protocols, Ports of the CCTV Security Surveillance NVR
- 1 x VGA, 1 x HDMI display video output up to 4K (1024×768,1280×720,1280×1024,1440×900,1920×1080,2560×1440(2K), 3840×160(4K))
- 1 Wired Audio Output
- DHCP, PPPoE, DDNS, UPnP, P2P, Static IP, RTSP, FTP network protocols
- WAN (1 RJ45 100/1000 Base-T)
- 1 x 2.0 USB (front), 1 x 2.0 USB (rear) for a USB mouse, software upgrade, backup
General
- 48V power adaptor included (8 Built-in PoE ports, a single port up to 802.3af (we recommend using Camius NVR’s original power supply for full functionality and safety)
- Dimensions 12 x 8.3 x 2” / 300 x 227 x 53mm
- Order model # IPVault1128PR
