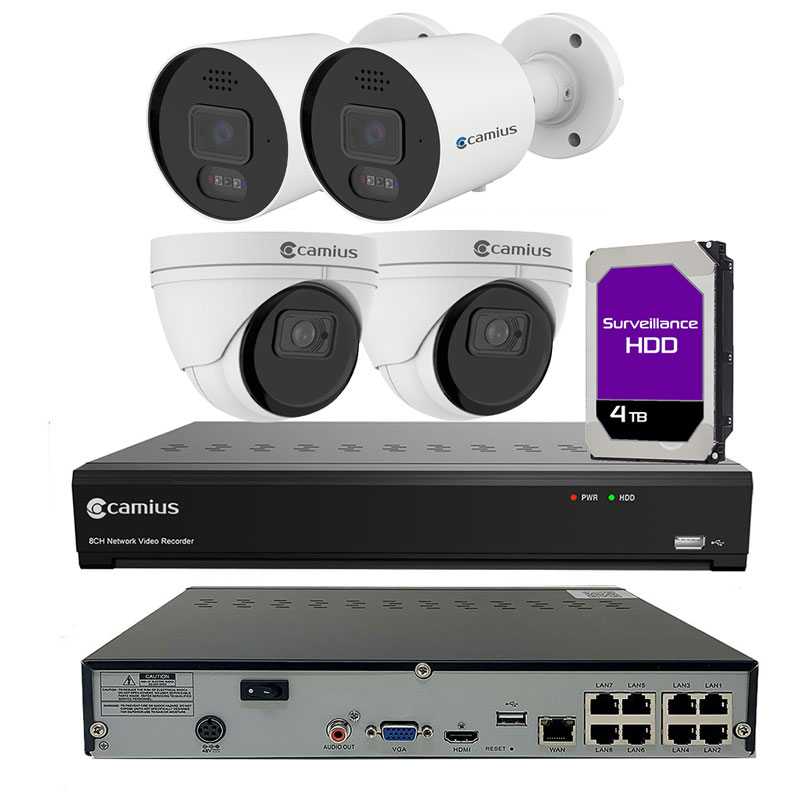

4 Camera PoE 4K Spotlight and Dome System
This PoE camera system includes four wired 4K camera views with two camera styles in one package. Place the spotlight bullet cameras near entrances, driveways, loading areas, parking spaces, or exterior walls. Place the compact dome cameras near covered entrances, offices, retail areas, hallways, or indoors.
The combination gives you active deterrence at higher-risk outdoor locations and low-profile coverage in areas where a dome housing fits better. Each camera connects directly to the NVR through one Ethernet cable.
One Ethernet Cable for Power, Video, and Audio
Each camera connects to a PoE port on the NVR with one Ethernet cable. The cable supplies camera power and carries video, audio, and control data. Camius cameras connected directly to the NVR support plug-and-play detection. Four 60-foot Cat5E Ethernet cables ship with the package.
The wired connection keeps camera video separate from home Wi-Fi traffic and supplies steady power for continuous recording. Protect outdoor Ethernet connections from moisture and use solid-copper network cable for longer custom runs with MB100 weatherproof junction box.
Two 4K Spotlight Cameras with Two-Way Audio and Siren
The 4K PoE Security Camera with Siren, Lights, 2 Way Audio, record 8MP video at up to 30 frames per second. Each spotlight camera includes a built-in high quality microphone, speaker, white lights, red and blue warning lights, and a siren.
Use two-way audio to speak with visitors or address activity near an entrance using the Camius view app. Detection schedules control when supported lights and siren actions respond to motion, people, vehicles, sound, or selected AI events.
Two 4K PoE Dome Cameras for Wide-Angle Coverage
The two dome cameras provide compact coverage for ceilings, walls, covered entrances, hallways, offices, shops, and indoor rooms. Their wide-angle lenses cover broad scenes while the built-in microphones record audio with video.
Each 4K PoE dome camera uses a metal weather-rated housing and a single PoE Ethernet connection. AI person and vehicle detection helps reduce alerts from unrelated movement when properly configured.

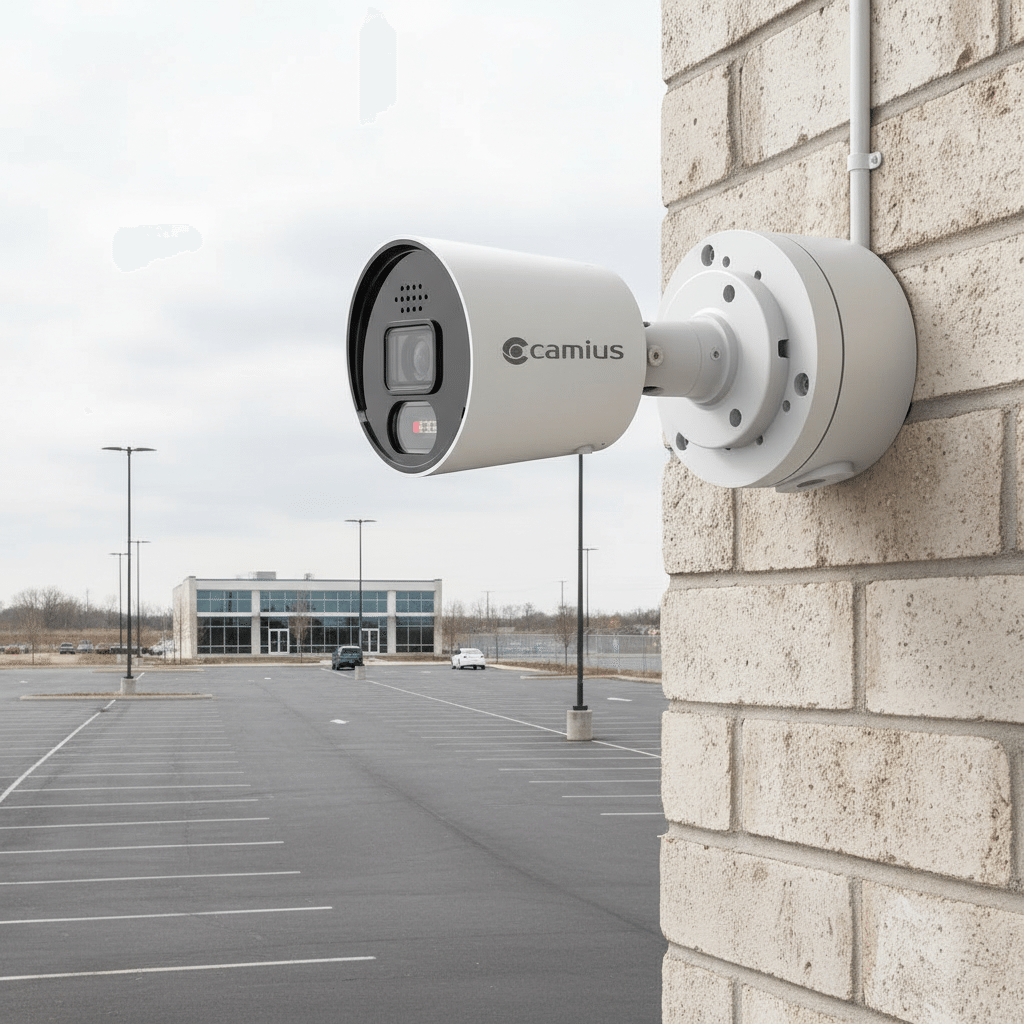

Deterrence: 4K Outdoor Cameras with Lights and Siren
Camius spotlight cameras are not just about recording; they’re about prevention. With dynamic deterrence features like bright lights and sirens, they actively discourage intruders. Enjoy 4K video quality, precision detection for motion and sound, ensuring your property is protected day and night. Click here for learn on deterrence and siren settings
Camius 4K Surveillance Camera: Enhanced 2-Way Audio and Clarity
The Camius 4K PoE Spotlight Camera delivers exceptional 4K resolution (3840 x 2160) at 30fps. It features bright lights and a loud alarm to deter intruders, and a built-in mic and speaker. Security cameras with two-way audio for home and business allow direct communication with visitors using the smartphone app.
8 Channel PoE NVR with 4TB Local Storage
The included 8 channel NVR records the four supplied cameras and leaves four channels open for later expansion. Its 128 Mbps recording bandwidth supports high-resolution video and audio from compatible Camius PoE IP cameras.
The preinstalled 4TB hard drive stores footage locally. Recording options include continuous recording, scheduled recording, motion recording, and supported AI event recording.
Automatic overwrite replaces the oldest recordings after the hard drive reaches its storage limit. Local NVR recording does not require a monthly cloud storage plan. Internet service is required for remote access, push notifications, email alerts, and optional cloud uploads.
AI Person, Vehicle, Motion, and Sound Detection
The cameras and NVR support event detection for people, vehicles, motion, sound, line crossing, and selected object events. Set detection areas, sensitivity, schedules, recording actions, push alerts, lights, and siren responses for each camera. Event search tools help locate recorded activity without reviewing a full day of continuous video.
Remote Viewing from Phone, Computer, and Web Browser
Connect the NVR to a router for remote access through the Camius View app. View live cameras, review recordings, and receive supported alerts from an iPhone, iPad, or Android device.
VMS Pro supports desktop viewing on Windows and Mac computers. Supported web browsers provide another option for live video, playback, and recorder settings.
The system also records without internet service. A connected monitor and USB mouse provide local live viewing, playback, backup, and configuration.

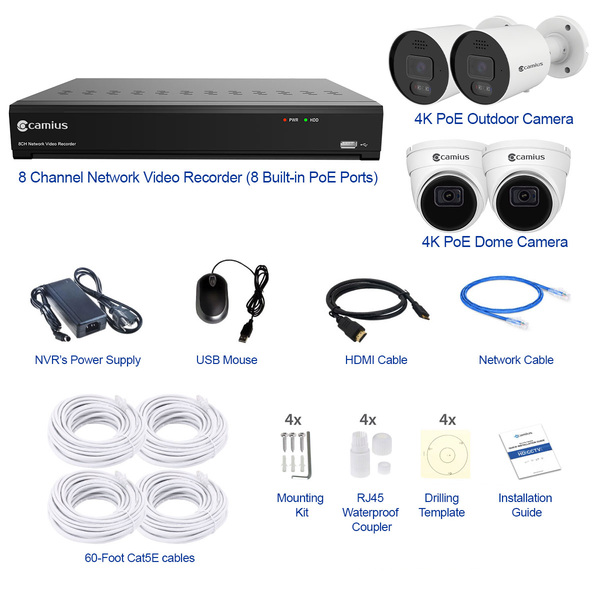

What Is Included with This 4 Camera PoE 4K System?
- One IPVAULT1128PR 8 channel PoE NVR with a preinstalled 4TB hard drive
- Two SPOT828A-RB 4K spotlight bullet cameras with microphones, speakers, lights, and sirens
- Two IRIS8PRO 4K PoE dome cameras with built-in microphones
- Four 60ft CAT5E cables
- NVR power supply, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Quick Setup Guide
Who Should Buy This Mixed 4K PoE Camera System?
This package fits homes and small businesses needing four camera locations now with space for four future cameras.
- Use the spotlight cameras where visible deterrence, two-way audio, and siren response matter.
- Use the dome cameras where a compact housing and wide-angle audio recording fit the location better.
The four open NVR channels support later coverage for another entrance, room, parking area, warehouse section, or building side. For different camera combinations check Camius 4 camera PoE NVR kits collection.
8 Channel PoE NVR specs
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
SPOT828A-RB 4K PoE Outdoor Camera Specifications
General Information:
- Model: SPOT828A-RB
- Camera Type: IP (NTSC/PAL)
- Camera Shape: Bullet
- Ingress Protection: IP67 (Dust and Waterproof)
- Operating Temperature: -31°F to 140°F (-35°C to 60°C), Humidity: ≤90% RH
- Power Supply: Power-over-Ethernet (IEEE802.3af) / DC12V (PoE switch, PoE injector, or power adapter not included)
- Weight, Dimensions: Approx. 14oz (397g) / Φ 5.96 x 2.81″ (151.3 x 71.4 mm)
Video Specifications:
- Resolution:
- MainStream: 8MP (3840 x 2160) @ 30fps (NTSC), 25fps (PAL)
- SubStream: 720P (1280 x 720) @30fps
- MobileStream: VGA (640 x 480) @ 30fps
- Image Sensor: 1/2.8” Progressive CMOS
- Lens (Field of View): 2.8mm (Horizontal: 106°, Vertical: 56°, Diagonal: 126°)
- Night Vision: 82ft (25m) with IR
- Video Compression: H.264, H.265, H.264+, H.265+
- Bitrate: 256Kbps ~ 16Mbps
- Modes: Predefined or user-defined
- Bitrate Control: CBR or VBR
- Wide Dynamic Range (WDR): Yes
- Image Control Settings:
- IR-CUT Mode: Full Color Mode / Day & Night Mode / Smart Illumination
- IR Cut Delay, IR-LED: One IR LED
- Angle Adjustment: Yes
- Backlight, White Balance, Shutter: Electronic Shutter Speed (1/5 ~ 1/20000s)
- 3D Noise Reduction: Yes
Audio Specifications:
- Audio Compression: G.711A/G.711U
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- Siren: Yes
AI Features:
- AI Detection:
- Pedestrian & Vehicle Detection
- Perimeter Intrusion Detection
- Line Crossing Detection
- Object Detection
- Cross Counting
- Rare Sound
- Motion and Sound Detection:
- Motion Detection: Yes (Motion/Pedestrian/Vehicle)
- Sound Detection: Yes
- Alarm Types:
- Motion, Sound, AI Detection
- Post Recording: 5 to 30 sec or OFF
- Sending Email, Picture Upload to FTP, Cloud (Dropbox or Google Drive with Camius NVR/DVR), Recording
- Push Notifications:
- Notifications for Storage Error (with micro SD card installed)
- Motion Detection
- Intelligent Detection (recommended with Camius Network Video Recorder)
- Deterrence:
- White Light, Warning Light (Red and Blue), Light Warning and Strobe Mode (select events triggering it and customize schedule)
- Siren: Triggered by selected events with customizable schedule
Network and Storage:
- Network Protocols:
- TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPV6, Onvif Profile S/G/T
- Email Configuration: 3 receivers, Encryption Mode (OFF, SSL, TLS or Automatic)
- On-Board Storage:
- Micro SD Slot: Supports capacity up to 256GB (SD card not included)
- Overwrite Mode: OFF or AUTO, with the option to format the disk
- NOTE: It is recommended to use Camius IP cameras with a Camius IPvault NVR or Hybrid Trivault DVR (XVR) for installation and recording. Avoid using the micro SD card for recording when the IP camera is set to record to the NVR.
- Cloud Storage: Works with Dropbox and Google Drive (with Camius NVR or DVR)
- Record to Camius NVR/DVR: Yes
User Management:
- Admin + 6 Users: Yes
Access:
- PC/Mac Compatible Software (VMS Pro): Yes
- Web-Browser, iOS & Android App: Camius View App
- Web Browser Viewer: Google Chrome V.57 above, Internet Explorer 10/11, Safari V12.1 above, Mozilla Firefox V.52 above, Edge V.79 above
Included in the Box:
- Camera with mounting kit, RJ45 waterproof coupler, mounting template, and installation guide
IRIS8PRO 4K Dome IP Camera Specifications
| Key specifications | Description |
|---|---|
| Video and imaging | 8MP resolution with 3840 x 2160 output 1/2.8 inch progressive CMOS image sensor Full 4K video recording at up to 30 frames per second Up to 16 Mbps adjustable video bitrate Triple stream support for main, sub, and mobile viewing |
| Low light and night performance | Color video in low light down to 0.009 lux with F1.6 aperture Black and white night vision using infrared LEDs Infrared illumination distance up to 98 feet or 30 meters Automatic day and night switching using IR cut filter |
| Lens and field of view | Fixed 2.8 mm lens Wide viewing angle with 105° horizontal, vertical 56° and diagonal 126° coverage Designed for close range and wide area monitoring |
| Smart detection and analytics | AI based detection for people and vehicles Face recognition and license plate detection Line crossing and perimeter intrusion detection Object removal detection and region based alerts Heat map, crowd density, and queue length analytics Rare sound detection for abnormal audio events |
| Audio and local storage | Built in microphone for audio recording MicroSD card slot supporting cards up to 256 GB Local edge recording supported |
| Network and compatibility | Single cable power and data using PoE IEEE 802.3af RJ45 Ethernet connection at 10 or 100 Mbps Video compression using H.265 or H.264 ONVIF Profiles S, G, T, and M supported Compatible with Camius PoE NVRs and hybrid DVRs |
| Environmental and build | Metal housing with vandal resistant dome design IP67 rated for outdoor and indoor installation Operating temperature range from minus 35 Fahrenheit to 140 Fahrenheit Designed for commercial and professional use |
| Power and physical | Power input via PoE or 12V DC Maximum power draw under 6.1 watts using PoE Compact mini dome form factor Dimensions 3.94 x 3.94 x 3.23 inches / 100 x 100 x 82 mm Weight approximately 14.6oz / 415 grams |
4 Camera PoE 4K System FAQs
How many cameras are included with this system?
Four 4K PoE cameras are included. The package contains two spotlight bullet cameras and two dome cameras along with a 128Mbps 8 channel NVR and preinstalled local storage,
How many cameras does the NVR support?
The 8 channel NVR supports up to eight compatible IP cameras. Four channels remain open after connecting the included cameras.
Does this system include a hard drive?
Yes. The package includes a preinstalled 4TB hard drive for local recording.
Does the system support continuous recording?
Yes. The NVR supports 24/7 continuous recording, scheduled recording, motion recording, and supported AI event recording.
Do all four cameras support two-way audio?
No. The two spotlight cameras include microphones and speakers for two-way audio. The dome cameras include microphones for audio liste-in and recording.
Does local recording require a monthly fee?
No required monthly storage plan applies to local NVR recording. Optional third-party cloud services follow separate terms.
Does the system work without internet service?
Yes. Local recording, monitor viewing, playback, and backup work without internet service. Remote viewing and online alerts require an internet connection.
Are Ethernet cables included?
Yes. Four 60ft Cat5E Ethernet cables ship with the package.
Is the system expandable?
Yes. Four unused NVR channels support up to four additional compatible IP cameras.
