High-Quality 2K PoE Security Surveillance Cameras with 4K 16 Channel NVR
High-Quality 2K PoE Security Surveillance Cameras with 4K 16 Channel NVR

High-Quality 2K PoE Security Surveillance Cameras with 4K 16 Channel NVR


Discover top-tier security with the Camius 8 Camera Security System. Offering superb HD 2K video and audio quality, plus advanced features like sound, human, and vehicle detection, it ensures thorough surveillance for your business. With user-friendly analytics, remote access via professional software and smartphones, and PoE convenience, these cameras provide unmatched peace of mind. Plus, the system includes a 16-channel NVR recorder with high bandwidth (256 or 320 Mbps) and ample hard drive storage for your footage.

The Camius 4K 16 Channel NVR with 8 wired security surveillance cameras is a top-notch surveillance solution for home and business. With super HD 2K video and audio, this security system offers advanced AI features like Sound Detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, and Cross Counting Detection. It provides analytics and reports to give you a complete security picture. With a high recording bandwidth, this NVR can meet the needs of any business owner. You can store up to 42 terabytes of footage internally or externally for weeks or months of recording.

Advanced 16 Channel NVR (Network Video Recorders)

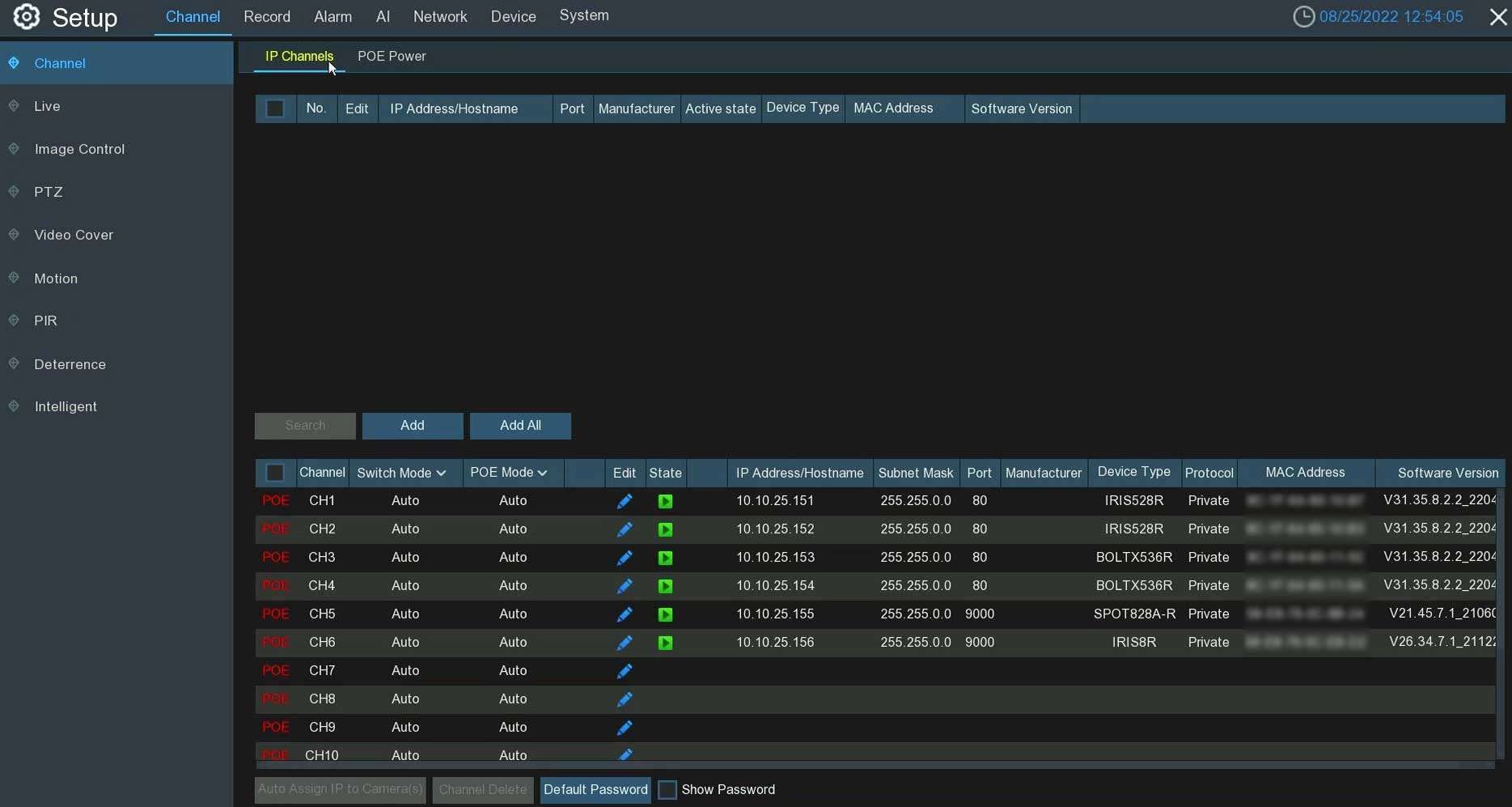

The 16 Channel NVR has a 16-port built-in power-over-ethernet interface, making the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.

The IPVAULT2320PR, a 16 Channel NVR, offers 320 Mbps bandwidth with its capabilities to process not only 8 but 12 megapixels cameras as well.

IPVAULT2320PR e1718084165458

The IPVAULT2256PR, a 16 Channel NVR, delivers 256 Mbps bandwidth for 4K video processing

Advanced 4K 16 Camera NVR with 16 PoE Ports, 2 SATA HDD, e-SATA (only recorder)

Camius 16 Channel NVR recorders are equipped with a built-in 16-port Power-over-Ethernet (PoE) interface, significantly simplifying and expediting the installation process of surveillance cameras. This advanced feature allows both power and data transmission through a single cable for each camera, reducing the need for extensive wiring and ensuring a more streamlined setup. Additionally, the Network Video Recorder (NVR) automatically assigns a unique IP address to each connected Camius IP camera. This auto-configuration capability removes the need for users to manually configure each camera, making the system user-friendly and efficient even for those with limited technical expertise. The combination of these features ensures a hassle-free installation and operation, providing robust security coverage with minimal effort.

IPVAULT2320PR and 16 2K cameras connection diagramm 1024

Outdoor Security Cameras

Camius’ 5MP PoE camera captures 2K video at 2880×1620 resolution and 30fps with a 1/2.7” Progressive CMOS Image Sensor. It features a 3.6mm lens, offering a 91° horizontal, 46° vertical, and 110° diagonal field of view, built-in microphone, and 100ft night vision for low-light color images. Its durable white metal enclosure is perfect for outdoor use in harsh weather, making it ideal for high-quality surveillance.

BOLTX536R 1024 2
BOLTX536R 1024 1
BOLTX536R 1024 3

Dome Security Camera

The ultimate solution for high-quality surveillance. This dome security camera delivers 2K video resolution (2880×1620) at 30fps. Its 2.8mm super wide-angle lens provides a 110° view, ensuring no detail is missed. Equipped with a built-in microphone for audio recording, the 2K Dome Camera (IRIS528R) offers superior image and audio quality, making it perfect for monitoring entrances, lobbies, hallways, and retail spaces.

PoE Dome 5MP Camera with Super Wide View, Audio, AI Detection
4K PoE Dome Camera with Audio, Human, Vehicle Detection
Camius PoE Dome 5MP Camera with Super Wide View, Audio, AI Detection

The Advanced Compression and Encoding Technologies of the Camius NVR Security System

The Camius NVR security system incorporates the latest audio and video compression and encoding technologies, including H.264, H.265, and H.265+, to optimize performance. With a 256Mbps / 320mbps bitrate, the NVR allows for live viewing and playback of videos in Ultra HD resolution. These advanced compression and encoding standards save up to 50 percent on storage space, enhancing bandwidth efficiency and maximizing the utilization of your 16 Channel 4K security NVR and internal hard drive storage. This ensures that you can store more footage without compromising on video quality or performance.

4K 16 Channel Surveillance NVR with the Highest Bandwidth – 320 Mbps

The Surveillance NVR from Camius is a commercial-grade security camera system, supporting 4K capabilities and high recording bandwidth, providing smooth and uninterrupted recording for businesses of all sizes. It supports 320 Mbps (megabits per second) of recording bandwidth, accommodating stunning not only 2K but 4K resolution footage for all connected cameras. The advanced network video recorder supports both internal and external hard drives for extended recording capacities, making it an ideal choice for business surveillance.

IPVAULT2320PR SPOT82A RB network info bandwidth web
IPVAULT2320PR: Web Browser Menu
IPVAULT2256PR: HDMI User Interface

Secure Storage : Expandable 24/7 Recording with the Camius NVR

As a business owner, particularly in industries like retail, restaurant, etc. securing your premises with a comprehensive camera system is paramount. Ensuring ample storage capacity for your footage is essential. With the Camius NVR, you have the flexibility of dual internal hard drives, each boasting up to 14 Terabytes of storage. Should your storage needs exceed this capacity, the NVR also features an external e-Sata port for expanded storage options.

3 sata hard drives 1000 1000 e1701314268539

The NVR camera system is available with either one or two hard drive disks included. Should you opt for a system with a single hard drive, you have the option to expand your internal storage by adding a second 4TB or 8TB hard drive to your cart. Simply include a note in your order requesting the pre-installation of the second hard drive disk.

Camius NVR ensures around-the-clock recording, providing continuous surveillance and peace of mind for your property.

Camius NVR ensures around-the-clock recording, providing continuous surveillance and peace of mind for your property. Its default Normal mode guarantees uninterrupted 24/7 recording, capturing every moment seamlessly, day or night. Additionally, you have the flexibility to schedule motion detection recording, optimizing storage and ensuring that relevant events are prioritized. Equipped with advanced technology, Camius NVR delivers high-quality footage, even in challenging lighting conditions, ensuring that no detail goes unnoticed. Whether for home or business security, Camius NVR’s reliable recording options empower you to tailor your surveillance to your specific needs, giving you the confidence to monitor your property anytime, anywhere.

2320PR SPOT828A RB Record Record Schedule

NVR system with Dual HDMI Video outputs for a Primary and Secondary (Spot) Monitor

The Camius 4K 16 Channel NVR features three video outputs for real-time viewing. It includes two HDMI outputs—one supporting 4K for the main monitor and another supporting 1080P for a secondary monitor (Spot or Call monitor). Additionally, it has a VGA output supporting 1080P resolution. During setup, choose the resolution that matches your monitor for the best display. The NVR will automatically adjust the output resolution to match your monitor at startup.


16 Channel IP Camera System with Audio

Camius PoE cameras are capable of recording super HD 2K videos, which contain 2.5 times more pixels than an HD 1080p security camera. In contrast to the 1920 × 1080 resolution, which has just over 2,000,000 pixels, this PoE security camera system can record at 2880 x 1620 pixels. The additional pixels the security camera captures provide more detailed images when zoomed in.

Control video ad audio stream of your cameras (HDMI menu)

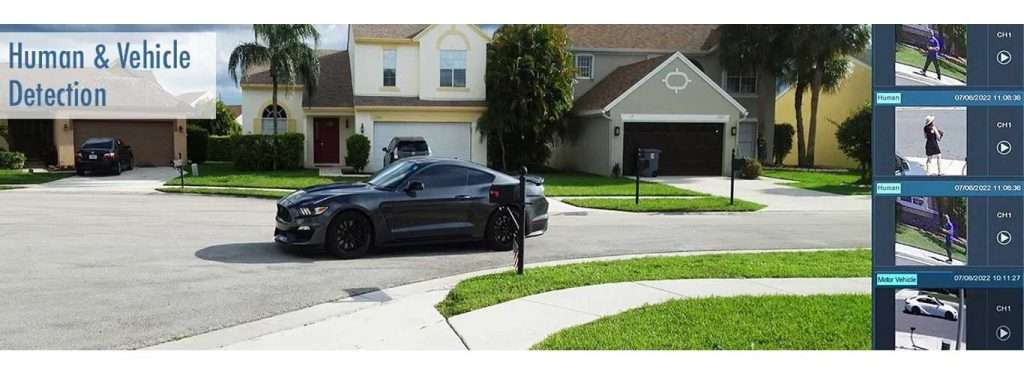

Smart Detection to Reduce False Alarms

With the Camius NVR network video recorder, you can utilize motion detection to monitor and record all activity within your home or business. You can customize motion target detection to focus on Pedestrians, Vehicles, or both. Please note that motion detection recording and alarm schedules are not initially enabled and require user activation.

2320PR SPOT828A RB Channel Motion
Camius human detection
HDMI menu (Playback)

Camius offers advanced AI detection features such as Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, and Sound Detection. You can enable specific AI modes and set up push notifications on your mobile app by selecting and saving a schedule.

2320PR SPOT828A RB AI SETUP Sound Detection
Web Browser Menu
NVR Alarm Settings and Scheduling

With the Camius NVR, you can activate various alarm settings including buzzer sounds, message displays, email alerts, push notifications to the CAMIUS VIEW app, recording, pre-recording, and image uploads to Dropbox or Google Drive.

You can schedule alarms for each camera based on the following events:

  • Motion Detection
  • Intelligent detection
  • AI Detection (Human & Vehicle Detection, Cross Counting, Perimeter Intrusion, Line Crossing)
  • Exceptions (No Space on Hard Drive, Disk Error, Video Loss)
2320PR SPOT828A RB Alarm Motion
Web Browser Menu: Motion Alarm Settings

Access Camius 16 Channel Security Camera System From Any Device

NVR Software for a Desktop

The NVR PoE camera system offers more than just monitoring through an HDMI monitor or smartphone app. With the free NVR software (VMS), any desktop, laptop, PC, or Mac can become a 24/7 surveillance station. Users can monitor live video and audio, playback recorded footage, and manage camera settings. It’s ideal for combining multiple installations, displaying multiple cameras, and managing devices across different locations.


VMS web

Web Browser Access

You can access your Camius NVR system using modern web browsers such as Chrome, Edge, Safari, Mozilla Firefox.

Web browser compatible - Camius

Smartphone Security Camera App

The Camius View app grants full camera access from anywhere. Available on iOS and Android, the app connects to your cameras, allowing viewing, playback, and system control. Restart your NVR remotely.

Camius View: iOS | Android

Camius View Logo 800

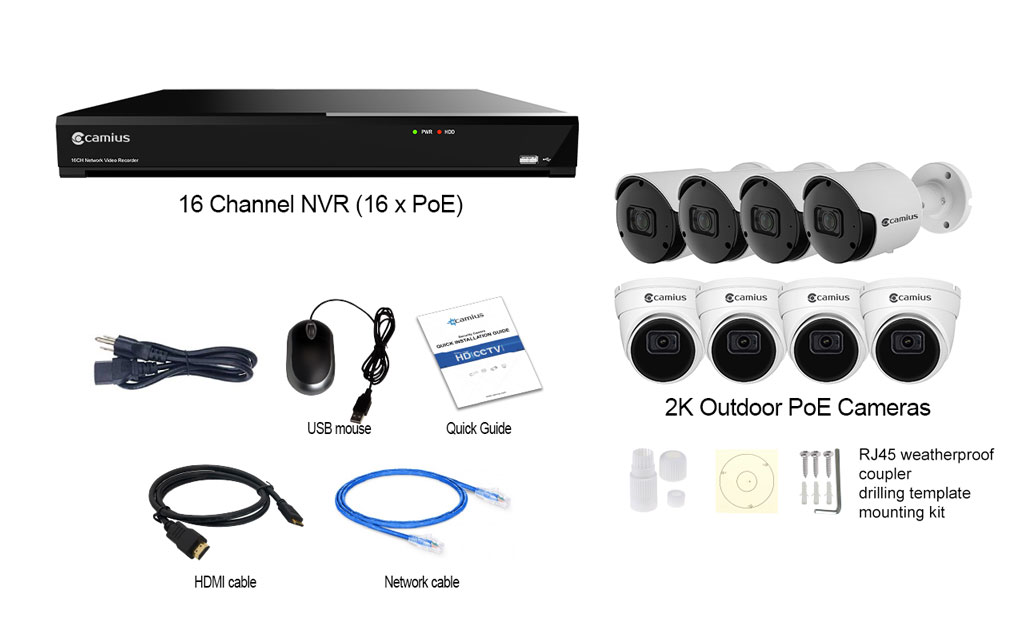

What in the box:

  • 16 Channel NVR (IPVAULT320PR or IPVAULT2256PR, depends on the selected NVR bundle)
  • 4 x 2K PoE Bullet Camera
  • 4 x 2K PoE Dome Camera
  • NVR’s power cord, HDMI cable, Network cable, USB mouse, Installation Guide, Tech support info

Note: this bundle includes one hard drive, doesn’t include camera cables.

16PR3204B4I5 content 1024
Camius NVR IPVAULT2320PR specs:


  • Incoming: 320 Mbps
  • Outgoing: 320 Mbps


  • Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
  • Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
  • Playback: 1080P: 480fps, Max 16CH


  • Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif™ (profile S/G/T)
  • Voice Command: Home Device: Google Assistant, Amazon Alexa

Video Output

  • 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
  • HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
  • HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async

Ports and Interfaces

  • Ethernet: 2 RJ45 ports for fast network connectivity.
  • PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
  • USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
  • Audio I/O: 1 input & 1 output for audio recording and playback.
  • RS485: 1 interface for device communication.
  • Alarms: 16 inputs & 1 output for comprehensive alarm system integration.


  • Two Internal SATA Hard Drive Ports: up to 12 terabyte
  • One e-SATA

Device Access:


  • Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
  • Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
  • Input Voltage/Current: Built-in power supply of ATX 280 watts
  • Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
  • Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from  14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH


Additional information

Weight 23 lbs
Dimensions 20 × 16 × 10 in
Security System Bundle


Recorder Type

NVR for IP cameras



Recorder Total Bandwidth

256Mbps, 320Mbps

Number of Channels

16 channels

Pre-Installed Storage

4TB HDD, 8TB (1 x 8TB)

Recorder Storage Capacity

14TB on each Internal and external SATA hard drive

Recorder Internal SATA Ports


Recorder eSATA Port


Bundled Camera Number


Bundled Camera Type

(4) 5MP Dome, (4) 5MP Bullet PoE Cameras

Recorder Built-in PoE Ports


Android App

Camius View

iOS App

Camius View

Mac Software


PC Software


Camera Shape


Camera Resolution

2K 2880×1620 with 30 fps

Camera Built-in Microphone


Camera Reset

On-Camera Reset Button

Camera Lens

2.8mm (110 degrees wide view)

Camera Power over Ethernet


Camera Video Analysis


Recorder Display Split View

4 / 9 / 12 / 16 / 6 / 8 / 10 / 10-1 / 13 / 13-1 / 14

Recorder Video Output

HDMI1 for a primary monitor, HDMI2 for a secondary monitor, VGA

Recorder Email Alerts


Cables Included


With Audio
