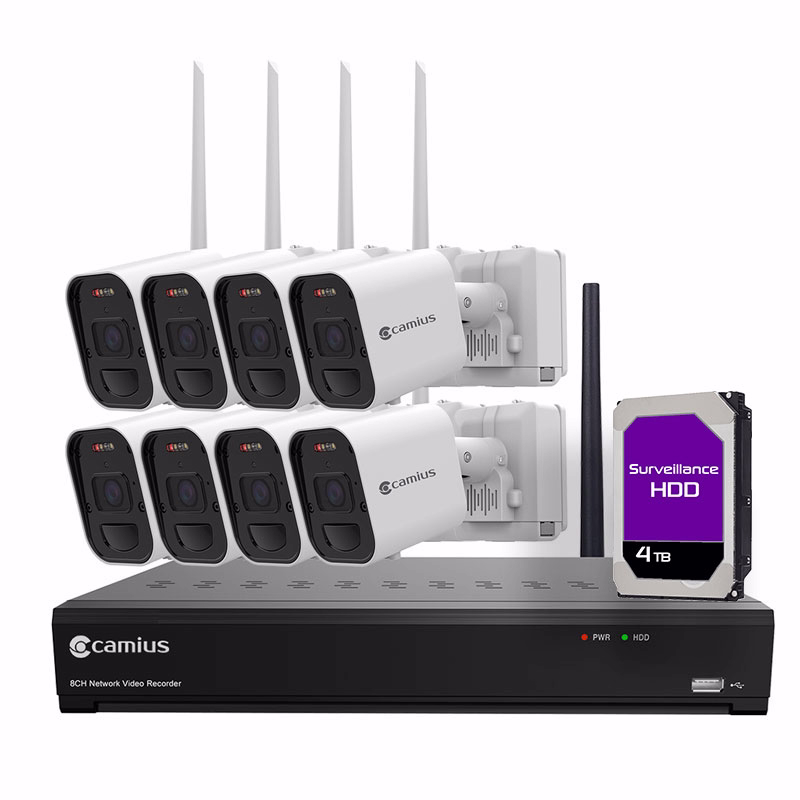

8 Camera Wireless Security System with 4K NVR, Wi-Fi HaLow, and 4TB Storage

The best wireless security camera system for large properties uses Wi-Fi HaLow technology, which operates at 900MHz and reaches up to 2,200 feet in open air. Standard 2.4GHz wireless cameras typically reach 100 to 300 feet under real-world conditions. The Camius 8 camera wireless NVR system uses Wi-Fi HaLow for a direct camera-to-NVR connection that maintains signal at distances standard wireless systems do not reach.

Wi-Fi HaLow is a wireless standard based on the IEEE 802.11ah specification. It operates at approximately 900MHz, a lower frequency than the 2.4GHz and 5GHz bands used by standard Wi-Fi. Lower frequency signals travel farther and pass through walls, trees, and physical obstacles more effectively. In this Camius system, Wi-Fi HaLow handles the direct connection between each of the 8 cameras and the NVR. The tested wireless range is up to 2,200 feet in open air with a clear line of sight and zero obstacles between the camera and the NVR.

A wireless security camera system with local NVR storage and no cloud subscription is the best option for avoiding monthly fees. This system stores all footage from all 8 cameras on a 4TB hard drive inside the NVR. No cloud account is needed to record, store, review, or receive alerts. All features including remote viewing, motion detection, person detection, two-way audio, siren, and lights work without a subscription fee.

Yes. Connect the NVR to any HDMI-compatible TV or monitor using an HDMI cable. The NVR outputs all 8 camera feeds directly to the screen at full resolution. No streaming device, internet connection, or app is needed for local display. A monitor is not included with this system.

Yes. The cameras connect to the NVR using a private Wi-Fi HaLow signal completely separate from your home or business router. No internet is needed for local recording, playback, or motion detection. An internet connection through a LAN cable to your router is needed only for remote viewing through the Camius View app or a web browser.

Yes. The cameras connect directly to the NVR using a private Wi-Fi HaLow signal. Your local Wi-Fi router is not part of that connection. The system records and stores footage without any Wi-Fi network on the property.

No. This system does not require internet or a cloud subscription for any core function. Local recording, motion detection, person detection, two-way audio, siren, lights, and HDMI live viewing all work without internet. A cloud subscription is never required. Connect the NVR to your router via LAN cable only if you want remote viewing through the Camius View app or web browser.

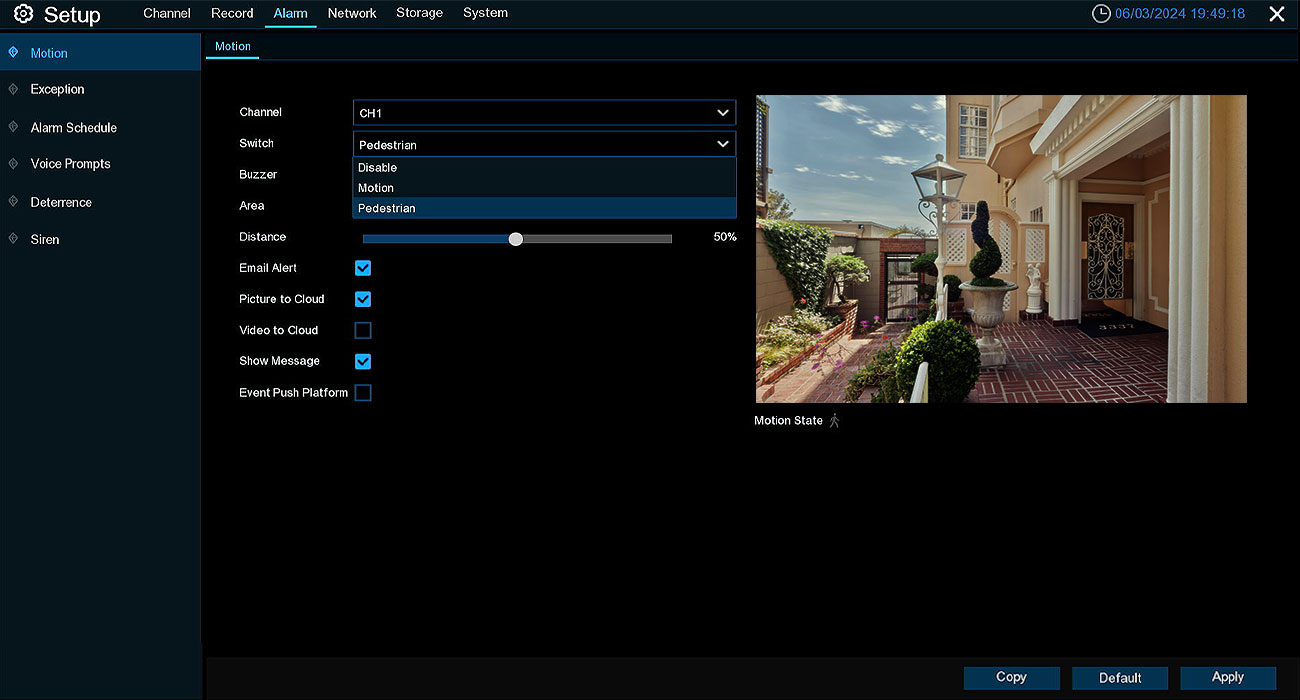

Open the NVR recorder menu and go to Alarm, then Motion. Select the camera channel. Under the Switch dropdown, choose either Motion or Pedestrian.

• Motion detection triggers on any movement within the camera view, including vehicles, animals, and people.
• Pedestrian detection triggers only on confirmed human presence, reducing false alerts and extending battery life on battery-powered cameras.

To detect vehicles or any non-human movement, select Motion, then adjust the detection area on the grid and set the sensitivity using the Distance slider. Save the settings before exiting the menu. The NVR sends app alerts and email notifications when the selected detection triggers.

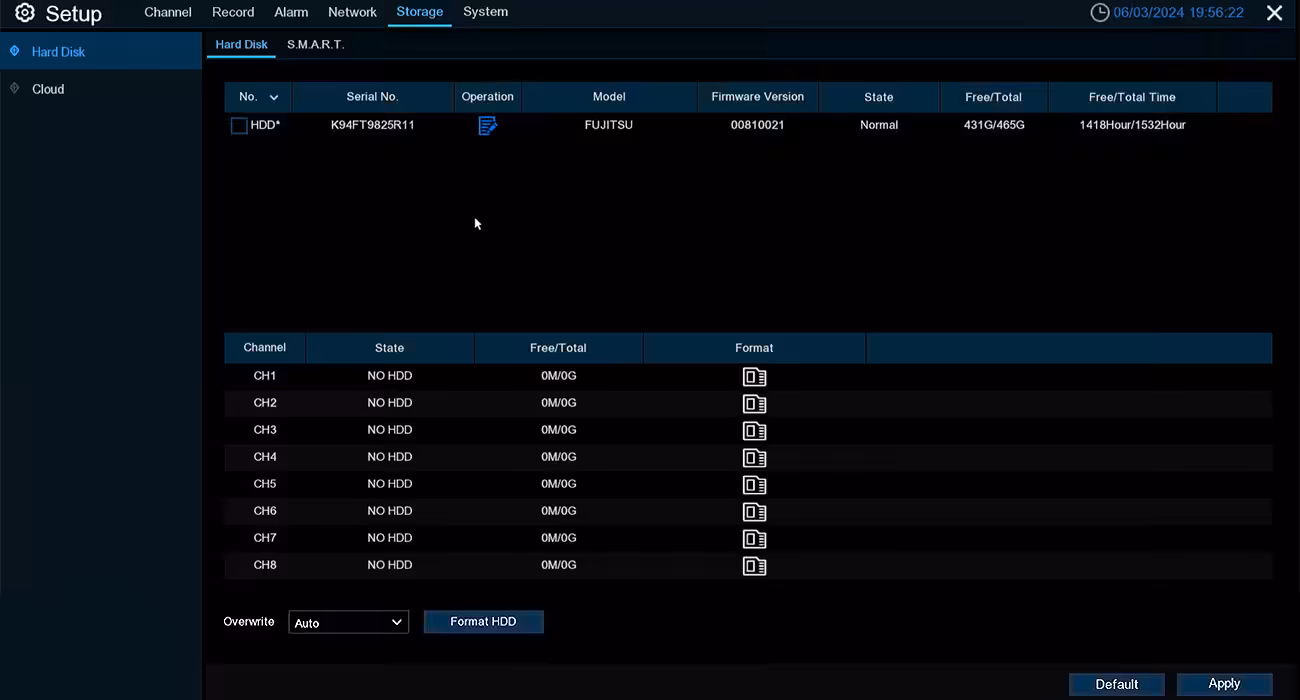

This system stores all footage on the surveillance grade hard drive pre-installed inside the NVR. No setup is needed to start local recording (make sure to format the hard drive at the first time you start the system). The NVR writes footage to the hard drive automatically when recording begins. When the drive is full, the NVR overwrites the oldest recordings first.

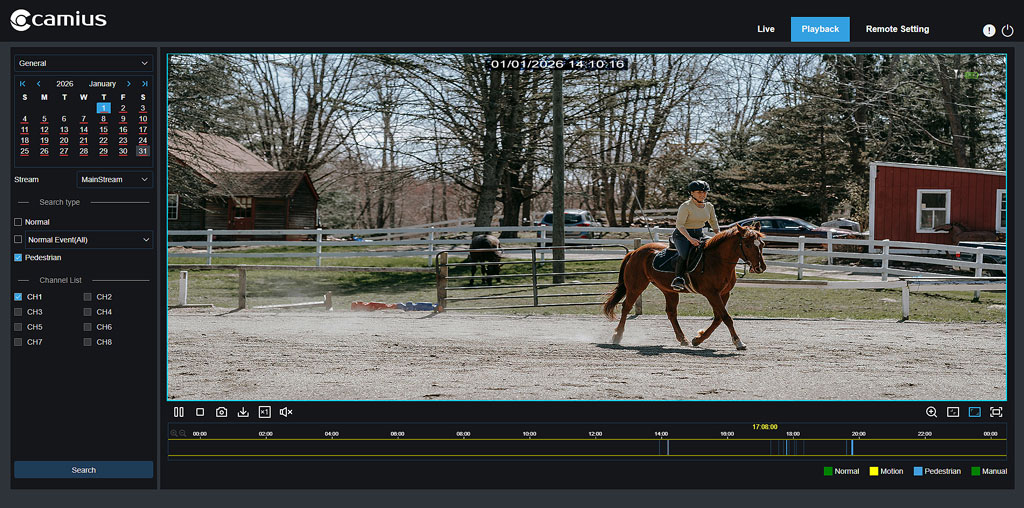

Connect the NVR to your router with a LAN cable. Open any web browser on a PC or Mac. Use the Camius device config tool to scan your local network and find the NVR’s IP address automatically. Enter that IP address in the browser address bar and log in with your NVR credentials. No plugin is needed on modern browsers. The web browser interface is used for NVR configuration and checking playback one camera channel at a time. For live view, connect a monitor directly to the NVR using the HDMI output, or use the Camius VMS desktop application on Windows or Mac. For step-by-step instructions, follow how to configure a Camius NVR using a web browser.

Yes. Connect the NVR to any HDMI-compatible TV or monitor using a standard HDMI cable. The NVR outputs live footage and recordings from all 8 cameras directly to the screen. No internet, app, or streaming device is needed for local TV viewing.

Yes, for common building materials. Wi-Fi HaLow operates at 900MHz, a lower frequency than the 2.4GHz and 5GHz bands used by standard Wi-Fi routers and most consumer wireless cameras. Lower frequency radio waves lose less energy passing through drywall, plywood, wood, standard glass, furniture, and insulation. In typical residential and commercial construction, the signal passes through these materials with moderate reduction in range. Dense materials including concrete, brick, stone, metal, and Low-E glass reduce signal strength significantly. For best performance, the NVR antenna should have a clear or minimally obstructed path toward each camera.

The wireless signal passes through drywall, plywood, standard glass, wood, and insulation with low to moderate reduction in range. Dense or reflective materials reduce the signal more significantly. Concrete walls and reinforced concrete floors limit penetration due to their density and the presence of rebar and moisture. Brick and stone absorb radio waves and are difficult for the signal to pass through in thick sections. Metal surfaces including steel beams, metal cabinetry, copper pipes, and aluminum blinds reflect the signal rather than allowing it to pass through. Large volumes of water, including fish tanks and water heaters positioned between the NVR and a camera, absorb signal as well. Modern Low-E energy-efficient windows contain a metallic coating that reflects rather than transmits radio signals.

Place the NVR so its antenna has a direct path toward the cameras through the fewest and least dense barriers. In concrete or brick buildings, position the NVR near a window or open doorway that faces the cameras rather than through multiple thick walls. In most installations, the NVR sits indoors and the cameras mount on exterior walls or in open outdoor areas. The signal in that setup passes through one exterior wall at most, which is manageable for the 900MHz HaLow frequency in standard construction. If the NVR must stay deep inside a building with dense walls, use an RG58 coaxial cable extension to move the NVR antenna closer to a window or exterior opening. Test signal strength at each camera location before permanent installation. Range through dense materials will be shorter than the 2,200-foot open-air maximum.

Yes, within the design parameters of this system. Wi-Fi HaLow at 900MHz is optimized for reliable long-range wireless connections at moderate data rates, which matches the requirements of a direct camera-to-NVR connection. The Camius WF4KN wireless NVR and WF4KC2 cameras use HaLow for a dedicated point-to-point connection between each camera and the recorder at a transmission bandwidth of up to 32Mbps. The cameras stream 4K video at 15fps using adaptive bitrate encoding, which adjusts the data rate to match available signal conditions. This differs from routing 4K video through a standard Wi-Fi router across a congested home network, where bandwidth competition and signal interference cause the quality and reliability problems most buyers have experienced with standard wireless camera systems.

Yes. The cameras connect to the NVR wirelessly using Wi-Fi HaLow technology with a range of up to 2,200 feet in open air with zero obstacle and clear line of sight. No cable runs between the NVR and any camera. The only cable requirement is the LAN cable from the NVR to your router if remote viewing is needed, and USB power cables at each camera location if continuous recording is required.

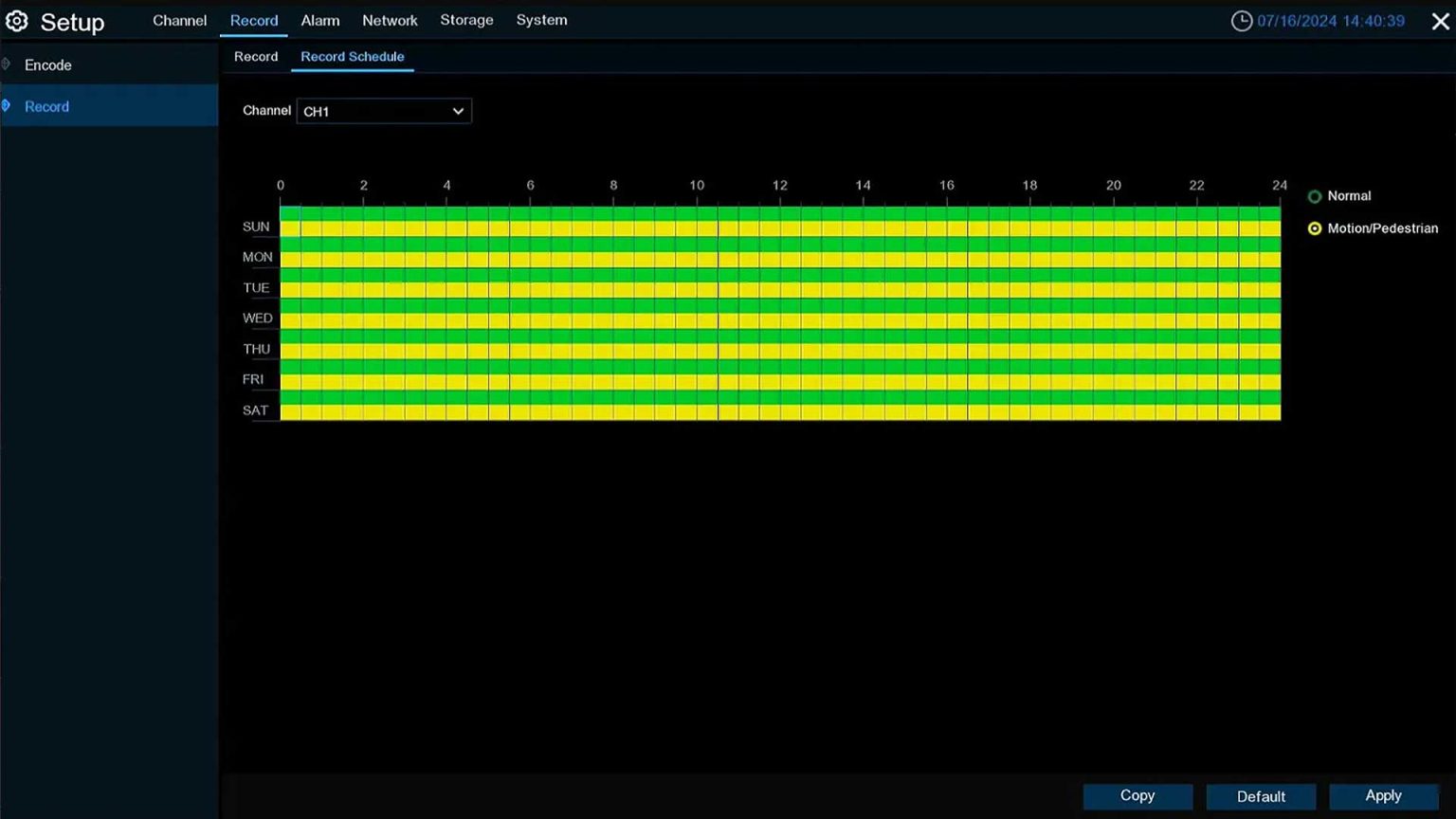

Recording mode depends on how each camera is powered. On battery power, the cameras record when motion or a person is detected. When plugged into a USB power outlet, you can activate continuous 24-hour recording. The battery stays inside the camera in both modes. A solar panel connected to the camera charging port extends battery charge time but does not change recording behavior. Cameras on solar charge still record on detection only.

A short delay of one to three seconds is normal when opening a live camera stream on the Camius View app. The delay occurs while the app establishes the connection to the NVR and begins streaming. The length of the delay depends on your internet connection speed. Once the stream loads, playback is continuous. If you don’t want any delays, consider Camius wired PoE IP camera systems.
