Camius 8 5MP Security Cameras for Business with 16 Channel NVR
8 5MP Security Cameras for Business with 16 Channel NVR
$1,299.00$1,599.00 Select options

8 5MP Security Cameras for Business with 16 Channel NVR

$1,299.00$1,599.00

Camius 4K 16 Channel NVR, bundled with 8 wired outdoor security cameras for business, delivers super HD 2K video and audio. Ideal for both home and business, this system features sound, smart motion, pedestrian & vehicle detection, cross-counting detection, and more in AI mode with analytics and reports. The 16 Channel NVR, offering the highest recording bandwidth (256 to 320 mbps), meets the rigorous security demands of any business owner. With the capacity to add up to 42 TB of internal and external storage, this advanced NVR surveillance system ensures you have weeks or months of recorded footage.

Advanced Outdoor Camera Security Cameras for Business Surveillance and Recording

Camius 4K 16 channel security system with 8 cameras for home and business installation delivers super HD 2K video and audio in addition to Smart Motion, Sound, Human & Vehicle Detection Detection, and more. Camius offers 16 Channel NVR recorders with the highest 256 or 320 Mbps recording bandwidth, which will satisfy any business owner’s security requirements. The security camera system comes with a pre-installed local storage and you add expand it to 42 terabytes of combined internal and external storage (E-SATA) for months of recorded footage.

Advanced 16 Channel NVR (Network Video Recorders)

The 16 Channel NVR has a 16-port built-in power-over-ethernet interface, making the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.

The IPVAULT2320PR, a 16 Channel NVR, offers 320 Mbps bandwidth with its capabilities to process not only 8 but 12 megapixels cameras as well.

IPVAULT2320PR e1718084165458
IPVAULT2320PR

The IPVAULT2256PR, a 16 Channel NVR, delivers 256 Mbps bandwidth for 4K video processing

Advanced 4K 16 Camera NVR with 16 PoE Ports, 2 SATA HDD, e-SATA (only recorder)
IPVAULT2256PR

Camius 16 Channel NVR recorders are equipped with a built-in 16-port Power-over-Ethernet (PoE) interface, significantly simplifying and expediting the installation process of surveillance cameras. This advanced feature allows both power and data transmission through a single cable for each camera, reducing the need for extensive wiring and ensuring a more streamlined setup. Additionally, the Network Video Recorder (NVR) automatically assigns a unique IP address to each connected Camius IP camera. This auto-configuration capability removes the need for users to manually configure each camera, making the system user-friendly and efficient even for those with limited technical expertise. The combination of these features ensures a hassle-free installation and operation, providing robust security coverage with minimal effort.

IPVAULT2320PR and 16 2K cameras connection diagramm 1024
IPVAULT2320PR

Outdoor Security Cameras

Camius’ 5MP PoE camera captures 2K video at 2880×1620 resolution and 30fps with a 1/2.7” Progressive CMOS Image Sensor. It features a 3.6mm lens, offering a 91° horizontal, 46° vertical, and 110° diagonal field of view, built-in microphone, and 100ft night vision for low-light color images. Its durable white metal enclosure is perfect for outdoor use in harsh weather, making it ideal for high-quality surveillance.

BOLTX536R 1024 2
BOLTX536R 1024 1
BOLTX536R 1024 3

The Advanced Compression and Encoding Technologies of the Camius NVR Security System

The Camius NVR security system incorporates the latest audio and video compression and encoding technologies, including H.264, H.265, and H.265+, to optimize performance. With a 256Mbps / 320mbps bitrate, the NVR allows for live viewing and playback of videos in Ultra HD resolution. These advanced compression and encoding standards save up to 50 percent on storage space, enhancing bandwidth efficiency and maximizing the utilization of your 16 Channel 4K security NVR and internal hard drive storage. This ensures that you can store more footage without compromising on video quality or performance.

4K 16 Channel Surveillance NVR with the Highest Bandwidth – 320 Mbps

The Surveillance NVR from Camius is a commercial-grade security camera system, supporting 4K capabilities and high recording bandwidth, providing smooth and uninterrupted recording for businesses of all sizes. It supports 320 Mbps (megabits per second) of recording bandwidth, accommodating stunning not only 2K but 4K resolution footage for all connected cameras. The advanced network video recorder supports both internal and external hard drives for extended recording capacities, making it an ideal choice for business surveillance.

IPVAULT2320PR SPOT82A RB network info bandwidth web
IPVAULT2320PR: Web Browser Menu

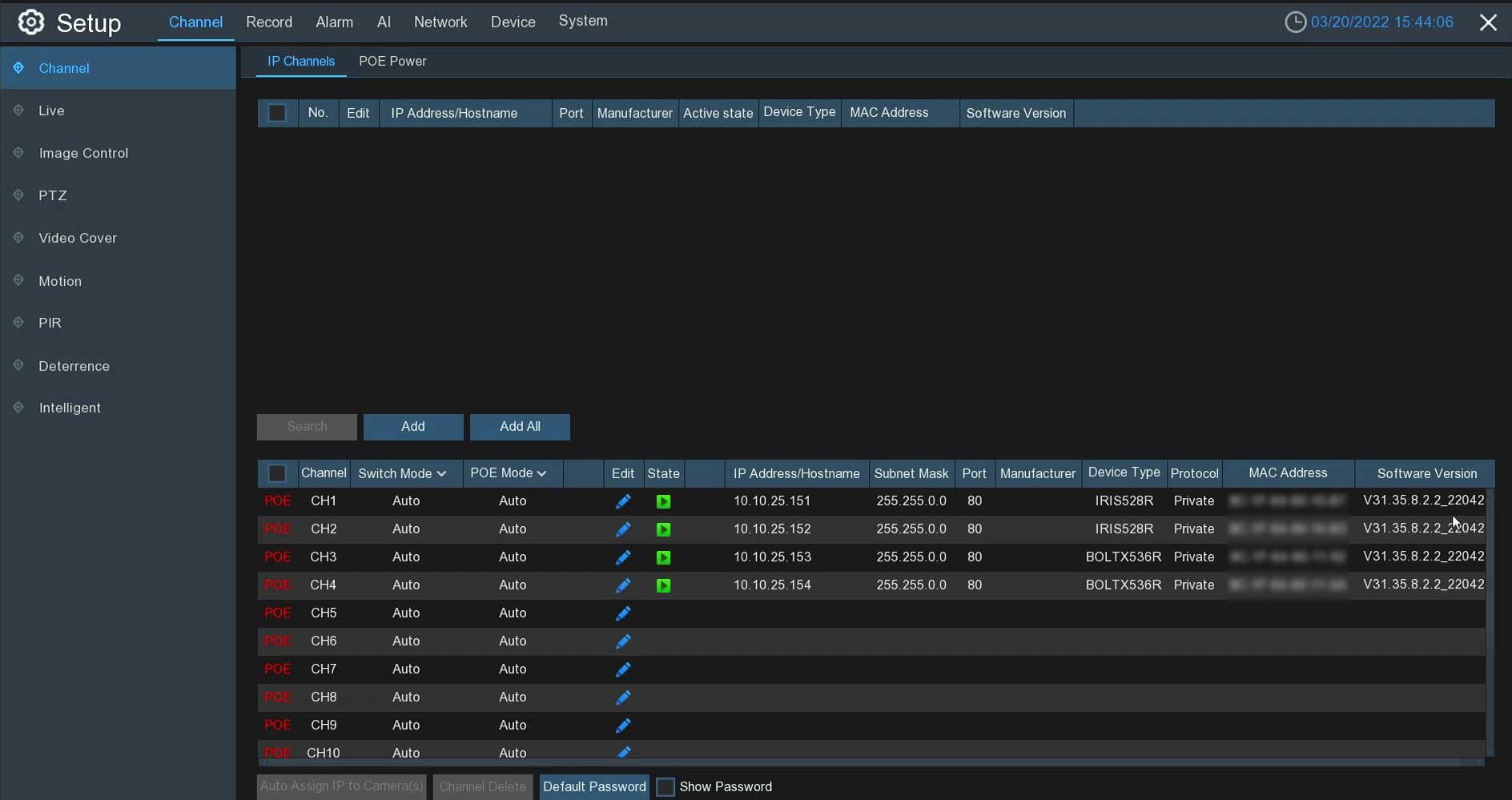

IPVAULT2256PR 6 CAMERAS CHANNELS LIST 2K AND 4K
IPVAULT2256PR: HDMI User Interface

Secure Storage : Expandable 24/7 Recording with the Camius NVR

As a business owner, particularly in industries like retail, restaurant, etc. securing your premises with a comprehensive camera system is paramount. Ensuring ample storage capacity for your footage is essential. With the Camius NVR, you have the flexibility of dual internal hard drives, each boasting up to 14 Terabytes of storage. Should your storage needs exceed this capacity, the NVR also features an external e-Sata port for expanded storage options.

3 sata hard drives 1000 1000 e1701314268539

The NVR camera system is available with either one or two hard drive disks included. Should you opt for a system with a single hard drive, you have the option to expand your internal storage by adding a second 4TB or 8TB hard drive to your cart. Simply include a note in your order requesting the pre-installation of the second hard drive disk.

NVR system with Dual HDMI Video outputs for a Primary and Secondary (Spot) Monitor

The Camius 4K 16 Channel NVR features three video outputs for real-time viewing. It includes two HDMI outputs—one supporting 4K for the main monitor and another supporting 1080P for a secondary monitor (Spot or Call monitor). Additionally, it has a VGA output supporting 1080P resolution. During setup, choose the resolution that matches your monitor for the best display. The NVR will automatically adjust the output resolution to match your monitor at startup.

TV SCREEN 9 CHANNELS

Highly customizable image control settings

Camius 2K IP cameras have highly customizable image settings, which you can control directly in the NVR. You can select the best IR settings, including the IR cut mode, IR cut delay, IR LED way, and even the level of IR LED lights (low beam light). In addition, you can also control the camera’s view using the Lens Flip, Angle Flip, selecting Corridor mode, enabling WDR (wide dynamic range), and even more. You can save default settings by clicking on the ‘Default‘ tab.

Camius 5MP IP cameras provide a 91-degree view.

1128PR IRIS528R IMAGE CONTROL SETTINGS

16 Channel IP Camera System with Audio

Camius PoE cameras are capable of recording super HD 2K videos, which contain 2.5 times more pixels than an HD 1080p security camera. In contrast to the 1920 × 1080 resolution, which has just over 2,000,000 pixels, this PoE security camera system can record at 2880 x 1620 pixels. The additional pixels the security camera captures provide more detailed images when zoomed in.

IPVAULT2256PR ENCODING MAIN STREAM 2K e1717823895188
Control video ad audio stream of your cameras (HDMI menu)

Smart Detection to Reduce False Alarms

With the Camius NVR network video recorder, you can utilize motion detection to monitor and record all activity within your home or business. You can customize motion target detection to focus on Pedestrians, Vehicles, or both. Please note that motion detection recording and alarm schedules are not initially enabled and require user activation.

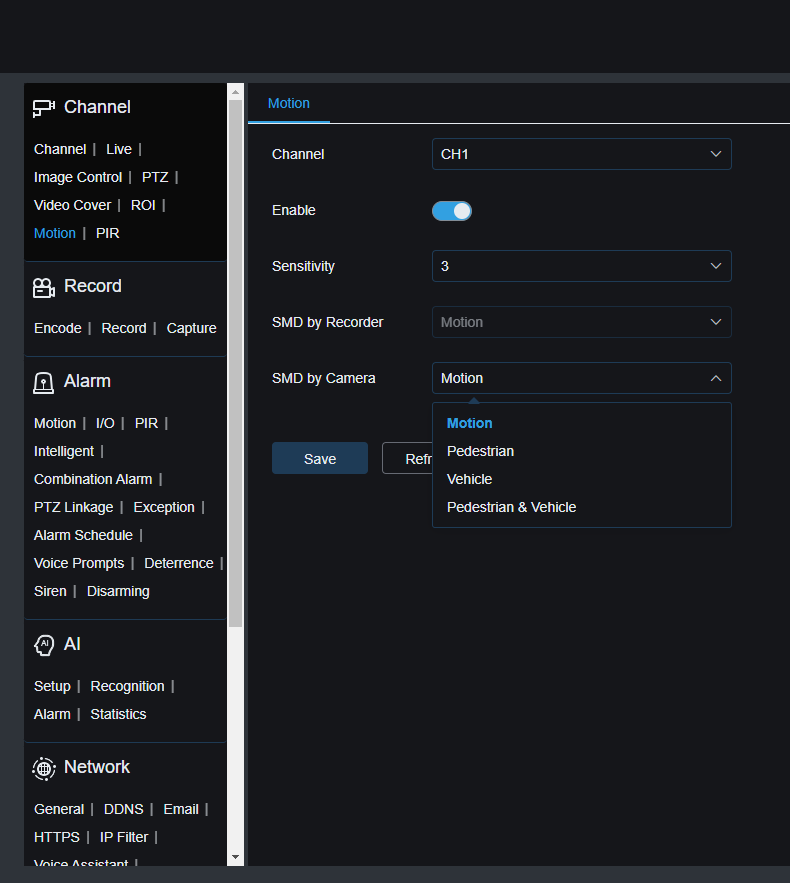

2320PR SPOT828A RB Channel Motion
Camius human detection
HDMI menu (Playback)

Camius offers advanced AI detection features such as Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, and Sound Detection. You can enable specific AI modes and set up push notifications on your mobile app by selecting and saving a schedule.

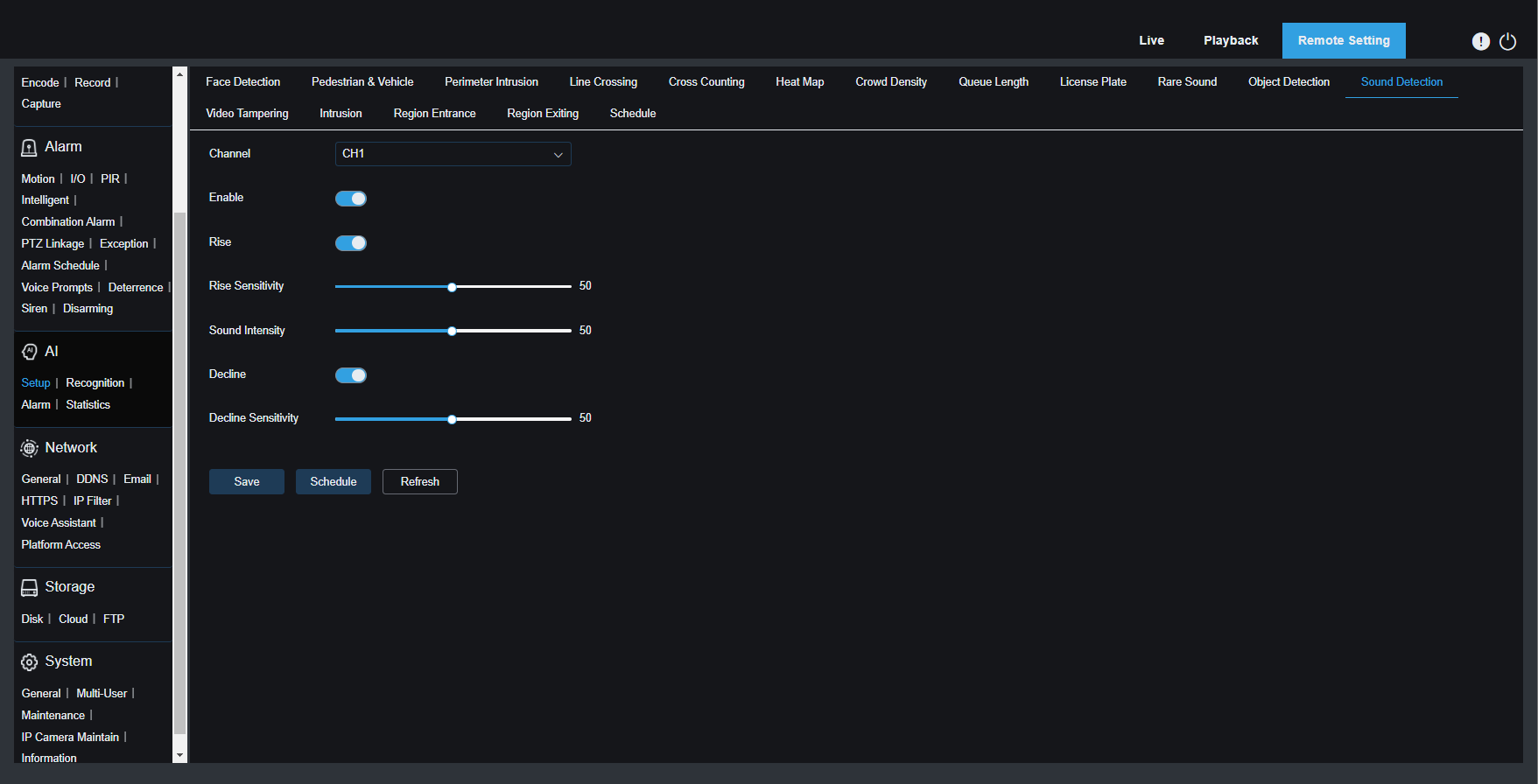

2320PR SPOT828A RB AI SETUP Sound Detection
Web Browser Menu
NVR Alarm Settings and Scheduling

With the Camius NVR, you can activate various alarm settings including buzzer sounds, message displays, email alerts, push notifications to the CAMIUS VIEW app, recording, pre-recording, and image uploads to Dropbox or Google Drive.

You can schedule alarms for each camera based on the following events:

  • Motion Detection
  • Intelligent detection
  • AI Detection (Human & Vehicle Detection, Cross Counting, Perimeter Intrusion, Line Crossing)
  • Exceptions (No Space on Hard Drive, Disk Error, Video Loss)

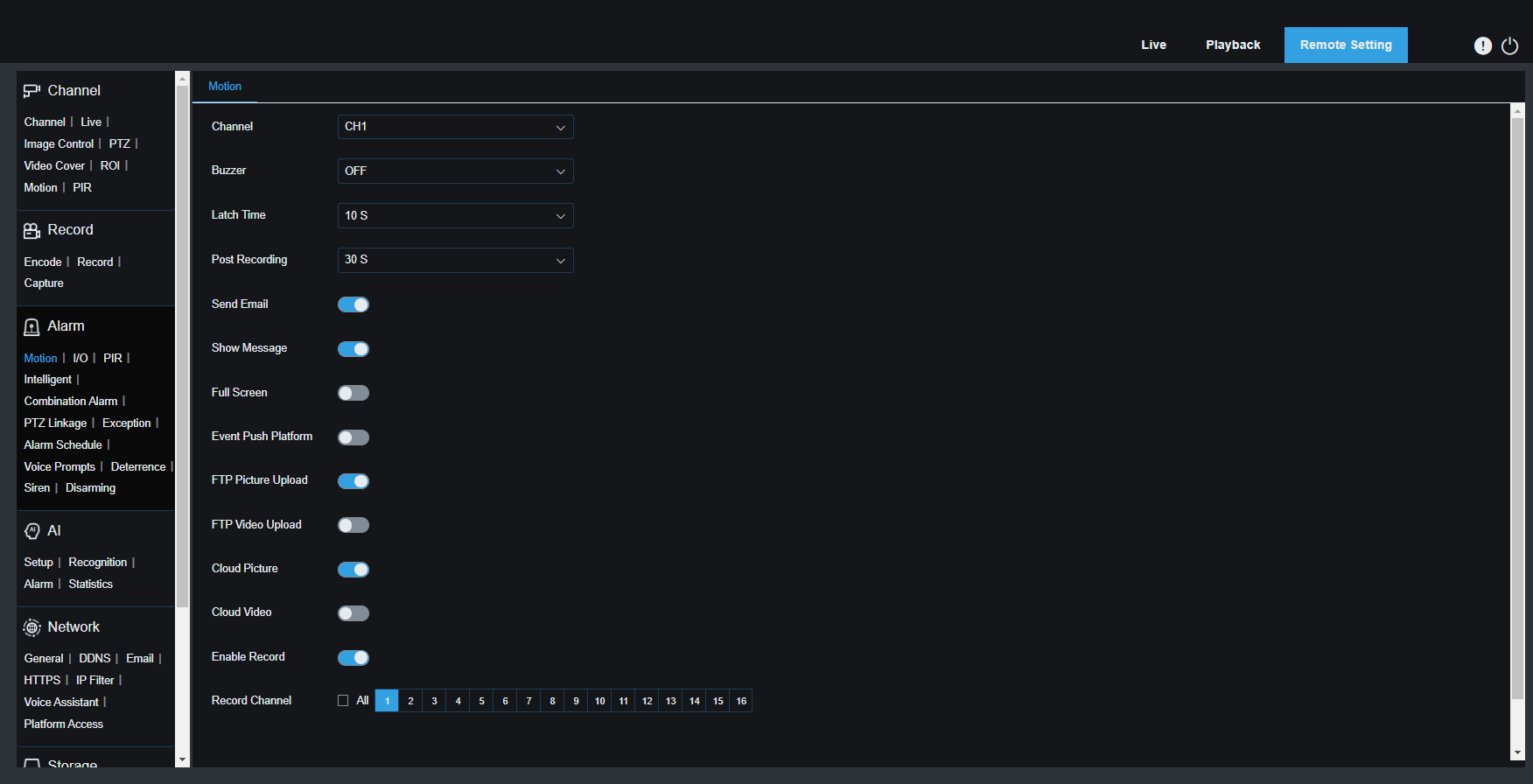

2320PR SPOT828A RB Alarm Motion
Web Browser Menu: Motion Alarm Settings

Access Camius 16 Channel Security Camera System From Any Device

NVR Software for a Desktop

The NVR PoE camera system offers more than just monitoring through an HDMI monitor or smartphone app. With the free NVR software (VMS), any desktop, laptop, PC, or Mac can become a 24/7 surveillance station. Users can monitor live video and audio, playback recorded footage, and manage camera settings. It’s ideal for combining multiple installations, displaying multiple cameras, and managing devices across different locations.



VMS web

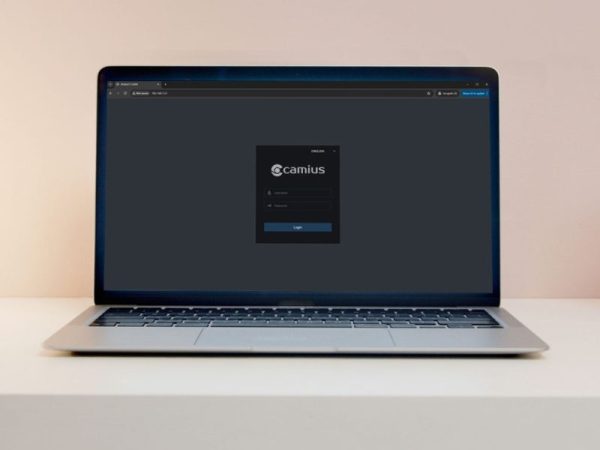

Web Browser Access

You can access your Camius NVR system using modern web browsers such as Chrome, Edge, Safari, Mozilla Firefox.

Web browser compatible - Camius

Smartphone Security Camera App

The Camius View app grants full camera access from anywhere. Available on iOS and Android, the app connects to your cameras, allowing viewing, playback, and system control. Restart your NVR remotely.

Camius View: iOS | Android

Camius View Logo 800

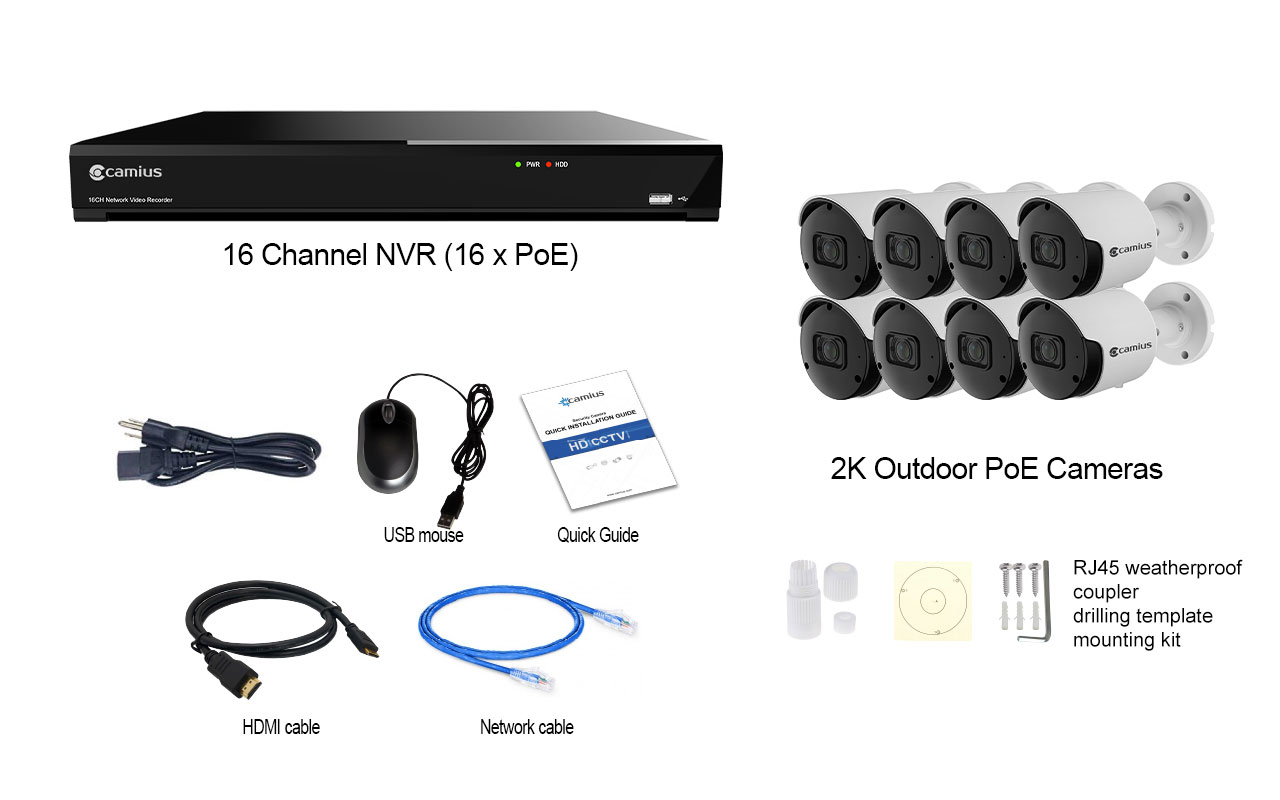

What in the box:

  • 16 Channel NVR  (IPVAULT2320PR)
  • 8 x 2K PoE Bullet Camera (BOLTX536R)
  • NVR’s power cord, HDMI cable, Network cable, USB mouse, Installation Guide, Tech support info

Note: this bundle includes one hard drive, doesn’t include camera cables.

16PR3208B5 content 1024
Camius NVR IPVAULT2320PR specs:

Bandwidth

  • Incoming: 320 Mbps
  • Outgoing: 320 Mbps

Performance

  • Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
  • Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
  • Playback: 1080P: 480fps, Max 16CH

Network

  • Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif™ (profile S/G/T)
  • Voice Command: Home Device: Google Assistant, Amazon Alexa

Video Output

  • 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
  • HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
  • HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async

Ports and Interfaces

  • Ethernet: 2 RJ45 ports for fast network connectivity.
  • PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
  • USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
  • Audio I/O: 1 input & 1 output for audio recording and playback.
  • RS485: 1 interface for device communication.
  • Alarms: 16 inputs & 1 output for comprehensive alarm system integration.

Storage

  • Two Internal SATA Hard Drive Ports: up to 12 terabyte
  • One e-SATA

Device Access:

General:

  • Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
  • Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
  • Input Voltage/Current: Built-in power supply of ATX 280 watts
  • Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
  • Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from  14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
  •





Additional information

Weight 35 lbs
Dimensions 20 × 16 × 14 in
Security System Bundle

PoE NVR Kit

Recorder Type

NVR for IP cameras

Model

IPVAULT2256PR, IPVAULT2320PR

Connectivity

Wired

Number of Channels

16 channels

Recorder Total Bandwidth

256Mbps, 320Mbps

Recorder Built-in PoE Ports

16

Pre-Installed Storage

4TB HDD, 16TB (8TB x 2), 8TB (1 x 8TB)

Recorder Internal SATA Ports

2

Recorder eSATA Port

Yes

Recorder Storage Capacity

30TB: 2 x Internal SATA (max. capacity 10TB each), e-SATA (max. capacity 10TB)

Bundled Camera Number

8

Bundled Camera Type

(8) 5MP Bullet PoE Cameras

Camera Type

IP

Camera Shape

Bullet

Camera Resolution

2K 2880×1620 with 30 fps

Camera Built-in Microphone

Yes

Camera Reset

On-Camera Reset Button

Camera Lens

3.6mm (91 degree view)

Camera Power over Ethernet

Yes

Camera Video Analysis

Yes

Recorder Display Split View

4 / 9 / 12 / 16 / 6 / 8 / 10 / 10-1 / 13 / 13-1 / 14

Recorder Video Output

HDMI1 for a primary monitor, HDMI2 for a secondary monitor, VGA

Recorder Email Alerts

Yes

iOS App

Camius View

Android App

Camius View

Mac Software

VMS, VMS Pro

PC Software

VMS, VMS Pro

Browser Access

Supports

Camera Weatherproof IP Rating

IP66 water and dust proof

Recorder Cloud Storage

Dropbox or Google Drive

Cables Included

N/A
