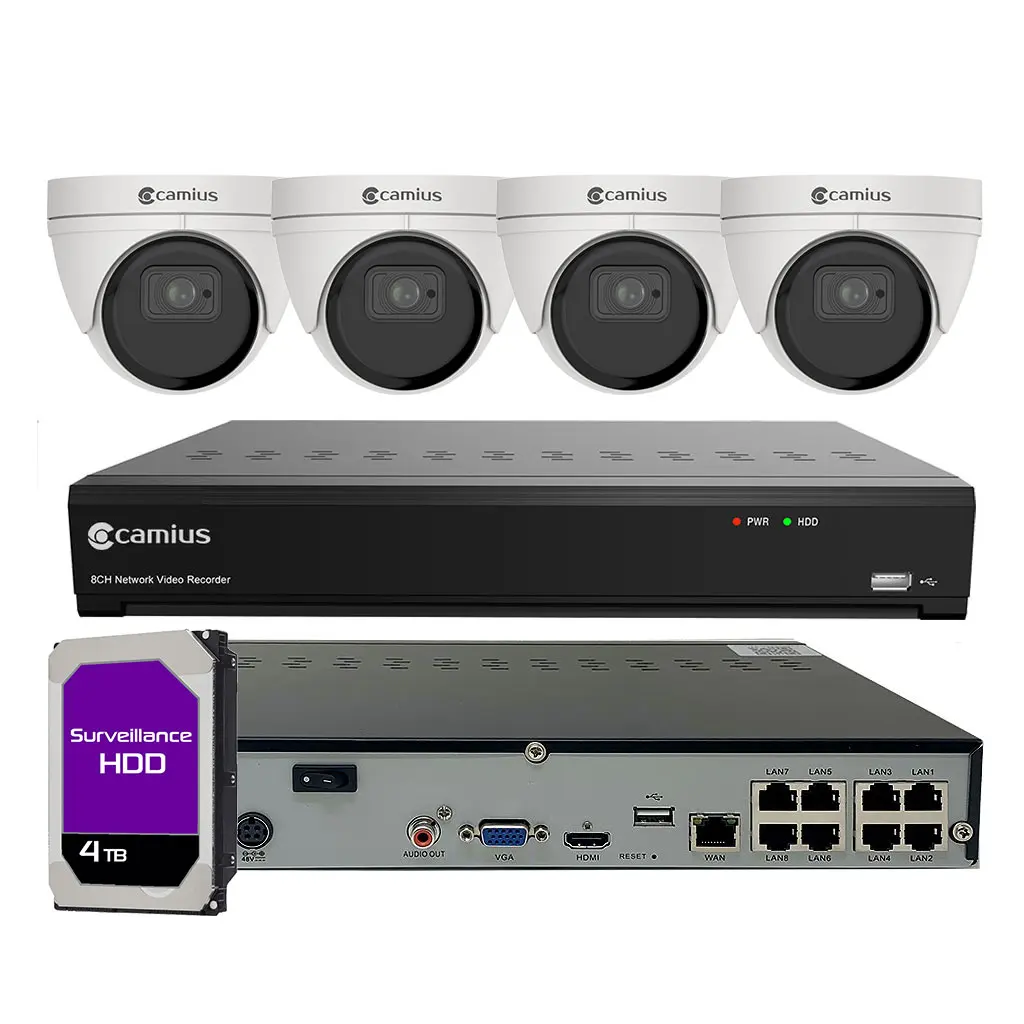

What Comes With This 4-Camera 4K PoE Kit
This kit includes an 8 Channel PoE NVR 4TB Hard Drive and four 4K PoE Dome Cameras. Each camera connects directly to the NVR using a single Ethernet cable for power and data.
The system supports continuous recording, smart motion based recording, and scheduled recording with automatic overwrite when the hard drive reaches capacity.
4K Video and Audio Coverage
The compact dome housing creates a low-profile installation and makes the camera’s viewing direction less obvious. Its fixed 2.8 mm lens provides a 105° horizontal field of view for entrances, offices, retail areas, and other wide coverage locations.
These PoE dome cameras are suitable for offices, retail stores, warehouses, entryways, and covered outdoor areas. Weather rated housings support long term outdoor operation when installed correctly.
Dome Camera Advantages
Dome cameras offer vandal resistant housing and a low profile appearance. Built-in infrared LEDs provide black-and-white night vision up to 98 feet. Color video depends on available ambient light.
One Ethernet Cable for Power and Video
This 4K PoE dome security camera system uses wired Power over Ethernet connections instead of WiFi. Each camera connects to the NVR with a single Ethernet cable, which provides consistent power and stable video transmission.
Wired PoE systems avoid wireless interference, bandwidth congestion, and signal dropouts commonly associated with WiFi cameras.
PoE Dome Camera System with 8 Channel NVR
The included 8 channel PoE NVR powers each camera directly and records footage to the internal 4TB surveillance hard drive. No cloud service or monthly fee is required. Footage stays stored locally under your control.
The NVR supports HDMI output for direct monitor connection and remote access through desktop software, web browser and Camius View mobile apps.
Local 4TB Recording With No Monthly Fees
4K video and audio is recorded directly to the NVR’s 4TB hard disk. Internet access is used only for remote viewing and notifications, not for storing video.

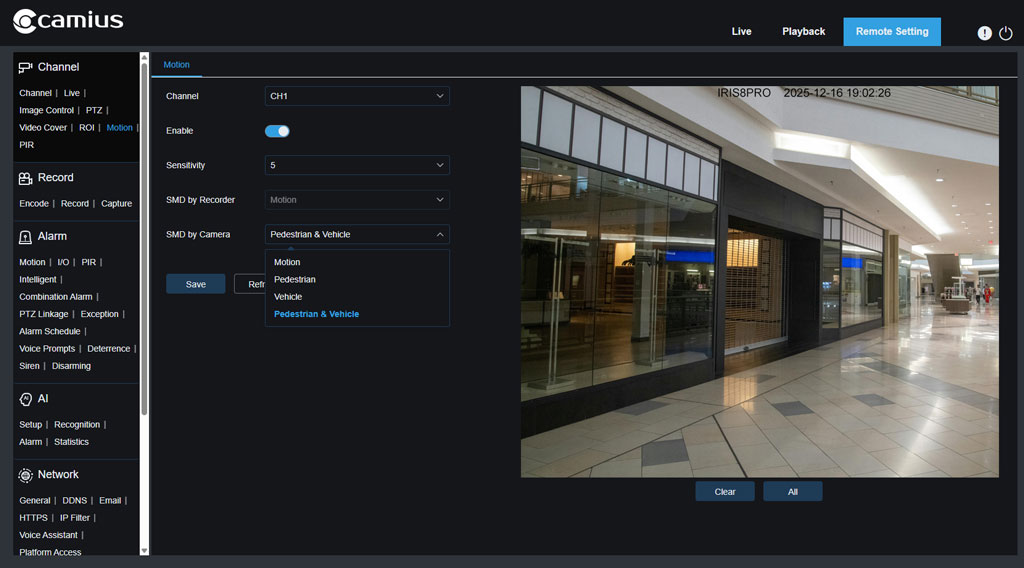

Recording Modes and Smart Detection

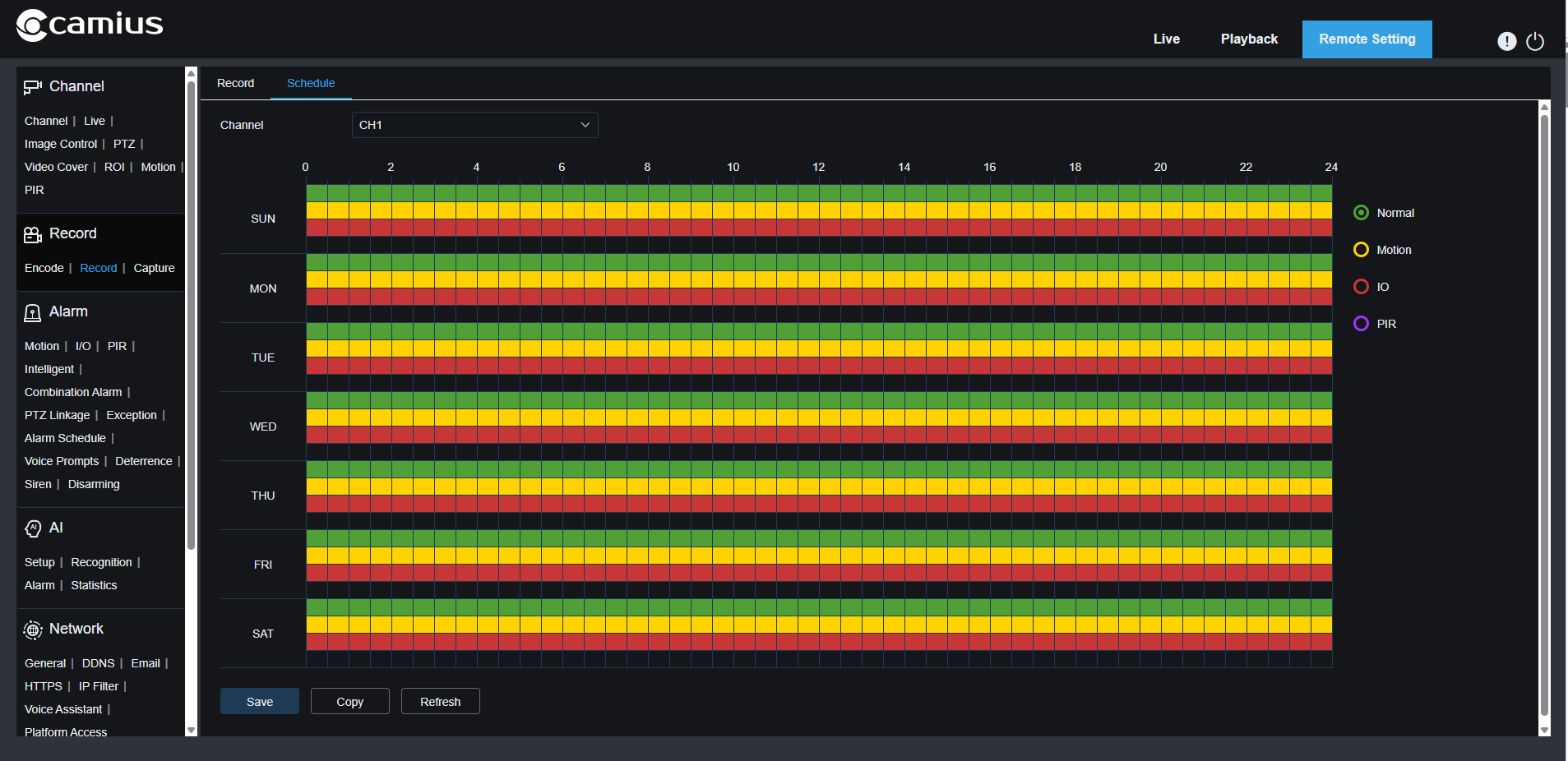

The 8 channel PoE security camera system supports continuous recording, motion detection recording, and scheduled recording per camera. Motion detection sensitivity and recording schedules are adjustable from the NVR interface.
This allows storage to be used efficiently while still capturing important events.
Expand From 4 to 8 Cameras
The 8 channel PoE NVR supports up to eight PoE cameras. Additional PoE dome or bullet cameras can be added later to expand coverage without replacing the recorder.
Storage capacity can be increased by upgrading the internal hard drive when longer retention is required.
Typical Use Cases
This 4K PoE dome security camera system is used in small businesses, offices, retail stores, warehouses, and residential properties that require dependable wired recording.
AI Human and Vehicle Detection
This security system supports motion and sound detection with AI based human and vehicle detection. Advanced analytics include perimeter intrusion detection, line crossing detection, and cross counting to track movement through defined areas.
Remote Viewing From Phone, PC, Mac, and Browser
NVR and Camera Technical Specifications
- Model: IPVAULT1128PR
- Recording Bandwidth:Â 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps

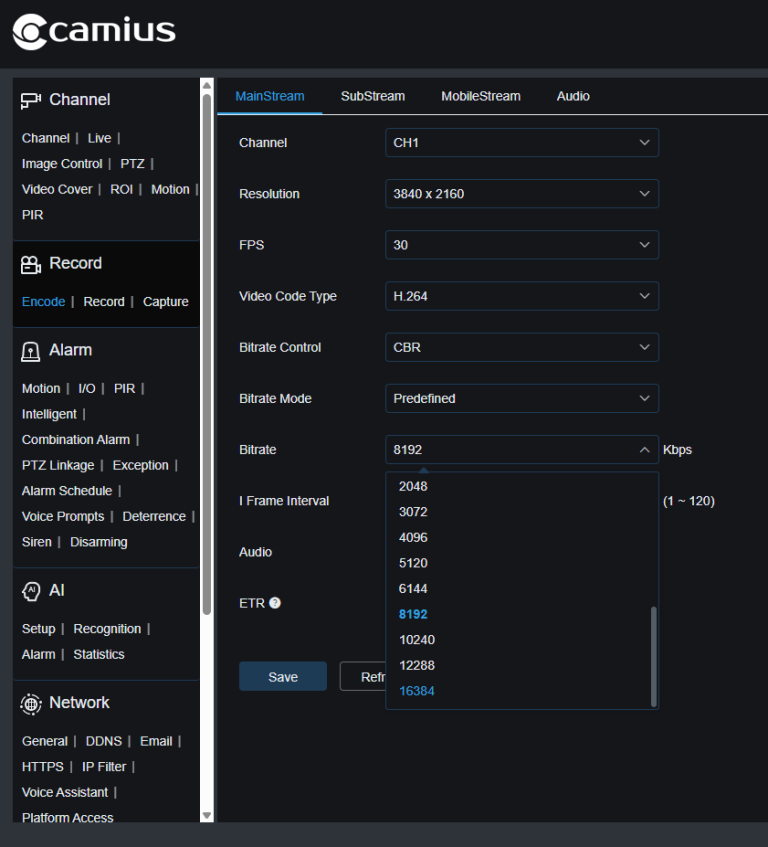

- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity:Â 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
NVR Guide and Manual
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.

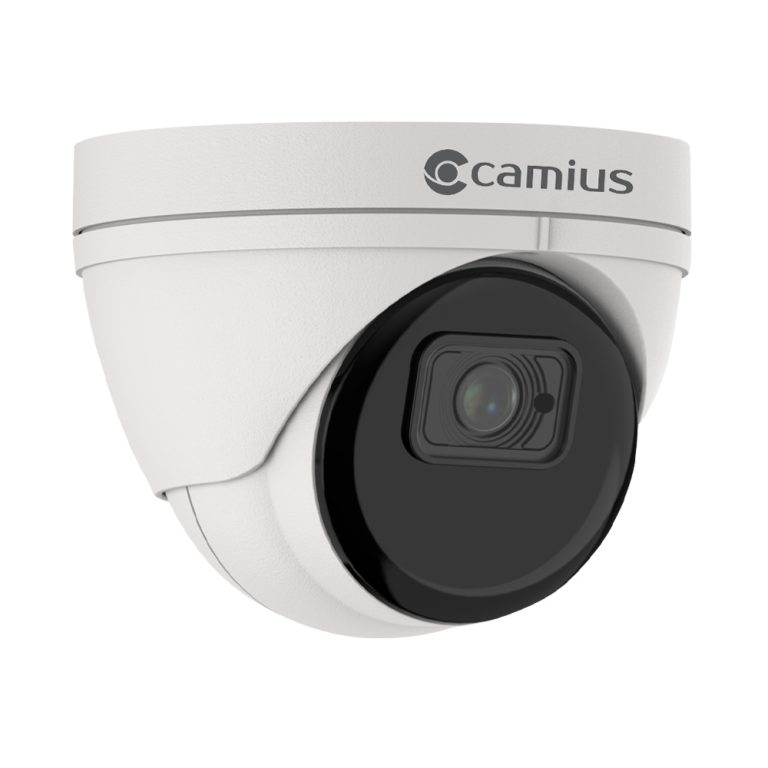

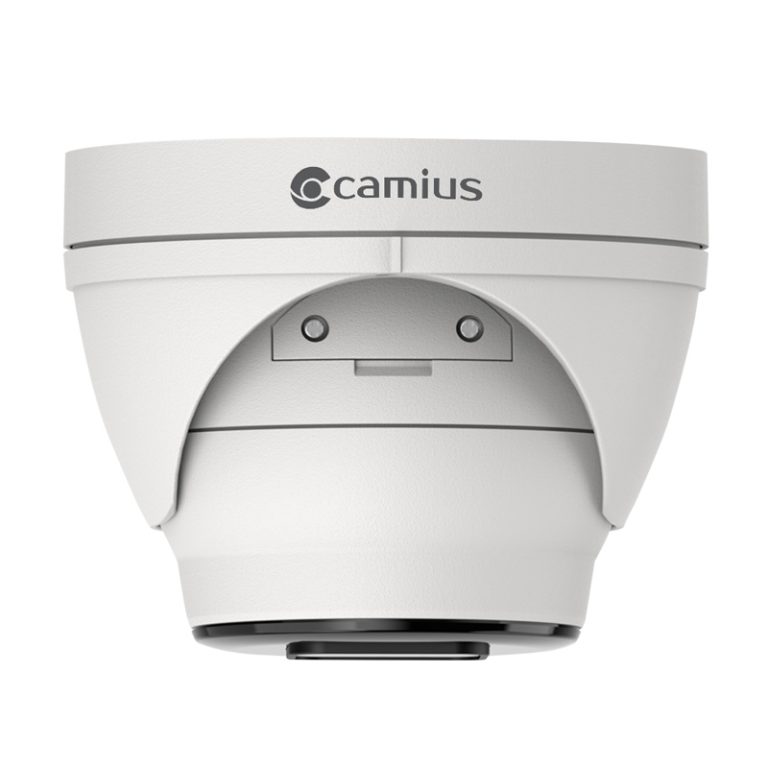

4K Dome Camera Specs
| Key specifications | Description |
|---|---|
| Video and imaging | 8MP resolution with 3840 x 2160 output 1/2.8 inch progressive CMOS image sensor Full 4K video recording at up to 30 frames per second Up to 16 Mbps adjustable video bitrate Triple stream support for main, sub, and mobile viewing |
| Low light and night performance | Color video in low light down to 0.009 lux with F1.6 aperture Black and white night vision using infrared LEDs Infrared illumination distance up to 98 feet or 30 meters Automatic day and night switching using IR cut filter |
| Lens and field of view | Fixed 2.8 mm lens Wide viewing angle with 105° horizontal, vertical 56° and diagonal 126° coverage Designed for close range and wide area monitoring |
| Smart detection and analytics | AI based detection for people and vehicles Face recognition and license plate detection Line crossing and perimeter intrusion detection Object removal detection and region based alerts Heat map, crowd density, and queue length analytics Rare sound detection for abnormal audio events |
| Audio and local storage | Built in microphone for audio recording MicroSD card slot supporting cards up to 256 GB Local edge recording supported |
| Network and compatibility | Single cable power and data using PoE IEEE 802.3af RJ45 Ethernet connection at 10 or 100 Mbps Video compression using H.265 or H.264 ONVIF Profiles S, G, T, and M supported Compatible with Camius PoE NVRs and hybrid DVRs |
| Environmental and build | Metal housing with vandal resistant dome design IP67 rated for outdoor and indoor installation Operating temperature range from minus 35 Fahrenheit to 140 Fahrenheit Designed for commercial and professional use |
| Power and physical | Power input via PoE or 12V DC Maximum power draw under 6.1 watts using PoE Compact mini dome form factor Dimensions 3.94 x 3.94 x 3.23 inches / 100 x 100 x 82 mm Weight approximately 14.6oz / 415 grams |
Frequently Asked Questions About 4K PoE Dome Security Camera System
Does this security camera system require a monthly fee?
No. Video and audio are stored on the included 4TB NVR hard drive. Remote viewing uses the Camius View app, desktop software and web client without a required cloud-storage subscription.
How many cameras are included?
Four 4K PoE dome cameras are included. The 8-channel NVR supports up to eight cameras, leaving four channels available for expansion.
Do the cameras record audio?
Each 4K PoE dome camera has a built-in microphone for audio recording.
Is internet service required?
Local recording, playback, and monitor viewing work without internet service. Internet access is required for remote viewing, email and mobile notifications.
Are the cameras suitable for outdoor installation?
Yes. The included cameras have IP67-rated metal housings. The NVR must remain indoors.
How many days of continuous 4K recording does 4TB provide?
With the four included 4K cameras recording continuously 4TB provides approximately 10 days at 8 Mbps per camera, 21 days at 4 Mbps, or 42 days at 2 Mbps. After expansion to eight cameras, the estimates are 5 days, 10 days, and 21 days at the same respective bitrates.
