How to adjust my DVR NVR monitor resolution?

HDMI and VGA video outputs

Camius video surveillance DVR NVR camera recorders have HDMI and VGA video output to live video feed on your monitor.

VGA output supports a max resolution of 1080p, while the HDMI video output 4K video resolution. So if the monitor you use with the Camius DVR or NVR recorder is capable of 4K and the camera, you can view live videos in 4K.

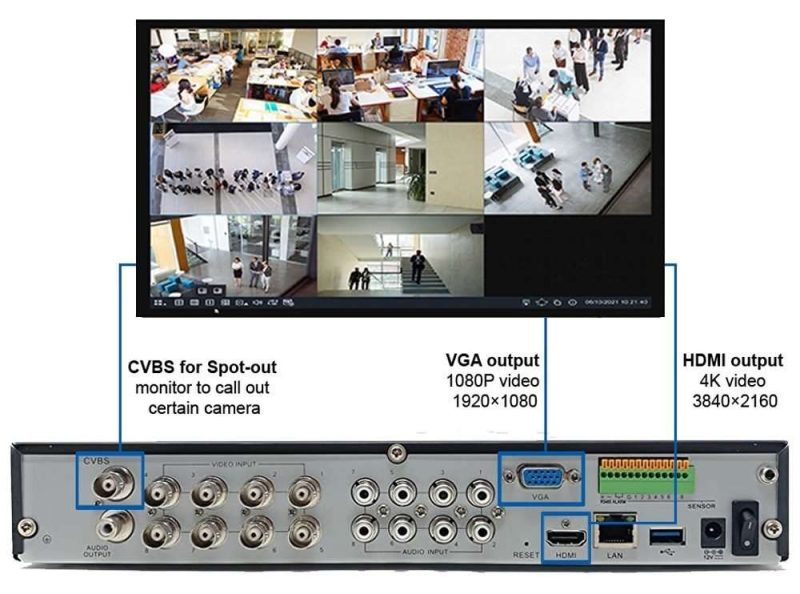

Camius 4K DVR comes with 3 video outputs to add a monitor or TV for live viewing. 1 x HDMI output which supports 4K video (3840x2160) 1 x VGA output that supports 1080P video (1920x1080) 1 x CVBS (or BNC) for the spot monitor to call out a certain camera.
Camius 4K DVR comes with 3 video outputs to add a monitor or TV for live viewing. 1 x HDMI output which supports 4K video (3840x2160) 1 x VGA output that supports 1080P video (1920x1080) 1 x CVBS (or BNC) for the spot monitor to call out a certain camera.
What is a PoE Camera System?
8 channel NVR - IPVAULT1128PR
IPVAULT2256PR 2 SPOT 2 boltx536r POE CONNECTION e1707369524124
16 channel NVR - IPVAULT2256PR

Two ways to adjust the DVR NVR monitor resolution

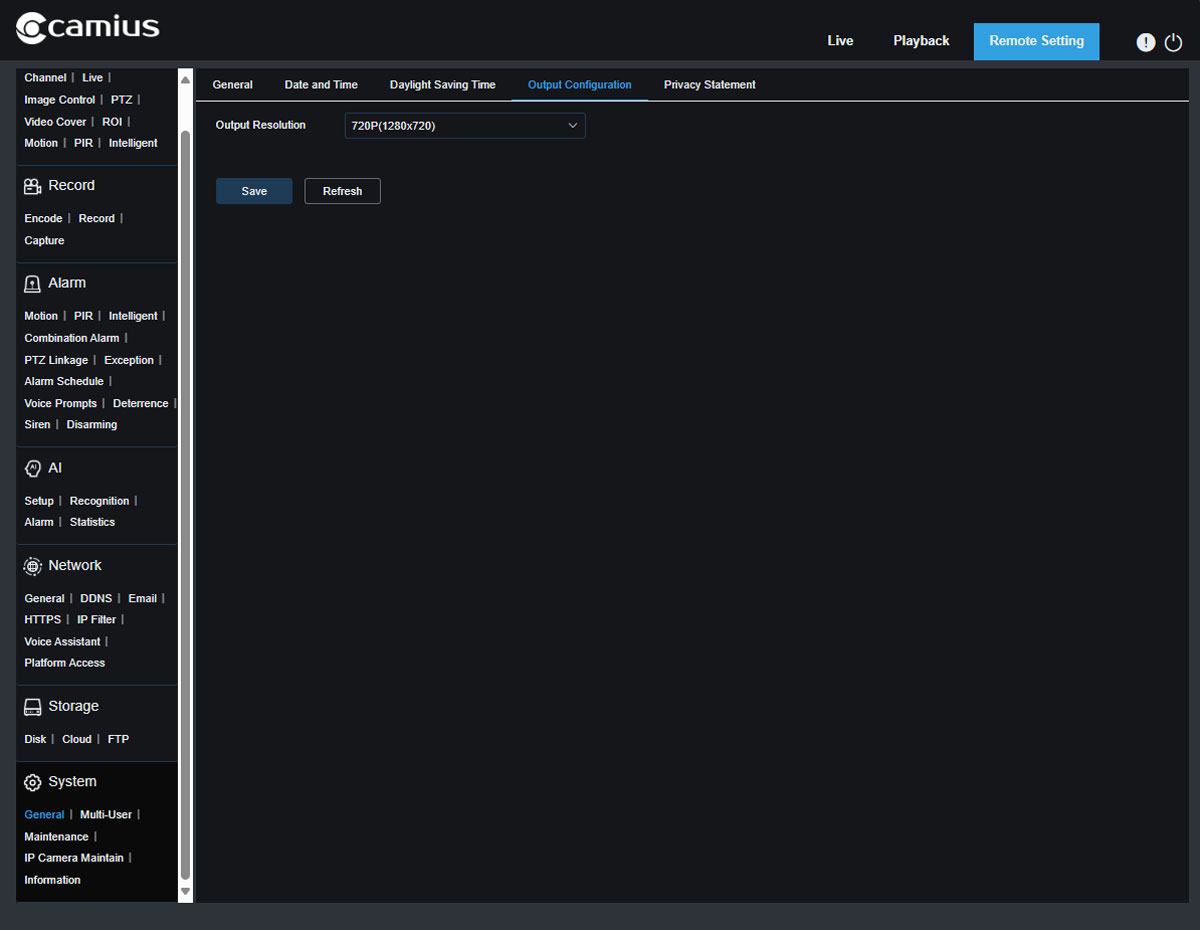

You can adjust the DVR NVR monitor resolution in the Wizard Setup mode or by navigating to Setup >> System >> General >> Output Configuration.

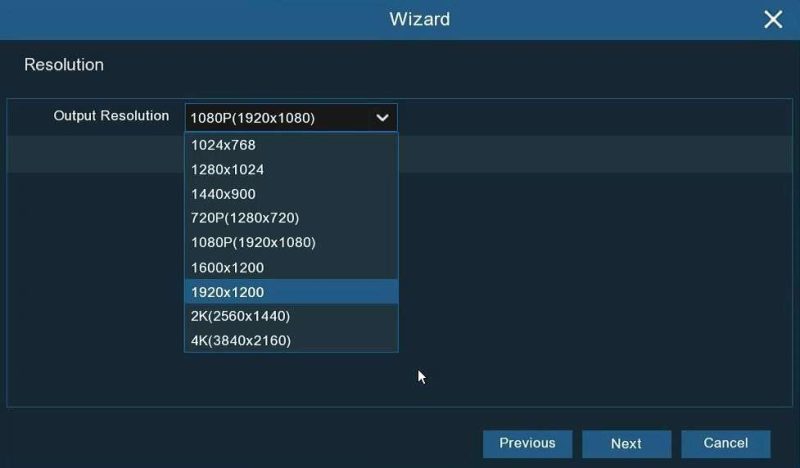

While in ‘Wizard Setup’ mode, choose an output resolution that matches your monitor. The DVR should adjust the output resolution automatically to match the best resolution of your monitor at the system startup.

Resolution-resolution-range1080p-to-4K
Set-the-monitor-resolution-notice

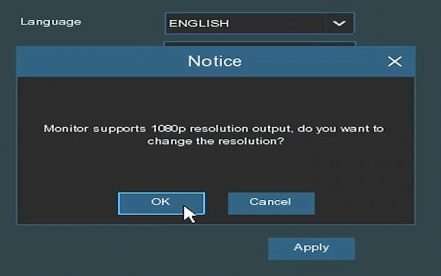

Please note that some legacy monitors could fail to communicate their acceptable resolution. In this case, please manually plug the video surveillance DVR into a newer monitor and change the resolution to the lowest setting, then save and plug the older monitor back to see if it’s supported.

After completing the Start Wizard, you can further adjust the Display Output Resolution using the following Menu Path: Setup – System – General – Output Configuration.

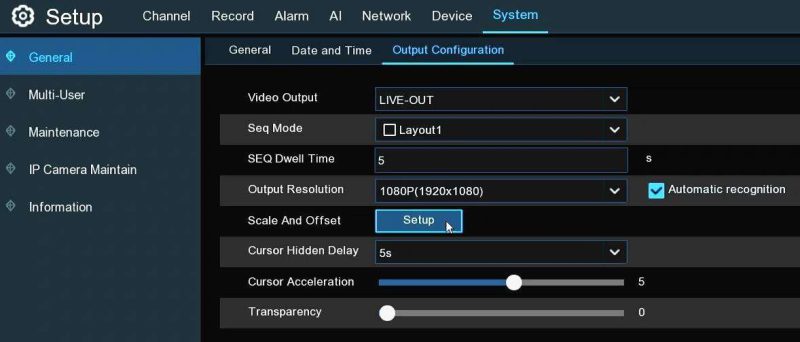

Select the output resolution suitable for your TV/Monitor. 1080P(1920 x 1080) will suit most monitors. If your DVR supports 4K output resolution, you can select either 2K (2560 x 1440) or 4K (3840 x 2160) to take advantage of the higher resolution that your 4K TV provides.

General Video Output configuratyion
Scale display

You can also adjust the size & position of the display screen to match your monitor/TV by using the ‘Scale and Offset’ feature; click the tab ‘Setup,’ which allows you to:

  • Scale is to adjust the size of the displayed screen by scale.
  • X Offset is to move the displayed screen to the left or right.
  • Y Offset is to move the displayed screen up or down.

Click once or long-press the left button of your mouse on the arrow to adjust the size and position, or you can scroll the supplied USB mouse’s wheel to adjust. Click the right button of your mouse to exit, and click Apply to save your modifications.

Customize your cameras view layout (split screen layout)

You can also select your preferred the display view layout. Navigate to the bottom of the screen to access the DVR’s quick tools panel. Click on the view’s layout and select a four-camera view or any other layout you prefer. Remember, you can customize your display view layout.
