How to set a password on my new Camius DVR, NVR recorder?

Turn on the DVR / NVR recorder using the On/Off switch.

The DVR doesn’t come with a default password, you need to set one, and there are two ways.

Option 1 – Connect your DVR or NVR to a monitor using an HDMI or VGA output for local access.

8 Channel DVR connection diagram

trivault4k184r2 connection diagramm 1 2

16 Channel DVR connection diagram

TRIVAULT4K2168R connection diagramm 1

8 Channel NVR connection diagram

1128pr connection diagramm

16 Channel NVR connection diagram

IPVAULT2256PR Connection diagramm

During the Camius loading screen, your recorder detects the monitor connected to the HDMI or VGA port; a message will appear if a higher resolution is available. Click here for the steps to adjust your monitor’s resolution if needed

On the next screen:

  • Select the desired menu Language
  • The default Device ID is 000000
  • The administrator username is ‘admin

DVR and NVR Password requirements: 8-16 characters, a lowercase, an uppercase, a digit, and a special character.

Unlock Pattern is optional for easy access: Click on the tab ‘to Draw’ and set your unlock pattern, then click ‘Apply.’ Users can set or skip Password Recovery Questions & Answers.

4 4k2168R Password step 1
How to set a password on my new Camius DVR or NVR recorder? 31

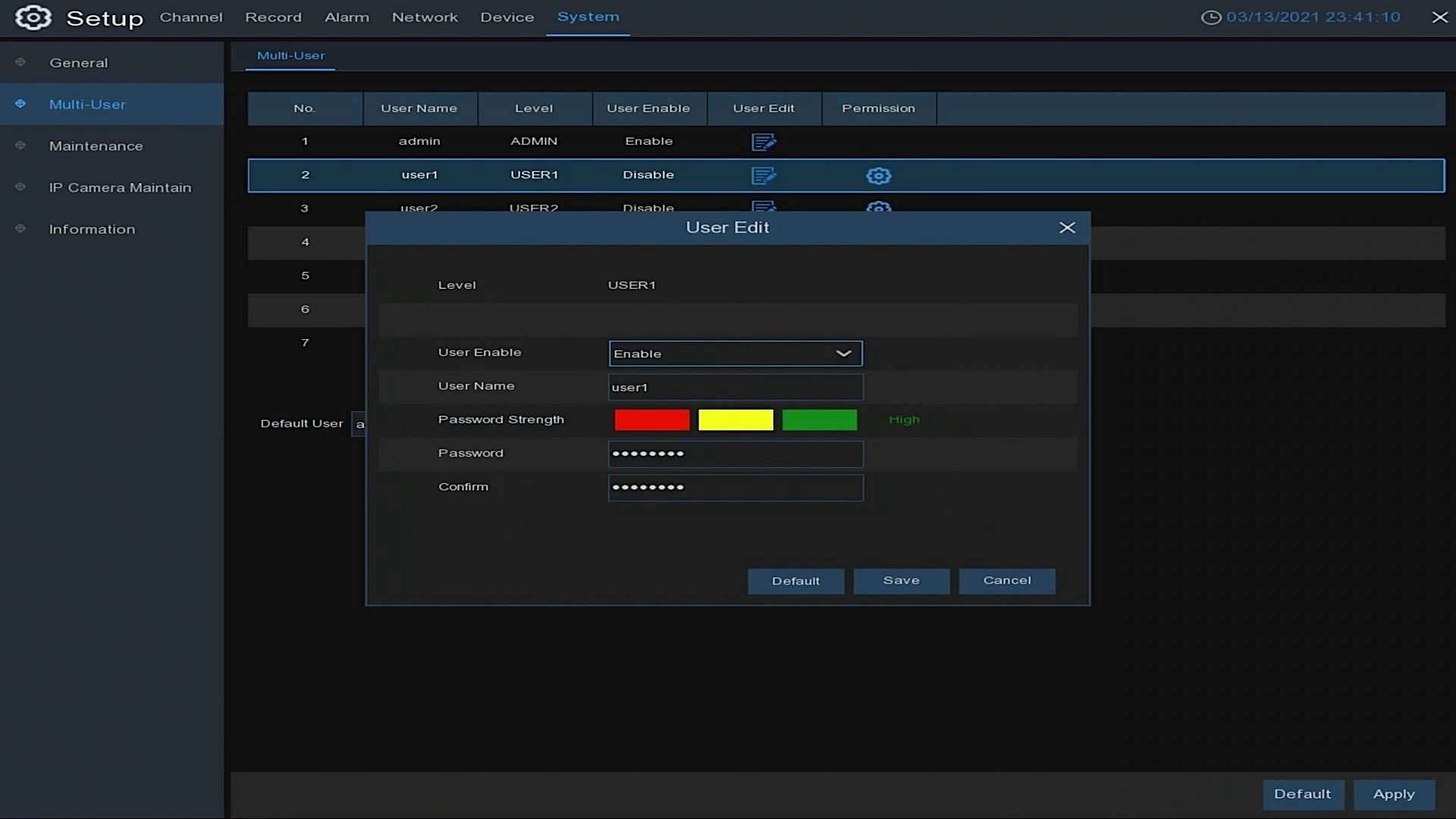

Note: You can activate and edit users under Menu >> Setup >> System >> Multi-user

4K184 SYSTEM MULTI USER USER 1 PASSWORD
How to set a password on my new Camius DVR or NVR recorder? 32

Option 2 – Setup a new password on your DVR or NVR using a web browser access

Camius IP cameras, DVR, and NVR recorders of the R-series are compatible with modern web browsers (click here for the browser access instruction on non-R series devices)

Step 1 – Download and Install the Camius Device Search Tool, compatible with PC and Mac.

IPVAULT1128PR CONFIG TOOL 1

Step 2 – Click the Search button to scan your local network for Camius IP cameras, DVR and NVR.

Step 3 – Click on the device’s IP address, which will take you to your default browser to access the device’s interface asking to set a new password.web browser new password setup 2023

DVR and NVR Password requirements: 8-16 characters, a lowercase, an uppercase, a digit, and a special character.

Step 4 – You can check the box ‘Security Question Configuration‘ if you wish to enable a ‘Recover Password’ function, as shown below. If you don’t check the box, the ‘Recover Password’ function will be doable, and you can contact Camius Support at Camius.com/support for assistance.

Recover password on the web 2023

Step 5 – Once you set a new password, the browser will reload, and you will be asked to use your new password to access the device (username is admin)

This image has an empty alt attribute; its file name is Camius-browser-IPVAULT1128PR-FAQ-1024x684.jpg

Only once you set a new password using one of the above ways, add the DVR or NVR to your Camius View app using your new password (follow this guide on how to add a Camius recorder or IP camera to the Camius View app).

[]
