If you are looking for a reliable and versatile security system that can work with both analog and IP cameras, you might want to consider Camius DVRs and analog cameras. Camius is a trusted name in the industry, offering advanced 4K DVRs with CVBS, AHD, CVI, and TVI cameras, smart detection, audio, high capacity storage, compatibility with IP cameras, and PTZ control capabilities, providing enhanced features and flexibility.

One of the features that sets Camius apart from other brands is the UTC (Up the Coax) control, which allows you to control analog camera settings through the DVR’s display menu. In this tutorial, we will explain what UTC control is, how it works, and why it is beneficial for your security system.

What is UTC Control and OSD Menu?

UTC stands for Up the Coax, which is a technology that enables communication between the DVR and the analog camera using the same coaxial cable that transmits video signals. This means that you don’t need to run separate wires or use RS485 connectors to adjust the camera’s settings. You can simply use the DVR’s remote control or mouse to access the camera’s OSD (On Screen Display) menu and change various parameters such as the camera’s video mode, format, menu language, exposure, day and night mode,  video settings, audio volume, and even you can reset the analog camera.

How Does UTC Control and On Screen Display Work?

To use UTC control, you need to have a compatible DVR and analog camera that support the same protocol. Camius DVR recorders and analog cameras support UTC functions to offer the best of surveillance system.

If you are adding non-Camius analog cameras to the Camius DVR, make sure they support CVBS, AHD, CVI or TVI mode. The OSD On screen display menu is available if the non-Camius camera supports the UTC function, and then you can choose COAX1 or COAX2 to display the camera’s OSD menu or control the UTC function.

To access and utilize the Up the Coax control panel on your Camius DVR, follow these steps:

  • On the Live Viewing screen, locate the channel corresponding to your analog camera.
  • Click  on that channel and hover the mouse to open the Quick Toolbar.
  • In the Quick Toolbar, you will find various icons representing different functions. Click on the PTZ icon
  • In the PTZ control panel, you will have the UTC option. Select the UTC and use the directional pad, left, right, up and down arrows, and the middle button.  You can use these controls to navigate through the analog camera’s settings.
  • You will see a list of settings that you can modify according to your preferences. Use the directional pad to navigate through the menu and select or change settings.
  • Make sure to save settings if you need and to exit the OSD menu, click on the Exit command
In the PTZ control panel, you will have the UTC option. Select the UTC and use the directional pad, left, right, up and down arrows, and the middle button.

Video Mode

  • In the PTZ control panel, you will have the UTC option. Select the UTC and use the directional pad, left, right, up and down arrows, and the middle button.  You can use these controls to navigate through the analog camera’s settings.
  • You will see a list of settings that you can modify according to your preferences. Use the directional pad to navigate through the menu and select or change settings.

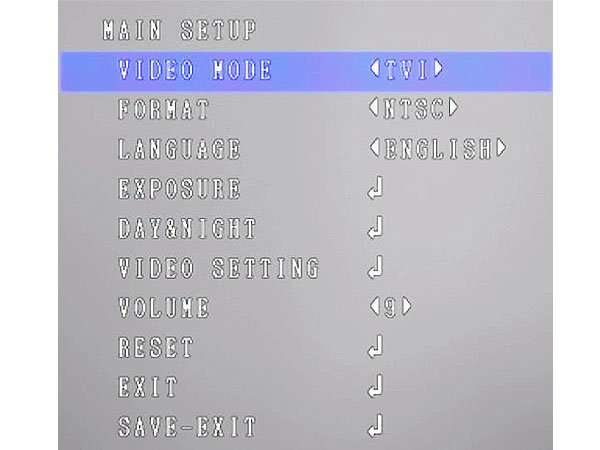

  • You can select the Video Mode of the camera between CVBS, AHD, CVI and TVI

Format, Language, Audio Settings

  • You can change select the format between NTSC and PAL

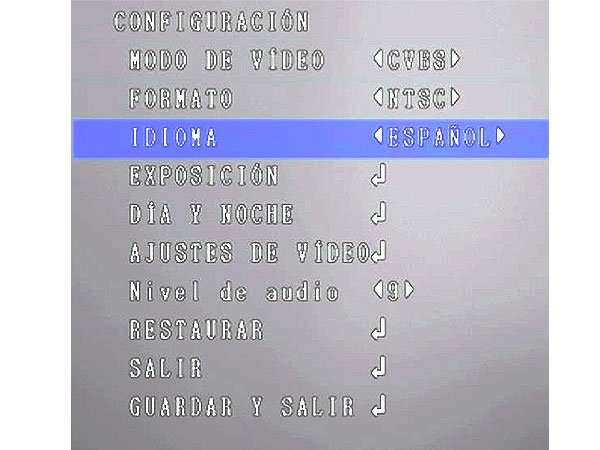

  • Change the menu language. Camius devices support multiple languages including Spanish, French, etc.
  • You can adjust Exposure level of the analog security camera
  • If the analog camera has a built-in microphone (for e.g. like Camius FB4KAOC), you can adjust the Audio Volume

Video Settings

Camius 4K analog security cameras have a variety of Video Settings that allow you to customize the image quality according to your preferences and environment. You can access these settings from the On screen display menu.

  • AWB (Auto White Balance) adjusts the color temperature of the image to match the lighting conditions.
  • Brightness controls the overall brightness of the image. You can increase or decrease the brightness level using the left and right arrows.
  • Contrast controls the difference between the light and dark areas of the image. You can increase or decrease the contrast level using the left and right arrows.
  • Sharpness: This controls the clarity and detail of the image. You can increase or decrease the sharpness level using the plus and minus buttons on the remote control or the camera.
    – Saturation controls the intensity and richness of the colors in the image. You can increase or decrease the saturation level using the left and right arrows.
  • NR (or Noise Reduction) reduces the amount of noise or grain in the image, especially in low-light situations. You can choose from several levels of noise reduction.
  • Mirror flips the image horizontally, which can be useful if you are using a monitor that does not have a mirror function.

Day & Night Settings

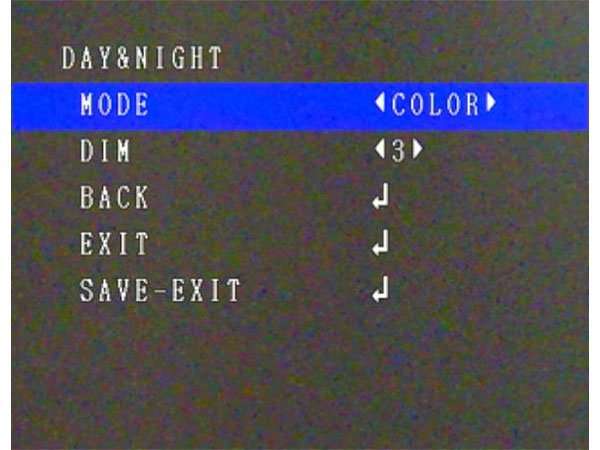

Camius 4K Analog security camera’s built-in OSD menu allows users to customize Day & Night settings. You can switch the camera’s sensitivity to light according to the ambient conditions.

Users can also select either color or black and white mode, depending on their preference and the type of video they want to capture. Another setting is the dim level of LEDs. These settings can enhance the performance and quality of analog cameras in different scenarios.

Make sure to save settings if you need and to exit the OSD menu, click on the Exit command

Why is UTC Control Beneficial?

UTC control offers several advantages for your security system, such as:

  • It simplifies the installation process by eliminating the need for extra wires or connectors.
  • It saves time and effort by allowing you to adjust the camera’s settings from the DVR
  • It enhances the image quality by enabling you to fine-tune various parameters and even change the video mode, language, audio volume, etc.
How Camius DVRs and Analog Cameras Stand Out

Camius offers a range of 4K over coax security cameras that are compatible with Camius 4K DVRs. These cameras deliver ultra HD resolution and clarity using coaxial cables. New wiring can be costly, and with Camius DVR camera solutions, you can upgrade to 4K technology and the latest features without a need for rewiring using the old coaxial video power infrastructure.

They also support UTC control, which allows you to easily adjust their settings through the DVR’s display menu.

You can enable Smart Motion Detection to trigger recording video based on sensitivity to movement. Moreover, Camius DVRs allow you to select the target between motion, vehicle, pedestrian, or vehicle & pedestrian.
TRIVAULT4K2168R AI ALARMS Human and Vehicle

Some of the features that make Camius analog cameras stand out are:

  • They have a wide-angle lens that covers a large area with minimal distortion.
  • They have robust metal housing that is weatherproof and vandal-resistant, while many security camera manufacturers use cheap plastic housing which wont withstand rough weather conditions
  • They have infrared LEDs that provide night vision and you can choose color or black and white mode for your Camius analog cameras.
  • Camius 4K analog bullet cameras have a built-in microphone that captures audio along with video.
  • With Camius 4K DVR recorders and BNC cameras you can activate smart detection and even AI powered functions such as Human and Vehicle, Perimeter Intrusion Detection and more
Camius also offers hybrid DVRs that can work with both analog and IP cameras

 Camius security camera DVR recorders have multiple channels that support different signal types such as CVBS (analog), TVI (HD-TVI), AHD (Analog HD), CVI (HD-CVI), and IP (network). You can mix and match different types of cameras according to your needs and preferences.

Some of the features that make Camius DVRs stand out are:

  • They have a powerful processor that supports 4K video recording and playback.
  • They have a user-friendly interface that is easy to navigate and customize.
  • They have a smart search function that allows you to quickly find specific events or incidents.
  • They have a motion detection feature that triggers recording and alerts when movement is detected.
  • They have a spot monitor feature that allows you to display a selected channel on a separate monitor.
Conclusion

Here, in Camius, we care about providing the best security solutions for home and business owners. We design our products to be user friendly and future proof, so you can enjoy peace of mind and convenience. Whether you need a 4K DVR only, a 4K analog camera with coaxial cable, or a a XVR system that supports both analog and IP cameras, we have something for you. Our products are packed with features that enhance your security, such as UTC control, wide-angle lenses, infrared LEDs, built-in microphones, speakers, sound and AI detection, smart search, and spot monitoring. Camius is your reliable partner for security systems that work with both analog and IP cameras. Contact us today to find out more.
