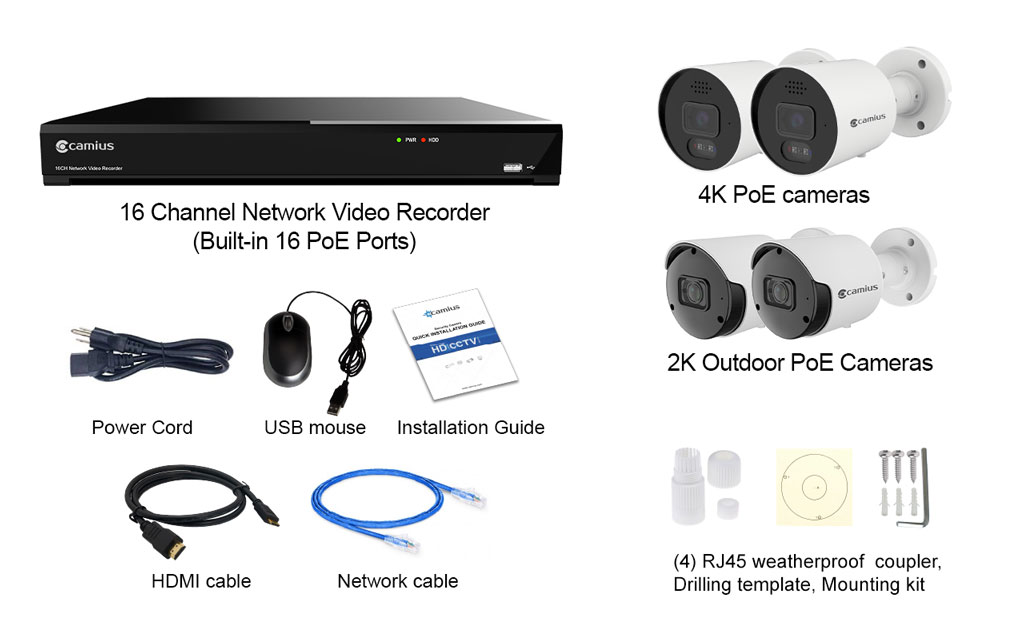

NVR System with 16 Channels, 4 PoE Cameras and 4TB Storage
- 4K 16 Channel Network Video Recorder with 4TB Surveillance HDD (IPVAULT2320PR 4TB HDD)
- 2 x 4K PoE Security Camera with Siren, Lights, 2 Way Audio, Outdoor
(SPOT828A-RB) - 2 x PoE Bullet Outdoor Camera – 2K 5MP Video, Audio Recording, Sound, Vehicle Detection
(BOLTX536R) - 4 x 60ft Cat5e camera cables
- NVR power cord, USB mouse, HDMI cable, network cable and installation guide
Start with 4 Cameras and Expand to 16
This 16-channel NVR system includes four PoE cameras and leaves 12 channels open for future expansion. Add compatible Camius PoE cameras as your property or monitoring needs grow without replacing the recorder. Each built-in PoE port provides the network connection and power for a compatible camera over Ethernet.
320Mbps 16 Channel PoE Security Camera System
The 16 channel PoE security camera system provides 320Mbps incoming and 320Mbps outgoing NVR bandwidth. The recorder supports H.264, H.265, H.264+ and H.265+ video compression, with recording support across resolutions up to 12MP. The higher recorder bandwidth provides capacity for adding cameras as the system expands toward its 16-channel limit.
4TB Local NVR Storage with HDD Expansion

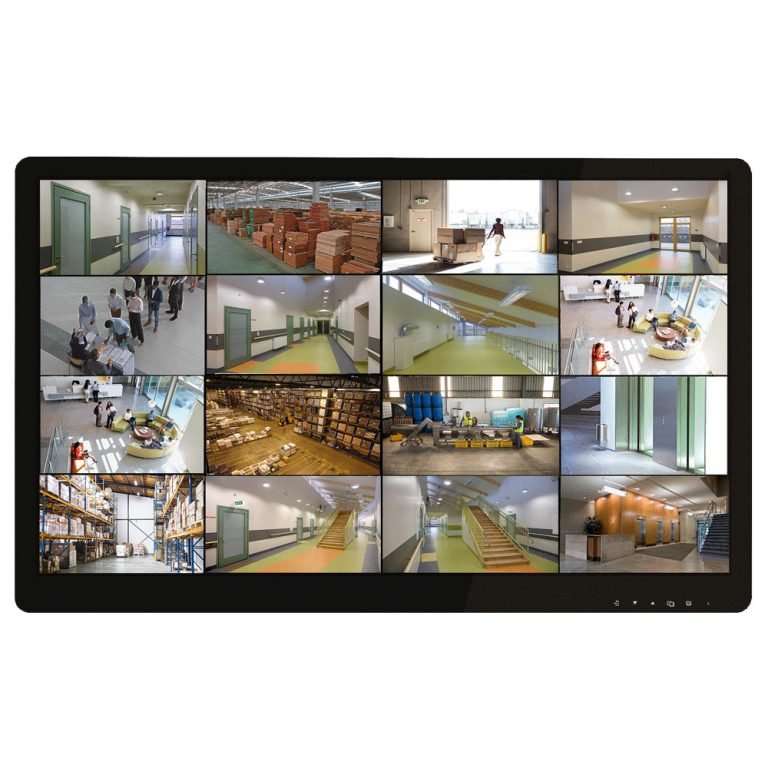

4K HDMI, Dual Monitor and VGA Display Outputs
Connect the NVR to a primary 4K monitor through HDMI 1. HDMI 2 supports a secondary display up to 1080p, while the VGA output also supports resolutions up to 1080p. These outputs provide local live view and playback without depending on a phone or computer.
Night Vision for 4K and 5MP Outdoor Cameras
The included cameras support day and night monitoring. The 4K SPOT828A-RB cameras include infrared LEDs, warm lights, and full-color image modes, while the 5MP BOLTX536R cameras provide SmartIR night vision up to 100 feet. Night performance depends on available light, camera placement, and scene conditions.
2 4K PoE Cameras with Spotlight, Siren and Two-Way Audio
Two PoE cameras record 4K 8MP video at up to 30 fps with a 106° horizontal field of view. Each camera includes a microphone, speaker, siren, warm lights, red and blue warning lights, and two-way audio for active deterrence and remote communication.
24/7 Local Recording with No Required Monthly Fee
Record video directly to the NVR’s local hard drive for continuous or event-based recording without a required monthly storage subscription. The included 4TB drive provides local storage, while overwrite settings allow the recorder to replace older footage automatically when configured.

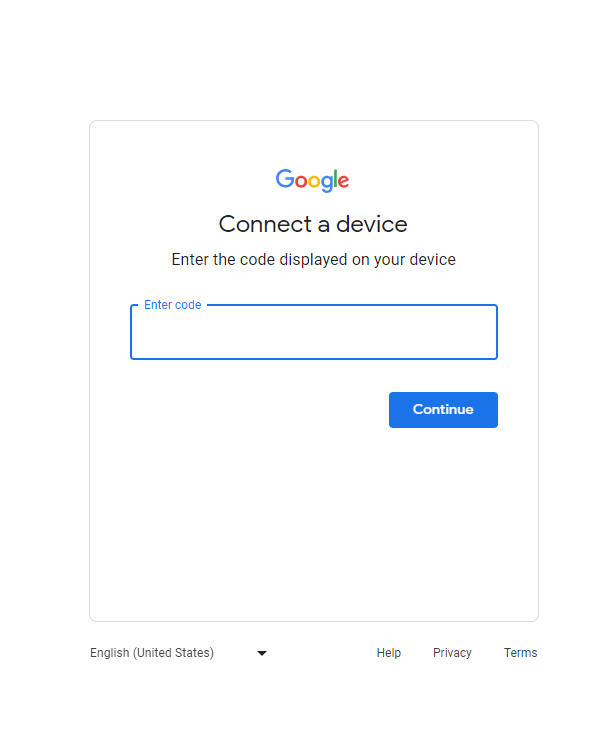

Optional Dropbox and Google Drive Event Storage
Primary video storage stays on the NVR’s local hard drive. For selected events, the recorder also supports uploading images or video to Dropbox or Google Drive, giving you an additional storage option for important events.
View the guide on how to set up Camius DVR, NVR recording to the cloud
AI Alerts, Push Notifications and Alarm Actions
Configure recording, email alerts, Camius View push notifications, cloud uploads and other alarm actions when supported events occur. Available triggers include motion, AI detection and recorder exception events, with schedules for controlling when alerts and actions are active.
NVR System with AI Human and Vehicle Detection
The NVR system supports AI functions including Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting and additional analytics with compatible cameras. AI events support recording, email, cloud uploads and Camius View push notifications based on configured settings.

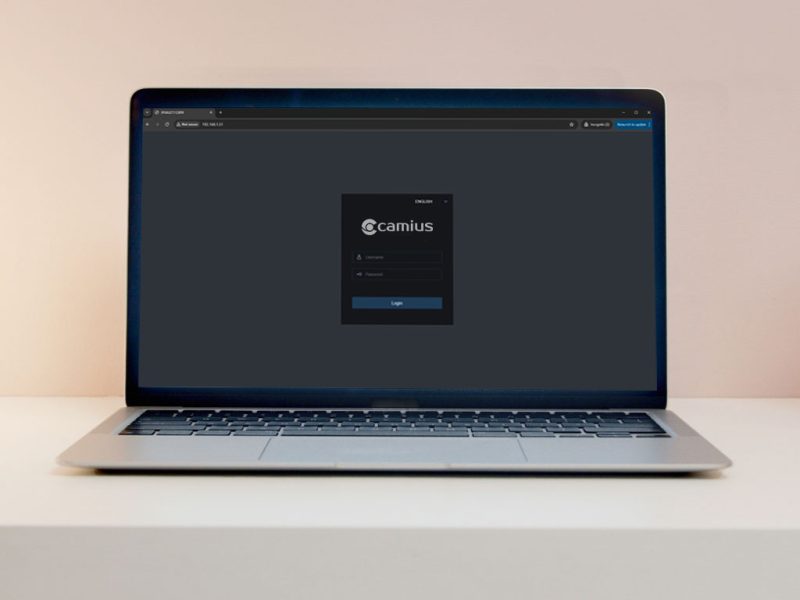

Remote Viewing from Phone, PC, Mac and Web Browser

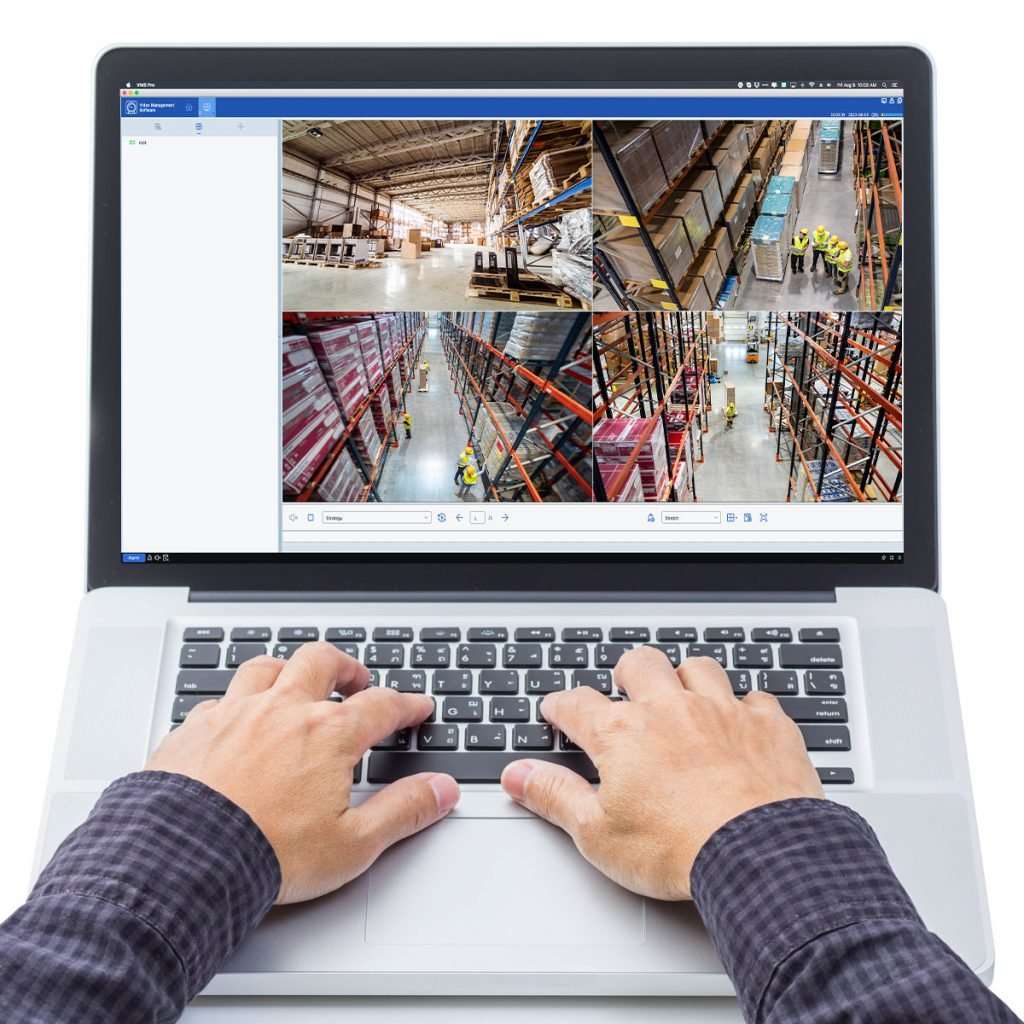

View the NVR system remotely through the Camius View app for iOS and Android, Camius VMS software for Windows and Mac, or a supported web browser. Remote access provides live viewing, playback and system access from compatible devices after the recorder is connected to your network.
16 Channel 320Mbps NVR Specifications
Bandwidth
- Incoming: 320 Mbps
- Outgoing: 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T)
- Voice Command: Home Device: Google Assistant, Amazon Alexa
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.
Storage
- Two Internal SATA Hard Drive Ports: up to 12 terabyte
- One e-SATA
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
4K Security Camera Specs (SPOT828A-RB)
Video
- Imaging Device: 1/2.8″ Progressive CMOS
- Effective Pixels: 8MP / 4K (3840 × 2160) at 30 Fps (NTSC), 25 Fps (PAL)
- 3 Streams: Main, Sub and Mobile stream
- Bitrate: 256Kbps ~ 16Mbps
- Min. Illumination: Color 0.007lux @ F1.0 (AGC ON) ; B/W 0 lux @ IR ON
- Lens: Fixed, 2.8 mm
- Max. Aperture Ratio F No. 1.0
- Field of View: Horizontal: 106°, Vertical: 56°, Diagonal: 126°
- Minimum Object Distance: 6.7ft ( 2m)
- Video Cover (Privacy) & ROI (Region of Interest): Available
Audio
- Built-in microphone: Yes
- Built-in Speaker: Yes
- Siren: Yes
Image Control
- Number of IR LEDs: One (with maximum distance of 82ft /25m)
- Warm Light: Two (with maximum distance of 66ft / 20m)
- Red & Blue Light: One of each
- Image Setting Full Color Mode/Day & Night Mode/ Schedule
- Image control options: Wide Dynamic Range WDR, Digital Noise Reduction 3D DNR, White Balance, Corridor Mode, Angle Adjustment, Electronic Shutter Speed (1/5 ~ 1/20000s)
Events / Alarms / AI
- Smart Motion and Sound Detection

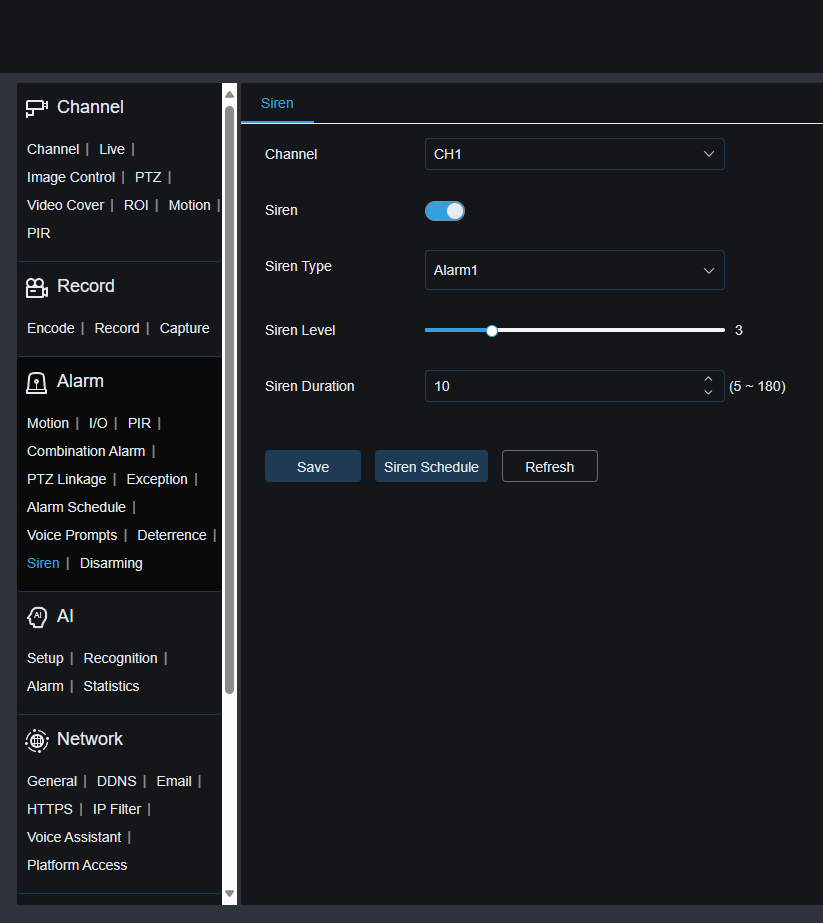

- Deterrence and Siren: Triggered by selected events with customizable schedule
- AI functions: Human & Vehicle Detection(PD&VD), Perimeter Intrusion Detection(PID), Line Crossing Detection(LCD), Cross Counting(CC), Stationary Object Detection(SOD), and more (customizable schedule)
- Alarms: Post recording, Send email, FTP, Cloud Recording/Picture Upload, Push notifications
Device
- On-Board Storage Micro SD slot, up to 256GB
- Record to Camius NVR/DVR
- Record to Dropbox (you can also record to Google Drive when installed with Camius NVR or DVR)
Network
- Speed: RJ45(10/100BASE-T)
- Protocols: TCP/IP,HTTP, DHCP,DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPV6, Onvif Profile S/G/T
Access
- Web Browser Viewer: Google Chrome V.57 above Internet Explorer 10/11, Safari V12.1 above, Mozilla Firefox V.52 above, Edge V.79 above
- Camius Video Management Pro Software (For PC and Mac computers)
- Camius View App (iOS/Android)
General
- Operating Conditions -31°F to 140°F (-35～+60°C) / less than ≤ 90% RH
Weatherproof: IP67 rated
Power Source: PoE (IEEE802.3af) or DC 12V

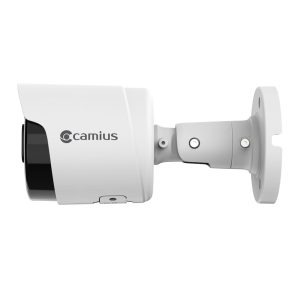

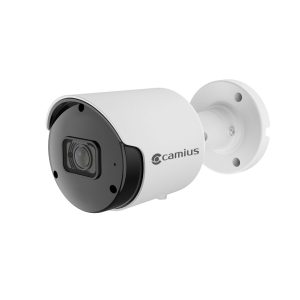

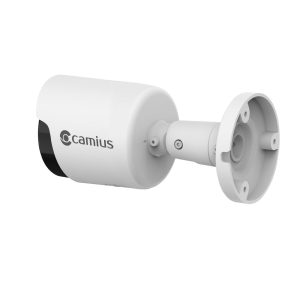

2K Security Camera Specs (BOLTX536R)
- Shape: Bullet
- Resolution: 2K 2880×1620 @ 30fps
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Image Sensor: 1/2.7” Progressive CMOS
Bitrate:
- MainStream: 8192Kbps
- SubStream: 4096Kbps
- MobileStream: 1536Kbps
Video Compression:
- H.264, H.265, H.264+, H.265+ (Supports MJPEG in SubStream)
Audio:
- Built-in microphone
- Audio Compression: G.711A/G.711U
Night Vision:
- Up to 100ft (30m) with SmartIR
Image Control:
- 3D noise reduction
- IR-CUT mode
- Wide Dynamic Range (WDR)
- Backlight compensation
- Highlight compensation (HLC)
- White balance, shutter, mirror, angle adjustment
- Corridor mode
Detection:
- Smart Motion and Sound Detection
- AI-based (Face, Human, Vehicle, Perimeter Intrusion, Line Crossing, Cross Counting)
Alarms:
- Post recording, email notifications, FTP picture upload, cloud picture upload, recording triggers
- Push Notifications: Storage error, AI detections, with Camius NVR integration
Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P]]
- Email notifications for up to 3 receivers, configurable SMTP
Reset:
- Hard reset button / via the network
Power Source:
- PoE (IEEE802.3af) / DC12V
Weatherproof:
- IP66 rated
Dimensions & Weight:
- Approx. 14oz (397g), Φ 2.8” x 6” (70.9 x 152.7 mm)
NVR System FAQs
How many cameras are included with this NVR system?
Four PoE cameras are included, two 4K cameras and two 5MP cameras. The 16-channel NVR leaves 12 channels available for adding compatible IP cameras later.
Does this NVR system include a hard drive?
Yes. The NVR arrives with a pre-installed 4TB hard drive for local video recording. The recorder also has a second internal SATA connection and an external eSATA connection for storage expansion.
Does this NVR security system require monthly fees?
No monthly subscription is required for recording video to the NVR’s local hard drive. Optional Dropbox and Google Drive features are available for supported cloud uploads.
How many cameras does the 16-channel NVR support?
The IPVAULT2320PR supports up to 16 IP camera channels and includes 16 built-in PoE ports. This package starts with four cameras, leaving 12 channels open for expansion.
What is the difference between the two camera types in this system?
The package includes two 4K cameras with spotlight, siren, speaker and two-way audio, plus two 5MP cameras with a built-in microphone and SmartIR night vision up to 100 feet.
Are Ethernet cables included?
Yes. The current package listing includes four 60ft Cat5e camera cables, one for each included PoE camera.
Does the system support remote viewing?
Yes. Remote access is supported through the Camius View app for iOS and Android, Camius VMS software for Windows and Mac, and supported web browsers.
