Configuring SPOT-OUT Setting on DVR using BNC Connector and RCA Cable

4K184R2 video inouts 1000 e1676090745514

The Camius 4K security camera DVR recorders have 3 video outputs that allow you to connect a monitor or TV for live viewing. It includes a 4K HDMI output with a video resolution of 3840×2160, a VGA output that supports 1080P video (1920×1080), and a CVBS (or BNC) output for a Spot-out monitor to call out specific cameras.

Please follow this step-by-step guide on how to configure the DVR’s Spot-out settings.

To ensure proper connectivity between your devices, using a BNC connector with an RCA cable is important.

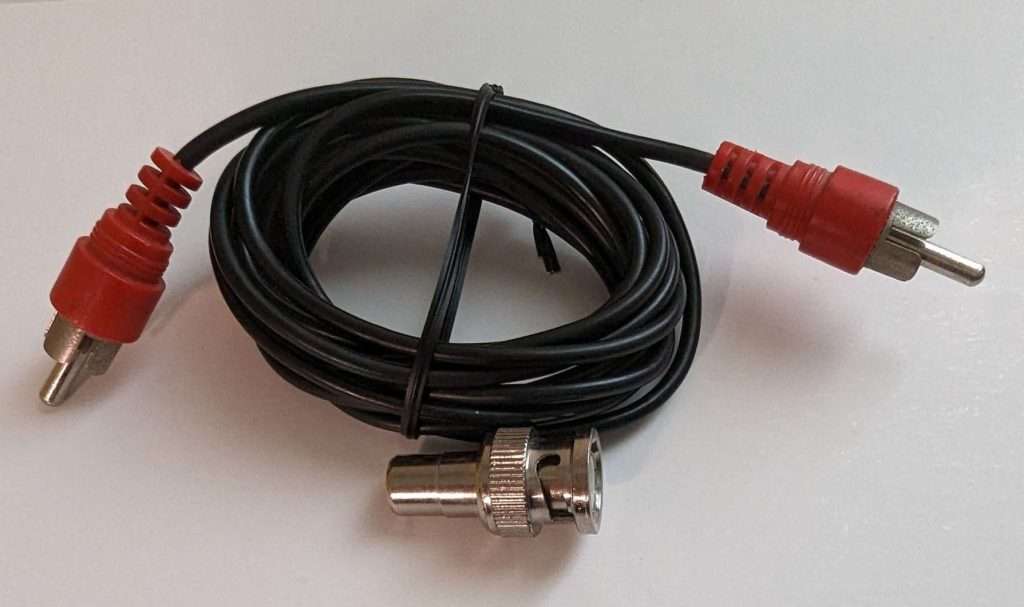

BNC to RCA e1679638211911

To configure the SPOT-OUT setting on your DVR, please refer to the attached pictures and follow the steps below:

  1. Use your DVR’s HDMI interface to access the menu.
  2. Navigate to Setup >> System >> General >> Output Configuration.
  3. From the video output dropdown list, select “SPOT-OUT“.
  4. Check the CVBS SPOT box.
  5. Choose either “Dynamic” or “Static” for the setup.
  6. Select your preferred view mode and define the Sequential (SEQ) setting.
  7. Once you are satisfied with the output settings, click “Apply“.
  8. Your DVR will restart to complete the configuration.

Following these steps, you should be able to properly configure the SPOT-OUT setting on your DVR and ensure the correct video output.
