Elevate Your Security with Camius Outdoor Surveillance Cameras with Audio Recording
Camius 6 Camera Home Security System is designed to address the most common security challenges for homeowners and businesses. Combining cutting-edge technology, robust design, and user-friendly features, it delivers reliable, high-quality surveillance without hidden subscription costs.
All-in-One Home and Business PoE CCTV Cameras
High Quality Outdoor Surveillance Cameras Package Includes:
- 8 Channel NVR with 4TB HDD (IPVAULT1128PR 4TB HDD)
- 6 x 2K Outdoor Video Surveillance Cameras (BOLTX536R)
- 6 x 60ft Cat5e cables
- NVR’s power supply, Ethernet cables, HDMI cable, USB mouse, and user guide

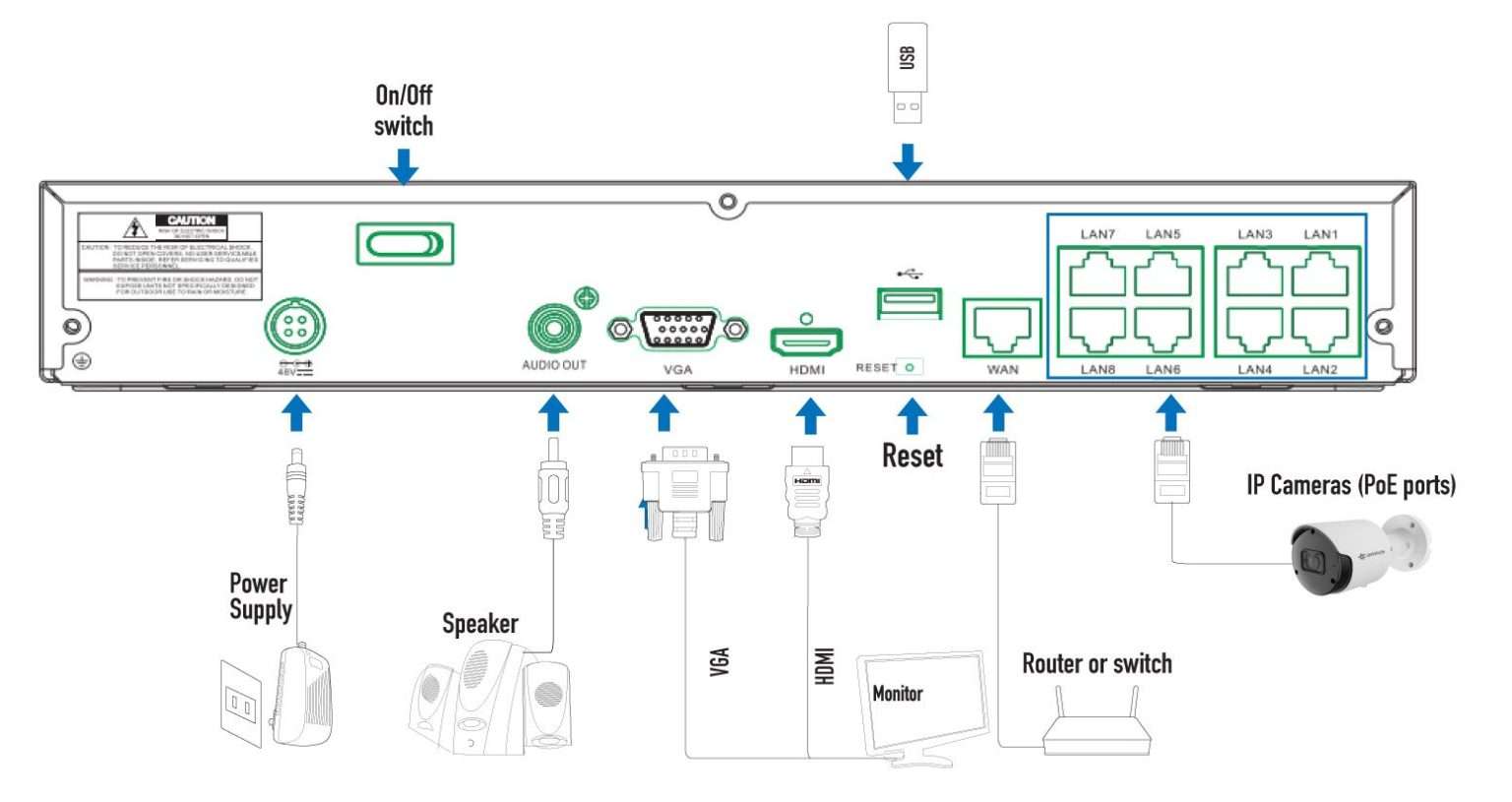

Plug-and-Play Outdoor Video Surveillance Systems with PoE Technology using a Single Wire
Say goodbye to complicated setups. The system’s Power-over-Ethernet (PoE) technology ensures quick and easy installation by combining power and data in one cable.
Camius Outdoor Security Camera System Offers 2K Video with Full 30 Frames Per Second Wihtout Limitations
Superior 2K Resolution with Camius Waterproof Surveillance Cameras
Capture sharp details with 2K resolution and a wide-angle lens. These cameras provide clear footage day and night, with advanced low-light performance up to 100 feet. Camius waterproof surveillance cameras are equipped with metal high quality housing to withstand harsh weather conditions!
Camius External Surveillance Cameras Offer Storage Optimization For Extended Recording
The H.265 video compression technology reduces storage requirements by up to 50%. This maximizes the capacity of the 4TB HDD and ensures smooth video streaming even with limited bandwidth.
PoE CCTV Camera System with AI Detection Features for Enhanced Security

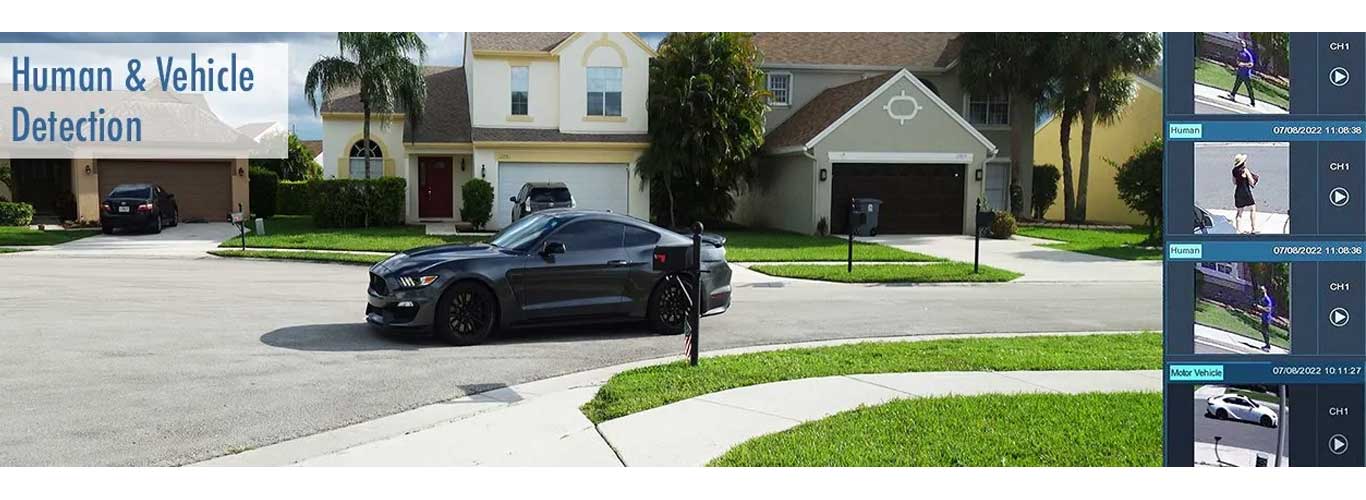

Get Professional Surveillance Camera System with Human and Vehicle Detection
Activate features like Perimeter Intrusion, Line Crossing Detection, and Cross Counting to monitor sensitive areas. Stay informed with push or email notifications triggered by specific events.
Subscription-Free Storage and Access
Outdoor Monitoring Cameras With Remote Access Anytime, Anywhere
Monitor your property on the go with the free Camius View app, available for iOS and Android, or via desktop software. View live footage, playback recordings, and manage camera settings effortlessly.
Weatherproof Exterior Video Surveillance Cameras
PoE 2K Cameras Built to Last in Any Environment
The six outdoor video surveillance cameras are weatherproof and durable, withstanding rain, snow, extreme heat, and cold. Their robust design ensures reliable performance year-round.
Optimized Coverage for Outdoor Monitoring
Position the cameras strategically to cover entrances, perimeters, and other critical areas. Equipped with wide-angle lenses and infrared night vision, they provide 24/7 protection.
Tailored Security for Homes and Businesses
Addressing Common Security Concerns
This system solves frequent issues like insufficient storage, low-quality footage, and unreliable alerts. With AI-powered detection and robust storage, it’s perfect for safeguarding homes, retail stores, restaurants, and more.
Versatile and Scalable Solution
Whether protecting a single property or multiple locations, the Camius system adapts to your needs. Add additional PoE cameras as required to scale your security.
Seamless Monitoring with the Camius View App
Complete Control at Your Fingertips
Access your cameras from any device—smartphone, tablet, or desktop. Manage settings, view live streams, and receive instant alerts for suspicious activity.
Peace of Mind for Home and Business Owners
With its advanced features, reliable design, and subscription-free access, the Camius system provides unparalleled security for any property.
Camius NVR Specifications:
- Model: IPVAULT1128PR
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M

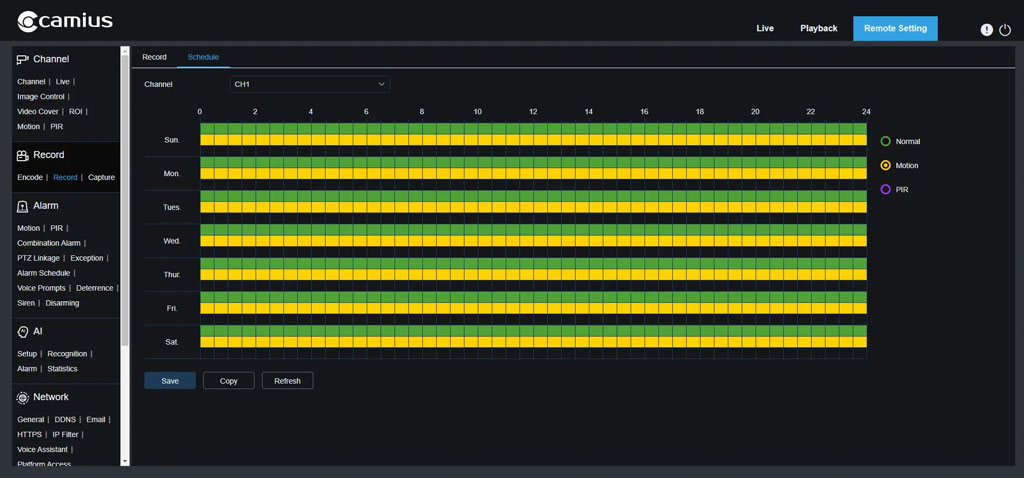

- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:

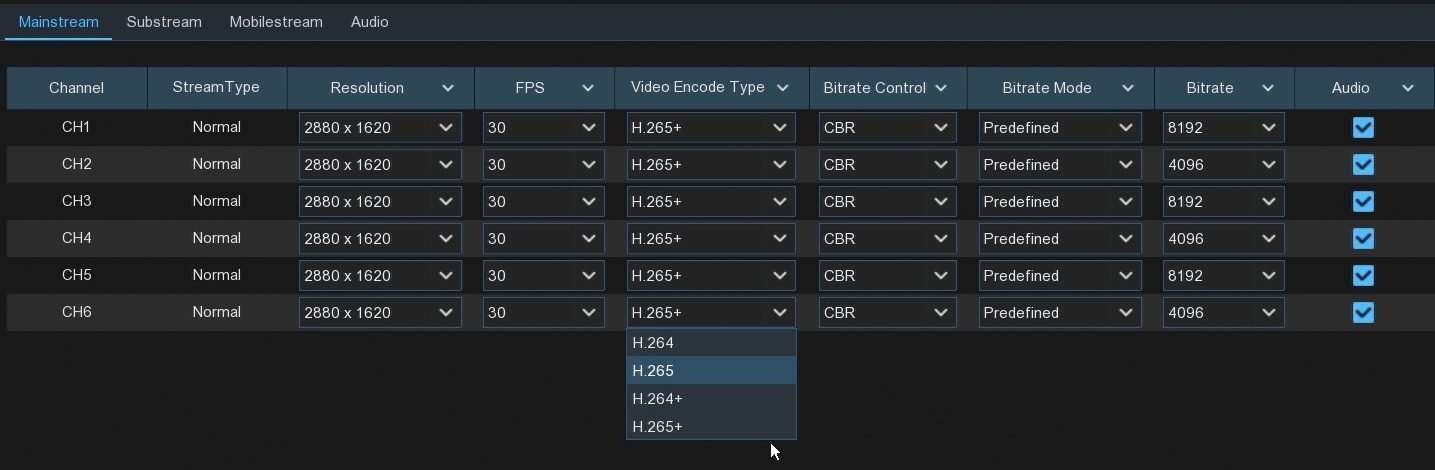

- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.

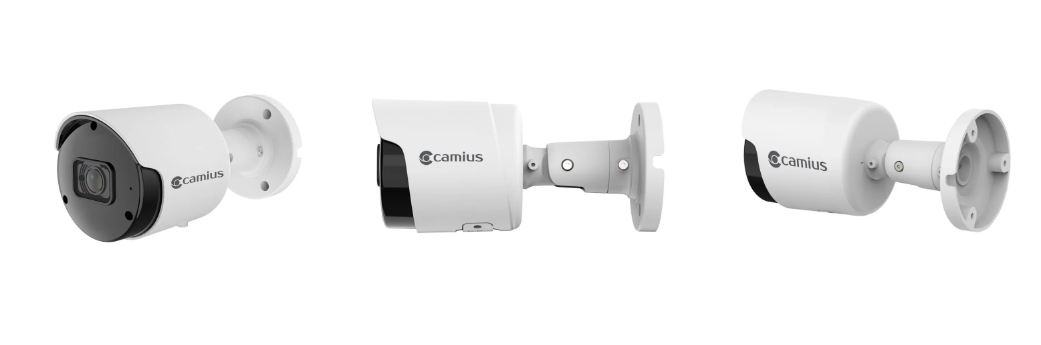

Camius 2K Outdoor Camera Specifications:
- Model: BOLTX536R
- Shape: Bullet
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
Userfull resources:
FAQ About Camius Outdoor Video Surveillance System
No, Camius outdoor security cameras do not require Wi-Fi to operate. Our PoE (Power over Ethernet) camera systems connect directly to a Camius NVR using a single Ethernet cable for both power and video transmission. This provides a stable, hardwired solution that functions independently of any Wi-Fi network.
For remote viewing or mobile alerts, an internet connection is required, but not necessarily Wi-Fi. The system only needs to be connected to a router or modem via Ethernet. This makes Camius camera systems ideal for both residential and commercial locations where Wi-Fi is limited or not preferred.
No subscription is required for any of Camius security camera systems. All features, including remote access, live view, playback, and storage, are included with the system.
Yes. Local viewing through a directly connected monitor or TV is available. However, the internet is required for remote viewing and alerts.
Yes. You can add 2 more PoE IP cameras to this security system.
Yes. All six cameras are weatherproof rated with metal housing, making them suitable for outdoor installation.
You can choose from multiple recording modes: continuous (AKA, Normal Mode), motion-triggered, scheduled, or sensor-based. All recordings are stored on the Camius NVR’s hard drive. You can also activate sending screenshots of detection trigerred with regular motion and AI to your email, upload pictures and videos to your Dropbox or Google drive.
