Upgrade Your Security to Camius Professional NVR 32 Channel with AI, 4K, RAID, 4 Bay Storage
Upgrade your surveillance with the Camius IPVAULT4640 – a professional NVR 32 channel system designed for large-scale security operations. With 4K resolution, RAID support, AI features, and 16TB of included storage, it’s the perfect choice for businesses and professional installers.
Why This 4K NVR Security Camera System Recorder Stands Out
The IPVAULT4640 isn’t just any network video recorder system—it’s a smart, scalable solution built for demanding commercial, industrial, and multi-site residential surveillance.
- Supports 32 IP Cameras: Seamlessly monitor large premises.
- 4K Ultra HD Video and more: Record in ultra-high resolution up to 12MP.
- 640 Mbps Bandwidth: Handles multiple 4K streams effortlessly.
- Smart Motion & AI Detection: Smart alerts that reduce false notifications.
- RAID Support: Protect data with RAID 0, 1, 5, 6, 10 configurations.
- 16 PoE Ports: Camius PoE cameras Plug and play setup with power and data over one cable. Use an external PoE switch to add up to 32 PoE cameras
- Dual HDMI Output: View live feeds in stunning 4K clarity on a primary TV/monitor and a secondary display with Spot Out settings.
- 4-Bay HDD + e-SATA: Supports 18TB hard drives.

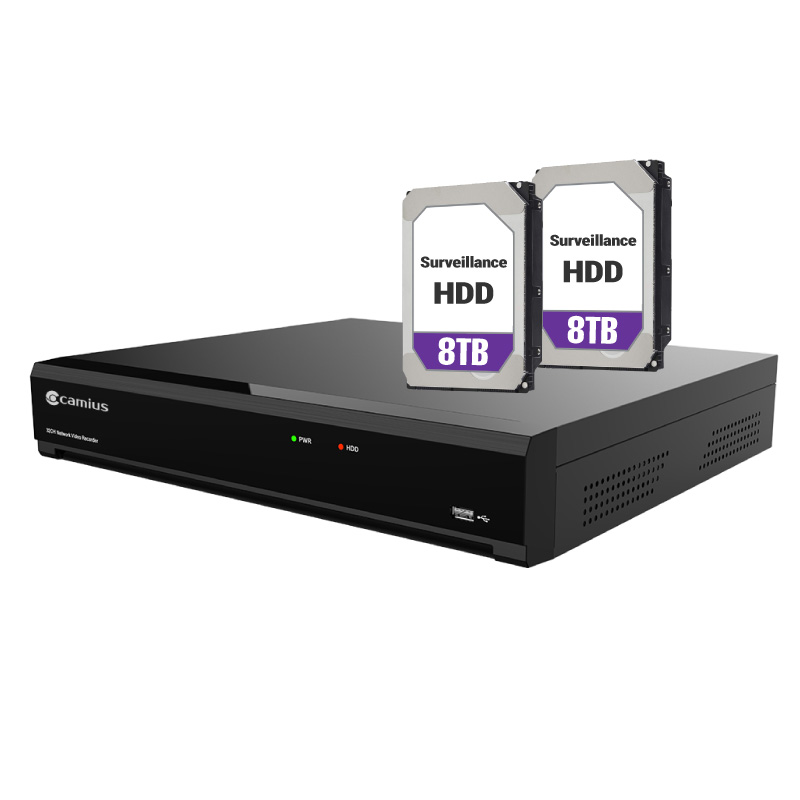

- 16TB Included Storage: Comes preinstalled with 2x 8TB SATA drives.
640 Mbps Bandwidth
Highest Bitrate in the Industry
4K Video with 32 Cameras
High Quality 4K Video
Pre-installed 16TB (2 x 8TB)
Add 2 more HDDs + e-SATA
Dual HDMI Ports
Primary + Spot Out Monitor
RAID Support
RAD 0/1/5/6/10
AI NVR
Smart Motion + AI Detection

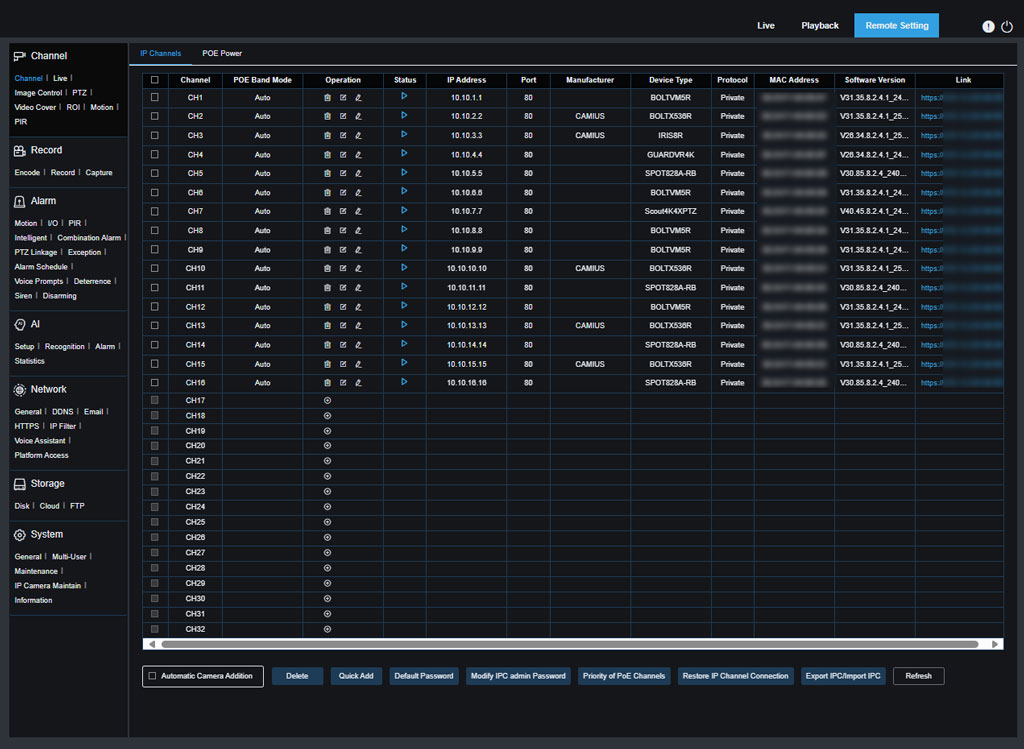

Plug-and-Play PoE Setup with Camius IP Cameras
Camius IPVAULT4640 offers a seamless plug-and-play setup with Camius PoE IP cameras through its built-in 16 PoE ports. Each port supplies both power and data over a single Ethernet cable, simplifying installation and reducing cabling costs. For larger surveillance needs, the system is scalable—connect an external PoE switch to expand support for up to 32 IP cameras. Whether you’re securing a small business or a multi-site enterprise, this NVR 32 channel system delivers easy integration and professional-grade performance from day one.
Built for Professional NVR Security System Requirements
Camius IPVAULT4640 professional NVR security system supports 24/7 recording, enterprise-grade reliability, and simple integration.
- Real-Time Performance: Crisp visuals across multiple channels.
- H.265+ Compression: Save storage while maintaining video quality.
- Playback Efficiency: Review up to 16 channels with advanced controls.
- Instant Alerts: Push notifications and audible warnings for threats.
640 Mbps Professional NVR with True 4K Recording
Camius IPVAULT4640 NVR supports up to 32 channels, offering flexible video resolutions ranging from 12MP down to 720P. With a high recording bandwidth of 640 Mbps for both input and output, it ensures smooth, high-quality video even when multiple cameras are recording simultaneously.
The system uses advanced compression formats like H.264, H.265, and their enhanced versions, helping to save storage space without compromising on video quality. You can view footage in real-time at up to 240 fps in 4K, 480 fps in 4MP, and 960 fps in 2MP, ensuring clear, detailed video at all times. For playback, the system allows fast-forward, slow-forward, and adjustable speeds for reviewing footage across up to 16 channels at once.
Advanced RAID NVR with Data Protection and Scalability
Camius professional NVR accommodates up to four SATA hard drives, each supporting up to 18TB, totaling a potential storage capacity of 72 TB. This ample space ensures prolonged retention of high-resolution footage.
You can also add an external storage with easy backup using USB 3.0 and network backup options for disaster recovery.
Comprehensive RAID Configurations
Ensure data integrity and redundancy with support for multiple RAID levels:
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
This flexibility allows for tailored storage solutions to meet specific security requirements.
Fully Integrated with Enterprise Networks
Whether you’re deploying in a single office or a national retail chain, the IPVAULT4640 seamlessly fits into modern IT ecosystems:
- Dual Gigabit LAN Ports: Supports failover, load balancing, or dual-subnet operation.
- Alarm & Audio I/O: Integrate with existing access control and alarm systems.
- RS485 & PTZ Control: Centralized management for pan-tilt-zoom cameras.
- Multi-Stream Recording: Adjustable stream settings for efficient use of bandwidth and storage.
Professional Features Designed for IT and Security Installers
- ONVIF Protocol Support: Universal compatibility with leading IP camera brands.
- Video Management Software: Access your Camius NVR camera system from anywhere, from any desktop, whether it isa Windows or Mac computer
- Built-in Web Application: Access the NVR from any web browser without the need for additional plugins or app installation.
- Smartphone App: View live and playback footage, and manage NVR settings using the Camius View app for iOS and Android.
- Firmware Updates via Network: Keep systems secure with regular updates.
- Secure Access Controls: User-level permissions, auto-logout, and activity logs.
Ideal for IT Departments, Retail Chains, and Installers
- Enterprise Performance: Built for 24/7 uptime and large camera deployments.
- Full Control: Scalable, secure, and customizable to meet unique installation needs.
- Installer-Trusted: Field-proven performance in real-world business environments.
Upgrade to the Camius 4K NVR Security Camera System
From warehouses and office buildings to multi-site businesses and gated communities, the Camius IPVAULT4640 is the ultimate choice for those who demand professional-grade surveillance. Adding Camius PoE cameras, you get the full benefit of the professional NVR capabilities.
Invest in unmatched clarity, control, and protection — order your 32 Channel Camius IPVAULT4640 NVR today.
IPVAULT4640 32 Channel NVR specifications
Video & Audio
- Number of Channels: 32
- Supported Resolutions: 12MP, 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)
- Recording Bandwidth (Input/Output): 640 Mbps (each)
- Compression: Video: H.264, H.265, H.264+, H.265+ / Audio: G.711a
- Frame Rate: 4K: 240 fps total, 4MP: 480 fps total, 2MP: 960 fps total
- Audio Out: 1
- Line In: 1
AI & Events
- AI Features: Yes
- Event Types: Motion Detection (Sensitivity Level 1~8), Video Loss, Beep (NVR Buzzer), Email Alerts, Push Notification to Camius View Mobile App
Playback
- Playback Function: Fast Forward/Backward (2x, 4x, 8x, 16x); Slow Forward (1/2x, 1/4x, 1/8x, 1/16x)’
- Max Simultaneous Playback: 16 Channels
User & System Management
- Password Reset: Yes (via menu, network settings, button, or Camius View app)
Video Output
- HDMI Ports: 2 (supports resolutions: 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 1600×1200, 1920×1200, 3840×2160/EDID)
- HDMI Output: Async out
Networking & Connectivity
- PoE Ports: 16
- Ethernet: 2 × RJ45 (100/1000 Base-T)
- USB: 1 × USB 2.0 (front), 2 × USB 3.0 (rear)
- e-SATA: 1
- RS485: 1
Storage & RAID
- HDD Support: 4 × SATA HDD, up to 18TB each (Enterprise-Class)
- RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Alarm & I/O
- Alarm Inputs: 16
- Alarm Outputs: 4
Physical & Power
- Dimensions (W × D × H): 14.88 × 12.83 × 2.60 in / 378 × 325.8 × 66 mm
- Input Voltage/Current: 280W
- Power Consumption (excluding HDD): 8W
Environmental
- Operating Temperature: 14°F ~ 122°F ( -10°C ~ +50°C)
- Operating Humidity: <90% RH
FAQs about Professional NVR Security System
Which NVR System is Best?
When it comes to selecting the best NVR system, Camius NVR systems stand out for their exceptional performance. Offering high-resolution 4K video recording, the highest bandwidth (bitrate), and enterprise-level features, Camius provides a reliable solution for both small and large-scale surveillance. The latest Camius 32-Channel NVR system offers enterprise-grade RAID storage options, ensuring secure and redundant data storage. With support for up to 32 cameras and 640 Mbps of bandwidth, this system guarantees smooth, high-quality recordings without sacrificing storage capacity. It’s the perfect choice for businesses, installers, and anyone in need of scalable, professional-grade NVR camera systems. Additionally, Camius makes installation easy with plug-and-play PoE setup and offers extensive remote management capabilities through the Camius View app, allowing you to monitor your security system on the go.
How Many Cameras Can Be Connected to a 32 Channel NVR?
Camius 32 Channel NVR supports direct connections for up to 16 cameras via its built-in 16 PoE ports, simplifying installation by delivering both power and data over a single cable. For larger setups, you can easily expand the system to support a total of 32 IP cameras by adding an external PoE switch. This flexibility makes the Camius 32 Channel NVR a great solution for businesses and professionals who need scalable security coverage. Whether monitoring a commercial property or a large residential area, the system offers seamless integration and reliable connectivity for all your surveillance needs.
What is RAID NVR?
A RAID NVR (Network Video Recorder) is a sophisticated surveillance system that utilizes RAID (Redundant Array of Independent Disks) technology to enhance data storage and reliability. RAID combines multiple hard drives into a single storage array, distributing and sometimes duplicating data across them to provide redundancy. This is crucial for video surveillance systems, as they are constantly recording and overwriting footage, making hard drives more prone to failure compared to regular computer drives.
With RAID, even if one or more drives fail, depending on the RAID level used, the recorded footage can still be recovered, and the system remains operational. This ensures that critical video evidence is never lost.
Camius 32 Channel NVR systems leverage RAID technology, offering multiple RAID levels such as RAID 1 (mirroring), RAID 5 (striping with parity), RAID 6 (double parity), and RAID 10 (mirroring and striping). These options provide a balanced approach to performance, storage efficiency, and fault tolerance, giving users a highly reliable and continuous video recording solution.
In summary, a RAID NVR offers enhanced data protection and uninterrupted video recording, ensuring that your surveillance system operates smoothly and securely, even in the event of hardware failures.
