The Camius 8-channel NVR security system combines advanced technology with ease of use, making it an excellent choice for homes, offices, and retail environments. It features four 2K PoE dome security cameras and a powerful NVR recorder with 3TB of built-in storage. Ideal for comprehensive surveillance, this system offers 24/7 recording, advanced AI detection, and seamless plug-and-play installation.
Comprehensive Dome Security Camera System with 3TB NVR Storage
Plug-and-Play Setup for Effortless Installation
Camius PoE dome cameras connect instantly to the NVR via a single Ethernet cable, providing power and data transfer in one step. With a built-in PoE switch, the system eliminates the need for additional wiring, allowing for immediate recording and easy expansion with up to eight IP cameras.
High-Quality 2K Dome Cameras for Wide-Area Coverage
Each dome camera features a 2.8mm super-wide-angle lens, delivering a 110-degree horizontal view and crystal-clear 5MP resolution. With 100ft color night vision and durable metal housing, these cameras ensure reliable performance in both indoor and outdoor settings.
Versatile Wall Mounted Dome Camera for Flexible Surveillance
Advanced Features of Camius NVR Security System
Superior Video Compression Technology
The system supports H.264 and H.265 video compression, reducing storage needs by up to 50% while maintaining ultra-HD video quality. The NVR’s 128 Mbps bitrate ensures smooth playback and reliable recording of all connected cameras.
Accurate Detection
Camius dome cameras are equipped with AI-powered human and vehicle detection, cross counting, and rare sound detection. Users can customize detection zones and schedules for precise monitoring. Motion-based recording can be combined with 24/7 footage for a more efficient and tailored surveillance experience.
Customizable Alerts and Notifications
Stay informed with instant push notifications or email alerts for triggered events. The system also supports pre-recording, cloud uploads, and audible NVR buzzer notifications, giving you complete control over your security.
User-Friendly Software and Remote Access
The 8 channel NVR system offers multiple recording modes, including motion detection, scheduling, and continuous recording. Easily monitor live footage, and playback recordings, and configure camera settings via the free Camius software or the Camius View smartphone app. Compatible with popular browsers, the system ensures flexibility and accessibility.

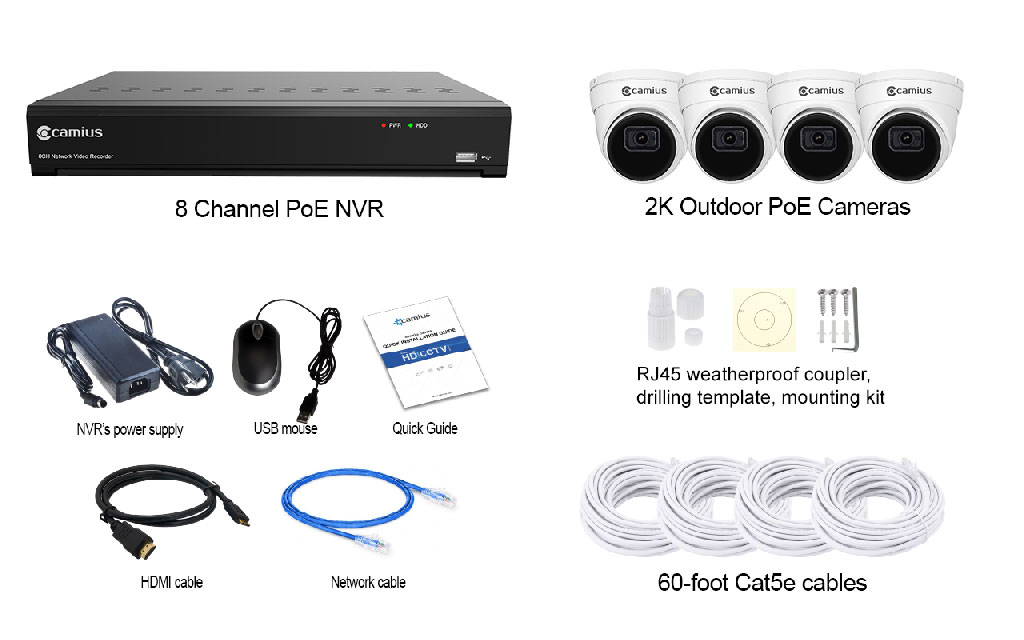

What’s in the box:
- 8 Channel NVR with 3TB HDD (IPVAULT1128PR 3TB HDD)
- Four 2K Dome Security Cameras (IRIS528R)
- Four 60ft CAT5E cables
- NVR power supply, HDMI cable, Ethernet cable, USB mouse, and Quick Setup Guide
Resources:
Camius NVR and dome cameras specifications
Camius 8 Channel NVR specs:
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments

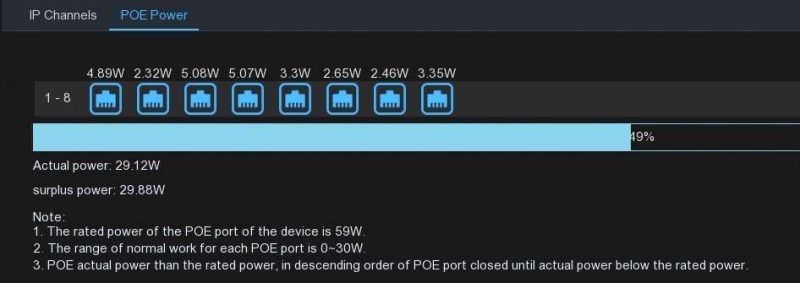

- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
2K PoE Dome Camera specs:
- Camera Model: IRIS528R
- Shape: Dome
- Lens (Field of View): 2.8mm (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
- Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled

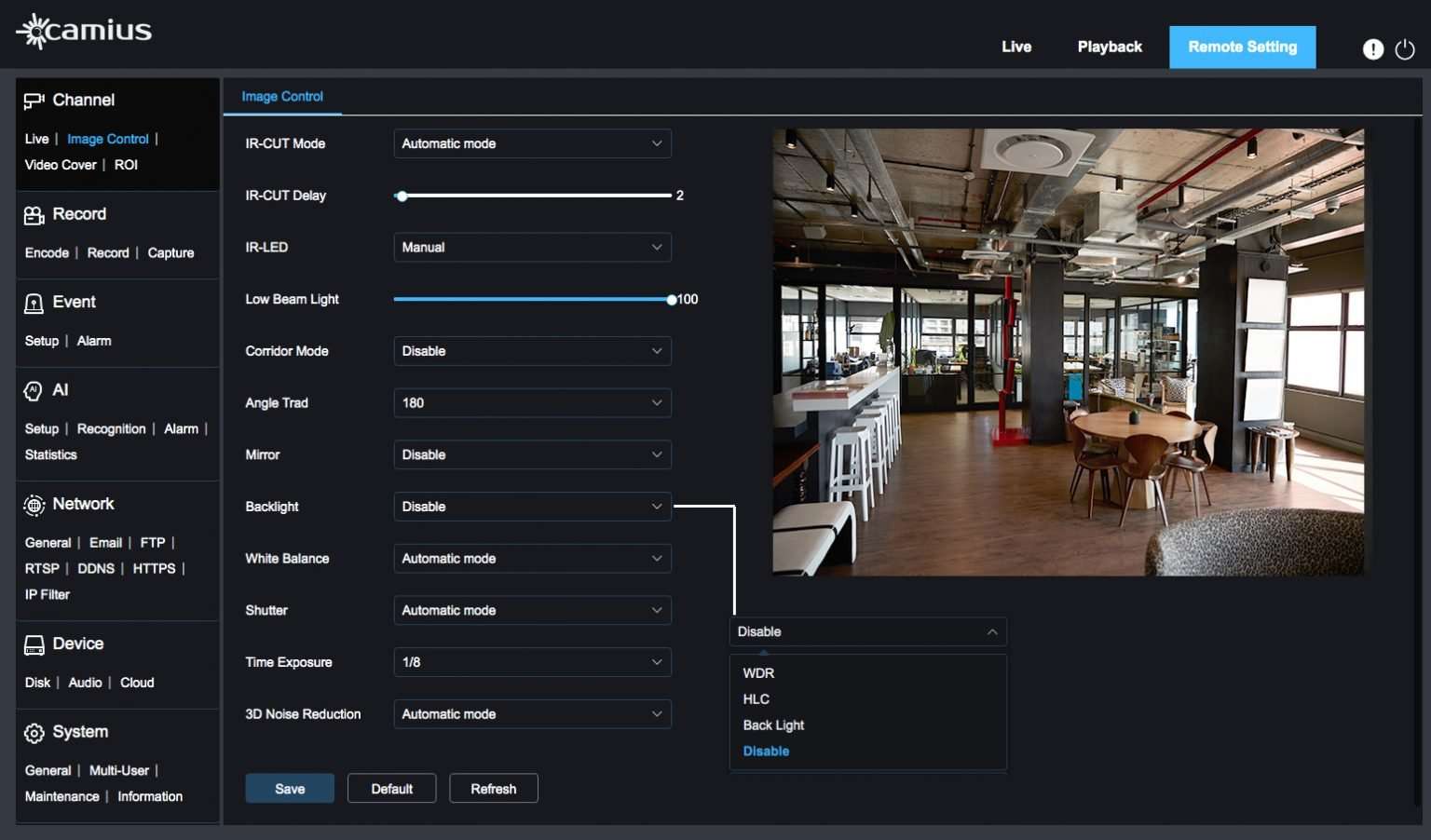

- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
