Modern XVR Camera System: Upgrade Without Rewiring
Transform your old security system into a powerful 4K DVR security system without new wiring! This 8 channel surveillance DVR comes with four 4K cameras, 3TB storage, and mobile monitoring capabilities. Perfect for homes and businesses, this best outdoor security camera system with DVR works with your existing cables, adding smart features like AI detection for people and vehicles. Expandable to a full 12 channel DVR XVR system – upgrade your security DVR the smart way.
Save thousands in rewiring costs! The Camius hybrid surveillance system brilliantly connects your older CVBS, AHD, CVI, and TVI cameras using your existing coaxial cables. This versatile system supports both analog and IP cameras, offering the perfect upgrade path while protecting your initial investment.
Professional Security Solution: Smart Bridge to Modern Surveillance
DVR Security System: Maximum Value, Minimum Hassle
Why replace what works? Camius DVR security systems let you keep your existing coaxial infrastructure while upgrading to crystal-clear HD video quality. Perfect for retail stores, warehouses, and homes, these systems deliver professional-grade features without complexity. Monitor your property 24/7 through our Camius View app, with alerts and playback.
12 Channel DVR XVR: Flexible Power for Growing Needs
Future-proof your security investment with the Camius 12 channel DVR system. Ideal for expanding businesses and larger homes, connect your existing cameras alongside new IP cameras through one powerful interface. With smart motion alerts, remote viewing, and customizable storage options, you’ll get comprehensive coverage without complexity. Scale your security as your property grows.
DVR for Security Cameras: Smart Integration, Smarter Savings
Stop worrying about expensive rewiring! Our advanced surveillance systems work with your existing coaxial cables while supporting the latest IP cameras. Whether you’re upgrading your home security or modernizing your business surveillance, maintain comprehensive coverage while upgrading at your own pace. Get tomorrow’s technology with today’s infrastructure.

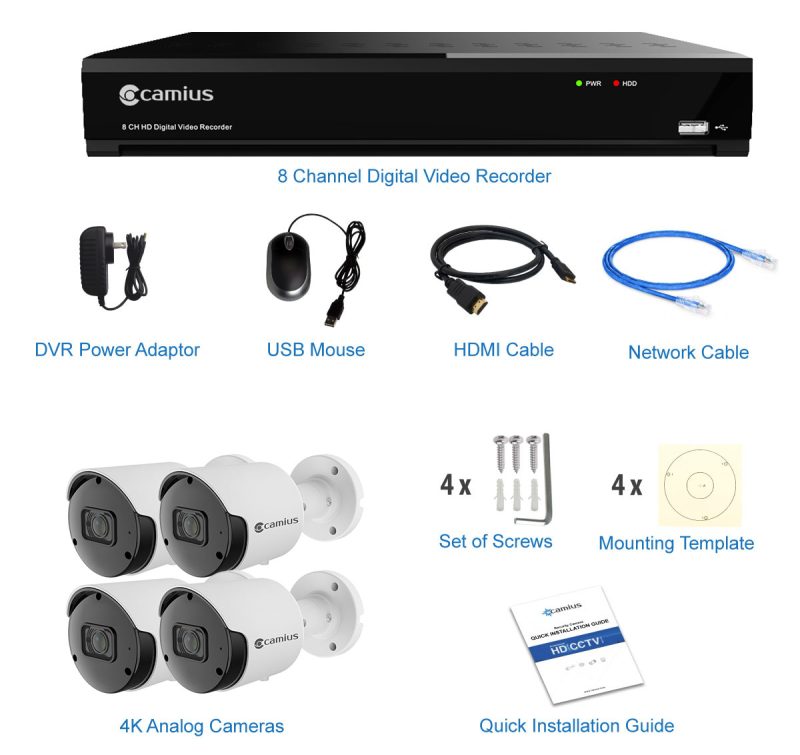

Start protecting your property today! This complete solution includes an 8-channel DVR, 4 HD cameras, and our user-friendly mobile monitoring app.
Perfect for small businesses, retail stores, and homes wanting professional security without complexity.
Use your existing coaxial cables to add more cameras, including older models, without additional wiring costs.
8 Channel Surveillance DVR with 4 HD Cameras and Mobile Monitoring Capabilities
Best Outdoor Security Camera System with DVR: Built for Real World Protection
Protect your property in any weather with our rugged outdoor security system. Weather-resistant, tamper-proof, and compatible with your existing infrastructure, our system handles whatever nature throws at it. Business owners and homeowners alike benefit from advanced night vision, precise motion detection, and instant mobile alerts. Save significantly while getting enterprise-grade security.
DVR 10 Channel: Expandable Security That Grows With You
Whether you’re looking for a DVR 10 channel or 12 channel system, our flexible solutions fit your needs perfectly. Ideal for mid-sized properties, these systems offer the perfect balance of power and adaptability. Mix and match camera types using existing coaxial cables – perfect for restaurants, retail stores, or larger homes. Start with your current cameras and upgrade when you’re ready. Crystal-clear recording, smart detection, and easy mobile access keep you in control of your security, no matter how your needs grow.
Security DVR: Professional Protection Made Affordable
Why compromise between cost and capability? Our advanced surveillance systems deliver intelligent motion detection and remote viewing while working with your existing infrastructure. Whether securing a small business or protecting your home, get professional-grade security without premium prices. Join thousands of satisfied customers who trust Camius for their security needs.
Key Benefits for Business Owners
- Multi-location monitoring from one app – Camius View
- Add a second display screen for dedicated camera views – perfect for customer-facing areas or security desks
- Scalable solution that grows with your business
- Loss prevention with AI-powered detection
- Keep your existing wiring and save big on installation
- Display any camera feed on a separate monitor with just one click – ideal for keeping an eye on high-traffic areas
Perfect for Home Security
- Easy mobile monitoring from anywhere
- Crystal-clear 4K video quality
- Smart alerts for real threats
- No complex installation required
Technical Specifications
DVR Specifications:
- Model: TRIVAULT4K184R2
Channels: 12 (Analog + IP)

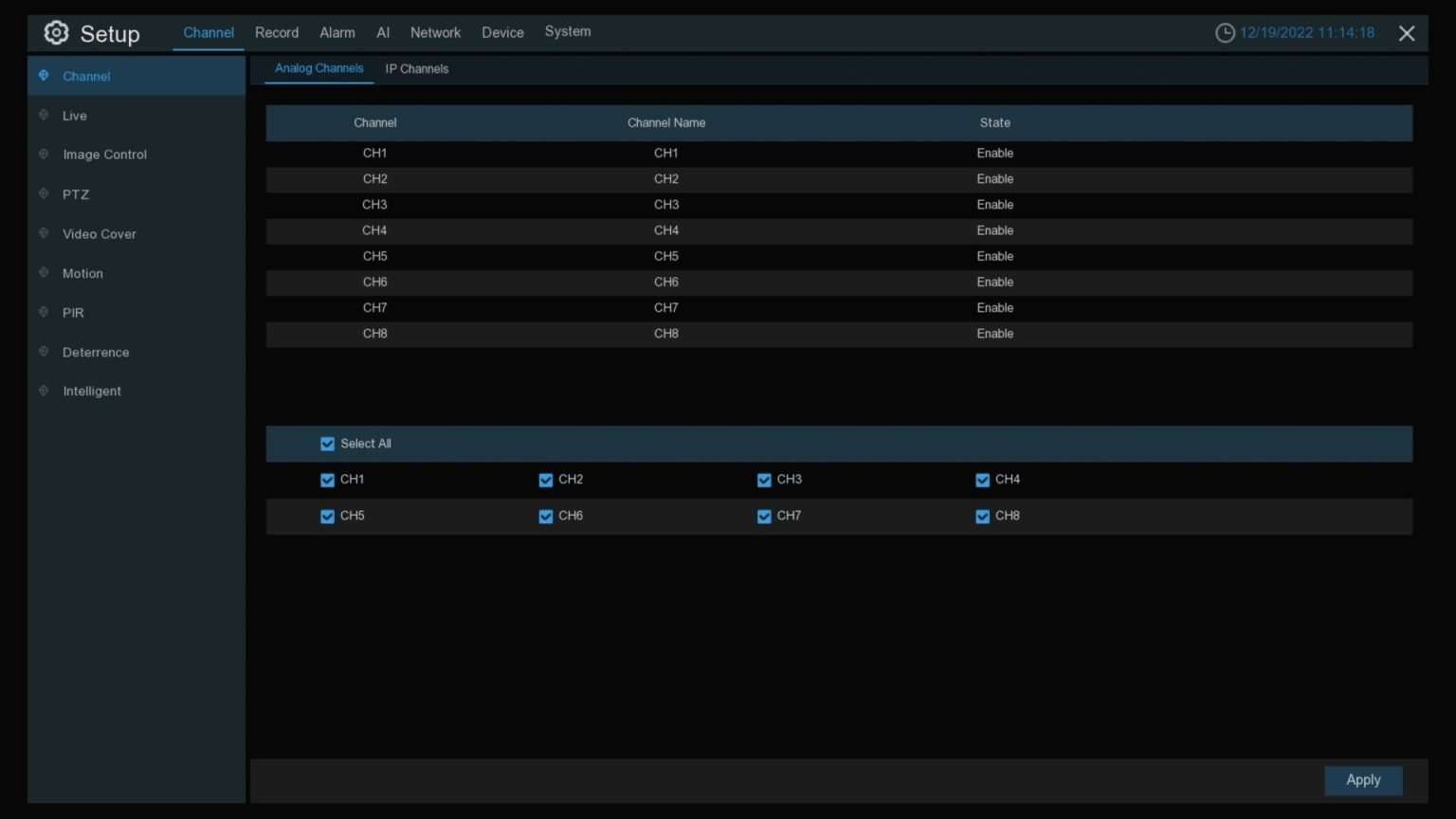

- Analog Channels: 8 (supports CVBS, TVI, CVI, AHD up to 4K resolution)
- IP Channels: 4 (or 12 if no analog channels are in use)
Image Control:
- Analog: Select camera type, Date & Time Format, Covert, Color settings (Hue/Brightness/Contrast/Saturation).
- IP: IR-CUT mode, IR-CUT delay, Lens Flip, Angle Flip, Backlight, 3D Noise reduction, WDR, AGC, White balance, Shutter, Time Exposure, Defog mode (subject to IP camera’s features).
Recording Bandwidth:
- In: 32Mbps ~ 96Mbps (a single disabled analog channel increases bandwidth by 8Mbps).
- Out: 96Mbps.
PTZ Support: Analog and IP digital PTZ cameras.
Motion Detection: Supports both Analog and IP cameras.
PIR Detection: Enabled for Camius IP cameras with PIR sensors.
Deterrence: Enabled for Camius IP cameras with siren and light features.
Intelligent Features:
- PID (Perimeter Intrusion), LCD (Line Crossing), SOD (Stationary Object), Sound Detection, Video Tampering.
Compression:
- Video: H.264 / H.265.
- Audio: G711A.
Display Resolution:
- Analog: 8MP @ 15fps, 5MP @ 20fps, 4MP/1080P/720P/960H @ 30fps.
- IP: 4K/4MP/1080P/720P. (Note: Single IP channel preview up to 4K @ 30fps; multi-channel preview only in Substream mode).

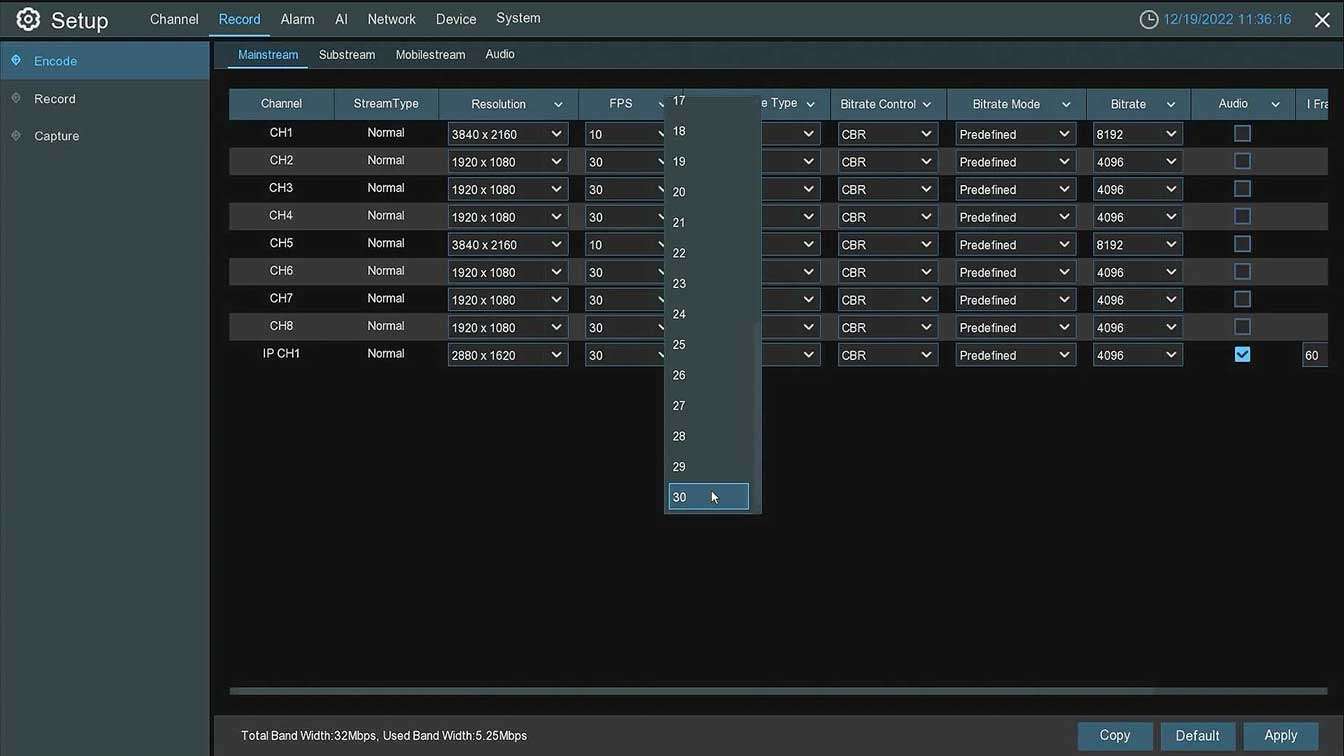

Recording:
- Mainstream: Analog 8MP 3840×2160 @ 10fps, 5MP @ 14fps, 4MP @ 18fps, 1080P @ 30fps NTSC, 25fps PAL (each channel).
- Substream: Analog 704×480 NTSC @ 10fps, 704×576 PAL @ 10fps, IP 1920×1080 @ 30fps (each channel).
- Mobile stream (IP channels): 640×480 @ 30fps.
Capture Settings:
- Capture resolution: 1920×1080, 1280×720, 960×480.
- Stream Type: Main/Substream.
- Alarm Quality Settings: Highest, Higher, Medium, Low, Lower, Lowest.
Network & Remote Access:
- Network: DHCP, PPPoE, Port Configuration (HTTP, Client Port, RTSP, HTTPS, UPNP, TCP).
- Remote Access: P2P (ON/OFF), DDNS, Email alerts.
- Cloud Support: Dropbox, Google Drive for video and picture uploads.
System Management:
- Device: 1 Internal SATA HDD up to 10TB capacity.
- Maintenance: Firmware upgrades, auto-reboot, and parameter management.
- Multi-User Management: Admin + 30 users.
Power & Environmental:
- Power Supply/Consumption: DC12V 2A / 11W (without hard drive).
- Operating Temperature/Humidity: 0°C~+40°C (32°F ~ 104°F) / Less than 90% RH.
Physical Dimensions: 12 x 9 x 2” (300 x 227 x 53mm).
Included:
- DVR Unit
- Power Supply
- HDMI Cable
- Network Cable
- USB Mouse
Note: Design and specifications are subject to change without prior notice. For updated information, visit www.camius.com
Camera Specifications
- Camera Model: FB4KAOC
- Video Output: BNC
- Supported Modes: AHD/TVI/CVI: 8MP@7fps, CVBS: 960H
- Image Sensor: 4K High Performance 1/2.7” CMOS Progressive Scan
- Video Resolution: 3840 (H) × 2160 (V)
- Frame Rate: TVI / CVI / AHD 8MP with 15fps, CVBS 960H
- Minimum Illumination:
- 0.05lux @ F1.2 (AGC ON)
- 0Lux @ IR ON
- Lens: Fixed 3.6 mm (Max. Aperture Ratio: F1.6)
- Field of View:
- Horizontal: 91.46°
- Vertical: 46.11°
- Diagonal: 109.82°
- Minimal Object Distance: 0.66ft (0.2m)
- IR LED Distance: 66ft (20m)
- Audio: Built-in Microphone (requires Camius coaxial audio video extension cable BNCCBL-ULCL260F; compatible with Camius TriVault4K DVR R-series)
- Color Settings: Hue, Brightness, Contrast, Saturation, Sharpness
- UTC (Up The Coax): To adjust camera settings on the DVR’s display
- Video Mode: TVI/AHD, CVI, CVBS
- Format: 60Hz/50Hz
- Language: English, Spanish, etc.
- Exposure (Blacklight Compensation): Global
- AGC (Automatic Gain Control): High, Low, Middle
- Day/Night: Color or B/W mode
- AWB (Auto White Balance): Auto / Brightness, Contrast, Sharpness, Saturation
- Mirror: Default / Mirror / Flip / Rotate
- Volume: Adjustable value
- Reset: Yes
- Intelligent Features: Applicable with certain Camius 4K TriVault DVRs: Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Sound Detection, Video Tampering
- Video Transmission: Max. 984ft / 300m (requires 5C 2V coaxial cable)
- Power Source: 12V DC (power adaptor not included)
- Power Consumption:
- ≤ 4W (with IR on)
- ≤ 0.8W (without IR)
- Operating Temperature: -22°F ~ 131°F (-30°C ~ 55°C)
- Storage Temperature: -22°F ~ 140°F (-30°C ~ 60°C)
- IP Rating: IP66
- Dimensions: Ø6.02 x 2.79” (Ø152.8 x 70.9mm)
- Net Weight: Approx. 0.72lb (325g)
What’s in the Box
- Camera
- Mounting Kit
- Drilling Template
- Quick Installation Guide
Note: Design and specifications may change without prior notice. For the latest information, visit www.camius.com.
FAQ
What is the XVR camera system?
The XVR camera system, such as the Camius Hybrid DVRs, is designed to accommodate a variety of camera types, including Analog HD (AHD), HDTVI, HDCVI, CVBS, and IP cameras, thus providing a comprehensive surveillance solution that caters to diverse needs.
What is the difference between XVR and DVR?
The primary distinction between XVR and DVR systems lies in their compatibility; Camius XVR systems can utilize both analog and IP cameras, whereas traditional DVRs are limited to analog cameras. This flexibility in supporting upgrades makes XVR systems a more adaptable choice. All Camius DVR recorders are classified as XVR types, enabling them to operate in XVR mode.
How do I reset my XVR camera?
To reset your XVR camera, Camius XVR recorders are equipped with a reset button that facilitates the restoration of factory settings when necessary. Alternatively, you can access the recorder’s menu to perform a factory reset.
Which is better, XVR or NVR?
When comparing XVR and NVR systems, Camius NVR systems excel in delivering higher video quality and advanced functionalities, as they are compatible with IP cameras that can achieve resolutions of up to 12 megapixels. In contrast, XVR systems are more suitable for environments that require a combination of analog and IP cameras. Nonetheless, Camius XVR DVR recorders also support 4K video resolution, audio capabilities, and features such as smart motion detection and AI technology.
