Complete 8 Channel Security Camera System with Audio & Video Recording
Transform your property’s security with our professional 8-camera outdoor security system. This comprehensive wired security camera system delivers enterprise-grade protection with easy setup, whether for home, office, or workshop.

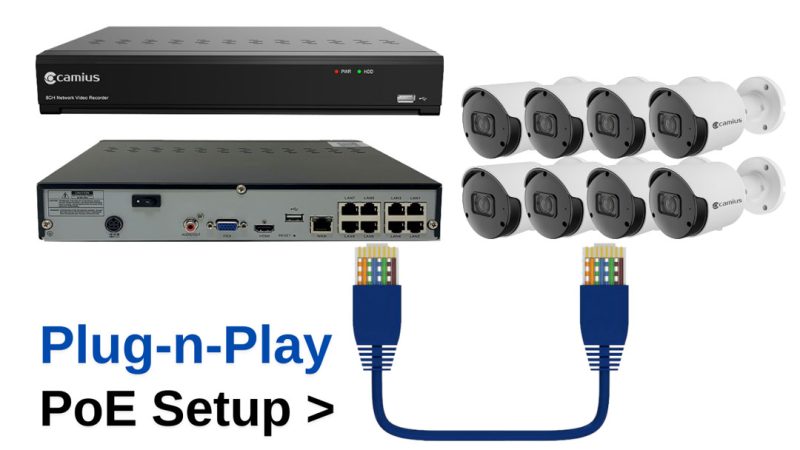

8 Cameras Security System is Easy to Install
- Connect cameras using the included PoE cables
- Plug in the NVR power
- Connect to monitor (HDMI)
- Start monitoring instantly
Why Choose Camius Professional 8 Camera PoE Security System?
Complete 8 channel security system which doesn’t require IT skills or IP network configuration to set up the system
✓ Professional outdoor security cameras with 2K resolution
✓ Weatherproof wired security camera system for reliable 24/7 monitoring
✓ Advanced AI detection eliminates false alarms
✓ Simple POE setup – just plug and record
✓ Trusted by thousands of businesses and homeowners
Advanced Features of Your 8 Channel Security System
Enterprise-Grade Security NVR 8 Channel System
- Professional outdoor security cameras with AI detection
- Human & vehicle recognition
- Perimeter protection
- Line crossing alerts
- Cross counting
- Instant mobile notifications
The 8 camera wired security system includes
- 2K resolution (5MP) cameras
- H.265+ compression
- 128Mbps bandwidth
- Built-in audio
- PoE technology
- All-metal weatherproof construction
Your 8 camera security system provides 24/7 monitoring and smart recording
- 24/7 continuous recording
- Motion-activated recording
- Sound detection
- Custom detection zones
- Email & push alerts
- Remote viewing
8 Security Camera System with Smart Motion Detection
- Advanced algorithms to reduce false alarms
- Customizable sensitivity levels for different areas
- Schedule-based motion detection
- Instant recording trigger when motion detected
- Smart tagging of motion events for easy searching
PoE Security Systems with Outdoor Cameras For Audio Recording
- Built-in microphone in each camera
- Sound detection alerts and recorded event snippets
Storage Management
- 4TB pre-installed storage
- Intelligent storage allocation
- Automatic footage cleanup
- Storage status monitoring
- Backup options to external devices
- Record time calculator based on settings
Real-Time Alerts & Notifications
- Instant push notifications to your smartphone
- Customizable email alerts with snapshot attachments
- Alert options for:
- Motion detection
- Sound detection
- Camera tampering
- System status (storage, connectivity)
- AI detection events (people, vehicles)
- Custom alert schedules for different times/days
PoE Security Camera System Recording
Select the recording type you need, such as normal or motion, and set up a schedule that suits your requirements. This feature can be applied to multiple channels simultaneously, making it easy to configure your system. Once enabled, you can access the recorded event on your NVR and CAMIUS VIEW smartphone app.
Access Your PoE Eight Camera Security System From Anywhere:
- Free mobile app for iOS/Android
- Desktop software for Windows/Mac
- Web browser access
- Multi-device viewing
Works with web browsers
You can access and control your Camius NVR system using a web browser including Chrome, Mozilla Firefox, Safari, etc. Click here for more details

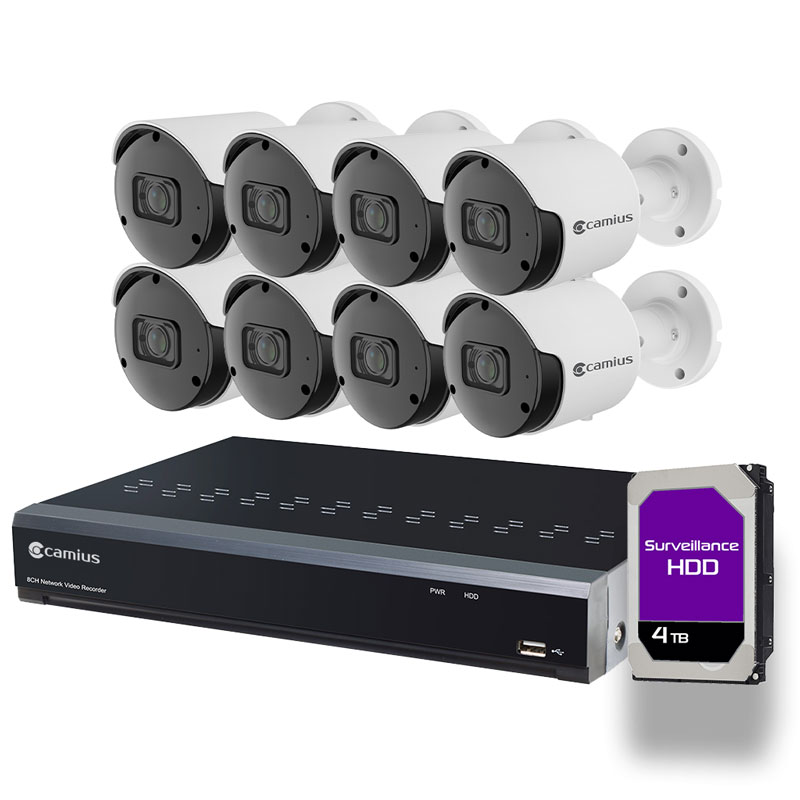

What’s in the box:
- 8-Channel NVR with 4TB pre-installed hard drive (IPVAULT1128PR 4TB HDD)
- 8 Professional 2K outdoor cameras with audio (BOLTX536R)
- 8 60ft CAT5E cables
- All necessary accessories (power supply, HDMI cable, mouse)
- Quick setup guide
- Warranty and technical support
Resources:
Camius 8 Wired Security Camera System Specs:
Specifications for Camius NVR (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
Specifications for Camius 5MP Outdoor Security Camera (BOLTX536R)
Camera Type: IP network (NTSC/PAL)
Shape: Bullet
Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG)
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps (Modes: Predefined or User-defined, Bitrate control: CBR or VBR)
- I-Frame: 1 – 120
- Lens (Field of view): 3.6mm F No.1.6±10% (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Image Sensor: 1/2.7” Progressive CMOS
Image Control Settings: IR-CUT Mode (Automatic / Color / Black White / Image / Schedule), IR Cut Delay with adjustable value, IR-LED (Manual or SmartIR), Angle Trad (0-180), Corridor Mode (On/Off), Mirror (Disable/Vertical/Horizontal/All), WDR, Backlight, HLC, White Balance, Shutter (Auto/Manual), Time Exposure, 3D Noise Reduction (Automatic / Manual / Off)
Video Cover: 4 areas
ROI (Region of Interest): 8 regions
Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
Audio:
- Built-in Microphone: Enabled by default, adjustable volume levels 1-10
- Audio Compression: G.711A/G.711U
Camera Reset: On-camera reset button or via network using the IP camera web browser interface or Camius NVR (if the camera is added to the NVR)
Recording:
- Select Recording in MainStream or SubStream mode
- Record & PreRecording enabled by default
- Netbreak (default is off)
- 24/7 Normal Recording Scheduled enabled by default
- Motion Recording and Schedule is set by a user
Capture (Time Lapse):
- Select Normal and Alarm Interval for capturing snapshots (1080p resolution)
- Auto capture (default is off)
- Capture Schedule Recording (default is off)
Night Vision: 100ft (30m) (Black and white in complete darkness & color in the low light ambient environment)
Motion, Sound Detection:
- Supported (enabled by default) |
- Alarms: Post Recording (5 to 30 sec or OFF), Send Email, FTP Picture Upload, Cloud Picture, Enable Recording, Push Notifications to smartphone app
AI:
- Events: Face Detection (FD), Human & Vehicle Detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Cross Counting (CC)
- Note, you can select and schedule a single AI function (some features are in Beta version).
- Alarm: Post Recording (5 to 30 sec or OFF), Send Email, Picture Upload to an FTP, Cloud (Dropbox, note when the camera is installed with the Camius NVR, Google Drive is supported as well), Enable Recording, Push Notifications to the Smartphone
- DHCP (enabled by default)
- DNS,DDNS
- PPPoE (ON/OFF)
- SNMP (ON/OFF)
- Port Configuration: HTTP, Client (Media) Port, HTTPS, RTSP, TCP, UPNP, Multicast port, P2P (Peer to Peer)
- Email notifications to 3 receivers using SMTP Port & Server (Encryption Mode: OFF, SSL, TLS, or Automatic) | Interval: 1/3/5/10min
- Enable/Disable & Configure FTP, RTSP, DDNS, HTTPS, IP Filter
Disk (on-camera storage):
- Micro SD slot, supported max. capacity 256GB (SD card is not included) | Overwrite Mode: OFF or AUTO | Format Disk
- When installed with the Camius NVR, recording to the NVR’s hard drive is recommended
Cloud Recording:
- Activate recording to Dropbox
- When installed with Camius NVR, you can record to Google Drive as well
User Management (Multi-User): Admin + users, user permissions
Language: Multiple languages supported (English, Spanish, Portuguese, French)
Maintenance:
- Search Logs: All, System, Configuration, Alarm, Account, Record, Storage, Network
- Load Default Settings
- Upgrade FW
- Parameter Management (Import and Export Device Settings),
- Auto Reboot (ON/OFF)
Playback Search: Using Date and Events (Normal, Motion, Sound Detection, Netbreak, AI)
Remote Access: PC/Mac compatible software (VMS, VMS Pro), Web-browser, iOS & Android app (CAMIUS VIEW)
Security: Complicated password, Authenticated username and password, IP address filter
Ingress Protection: IP66 (Dust and waterproof)
Operating Temperature:
- ≈131°F / ≈ 55°C
- Humidity: less than 95% RH (no condensation)
Power Source:
- Power-over-Ethernet (IEEE802.3af) / DC12V (note: PoE switch, PoE injector, or power adaptor is not included with the camera)
Ethernet: RJ45 (10/100BASE-T)
Power Consumption:
- ≤ 4W/5.5W (with IR on), ≤ 2W/3W (IR off)
Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
What’s in the Box: Camera with a mounting kit, waterproof RJ45 lid, mounting template, quick setup guide
Design and specifications may change without prior notice. The above information was accurate when completed. However, we may have added different features and functions due to our ongoing efforts to improve our products. For features not covered by the guides or manuals, please submit a question online by visiting camius.com/support. For updated information, visit www.camius.com
FAQs
What Does 8 Channel Security System Mean?
An 8 channel security system refers to a setup that can support up to 8 security cameras simultaneously. This type of system is ideal for medium to large properties, providing comprehensive coverage of multiple areas. The Camius 8 channel NVR security system exemplifies this, allowing you to connect and manage up to 8 high-resolution IP cameras. This system offers advanced features such as AI-based analytics, smart motion detection, and remote access, ensuring robust surveillance for both home and business environments.
What is PoE NVR?
A PoE (Power over Ethernet) NVR is a Network Video Recorder that uses PoE technology to power and connect IP cameras through a single Ethernet cable. This simplifies the installation process by eliminating the need for separate power cables, reducing clutter and enhancing reliability. The Camius 8 channel NVR security system leverages PoE technology, making it easier to install and maintain, while ensuring high-quality video transmission and power supply to each camera.
Do NVR Cameras Work Without Internet?
Yes, NVR cameras can work without an internet connection. The primary function of an NVR system is to record and store video footage locally on a hard drive within the NVR unit. The Camius 8 channel NVR security system, for instance, continues to record and store footage even if the internet connection is lost. However, features such as remote viewing, real-time alerts, and cloud backups will be unavailable without an internet connection.
About NVR Camera System Setup
Setting up an NVR camera system involves several key steps:
- Planning: Determine the number of cameras needed and the areas to be covered. The Camius 8 channel NVR system can support up to 8 cameras, providing flexibility in coverage.
- Installation: Mount the cameras in desired locations and run Ethernet cables to connect them to the NVR. PoE technology in the Camius system simplifies this by requiring only a single cable for both power and data.
- Configuration: Connect the NVR to a monitor or TV via HDMI for initial setup. Configure camera settings, recording schedules, and alerts using the Camius NVR’s user-friendly interface.
- Remote Access: Install the Camius View app on your smartphone or use the web interface to set up remote access. This allows you to monitor your cameras from anywhere. Optionally you can use Camius VMS software designed for Windows and Mac computers which you can use for remote access as well.
How to Choose a Video Surveillance System for Your Business?
When choosing a video surveillance system for your business, consider the following factors:
- Coverage Needs: Determine how many areas need surveillance and choose a system that supports the required number of cameras. The Camius 8 channel NVR system is ideal for medium to large setups.
- Video Quality: Opt for high-resolution cameras (2K or 4K) for clear and detailed footage. Camius cameras offer superior video quality.
- Advanced Features: Look for systems with AI-based analytics, smart motion detection, and remote access capabilities. Camius systems provide these advanced features.
- Ease of Installation: Consider PoE systems like Camius, which simplify installation by using a single cable for power and data.
- Scalability: Choose a system that can grow with your needs. Camius NVR systems are scalable, allowing you to add more cameras as needed.
- Cost: Balance your budget with the features and quality required for effective surveillance.
What's the Difference Between Surveillance Cameras and Security Cameras?
Surveillance cameras and security cameras are often used interchangeably, but they can have different connotations:
- Surveillance Cameras: Typically refers to the broader concept of monitoring and recording activities. These are often used in businesses for general monitoring and can include both indoor and outdoor cameras. The Camius 8 channel NVR system is a comprehensive surveillance solution offering high-quality monitoring and recording.
- Security Cameras: Focuses more on preventing and addressing security incidents. These cameras are often equipped with features like motion detection, alarms, and notifications to actively protect against threats. Camius cameras are designed to enhance security with advanced features like AI-based analytics and smart motion detection.
What Are Security Cameras for Business?
Security cameras for business are specifically designed to monitor and protect commercial properties. They help deter theft, vandalism, and other criminal activities while providing evidence in case of incidents. The Camius 8 channel NVR security system is an excellent choice for businesses, offering high-resolution cameras, advanced analytics, and remote access. These features ensure comprehensive coverage, proactive threat detection, and ease of management, making Camius systems ideal for maintaining a secure business environment.
