Upgrade to Camius Analog Security Cameras with DVR
Camius 8 Channel 4K DVR Surveillance System combines cutting-edge hybrid technology with easy installation, making it ideal for both homes and businesses. Analog surveillance cameras with DVR deliver seamless recording and playback, ensuring every detail is captured in stunning 4K resolution. Its 4TB hard drive provides ample space for long-term footage storage, giving you reliable, 24/7 access to live cameras and recorded footage without worrying about running out of storage.

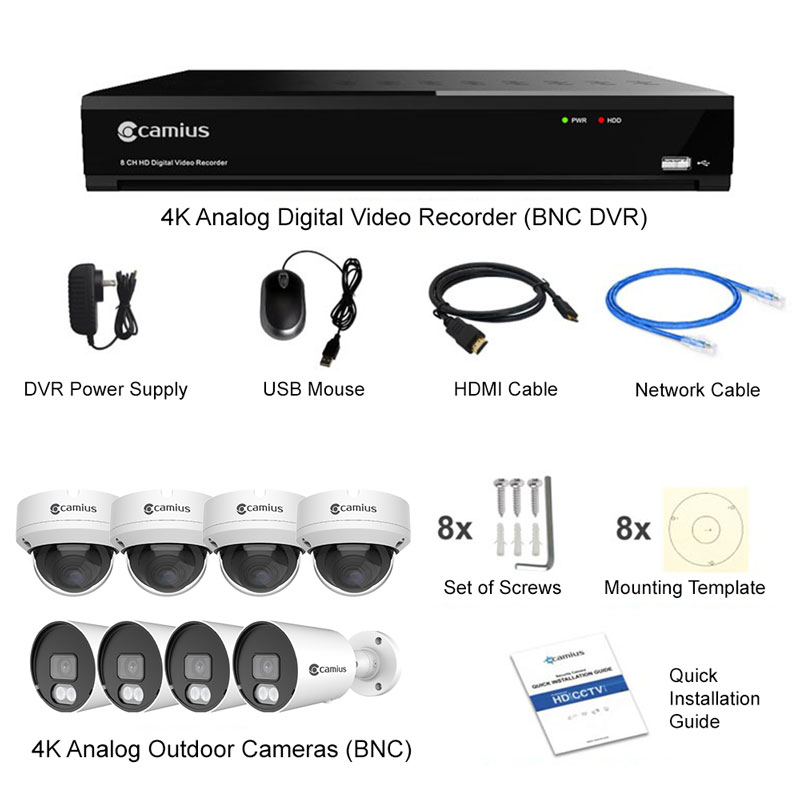

Best DVR Security System for Business Includes:
- TRIVAULT4K184R2 4TB HDD: A powerful 8-channel DVR with hard drive 4TB
- 4x FD4KATC2 4K Analog Dome Cameras: These vandal-proof dome cameras deliver stunning 4K resolution and wide-angle views, perfect for indoor surveillance.
- 4x FB4KPRO 4K Analog Bullet Cameras: Equipped for outdoor use, these 4K bullet cameras with DVR controlled lights, built-in mic
Accessories: Includes essential accessories such as the DVR’s power adapter, HDMI cable, network cable, USB mouse, and installation guide
Please note that camera cables, power supplies, and splitters are not included and can be purchased separately.
Why Camius is the best analog security camera system?

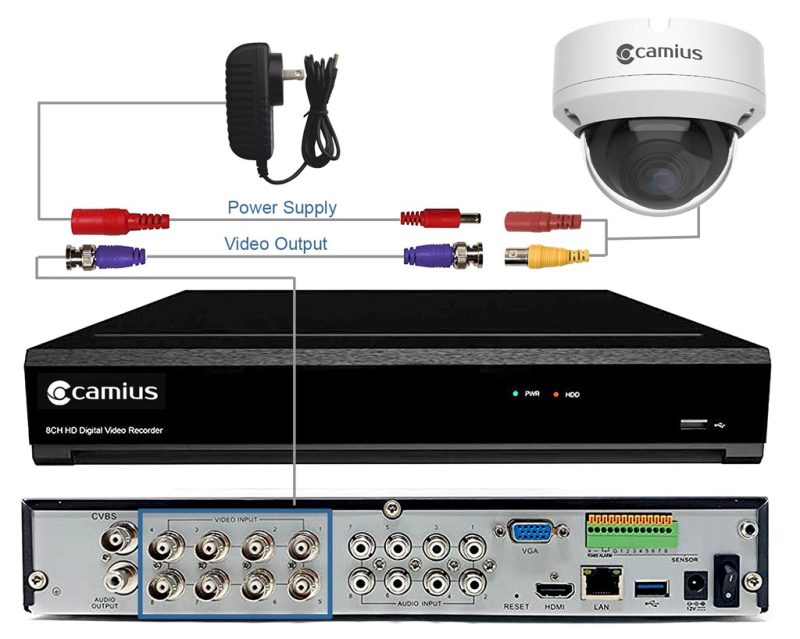

This system is designed to simplify your security needs. Camius DVR for security cameras works with your existing coaxial cables, making upgrades easy and cost-effective. Its smart motion detection reduces false alerts by focusing on what matters most—human and vehicle detection. Whether you’re safeguarding a home or business, the system’s wide-angle views, night vision, and offline functionality ensure you’re always covered, even during internet outages.
Camius Best Security DVR System Delivers
Durability and performance meet in the best outdoor security camera system with DVR. Equipped with 4 vandal-proof dome cameras and 4 weatherproof bullet cameras, the system can handle challenging outdoor conditions while delivering clear and detailed footage. With wide-angle lenses (110°) and night vision capabilities, it’s built to monitor large areas effectively, day or night.
Best DVR Security Camera System You Can Trust

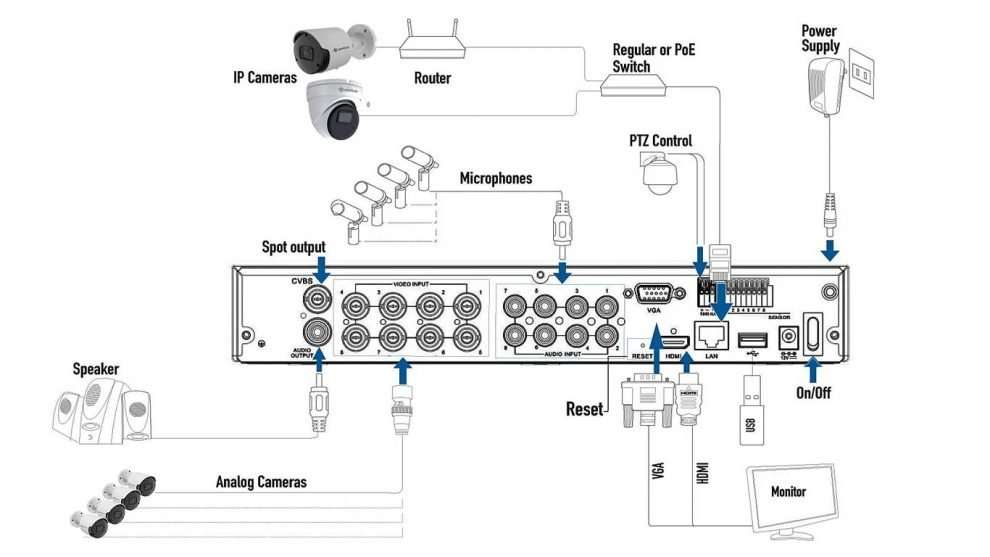

Camius DVR security camera systems offer more than just high-definition recording. This hybrid security camera system supports up to 12 cameras, including 8 BNC surveillance cameras and 4 IP cameras, giving you the flexibility to expand your system as your needs grow. Enjoy the benefits of analog surveillance cameras with the added versatility of IP cameras for advanced features like built-in microphones and active deterrence.
Camius Best Camera DVR System Specifications
TRIVAULT4K184R2 DVR specs:
- Channels: 12 (Analog + IP)
Analog Channels: 8 (supports CVBS, TVI, CVI, AHD up to 4K resolution)
IP Channels: 4 (or 12 if no analog channels are in use)
- Image Control:
Analog: Select camera type, Date & Time Format, Covert, Color settings (Hue/Brightness/Contrast/Saturation).
IP: IR-CUT mode, IR-CUT delay, Lens Flip, Angle Flip, Backlight, 3D Noise reduction, WDR, AGC, White balance, Shutter, Time Exposure, Defog mode (subject to IP camera’s features).
- Recording Bandwidth:
In: 32Mbps ~ 96Mbps (a single disabled analog channel increases bandwidth by 8Mbps).
Out: 96Mbps.
- PTZ Support: Analog and IP digital PTZ cameras.
- Motion Detection: Supports both Analog and IP cameras.
- PIR Detection: Enabled for Camius IP cameras with PIR sensors.
- Deterrence: Enabled for Camius IP cameras with siren and light features.
- Intelligent Features: PID (Perimeter Intrusion), LCD (Line Crossing), SOD (Stationary Object), Sound Detection, Video Tampering.
- Compression:
Video: H.264 / H.265.
Audio: G711A.
- Display Resolution:
Analog: 8MP @ 15fps, 5MP @ 20fps, 4MP/1080P/720P/960H @ 30fps.
IP: 4K/4MP/1080P/720P. (Note: Single IP channel preview up to 4K @ 30fps; multi-channel preview only in Substream mode).

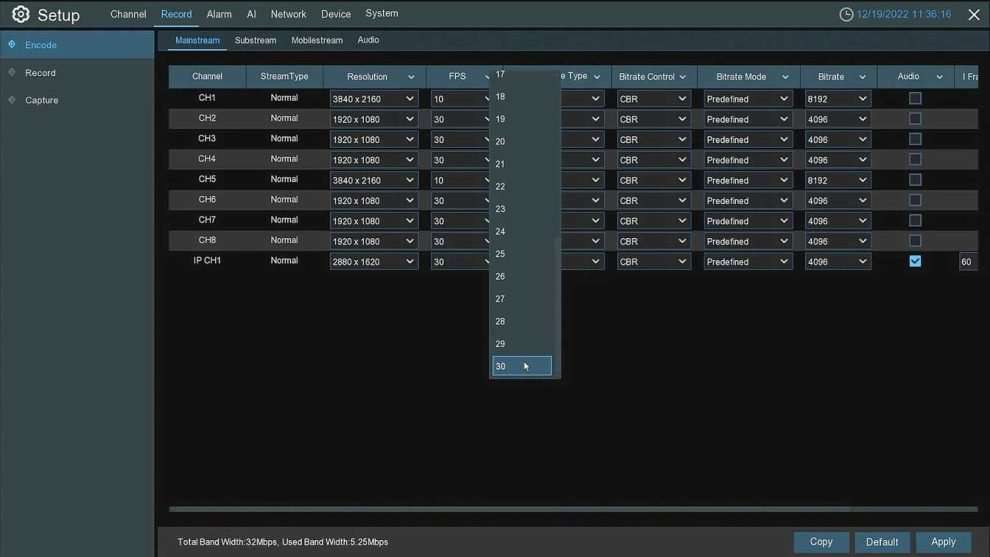

- Recording:
Mainstream: Analog 8MP 3840×2160 @ 10fps, 5MP @ 14fps, 4MP @ 18fps, 1080P @ 30fps NTSC, 25fps PAL (each channel).
Substream: Analog 704×480 NTSC @ 10fps, 704×576 PAL @ 10fps, IP 1920×1080 @ 30fps (each channel).
Mobile stream (IP channels): 640×480 @ 30fps.
- Capture Settings:
Capture resolution: 1920×1080, 1280×720, 960×480.
Stream Type: Main/Substream.
Alarm Quality Settings: Highest, Higher, Medium, Low, Lower, Lowest.
- Network & Remote Access:
Network: DHCP, PPPoE, Port Configuration (HTTP, Client Port, RTSP, HTTPS, UPNP, TCP).
Remote Access: P2P (ON/OFF), DDNS, Email alerts.
Cloud Support: Dropbox, Google Drive for video and picture uploads.
- System Management:
Device: 1 Internal SATA HDD up to 10TB capacity.
Maintenance: Firmware upgrades, auto-reboot, and parameter management.
Multi-User Management: Admin + 30 users.
- Power & Environmental:
Power Supply/Consumption: DC12V 2A / 11W (without hard drive).
Operating Temperature/Humidity: 0°C~+40°C (32°F ~ 104°F) / Less than 90% RH.
Physical Dimensions: 12 x 9 x 2” (300 x 227 x 53mm).
- Included: DVR Unit, Power Supply, HDMI Cable, Network Cable, USB Mouse, DVR installation guide
Note: Design and specifications are subject to change without prior notice. For updated information, visit www.camius.com.
Camius 4K BNC Cameras Specifications
FD4KATC2 4K Analog Dome Camera specs:
- Video Resolution: 3840 x 2160
- Lens: Fixed 2.8mm
- Field of View: 111° horizontal, 58.8° vertical, and 134° diagonal
- Min. Object Distance: 5.9ft (1.8m)
- Microphone: No
- Vandalproof: Yes (IK10)
- Weatherproof: Yes (IP66)
- Power consumption: ≤ 4W (with IR on), ≤ 1W (without IR on)
- Dimensions: Ø4.5 x 3.6” (Ø115 x 91.6mm)
- Net weight is approx. 16.9oz (450g)
- Operating temperature: -22°F ~ 131°F (-30°C ~ 55°C)
- Storage temperature: -22°F ~ 140°F
FB4KPRO 4K Analog Bullet Camera Specifications
- Video Resolution: 3840 × 2160 (8MP)
- Lens: Fixed 2.8mm, F1.0
- Field of View: 109.7° horizontal, 57.6° vertical, 131.0° diagonal
- Min. Object Distance: 7 ft (2 m)
- Microphone: Audio over coaxial (range up to 23 ft / 7 m)
- Weatherproof Rating: IP66
- Color Night Vision: Warm light viewable length up to 66 ft (20 m)
- Power Consumption: ≤ 0.8W (IR off), ≤ 4W (IR on)
- Dimensions: 2.9 × 6 in (74.1 × 151.3 mm)
- Net Weight: Approx. 13 oz (348 g)
- Operating Temperature: -22°F to 131°F (-30°C to 55°C), up to 90% humidity
- Storage Temperature: -22°F to 140°F (-30°C to 60°C)
FAQs About Camius BNC Security Cameras with DVR
Do I really need a DVR for security cameras?
Yes, a DVR is essential for analog security cameras as it records and stores footage locally. Camius DVRs offer continuous 24/7 recording and support high-resolution analog cameras, ensuring secure storage without relying on cloud subscriptions.
Do DVR cameras need WiFi?
No, DVR cameras do not require Wi Fi. They transmit video through coaxial cables and record footage directly to the DVR, making them ideal for areas with no internet access. However, Camius security camera DVRs can connect to the internet for remote viewing if desired.
Which is better, DVR or NVR?
NVRs are generally better for IP cameras as they offer higher video quality, easier installation, and more features. However, DVRs are more cost-effective for those with existing coaxial wiring. Camius hybrid DVRs bridge the gap, supporting both analog BNC and IP cameras for maximum flexibility.
Will any security camera work with any DVR?
No, not all cameras are compatible with every DVR. BNC cameras must match the DVR technology, such as CVBS, HD CVI, HD TVI, or AHD. Camius DVRs are designed to work with various camera types, ensuring a hassle-free setup.
Do security cameras work without subscription?
Yes, Camius security cameras and DVRs do not require a subscription. They store footage locally on a hard drive, allowing for continuous recording and playback without recurring fees.
