Upgrade to Camius 16 Channel DVR Recorder System Kit
- No rewiring needed – Works with your current CCTV setup
- 4K Ultra HD video for sharp, detailed footage
- Smart motion detection for enhanced security
- Remote access via web browser, desktop software, or smartphone app
- No monthly fees – Full privacy with no subscriptions
Easy to set up and ready to go right out of the box!
Scalable 16 Channel Security Camera DVR System

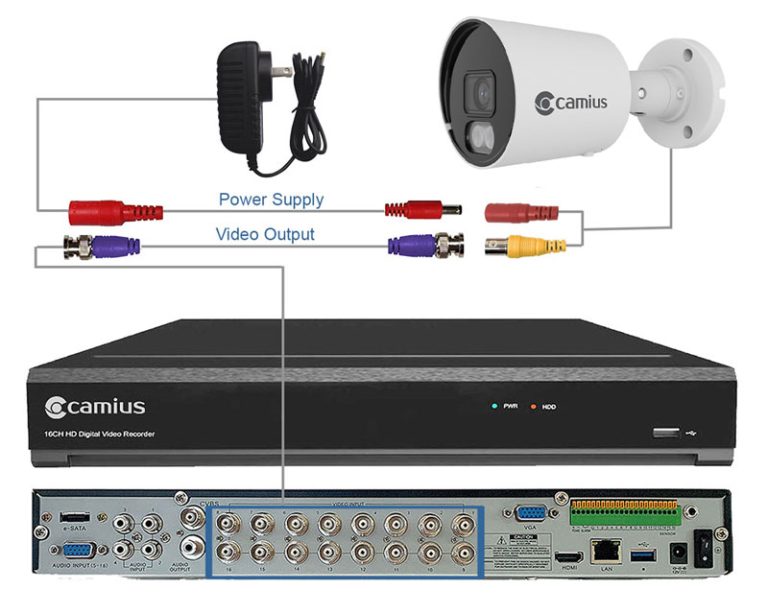

Camius 4K hybrid DVR recorder system kit is easy to expand. It comes with four 4K full color night vision analog cameras, and you can add up to 20 more cameras, including 8 IP cameras. For the best performance, use Camius IP PoE cameras, which work perfectly with the system.
4K Security Camera Recorder for Analog and IP Cameras
Camius 4K hybrid security camera recorder supports up to 16 analog cameras and 8 IP cameras, giving you a total of 24 cameras for complete security coverage. You can also convert analog channels to IP channels and connect Camius 2K or 4K wired IP cameras over the network.
For the best performance and full access to features, use Camius IP PoE cameras. Follow this step-by-step guide to add and set up IP cameras with your DVR system.
4K DVR Security Camera Kit with Smart Detection and Expandable Storage
The system includes a 4TB hard drive and starts recording as soon as it’s set up. It offers continuous recording, motion-triggered recording, and PIR detection recording. You can also expand your system by adding more IP cameras.
Security Camera DVR 16 Channel System
Camius 16 Camera DVR uses H.265 video compression, which keeps video quality high while reducing file sizes. This helps save storage space and use less bandwidth, so you can record for longer. The DVR also records audio, giving you both video and sound for better security.
- Save storage space with H.265 compression and audio recording
- Records 4K analog cameras at 10 frames per second and IP cameras at up to 30 frames per second
4K DVR 16 Channel With Audio Recording
Camius 4K Analog Surveillance Cameras have built-in microphones for clear audio recording. To turn on this feature, follow the guide on enabling audio for analog cameras. You will need a Camius audio-video power coaxial cable for proper setup.
16 Channel Analog DVR with 2 SATA and e-SATA
Camius 16 Channel DVR is built for continuous, high-performance recording. It includes:
- 4TB hard drive (starts recording right away)
- Expandable storage up to 42TB with two SATA bays
- e-SATA port for extra external storage
- Customizable recording – choose continuous, motion-activated, or scheduled recording
- FTP and cloud storage (Dropbox & Google Drive) for extra backup

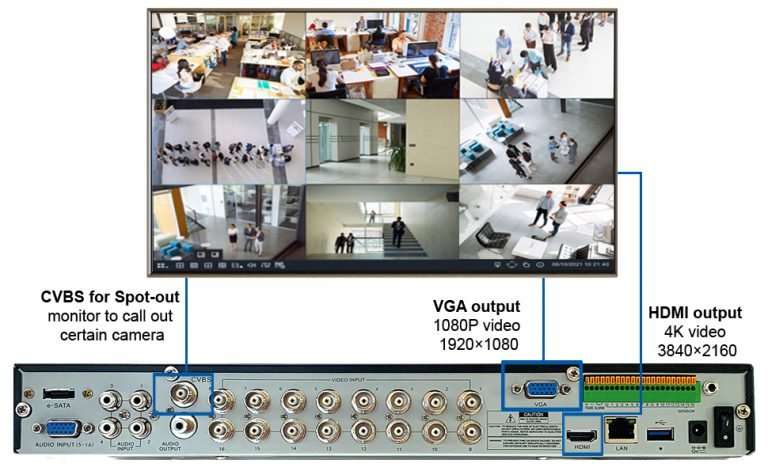

16CH DVR with 4K HDMI, VGA and Spot Out
Camius 4K Hybrid 16-Channel DVR offers different ways to connect to monitors:
✔ 4K HDMI output (3840×2160 resolution) for ultra-clear video
✔ VGA output (1920×1080 resolution)
✔ CVBS/BNC output for spot monitors
✔ Auto-adjusts resolution for the best viewing experience
16 Cannel Security Camera System DVR with 4K Analog Cameras
These 8MP cameras provide sharp, detailed video and are great for narrow spaces like doorways and stairways. They have a fixed 3.6mm lens with a 91-degree field of view.
For larger areas like parking lots or warehouses, Camius bullet cameras are a better option, as they offer a longer range.
Advanced Features of Camius 16 Channel DVR Recorder for Cameras
Upgrading to the Camius 4K Security DVR Recorder gives you access to powerful features:
- Cloud Recording – Save footage to Dropbox or Google Drive
- AI Detection – Detects people and vehicles with Camius 4K analog and IP PoE cameras
- Flexible Recording Modes – Choose from continuous, motion-triggered, or scheduled recording
- Smart Search – Easily find footage by date, time, or event
- User Management – Add multiple users with different access levels
- 4K Live Viewing – Works with 4K and lower-resolution monitors
16 Channel CCTV Surveillance DVR with AI Detection
DVR Recorder for Cameras Features
Camius 4K Security DVR includes advanced AI features to improve security:
Smart Motion & AI Detection – IP cameras detect people, vehicles, or both, perimeter intrusion patterns, faces and more.
Intelligent Sound Detection – Alerts you to unusual sounds
Video Tampering Alerts – Notifies you if someone blocks or damages the camera
Deterrence – Control 4K spotlight IP cameras lights and siren
AI Human & Vehicle Detection + Perimeter Intrusion Alerts
- AI Detection Technology helps identify people and vehicles, sending instant alerts
- Perimeter Intrusion & Line Crossing Detection warns if someone crosses a set boundary
- Custom Alerts – Get notifications via email, on-screen messages, or cloud storage (Dropbox, Google Drive, or FTP)
Access Your Camius High Quality Digital Video Recorder System from Any Device
Camius DVR software works on PCs, Macs, and web browsers, turning any device into a 24/7 surveillance station.
- Live video & audio streaming
- Playback footage
- Adjust camera settings from anywhere
Stay Connected with the Camius View Mobile App
Camius View App lets you monitor your property from anywhere using your smartphone. Available on iOS and Android, it allows you to:
✔ View live and recorded video
✔ Use 1-way or 2-way audio (for supported cameras)
✔ Easily add IP cameras to your system
Download now:
16 Channel DVR Recorder System Kit Contents:
1 x 16 Channel DVR 4TB HDD (TRIVAULT4K2168R 4TB HDD)
- 4 x 4K analog security camera (FB4KPRO)
- 1 x DVR power supply, HDMI cable, ethernet cable, USB mouse, Installation Guide
Note: This DVR bundle doesn’t include cables or a power supply, which can be purchased separately
Resources:
Camius 4K Security Camera DVR 16 Channel Kit Specifications
Camius 16CH DVR technical specs
Model: TRIVAULT4K2168R
Video & Channel Configuration
- Total Channels in Hybrid XVR mode: 24 (supports up to 16 analog + 8 IP channels simultaneously (24 total), or 24 IP cameras when used in IP-only mode)
- Analog Channels: 16 BNC, supporting AHD, TVI, CVI, and CVBS cameras (auto-adaptive).
- IP Channels: 8 IP channels (expandable to 24 total if analog inputs are disabled).
- Total Bandwidth: 192 Mbps (Incoming 128 Mbps / Outgoing 64 Mbps)
Display & Playback
- Display Resolution:
Analog Channels (Main Stream):
- 8 MP (3840×2160): 10 fps record / 15 fps display
- 5 MP (2592×1944): 15 fps record / 20 fps display
- 4 MP (2560×1440): 20 fps record / 30 fps display
- 1080 P (1920×1080): NTSC 30 fps / PAL 25 fps record per channel
- 720 P / 960 H: 30 fps record per channel
IP Channels:
- Up to 4 K / 4 MP / 1080 P / 720 P @ 30 fps per channel
Note: Frame rate and total channel count depend on total bandwidth load across analog and IP inputs.
- View Layouts: 1 / 4 / 8 / 9 / 16 / 20 / 24 split-screen configurations.
- Auto Sequence: Supported.
- Playback:
- Search up to 16 channels simultaneously.
- Multi-channel playback supported (number of channels depends on resolution and decoding bandwidth).
- Playback speed: Fast forward/backward (2x, 4x, 8x, 16x), slow motion (1/2x, 1/4x, 1/8x, 1/16x).
Video Functions
- Channel Settings: Channel name, time display, covert (on/off).
- Image Control: Brightness, contrast, saturation, hue (for analog and IP channels).
- Privacy Masking (Video Cover): Up to 4 areas per channel.
- PTZ Control: RS-485, Preset, Cruise, PTZ Linkage.
- Auto Signal Detection: Automatically detects connected camera type.
Detection & Deterrence
- Motion Detection: Available on all analog and IP channels.
- PIR Detection: With compatible IP cameras.
- Alarm Triggers: Motion, I/O, PIR, intelligent (AI) detection.
- Deterrence: Light and siren control (with Camius spotlight 4K PoE cameras: SPOT828A-RB, SCOUT4KPTZ4X); Smart Illumination (White Spotlights) apply to FB4KPRO (4k analog outdoor camera)
Compression & Recording
- Video Compression: H.265 / H.264.
- Audio Compression: G.711A / G.711U.
- Recording Streams: Mainstream and Substream per channel.
- Recording Modes: Continuous, Motion, I/O, PIR, Schedule, Manual.
- Pre-record: 5 seconds.
- Post-record: Adjustable (10–300 seconds).
- Snapshot / Time-lapse Capture: Supported (max 1080P, interval 5s–1hr).
Alarm & I/O
- Alarm Inputs: 16 wired zones (NO/NC selectable).
- Alarm Output: 1 relay output (30V DC / 2A or 125V AC / 0.5A).
- RS-485 Interface: For PTZ control.
- Alarm Features: Motion, PIR, I/O, Intelligent, Combination Alarm, PTZ Linkage.
- Exception Alarms: Disk full, disk error, video loss, network failure.
- Notifications: Buzzer, Push notification via Camius View App, on-screen message.
- Scheduling: Fully configurable per channel.
AI & Smart Detection
- AI Functions: Human and vehicle detection, face detection, perimeter intrusion, line crossing, sound, license plate detection, etc.
- Analytics: People and vehicle counting, heat maps (when paired with Camius AI IP cameras).
- AI detection on up to 8 channels simultaneously. AI functions are mutually exclusive per channel.
Network Features
- Protocols: DHCP, PPPoE, SNMP, UPnP, HTTP/HTTPS, RTSP, P2P.
- Ports: HTTP, RTSP, Media, HTTPS.
- DDNS: Supported.
- Email Alerts: SMTP (SSL/TLS).
- FTP Upload: Supported — upload snapshots or clips from motion or alarm events to a remote FTP folder.
- Cloud Storage: Dropbox, Google Drive.
- IP Filter: Allow/Block IP addresses.
- Remote Access:
- Camius View App for iOS & Android,
- Camius VMS Software for PC and Mac.
- Browser access (HTTP/HTTPS)
- Note: The TRIVAULT4K2168R operates fully offline. Recording, playback, and export do not require an internet connection. Network and motion features can be disabled when not needed.
Storage
- Internal Drives: 2 × SATA (up to 14TB each).
- External Storage: 1 × eSATA
- Network Storage: NAS (NetHDD) supported.
- Recording Management: Overwrite and redundancy options.
- HDD Format Options:
- Format entire hard disk – erases all data (including videos, events, logs, analytics).
- Format record partition – erases videos, snapshots, logs; keeps analytic information.
- Format general partition – erases only analytic information; videos and snapshots remain.
System Management
- Users: 1 Admin + 31 User accounts.
- Settings: Device name, audio input type (base-band or coaxial), date/time, output resolution.
- Maintenance: Auto reboot, logs, firmware upgrade via USB or network.
Video Outputs
- HDMI: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P, 2K, 4K
- VGA: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P
- CVBS: BNC output, 704×576
Interfaces
- USB: 1 × USB 2.0 (front), 1 × USB 3.0 (rear).
- LAN: RJ45 10/100/1000 Base-T.
- RS-485: A/B terminals for PTZ control.
- Alarm I/O Block: 16 inputs, 1 relay output.
- Audio: 4 RCA inputs + 1 output, expandable to 16 via DB9 connector.
Power & Environmental
- Power Supply: DC 12V / 5A (Input 100–240V, 50/60Hz).
- Power Consumption: ≤20W (excluding HDDs).
- Operating Temperature: 32°F–104°F (0°C–40°C).
- Humidity: ≤90% (non-condensing).
Physical
- Dimensions: 380 × 320 × 53 mm (15 × 13 × 2 in).
- Net Weight: 2.45 kg (5.4 lbs, without HDD).
- Gross Weight: 3.37 kg (7.4 lbs, with packaging).
In the Box
- DVR unit
- Power adapter
- HDMI cable
- Audio cable
- Network (Ethernet) cable
- USB mouse
- DVR Quick Installation Guide
The above specifications provide a comprehensive overview of the TRIVAULT4K2168R’s powerful features, making it an excellent choice for high-resolution, smart video surveillance.
Analog Camera Technical Specifications:
Camera Model: FB4KPRO
Imaging Device | 1/2.7″ Progressive CMOS
Total Pixels | 3872 (H) × 2180 (V)
Effective Pixels | 3840 (H) × 2160 (V)
Scanning System | Progressive scanning
Minimum Illumination | Color 0.06 lux @ F1.0 (AGC ON); B/W 0 lux @ IR ON
Video Output | BNC
Resolution | 8MP 3840 (H) × 2160 (V)
Max. Frame Rate | TVI/AHD/CVI: 8MP@15fps; TVI/CVI: 8MP@12.5fps; CVBS: 960H
Focal Length | 2.8mm
Max. Aperture Ratio | F1.0
Field of View | Horizontal: 109.7°, Vertical: 57.6°, Diagonal: 131.0°
Min. Object Distance | 7 feet / 2 meters
Lens Type | Fixed Lens
Audio | Audio over coaxial
Audio Range | 23 feet / 7 meters
Warm Light Viewable Length | 66 feet / 20 meters
IR Distance | 100ft / 30 meters
On-Screen Display | English
Day & Night Modes | Color / Ext / B/W
Backlight Compensation | Off / User BLC
Wide Dynamic Range | Not Available
Digital Noise Reduction | 2D DNR
Gain Control | Auto
White Balance | ATW (Auto Tracking White Balance)
Electronic Shutter Speed | Auto
Reverse Image | Mirror
Remote Control Interface | ACP (AHD Coax Protocol)
Video Transmission Distance | Up to 984 feet / 300 meters (using 5C 2V coaxial cable)
Operating Temperature/Humidity | -22°F to 131°F / -30°C to 55°C / 90% Humidity
Ingress Protection Rating | IP66
Input Voltage/Current | 12V DC
Power Consumption | IR OFF ≤ 0.8W; IR ON ≤ 4W
Material | Metal
Dimensions (WxHxD) | 74.1 × 151.3mm
Weight | 13 oz / 348g
