Professional PoE Dome Camera System for Businesses
The Camius 10 camera security system is built for small and mid-size businesses that need reliable 24/7 monitoring. This PoE dome camera system includes ten 5MP IP dome cameras paired with a 16 channel NVR that delivers Super HD 2K video with audio. Smart AI features include human and vehicle detection, sound alerts, line crossing, perimeter intrusion, and cross-counting analytics. With reports and alerts built into the NVR, this dome surveillance camera system gives business owners complete control without subscription fees.

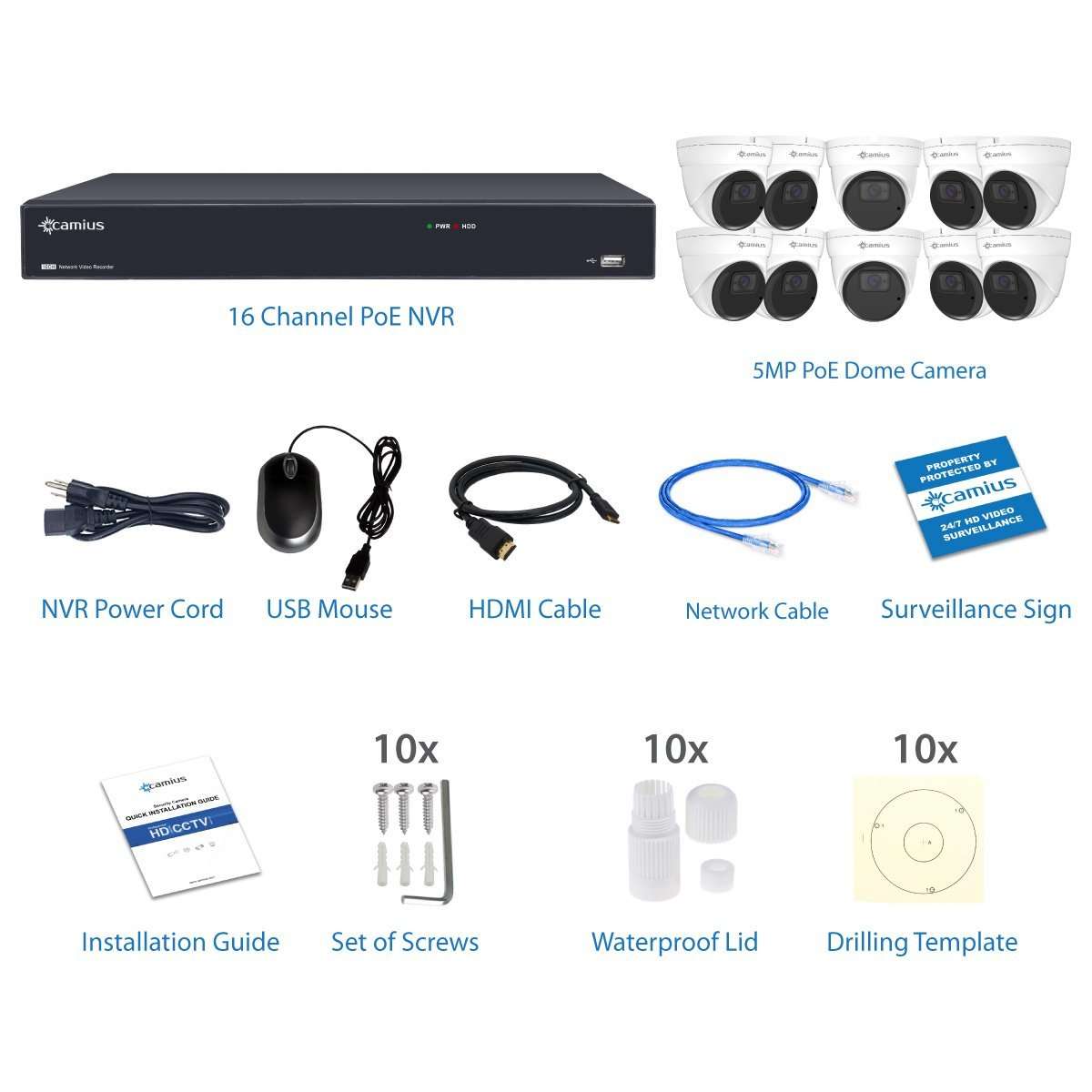

Included in the Box:
- 16 Channel NVR with pre-installed 4TB HDD (IPVAULT2320PR)
- 10× 5MP PoE Dome Cameras (IRIS528R)
- Power cord, HDMI cable, Ethernet cable, USB mouse, Quick Installation Guide
Note: this bundle includes one pre-installed 4TB hard drive. It doesn’t include cables that you purchase separately, which can be ordered separately.
Easy Plug-and-Play Dome Surveillance Camera System
The included 16 channel NVR has sixteen PoE ports. Each IP dome camera receives power, video, audio, and data through a single Ethernet cable, making installation fast and straightforward. The recorder automatically assigns IP addresses to Camius cameras, eliminating complicated setup. With support for up to 320 Mbps bandwidth, the system records every detail smoothly across all connected channels.
Wide-Angle IP Dome Cameras with Audio
Each Camius IP dome camera delivers sharp 2K (2880×1620) resolution at 30fps. A 2.8mm lens provides a wide 110° view, reducing blind spots. The built-in microphone enables synchronized audio recording, while infrared night vision reaches 100 feet and switches to color in low-light conditions. Metal housing makes these cameras suitable for both indoor and outdoor use.
High-Capacity 16 Channel NVR with Expandable Storage
The NVR includes a pre-installed 4TB surveillance-grade hard drive for 24/7 motion-activated continuous recording. Expandable up to 42TB using dual internal drives plus external e-SATA storage, it ensures long-term retention. Advanced compression (H.264, H.265, H.265+) reduces file sizes by up to 50% without sacrificing quality, making this dome surveillance camera system highly efficient for business use.
Commercial Dome Cameras with Audio
These Camius dome security cameras with audio recording allow you to listen to audio life. You can also turn on and off the camera’s audio. Sound Detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode.
Smart AI Detection and Alarms
Camius AI features allow precise alerts, reducing false alarms caused by irrelevant motion. Detection modes include human, vehicle, line crossing, perimeter intrusion, cross-counting, and sound detection. Customizable alarm notifications can be delivered via email, buzzer, on-screen messages, or push notifications in the app. Footage and snapshots can also be saved directly to the cloud (Dropbox or Google Drive).
Business Security Camera System with Remote Access and Monitoring
Monitor your 10 camera security system from anywhere using the Camius View mobile app, PC/Mac client software, or a web browser. Multiple display outputs are supported, including 4K HDMI for the main monitor, 1080P HDMI for a secondary spot monitor, and VGA for legacy screens. Business owners and IT managers can view live feeds, playback, and manage settings remotely with ease.
Camius Video Management Software
The NVR PoE camera system offers more than just HDMI monitor and smartphone app connectivity. With the NVR software (VMS), you can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. The VMS software includes a built-in web client and can also be accessed using a modern web browser. This allows users to monitor live video and audio streams, playback recordings, manage cameras, and access device settings with ease.

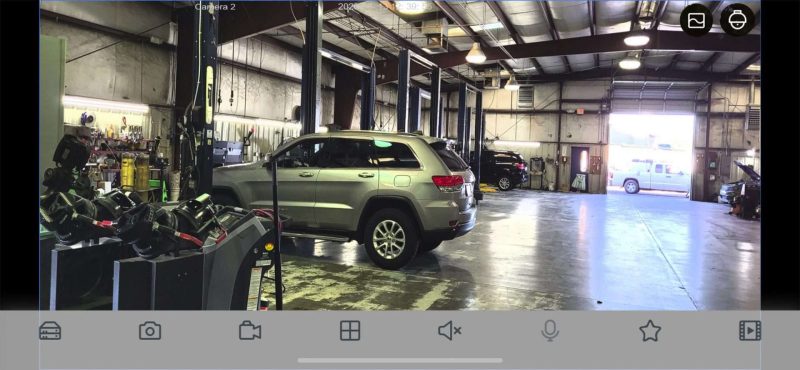

Camius View App
The Smartphone Security Camera App Camius View offers complete access to your cameras from any location from your iPhone, iPad or Android phone and tablet.
Why Choose Camius for Your Business Security?
- Complete 10 camera security system with professional-grade PoE dome cameras
- Plug-and-play installation with one cable per camera
- Expandable up to 42TB (14TB x 2+ ESATA) storage for months of 24/7 coverage
- AI detection for accurate alerts and reports
- Remote monitoring from any device without monthly fees
Included in the Box:
- 16 Channel NVR with pre-installed 4TB HDD (IPVAULT2320PR)
- 10× 5MP PoE Dome Cameras (IRIS528R)
- Power cord, HDMI cable, Ethernet cable, USB mouse, Quick Installation Guide
Note: this bundle includes one pre-installed 4TB hard drive. It doesn’t include cables that you purchase separately, which can be ordered separately.
Camius PoE Dome Camera System Technical Information
16 Channel NVR specs
Model: IPVAULT2320PR
Bandwidth: 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif™ (profile S/G/T)
- Voice Command: Home Device: Google Assistant, Amazon Alexa
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.

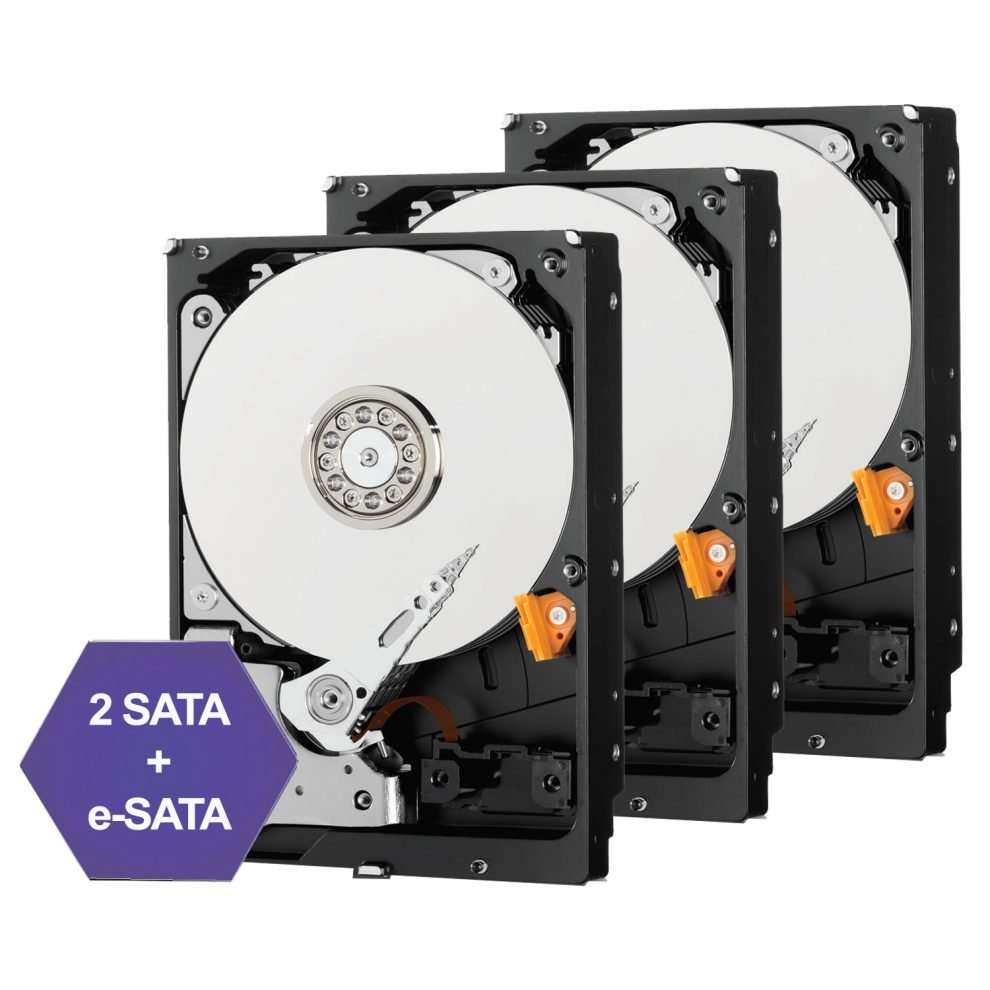

Storage
- Two Internal SATA Hard Drive Ports: up to 12 terabyte
- One e-SATA
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: the NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
Recommended Links:
PoE Dome Camera Specs
Model: IRIS528R
Camera Type: IP network (NTSC/PAL)
Shape: Dome
Video Specifications:
- Resolution:
- MainStream: 2K 2880×1620 @ 30fps
- SubStream: 1280×720 @ 30fps
- MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination:
- Color: 0.002 Lux @ F1.2
- B/W: 0 lux @ IR ON
- Bitrate:
- MainStream: 8192 Kbps
- SubStream: 4096 Kbps
- MobileStream: 1536 Kbps
- Modes: predefined or user-defined, Bitrate control: CBR or VBR
- I-Frame: 1 – 120
- Lens (Field of View): 2.8mm F No.1.6±10% (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
Audio Specifications:
- Built-in Microphone: ON/OFF, adjustable volume levels 1-10
- Audio Compression: G.711A/G.711U
Camera Reset: On-camera reset button (or via network)
Recording:
- Supports 2 Stream Modes: MainStream or SubStream (Record/PreRecord/Netbreak)
- Setup Recording Schedule
Image Control Settings:
- IR-CUT Mode (Automatic / Color / Black White / Image / Schedule)
- IR Cut Delay with adjustable value
- IR-LED (Manual or SmartIR)
- Angle Trad (0-180)
- Corridor Mode (On/Off)
- Mirror (Disable/Vertical/Horizontal/All)
- WDR, Backlight, HLC, White Balance, Shutter (Auto/Manual), Time Exposure, 3D Noise Reduction (Automatic / Manual / Off)
Video Cover: 4 areas
ROI (Region of Interest): 8 regions
Night Vision: 100ft (30m)
Motion Detection: Supported (enabled by default)
- Alarms: Post Recording (5 to 30 sec or OFF), Send Email, FTP Picture Upload, Cloud Picture, and Enable Recording
Sound Detection: Supported (disabled by default)
- Alarms: Post Recording (5 to 30 sec or OFF), Send Email, FTP Picture Upload, Cloud Picture, and Enable Recording
AI Features:
- Events: Face Detection (FD), Human & Vehicle Detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Cross Counting (CC), Heat Map (HM), Queue Length Detection (QD), License Plate Detection (LPD), Rare Sound Detection (RSD) – Note: single AI function can be selected and scheduled (features are in Beta version).
- Alarm: Post Recording (5 to 30 sec or OFF), Sending Email, Picture Upload to an FTP, Cloud (Dropbox), Enable Recording
Push Notifications: Receive to your smartphone for Storage Error (requires micro SD card installation), Motion Detection, Intelligent & AI Detection (recommended with Camius Network Video Recorder for broader range of notifications)
Network Specifications:
- DHCP (ON/OFF), DNS, PPPoE (ON/OFF), SNMP (ON/OFF)
- Port Configuration: HTTP, Client (Media) Port, HTTPS, RTSP, TCP, UPNP, Multicast port, P2P (ON/OFF)
- Email notifications to 3 receivers using SMTP Port & Server (Encryption Mode: OFF, SSL, TLS or Automatic)
- Interval: 1/3/5/10 min
- Enable/Disable & Configure FTP, RTSP, DDNS, HTTPS, IP Filter
Disk (On-Camera Storage): Micro SD slot, supported max. capacity 256GB (SD card not included)
- Overwrite Mode: OFF or AUTO
- Format Disk
Cloud: Activate recording to Dropbox
User Management: Admin + 6 users
Language Support: Multiple languages (English, Spanish, Portuguese, French)
Maintenance:
- Search Logs: All, System, Configuration, Alarm, Account, Record, Storage, Network
- Load Default Settings
- Upgrade Firmware
- Parameter Management (Import and Export Device Settings)
- Auto Reboot (ON/OFF)
Remote Access: PC/Mac compatible software (VMS, VMS Pro), Web-browser, iOS & Android app (CAMIUS VIEW)
Security: Complicated password, Authenticated username and password, IP address filter
Ingress Protection: IP66 (Dust and waterproof)
Operating Temperature: -22°F ~131°F (-30°C ~ 55°C ) / Humidity: less than 95% RH (no condensation)
Power Source: Power-over-Ethernet (IEEE802.3af) / DC12V (PoE switch, PoE injector, or power adaptor not included)
Ethernet: RJ45 (10/100BASE-T)
Power Consumption: ≤ 4W/5W (with IR on), ≤ 2W/3W (IR off)
Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
What’s in the Box:
- Camera with a mounting kit
- Waterproof lid
- Mounting template
- Quick setup guide
Design and specifications may change without prior notice. The above information was accurate when completed. For updated information, visit camius.com.
FAQs about PoE Dome Surveillance Camera System
Will PoE cameras work without internet?
Yes. Camius PoE cameras continue recording even without internet access. The Network Video Recorder stores video locally on its hard drive. Internet is only required for remote access through the Camius View app, or PC/Mac software.
How good are dome security cameras?
Camius dome security cameras provide sharp 2K Super HD video, wide 110° coverage, and built-in audio recording. With color night vision and AI detection, they are reliable for both indoor and outdoor business surveillance.
How far can dome security cameras see?
Camius dome cameras feature night vision up to 100 feet with infrared and color in low light. This makes them ideal for monitoring entrances, lobbies, retail floors, and outdoor areas.
