Expandable 4 Camera PoE Security System for Businesses and Homes

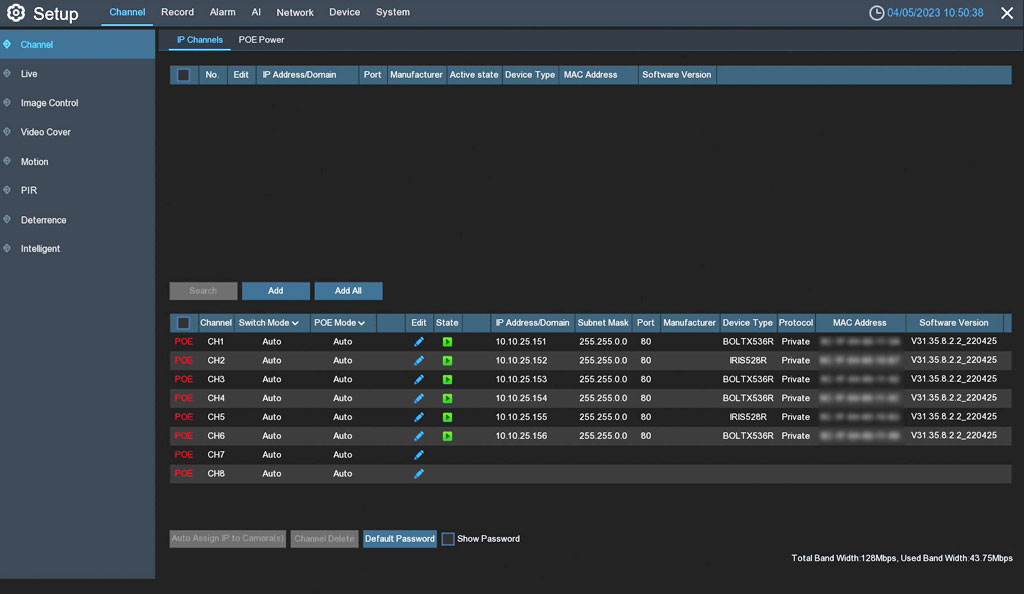

Camius 8 Channel NVR has a built-in PoE switch, making the setup process easy and quick. The network video recorder assigns a unique IP address to the Camius IP camera. No more complicated IP camera configuration.
Camius PoE wired security cameras for business and home surveillance deliver super HD 2K video and audio in addition to Smart Motion, Intelligent Sound, AI Human & Vehicle Detection, Cross Counting Detection with 24/7 recording, push notifications, NVR software, and more. The security system with the highest recording bandwidth will satisfy any home and business owner’s security requirements.
CCTV PoE Camera Kit with Advanced 8 Channel NVR
While the Network video recorder is bundled with 4 wired PoE cameras, you can expand it to 8 IP cameras. Add 2K and 4K PoE cameras to the same setup. A high 128Mbps bitrate allows viewing life and recording footage with ultra HD resolution.
Easy- to -Install Plug and Play Surveillance PoE Camera Kit
Camius IP cameras with PoE and NVR recorder offer an easy and efficient home security upgrade. The Plug and Play system allows you to add cameras effortlessly—just connect Cat5e network cables to the NVR’s PoE ports, and recording begins instantly. Monitor PoE power consumption via the ‘PoE Power tab’ for added peace of mind. Simplify your home security setup with Camius PoE cameras and NVRs today.
Why Choose a 5MP Kit Instead of a 4MP PoE CCTV NVR Kit
- The Camius 5MP PoE camera kit delivers sharper video, smoother playback, and more intelligent monitoring compared to typical 4MP systems.
- The included 8 channel NVR supports up to 128 Mbps incoming bandwidth, allowing all channels to stream and record 2K or 5 MP video at a full 30 frames per second without lag.
- Each camera records both video and audio, giving complete situational awareness in every scene.
- Built-in AI detection helps identify motion, people, vehicles, sound, perimeter intrusion with greater precision, reducing false alerts.
- The NVR comes with large pre-installed storage and supports expansion up to 10 TB, offering reliable long-term recording for homes, offices, and commercial properties.

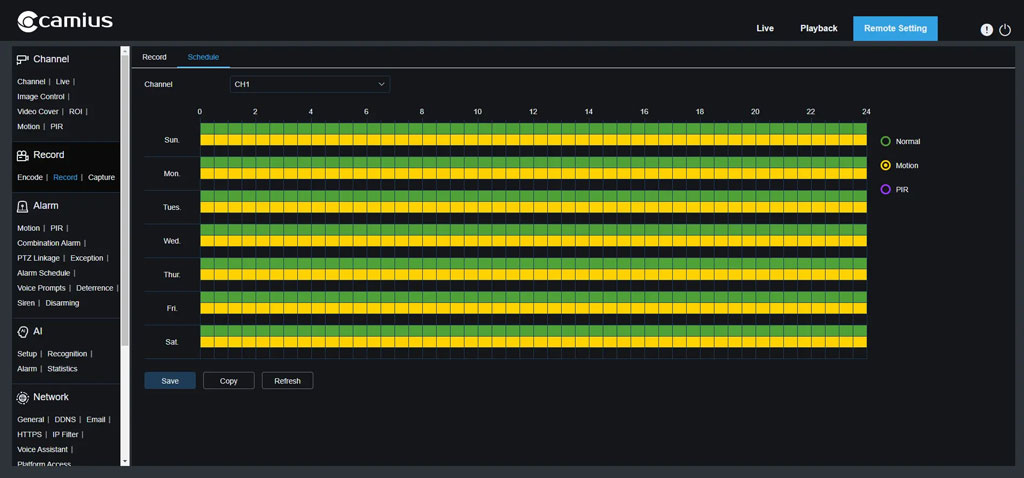

Recording & Alarms
You can customize your NVR security system recording, including Normal 24 hour continuous recording or triggered with Motion Detection. The NVR network video recorders also support PIR recording if you add Camius PIR cameras in the future. However, only ‘Normal’ recording (in green) is enabled by default. For motion recording, you’d need to set a recording schedule.
Smart Detection to Reduce False Alarms
PoE security cameras have smart video motion detection, which can detect motion, pedestrians, vehicles, or both, improving detection accuracy. You can also choose specific areas for detection and set schedules for when detection should occur. When motion is detected, the PoE NVR system will start recording and take other actions you specify in your Camius NVR. You can choose only to record motion events to save space on your hard drive or record everything while still being able to access footage of motion-triggered events quickly.
Human, Vehicle, Perimeter Intrusion detection & more
The newest 2K cameras from Camius come with AI analysis for advanced detection capabilities. This feature goes beyond traditional video motion detection by allowing users to create detection zones for movement patterns and location tracking. With AI Detection, you can activate specific detections to receive precise reports and analytics.
In addition to triggering video recording in a unique color and tag, AI Detection can initiate an email or push notifications. The available AI Detection options include Human and Vehicle Detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), and Cross Counting (CC).
2K Outdoor Security Cameras
Camius 2K Bullet PoE cameras deliver exceptional video quality with 2K resolution, providing clear and detailed footage for enhanced security. These cameras are perfect for outdoor use, featuring a durable design that withstands various weather conditions. The bullet design provides a narrow field of view, making it ideal for targeting specific areas, such as entry points or driveways. Integrated with night vision, these cameras ensure 24/7 surveillance, capturing high-quality images even in low light.
2K Dome Security Cameras
Camius 2K Dome PoE cameras offer superior 2K video resolution, ideal for both indoor and outdoor environments. The dome design provides a wide field of view, making it suitable for monitoring large areas such as retail spaces, offices, and public areas. With their sleek and unobtrusive appearance, dome cameras blend seamlessly into any setting. Additionally, they feature night vision capabilities, ensuring round-the-clock surveillance with clear and detailed footage, regardless of lighting conditions.
Add a Security Camera 8 Megapixel to Expand Your PoE System
Upgrade your coverage anytime by adding a Camius PoE security camera 8 megapixel to your existing PoE NVR kit. Enjoy 4K Ultra HD clarity, smart AI detection, and crisp audio recording for complete indoor and outdoor protection.
Customizable Settings
Camius security cameras have settings you can adjust in the NVR (recording device). You can change how the camera sees things at night (infrared settings) and captures images (e.g., flipping the image or using a wide dynamic range). You can also save your preferred settings as the default.

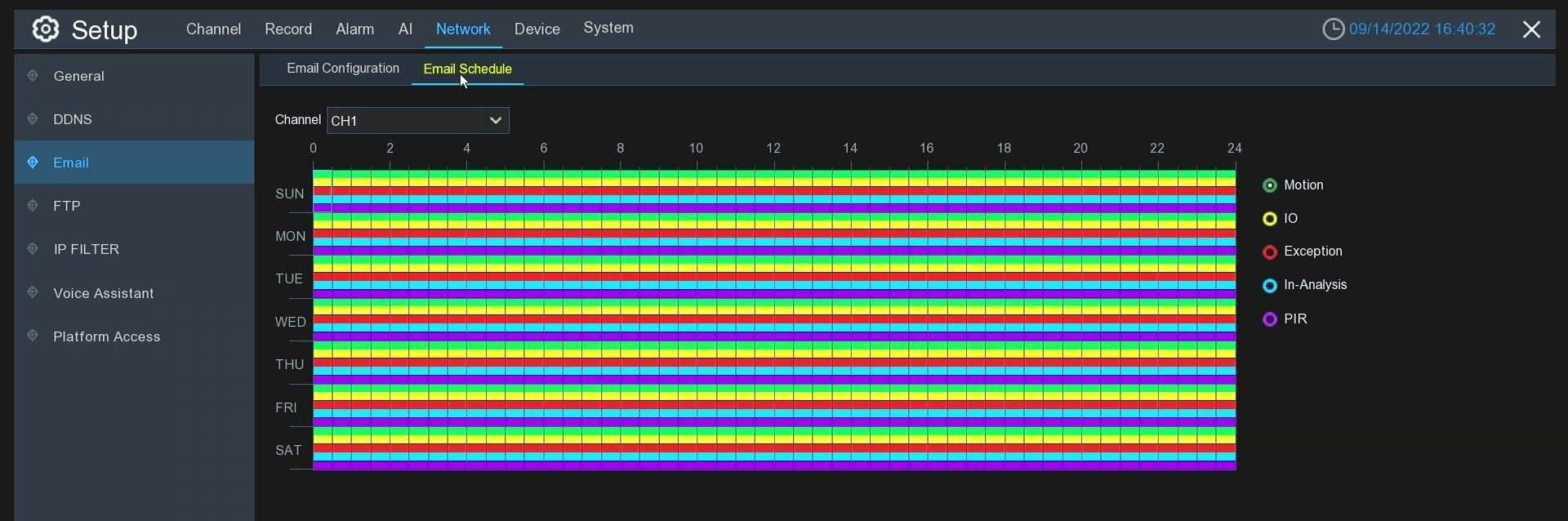

Email Notifications
Camius security systems offer a useful feature of sending email notifications, which can be configured to alert users in real time of any detected events or incidents. This feature is handy for remote monitoring. It can be set up to send email notifications for various types of events, such as motion, intelligence, and AI detection. With this feature, Camius security systems provide an efficient and convenient way for users to stay informed and maintain awareness of potential security threats on their premises.
NVR Software and Web Browser Access
The free Camius NVR software transforms any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video, playback footage, and manage camera settings. Ideal for multiple installations, the software combines cameras from a Camius NVR and individual Camius cameras on one screen, displaying up to 128 cameras and managing devices from different locations.
Camius NVR also supports multiple web browsers such as Google Chrome, Mozilla Firefox, and Safari, Edge.
NVR Security Camera System Mobile App
Enabling the recording schedule in Camius security systems offers more than just push notifications on the Camius View smartphone app. It also provides access to event recordings. Camius View is available on both iOS and Android platforms, allowing users to easily add and manage their security cameras through the app.

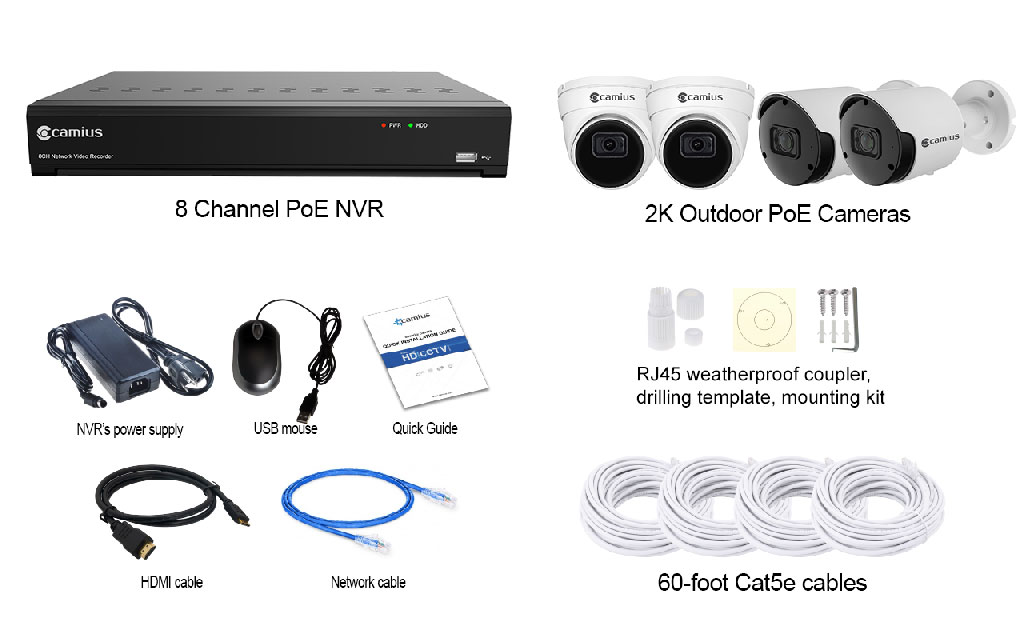

What’s in the box:
- 8 Channel NVR with Local Storage (IPVAULT1128PR)
- 2 x 2K Dome Security Cameras (IRIS528R)
- 2 x 2K Bullet Security Cameras (BOLTX536R)
- 4 x 60ft CAT5E cables
- NVR’s power supply with a power cord, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Quick Setup Guide
CCTV PoE Camera Kit Specs
Camius 8 Channel PoE NVR specs (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording

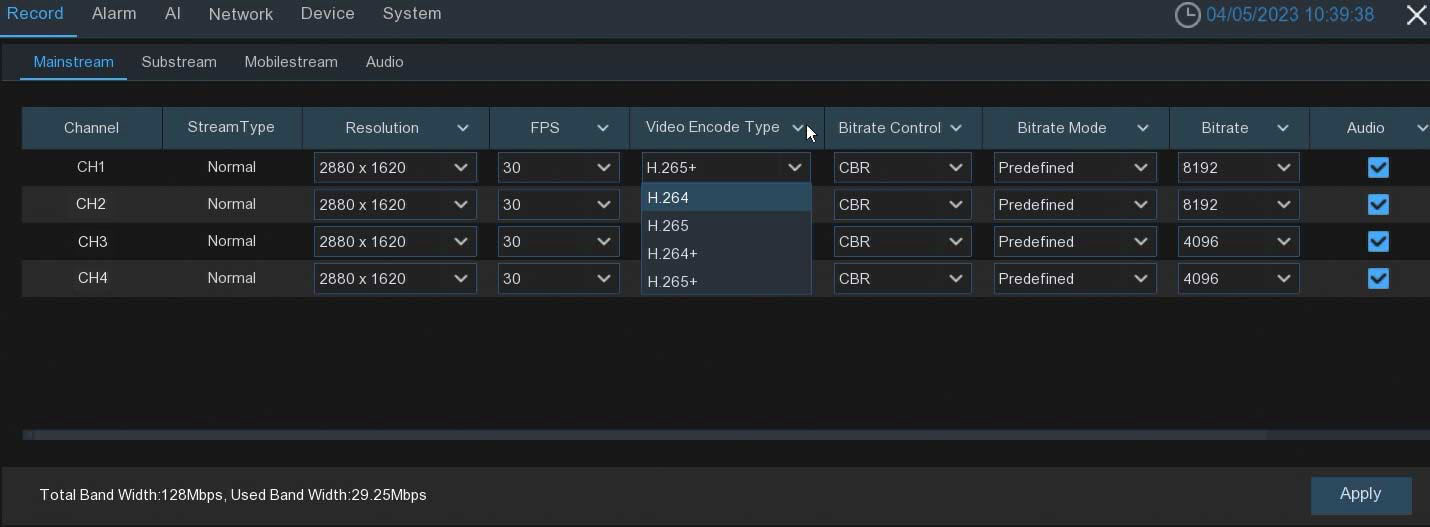

- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
Camius PoE Wired Security Cameras Technical Specifications:
BOLTX536R:
- Shape: Bullet
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
IRIS528R:
- Shape: Dome
- Lens (Field of View): 2.8mm (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
- Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
FAQs: 4 Camera PoE Security System
What’s the best PoE camera for home security?
Camius PoE cameras are among the best for home security, offering 2K / 5MP and 4K / 8MP video resolution options with built-in audio, AI motion detection, and night vision. Each camera uses a single Ethernet cable for power, data, and audio, making installation simple and reliable. Pairing Camius PoE cameras with a Camius NVR provides local recording, instant alerts, and privacy without relying on cloud subscriptions.
What is the disadvantage of a PoE camera?
The main disadvantage of a PoE camera is that it requires Ethernet cabling, which may need professional installation in large buildings. However, Camius PoE cameras use plug-and-play connections with built-in PoE ports on Camius NVRs, reducing setup time. Once installed, PoE cameras are more stable and secure than Wi-Fi alternatives, with no signal dropouts or bandwidth interference.
What is the best PoE security camera system?
Camius offers some of the best PoE camera systems available today, combining 2K and 4K Ultra HD recording, smart AI detection, and easy plug-and-play setup. Systems with Camius IPVAULT NVR feature built-in PoE ports, large storage capacity up to 10TB, and remote viewing through the Camius View app, ensuring complete coverage for residential or commercial properties.
Are PoE cameras good for home security?
Yes, PoE cameras are excellent for home security. Camius PoE cameras deliver clear video in day and night conditions, advanced motion and vehicle detection, and secure wired connections. Since power and data run through a single cable, Camius PoE cameras eliminate Wi-Fi issues, making them a stable and long-term solution for continuous home monitoring.
How much does a 4 camera CCTV system cost?
A 4-camera PoE CCTV system from Camius typically starts around $400+, depending on camera resolution, NVR type (8 or 16 channel) and storage size. For example, a 5MP Camius PoE system provides full HD video, AI motion detection, audio recording, and mobile app access—all with no monthly fees.
What is the best PoE home security camera system without subscription?
Camius 5MP and 4K PoE NVR kits are a top pick for subscription-free home security. Local recording on the NVR, AI person and vehicle detection, two-way audio, PoE single-cable setup, the free Camius View app, and storage expandable to 10TB deliver smart monitoring with no monthly fees.
