Is my DVR / NVR recording? How to set up security camera recording?

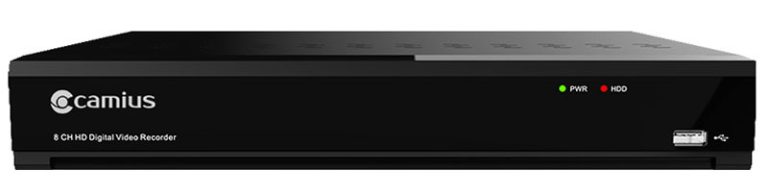

This guide applies to Camius DVR (digital video) and NVR (network video) recorders. To confirm if your Camius DVR or NVR is recording, check the recorder’s front panel HDD LED. The red blinking light indicates the DVR or NVR is recording.

IPVAULT2320P16N FRONT PANEL CAMIUS
Check red LED on the recorder's front panel

Recording Schedule

Then navigate to Setup >> Record >> Record Schedule to check each camera’s schedule.

By default Normal schedule is enabled, which stands for 24/7 continuous recording.

For the rest of the schedules, you need to select and save the recording type you need (Green is for Normal, Yellow is for Motion, Purple is for PIR (applicable to Camius 4K spotlight cameras with PIR sensor), I/O is for recording triggered by external alarm devices connected to the DVR or NVR).

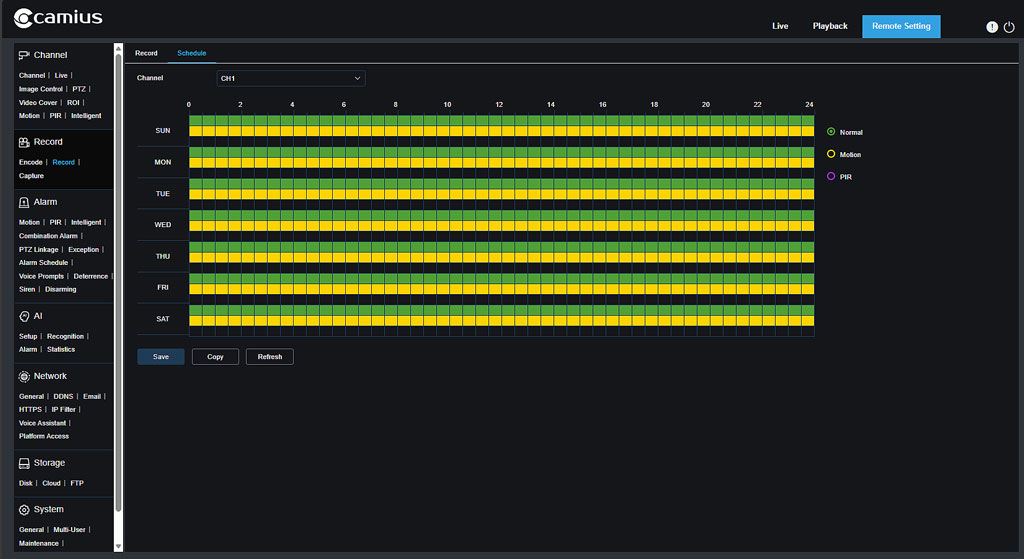

IPVAULT22566PR Recording schedule
This picture shows the IPVAULT2256PR (16 channel PoE NVR) with only Normal and Motion Record Schedule enabled

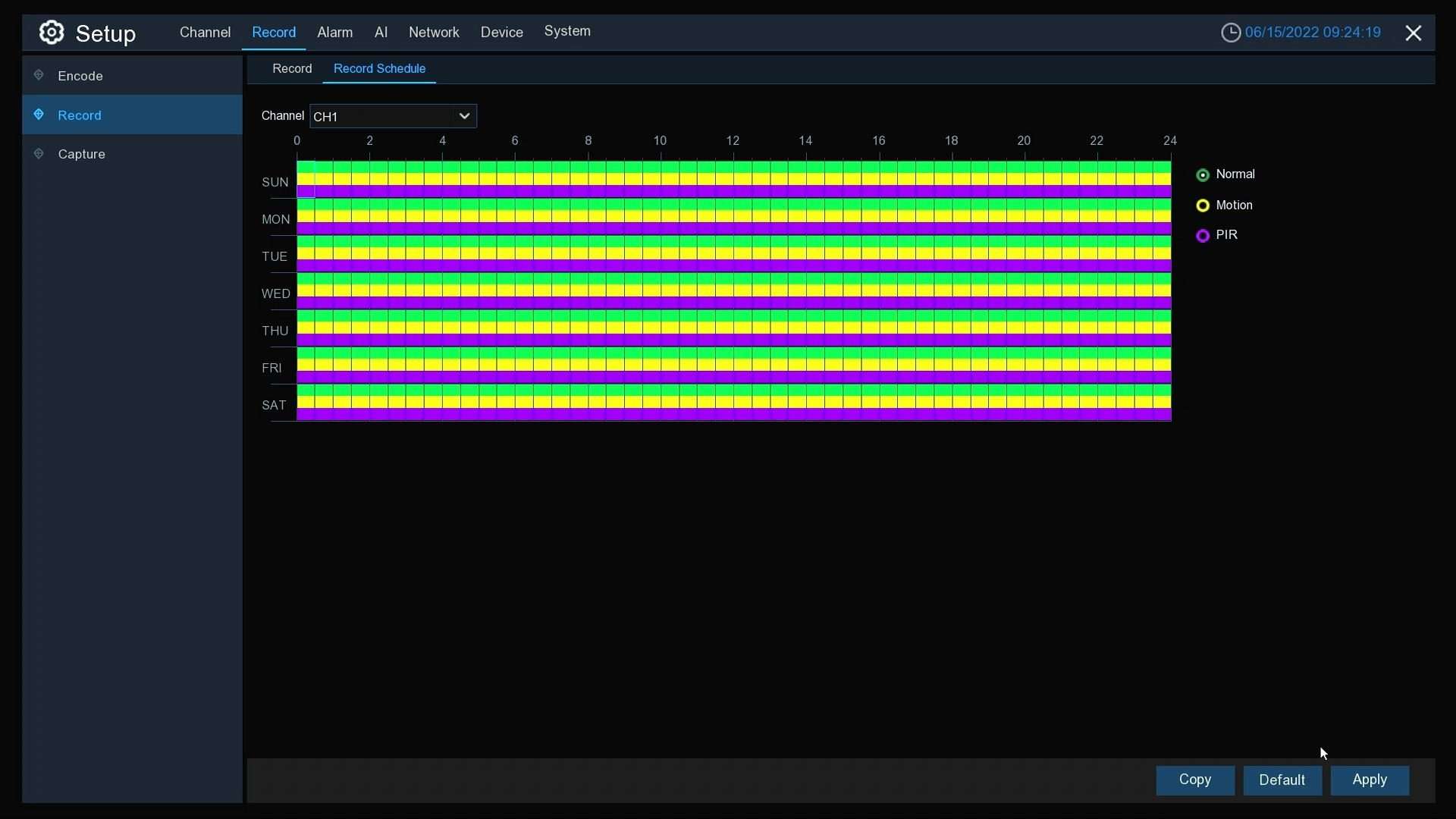

IPVAULT1128PR RECORDING
IPvault1128PR (8 channel NVR) has all 3 record schedules enabled
TRIVAULT4K184R2 record schedule
Trivault DVR has all 4 record schedules activated.

Set the Record Schedule, apply, and copy to other channels if needed. Once it’s done, you will have access to the recording of the event not only on your NVR but you can also play them on your CAMIUS VIEW smartphone app.

Suppose you enable push notifications triggered by Motion, PIR, or AI (Human & Vehicle Detection) but do not have a short clip for playback. In that case, the record schedule was not set for this camera.

Optimizing storage and extending recording period

Camius 2K and 4K cameras can be set by the Camius NVR to record at 4K, 2K, 1080P, or 720P.

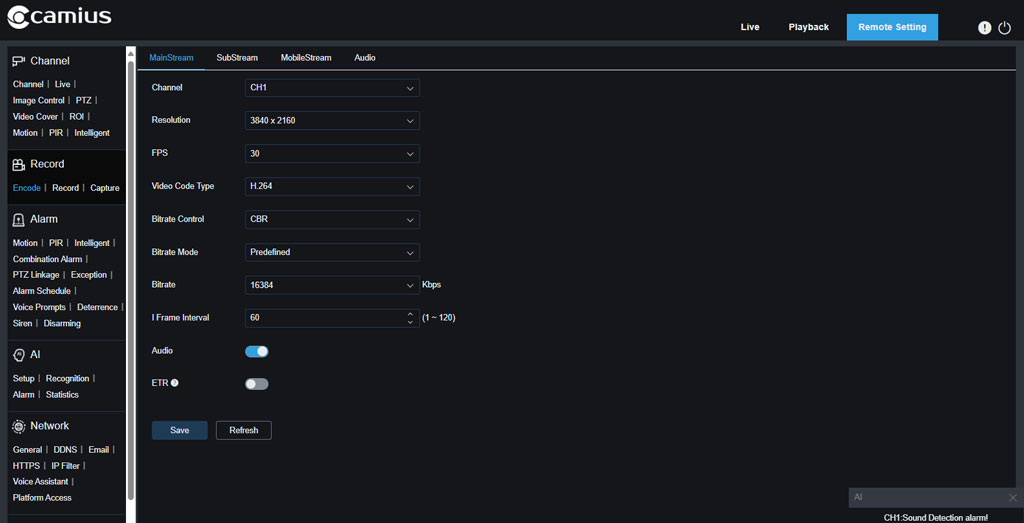

You can reduce hard disk usage by reducing the bitrate for low-foot-traffic cameras from 4096 Mbps to 2048 Mbps, which can double the total recording period. Recording settings are available under the Mainstream

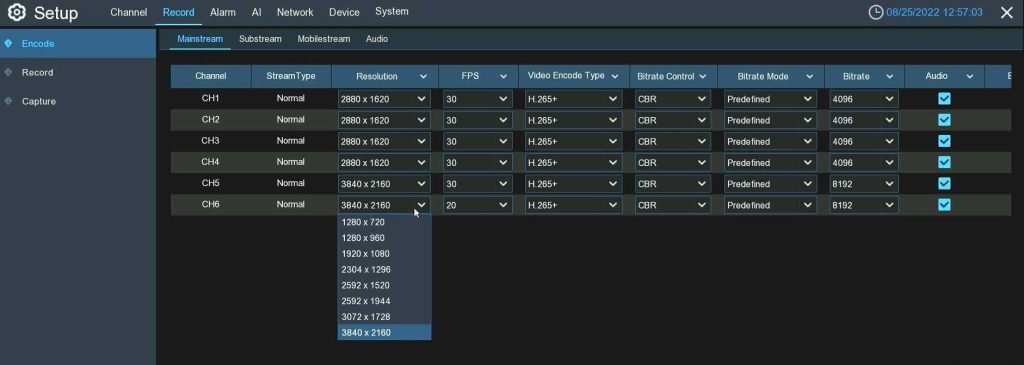

IPVAULT2256PR ENCODING MAINSTREAM 4K

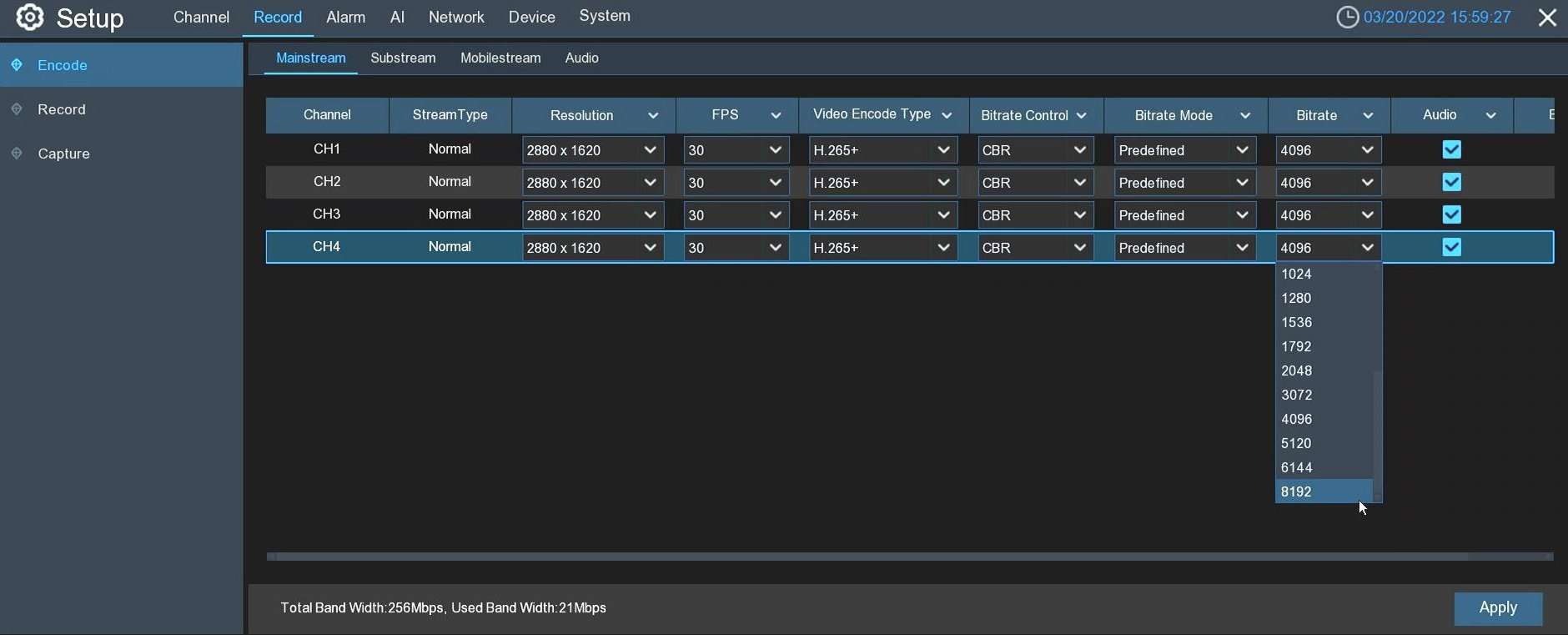

IPVAULT2256PR Encoding mainstream Bitrate 2K

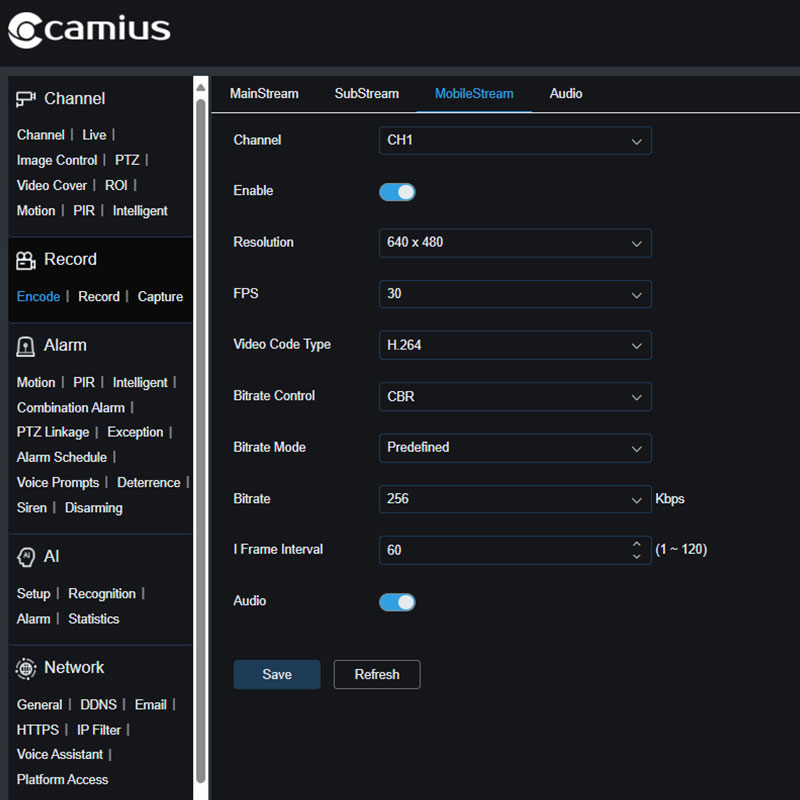

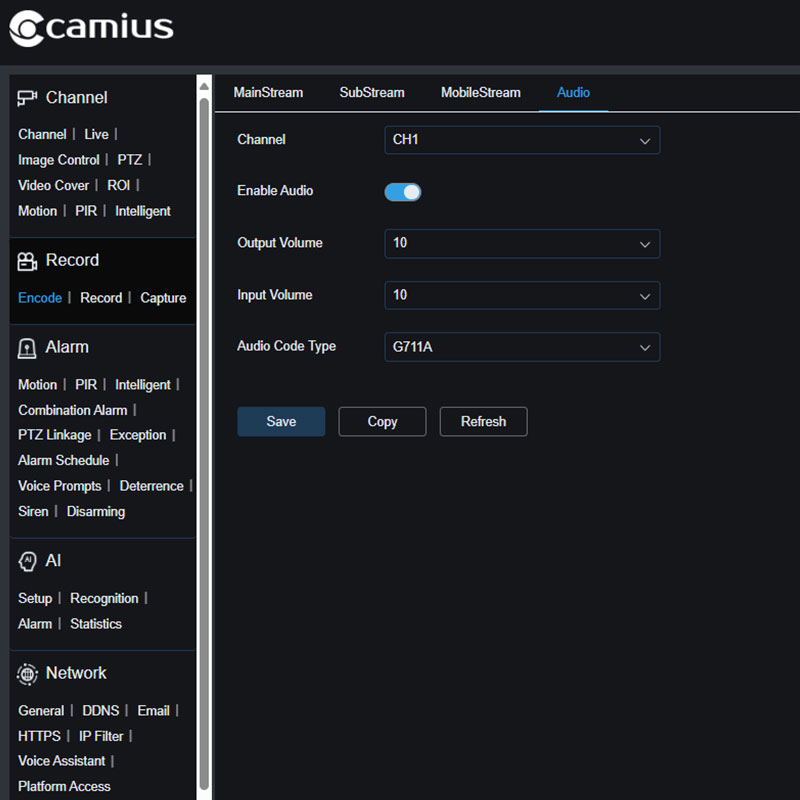

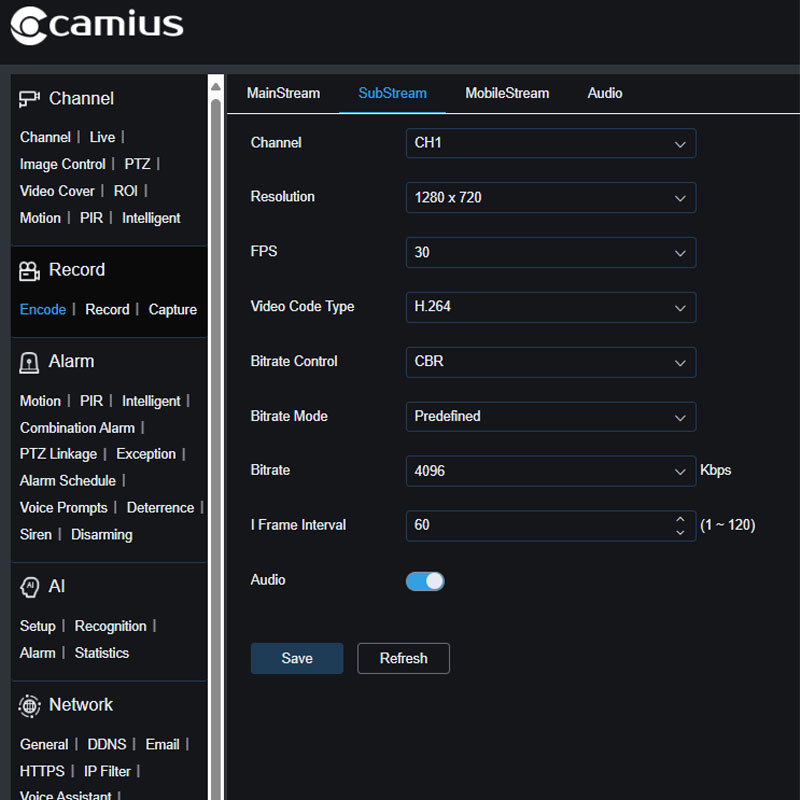

Moreover, you can select the Video Encode type (depending on the IP camera’s supported compression types), disable Audio recording,

IPVAULT2256PR ENCODING MAIN STREAM 2K e1680482193530

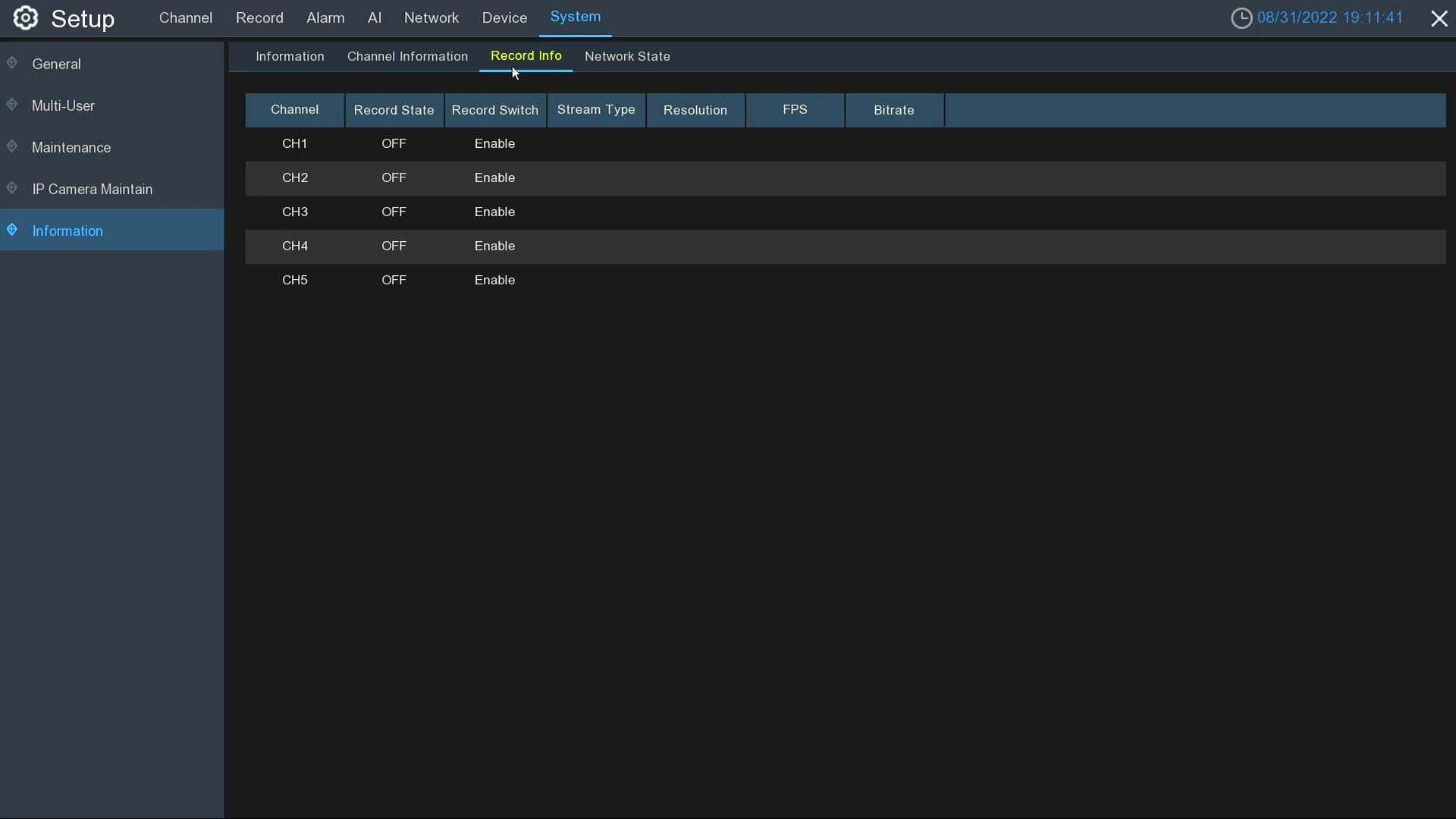

To see the Recording information, navigate to Setup >> System >> Information >> Record Info.

IPVAULT8256R record info

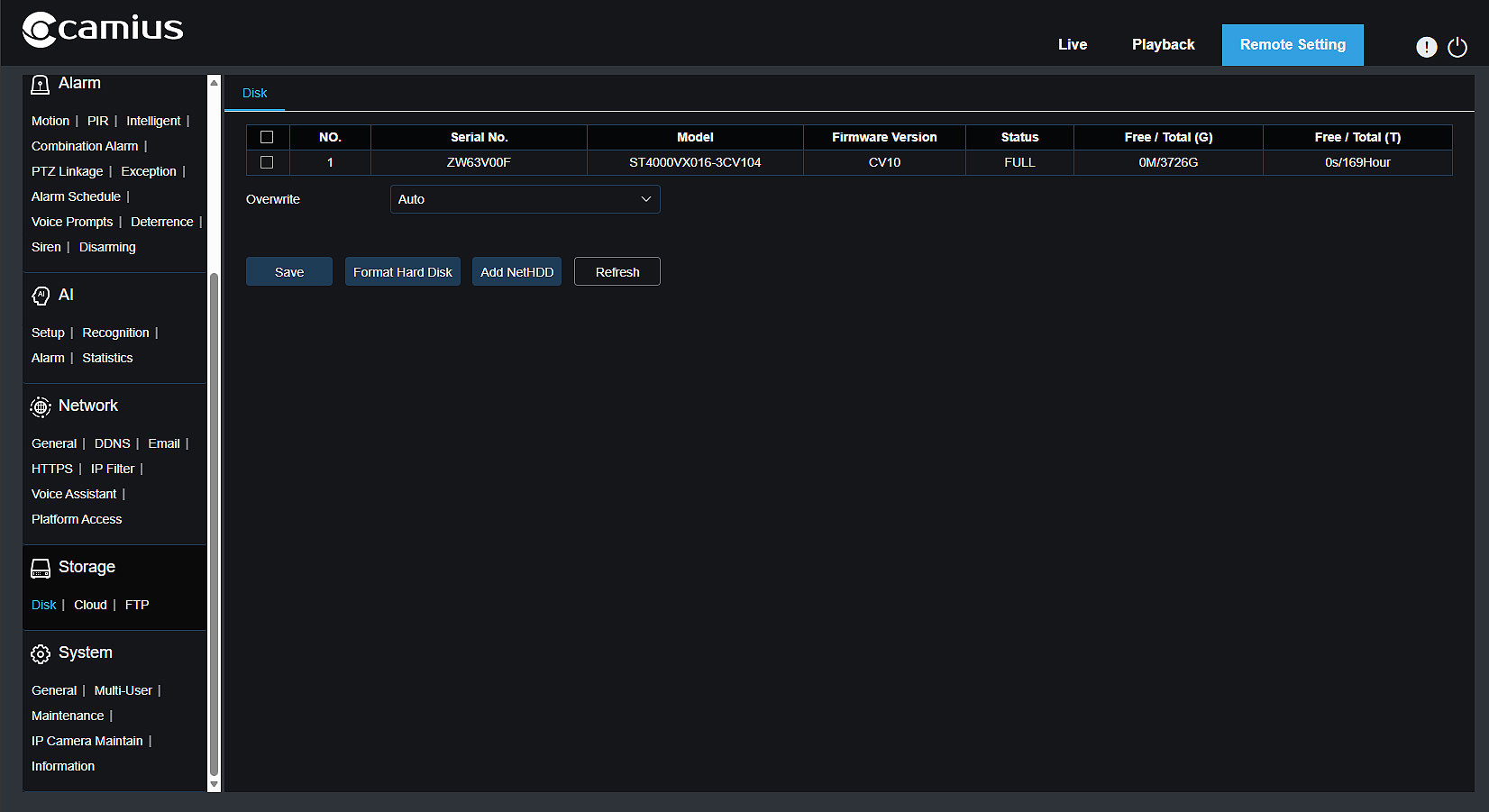

How to check the HDD status and format it

  • Step 1 –  On the DVR interface, move the mouse cursor to the bottom left and click the main menu button,  then click Setup >> Device >> Disk >> tick the HDD checkbox >> Tab on ‘Format HDD’

VID 20220906 11.35.51
  • Step 2 – After clicking on Format HDD,’ you will see a pop-up ‘What do you want to do?” select the first option: ‘Format the entire hard drive. All data will be erased.”

VID 20220906 11.36.05
  • Step 3 – Enter your Password to Authenticate the task.

VID 20220906 11.36.08
  • Step 4 – Click ‘OK’ to confirm the task.

VID 20220906 11.36.22
VID 20220906 11.36.26
