PoE 110 Degree Viewing Angle Security Camera For Businesses
Elevate your business security system with the Camius PoE dome 5MP camera. This dynamic dome camera boasts 2K resolution, vivid color night vision for low light situations, and an expansive 110-degree field of view. Experience more than just motion detection – enjoy Intelligent Sound detection and advanced AI features like Human and vehicle recognition, Cross Counting, and Rare Sound analytics.
5MP Security Camera with Audio
Unveil crystal-clear security footage with our dome security camera with a 2K CMOS image sensor. Uncover finer details through increased pixels. Beyond motion push alerts, conveniently review captured footage via the Camius View app while on the move.
Effortlessly oversee your network surveillance camera through Camius VMS software on your PC or Mac. Seamlessly integrate RTSP cameras with third-party devices like Blue Iris. Plus, Camius digital security cameras are compatible with Camius NVRs, network-attached storage, and web browsers, providing versatile accessibility and integration options.
Why Choose Camius 5 Megapixel IP Cameras
Camius 5 Megapixel IP cameras deliver 2K video resolution of 2880 x 1620 at 30 frames per second, providing over twice the detail of standard HD. The higher pixel density ensures clear identification of people and objects, which is essential for accurate AI detection and video evidence. These cameras are ideal for indoor use, offering dependable performance in people detection, sound detection, and line crossing alerts.
PoE Turret camera with 2.8mm lens
The 2.8mm fixed lens offers a wide 110° horizontal, 58° vertical, and 133° diagonal field of view, making it suitable for covering large areas with fewer cameras. The 110-degree wide-angle view is ideal for business locations such as retail stores, offices, and warehouses, as well as residential environments. Camius 5MP IP cameras combine clarity, reliability, and flexibility for any professional surveillance setup.
5MP PoE Camera for Plug and Play Setup with Camius PoE NVR or Hybrid DVR
The Camius 5MP PoE camera connects easily using a single Ethernet cable that delivers power, video, audio, and data. This plug-and-play design eliminates the need for separate power supplies or complex wiring, reducing setup time and installation costs. When paired with a Camius PoE NVR or hybrid DVR, the camera is automatically detected and ready to record in minutes, ensuring a reliable and professional surveillance setup for homes and businesses.
Experience swift and effortless installation by pairing it with a Camius NVR. In just a few minutes, the NVR seamlessly identifies your Camius PoE camera, instantly assigning a distinctive IP address – without the hassle of intricate IP configurations. Enjoy a hassle-free setup that saves you time and effort.
5MP Dome Camera Installation
Camius dome turret security cameras feature a sleek round casing commonly mounted on walls or ceilings. Ideal for discreet indoor surveillance, these cameras are favored by retail stores, restaurants, hotels, and offices. Their durable, vandal-resistant design, comprehensive coverage, and easy ceiling installation make them a popular choice for commercial and residential use.
5MP IP cameras are easy to install with Camius NVR and Hybrid DVR recorders
We recommend pairing the dome camera with a Camius Trivault or IPvault series NVR network video recorder for optimal functionality and seamless compatibility. While our cameras also work with select third-party non-Camius NVRs and software (such as Blue Iris, etc.), this may limit some features.
Install the camera with a Camius NVR and experience effortless setup —it’s an actual plug-and-play experience, thanks to the optimized integration of Camius PoE cameras with our IP vault NVRs. and Hybrid TRIVault DVRs.

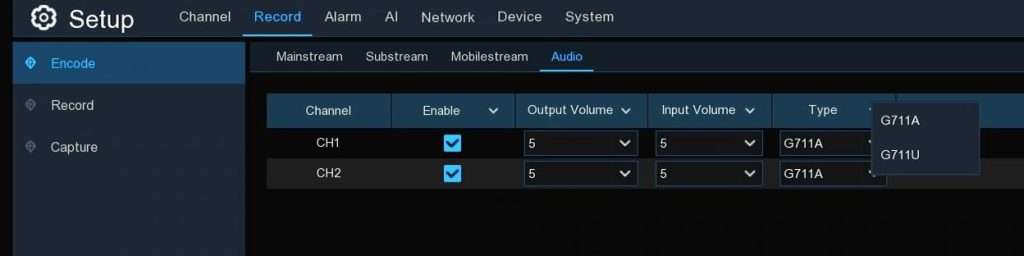

5 Megapixel Security Camera with Audio
Elevate your surveillance game with Camius IRIS528R Dome Camera—your gateway to crystal-clear audio recording. Immerse yourself in comprehensive security monitoring, as our IRIS528R dome camera offers visual and auditory insights. The built-in microphone guarantees high-fidelity audio recording, easily customizable via the camera’s web client. For a superior audio experience, seamlessly integrate the dome camera with Camius NVR network video and hybrid DVR recorders, granting direct audio control through the NVR’s interface.
5 Megapixel Security Cameras with Smart Motion and Sound Detection
Experience the cutting-edge capabilities of our PoE Dome Camera, featuring customizable motion detection and sound alerts. Receive emails, recordings, or cloud uploads (via Dropbox) based on detected activity. Elevate your security with this 2K dome camera, offering intelligent features like Human & Vehicle Detection, Cross Counting, and more when paired with a Camius IPvault NVR network video recorder. Choose from various AI detection modes for optimal results.
5 MP Security Camera with Remote Access from a Desktop and Handheld
Camius PoE cameras come with free software compatible with Windows PC & Mac (VMS). Click here to download the Software
You can also use web browser access to access the dome camera settings. For more details, click here.
Download and install the free Camius View App for iOS (iPhone, iPad), Android smartphones, and tablets to view and control your dome camera. Follow this mobile app guide
What’s included
- 2K dome camera (model: IRIS528R)
- mounting kit with a waterproof lid
- mounting template
- quick setup guide
Resources:
General information
- Order model # IRIS528R
- Power consumption: ≤ 4W/5W (with IR on), ≤ 2W/3W (IR off)
- Weight: Approx. 15oz (420g)
- Dimensions: Ø 3.5 x 3.94” (90.1 X 100 mm)
- Operating temperature: -22 °F~131 °F (-30 °C~55 °C)
- Humidity: Less than 95% RH (no condensation)
IRIS528R PoE Dome Main Features:
- Add-on 2K PoE Dome Camera for Camius Network Video Recorders
- Fluent 2K video 2880 (H) x 1620 (V) with 30 frames per second
- Super wide-angle 2.8mm lens with a 110-degree field of view
- Built-in microphone for listen-in and recording audio
- Latest and secure audio and video compression
- Motion and Sound Detection
- AI Detection: Human & Vehicle, Cross Counting, Rare Sound Detection, and more, along with Heat Map, Statistics (Reports)
- 100ft Night Vision (color in low light conditions)
- Highly customized image control settings (Corridor, Mirror Mode, WDR, Backlight, White Balance)
- On-camera storage for a Micro SD card (up to 256GB)
- Record to Dropbox
- Review recorded footage on the go using the CAMIUS VIEW smartphone app
- Works as a standalone IP camera or with Camius network video recorders
- View and control the PoE camera using the Camius VMS Software for Windows PC & Mac, Web-browser, CAMIUS VIEW App (iOS, Android)
- Power-over-Ethernet (a single Ethernet wire delivers power, audio, and video)
- Metal white enclosure
Camius IRIS528R Camera Specifications:
Model: IRIS528R
Camera Type: IP network (NTSC/PAL)
Shape: Dome

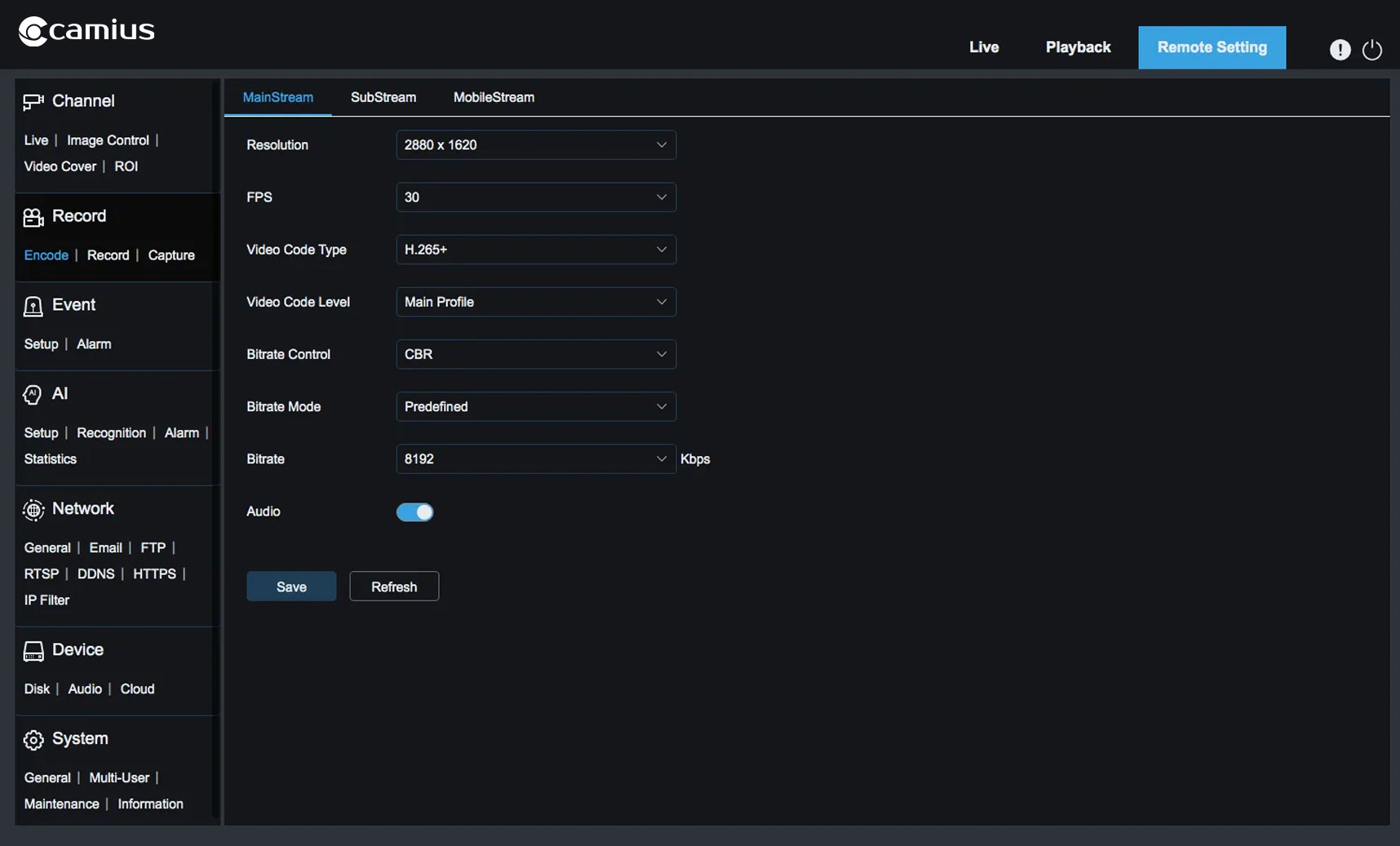

Video Specifications:
- Resolution:
- MainStream: 2K 2880×1620 @ 30fps
- SubStream: 1280×720 @ 30fps
- MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination:
- Color: 0.002 Lux @ F1.2
- B/W: 0 lux @ IR ON
- Bitrate:
- MainStream: 8192 Kbps
- SubStream: 4096 Kbps
- MobileStream: 1536 Kbps
- Modes: predefined or user-defined, Bitrate control: CBR or VBR
- I-Frame: 1 – 120
- Lens (Field of View): 2.8mm F No.1.6±10% (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
Audio Specifications:
- Built-in Microphone: ON/OFF, adjustable volume levels 1-10
- Audio Compression: G.711A/G.711U
Camera Reset: On-camera reset button (or via network)
Recording:
- Supports 2 Stream Modes: MainStream or SubStream (Record/PreRecord/Netbreak)
- Setup Recording Schedule
Image Control Settings:
- IR-CUT Mode (Automatic / Color / Black White / Image / Schedule)
- IR Cut Delay with adjustable value
- IR-LED (Manual or SmartIR)
- Angle Trad (0-180)
- Corridor Mode (On/Off)
- Mirror (Disable/Vertical/Horizontal/All)
- WDR, Backlight, HLC, White Balance, Shutter (Auto/Manual), Time Exposure, 3D Noise Reduction (Automatic / Manual / Off)
Video Cover: 4 areas
ROI (Region of Interest): 8 regions
Night Vision: 100ft (30m)
Motion Detection: Supported (enabled by default)
- Alarms: Post Recording (5 to 30 sec or OFF), Send Email, FTP Picture Upload, Cloud Picture, and Enable Recording
Sound Detection: Supported (disabled by default)
- Alarms: Post Recording (5 to 30 sec or OFF), Send Email, FTP Picture Upload, Cloud Picture, and Enable Recording
AI Features:
- Events: Face Detection (FD), Human & Vehicle Detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Cross Counting (CC), Heat Map (HM), Queue Length Detection (QD), License Plate Detection (LPD), Rare Sound Detection (RSD) – Note: single AI function can be selected and scheduled (features are in Beta version).
- Alarm: Post Recording (5 to 30 sec or OFF), Sending Email, Picture Upload to an FTP, Cloud (Dropbox), Enable Recording
Push Notifications: Receive to your smartphone for Storage Error (requires micro SD card installation), Motion Detection, Intelligent & AI Detection (recommended with Camius Network Video Recorder for broader range of notifications)
Network Specifications:
- DHCP (ON/OFF), DNS, PPPoE (ON/OFF), SNMP (ON/OFF)
- Port Configuration: HTTP, Client (Media) Port, HTTPS, RTSP, TCP, UPNP, Multicast port, P2P (ON/OFF)
- Email notifications to 3 receivers using SMTP Port & Server (Encryption Mode: OFF, SSL, TLS or Automatic)
- Interval: 1/3/5/10 min
- Enable/Disable & Configure FTP, RTSP, DDNS, HTTPS, IP Filter
Disk (On-Camera Storage): Micro SD slot, supported max. capacity 256GB (SD card not included)
- Overwrite Mode: OFF or AUTO
- Format Disk
Cloud: Activate recording to Dropbox
User Management: Admin + 6 users
Language Support: Multiple languages (English, Spanish, Portuguese, French)
Maintenance:
- Search Logs: All, System, Configuration, Alarm, Account, Record, Storage, Network
- Load Default Settings
- Upgrade Firmware
- Parameter Management (Import and Export Device Settings)
- Auto Reboot (ON/OFF)
Remote Access: PC/Mac compatible software (VMS, VMS Pro), Web-browser, iOS & Android app (CAMIUS VIEW)
Security: Complicated password, Authenticated username and password, IP address filter
Ingress Protection: IP66 (Dust and waterproof)
Operating Temperature: -22°F ~131°F (-30°C ~ 55°C ) / Humidity: less than 95% RH (no condensation)
Power Source: Power-over-Ethernet (IEEE802.3af) / DC12V (PoE switch, PoE injector, or power adaptor not included)
Ethernet: RJ45 (10/100BASE-T)
Power Consumption: ≤ 4W/5W (with IR on), ≤ 2W/3W (IR off)

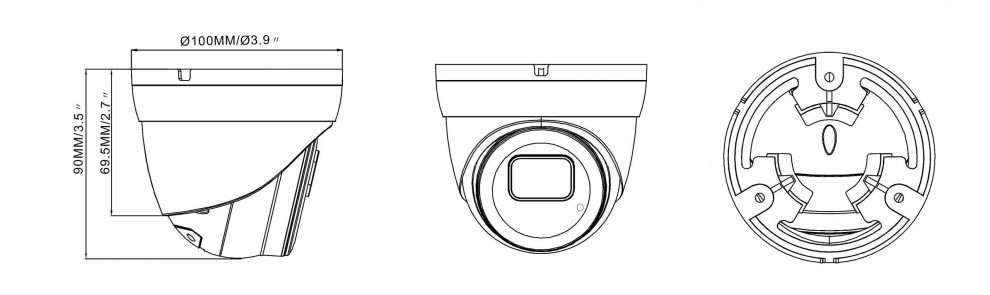

Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
What’s in the Box:
- Camera with a mounting kit
- Waterproof lid
- Mounting template
- Quick setup guide
Design and specifications may change without prior notice. The above information was accurate when completed. For updated information, visit camius.com.
FAQs About 110 Degree CCTV Camera for Wide Coverage
What is the best viewing angle for a security camera?
The best viewing angle depends on the camera’s location and the area you need to cover. For most indoor installations, a wide 110-degree angle like that of Camius 5MP turret cameras provides optimal coverage with minimal blind spots. This angle is ideal for monitoring rooms, hallways, or entryways using a single camera. For outdoor or long-distance monitoring, Camius offers cameras with narrower lenses for focused views that capture more detail at greater distances such as the following:
What is a 110 degree field of view?
A 110-degree field of view means the camera captures a wide area, allowing users to monitor large rooms or hallways with fewer cameras. Camius dome and turret cameras feature a 2.8mm lens that delivers this wide 110° horizontal coverage, making them ideal for wall or ceiling installation in offices, retail stores, or homes.
Is a 5 megapixel camera good?
Yes, a 5MP security camera provides excellent image clarity for identifying people, vehicles, and small details. Camius 5MP PoE cameras record in 2880 x 1620 resolution, more than double the pixels of standard HD, offering smooth 30FPS video and accurate AI-based detection features such as motion, sound, and line crossing.
Are 5MP cameras 4K?
No, 5MP cameras are not 4K. A 5MP camera records at 2880 x 1620 pixels, while 4K cameras capture 3840 x 2160 pixels. Camius offers both 5MP and 4K camera options. The 5MP models are ideal for indoor use, providing excellent quality with smaller file sizes, while Camius 4K systems are preferred for ultra-high detail and larger coverage areas.
Shop Camius 4K PoE cameras:
Which is better, 5MP or 2MP?
A 5MP camera is significantly better than a 2MP camera for clarity, detail, and zoom performance. Camius 5MP cameras offer over twice the pixel count of 2MP models, producing sharper images and more accurate AI analytics. This makes them ideal for professional and home installations where higher resolution improves security footage and identification accuracy.
What is the maximum range of a CCTV camera?
The maximum range of a CCTV camera depends on its resolution, lens, and lighting conditions. Camius 5MP IP cameras provide clear identification at distances of 65 to 100 feet indoors and even farther in controlled lighting. For outdoor models, Camius offers night vision cameras capable of covering up to 100 feet in total darkness, ensuring reliable monitoring day and night. For long-range performance, the Camius BOLTVM5R10X 10x zoom IP camera delivers crisp 2880 × 1620 resolution at up to 30 fps, with IR night vision reaching 262 feet (80 meters) and true 0-lux visibility when infrared is active.
