Ultimate surveillance solution with a Camius IP camera system for business and home!
Get peace of mind knowing your premises are monitored around the clock with super HD 2K video and audio quality. The innovative security system boasts advanced features such as Smart Motion, Intelligent Sound, AI Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting Detection, and 24/7 recording. With email, push notifications, and NVR software, you’ll never miss a beat!
Say goodbye to confusing IP configurations
Say goodbye to complicated installations and hello to easy setup with our advanced hardwired PoE NVR system. Our 8 IP cameras with audio monitoring and AI detection provide 24/7 coverage and remote access so that you can monitor your property from anywhere, at any time. The 8-channel NVR Recorder with a built-in power-over-ethernet switch makes installation a breeze. Say goodbye to confusing IP configurations and let Camius take care of everything! Get the best surveillance solution for your business and home today!
Plug and Play PoE IP security camera systems are even simpler using Camius PoE cameras with one of the PoE NVRs (PoE DVR) from Camius. Once the Ethernet cable is plugged in, you instantly add PoE cameras; recording starts immediately without going through settings.

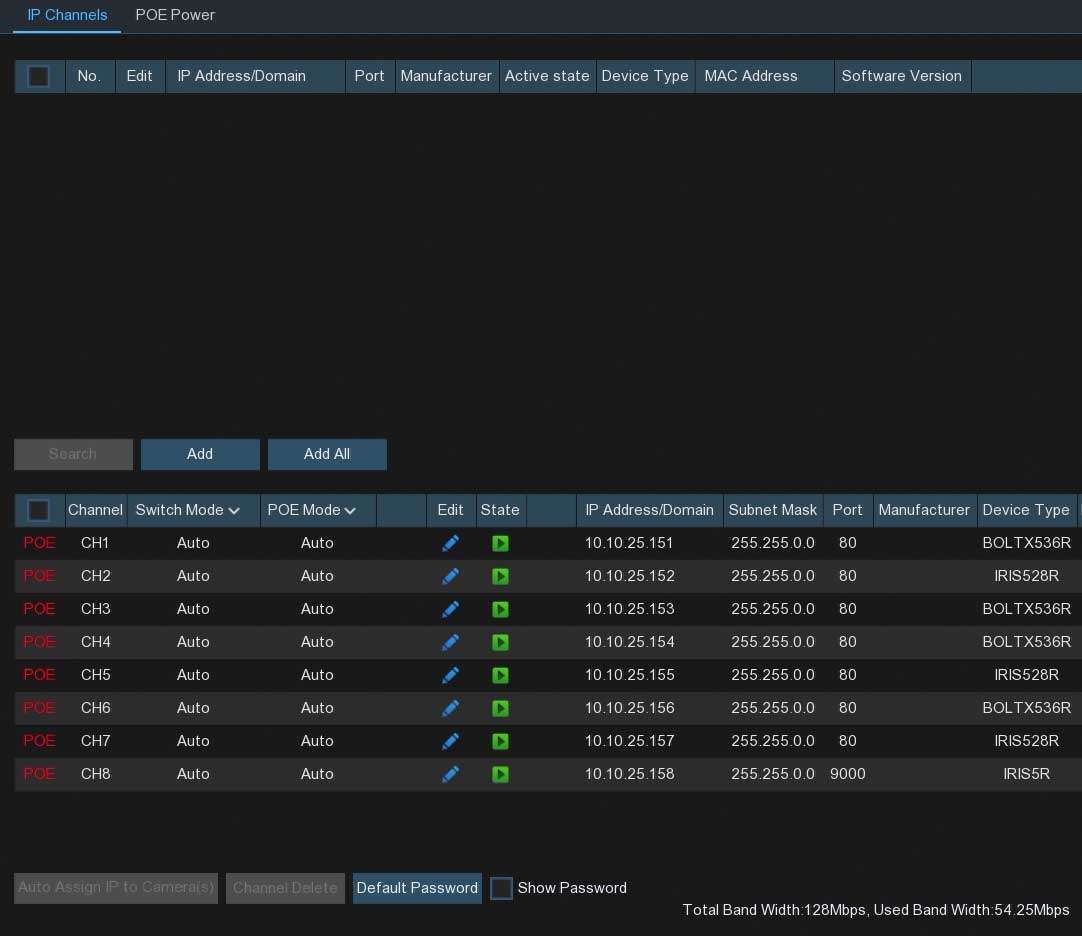

Once the camera is plugged into the NVR’ PoE port, you will see PoE power consumption by selecting the ‘PoE Power‘ tab.

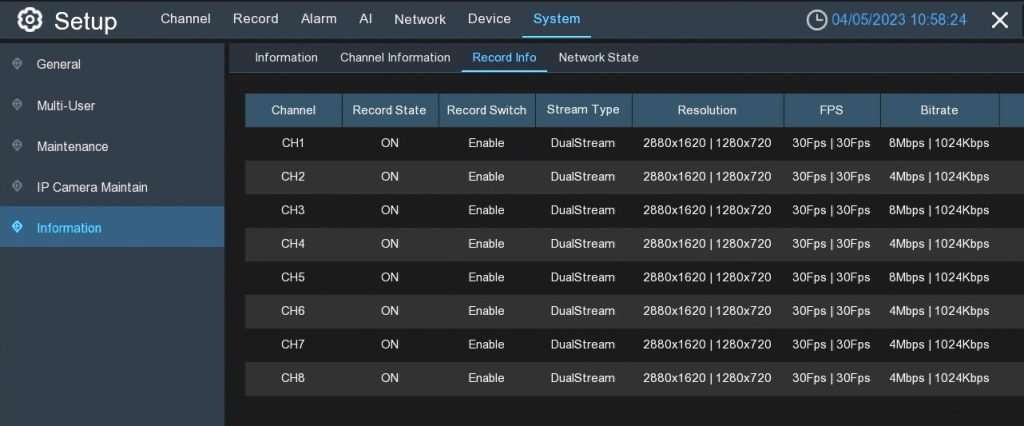

IP camera system with the latest codec and high bitrate
This surveillance system has an 8 Channel PoE NVR that supports H.264 and the latest H.265 video compression format. This enables you to save up to 50% on the storage space of the recorder while improving bandwidth efficiency, thus maximizing your surveillance system and internal hard drive storage.
This system allows you to customize IP camera recording, including scheduling and motion detection triggered recording. The system will notify you of any activity on your property via instant push notifications to your smartphone. Furthermore, the system supports a high 128Mbps bitrate, which allows for viewing live footage and recording with ultra HD resolution.
PoE security system with 5MP video and audio
Regarding security systems, video compression is crucial for determining video quality, hard disk usage, and network bandwidth. Camius security systems offer support for both H.264 and H.265, the latter being the best compression standard to optimize all three areas. With H.265, you can save up to 50% on storage space while improving bandwidth efficiency, making it ideal for an eight-channel 4K security NVR and internal hard drive storage. Additionally, the NVR allows you to control Camius camera audio settings. The reduced file size of an H.265 stream means less bandwidth is required to transfer a higher-quality stream, resulting in longer recording durations on the hard disk. The system also supports full 2K video resolution, ensuring high-quality footage.
The Powerful 5MP Dome Camera for Enhanced Security
The 5MP dome camera offers superior 2K video resolution (2880 x 1620) at 30 fps, capturing every detail in high quality. Its ultra-wide field of view (110° horizontal, 58° vertical, 133° diagonal) and integrated microphone enable comprehensive monitoring.
Advanced features include motion, sound, and AI-powered detection (human, vehicle, and cross-counting). With 100ft night vision and clear color imaging in low light, it ensures 24/7 protection.
The camera’s wide dynamic range and versatile modes (corridor and mirror) make it ideal for various environments. Its stylish metal housing is perfect for stores, offices, and other professional settings. Overall, the 5MP dome camera is a powerful tool for enhanced security.
High-Performance Outdoor Security Camera for Enhanced Surveillance
This high-performance outdoor security camera offers advanced features for enhanced security, including 2K video resolution (2880 x 1620) at 30 fps and a 1/2.7” Progressive CMOS Image Sensor for clear footage. With a 3.6mm lens and a wide field of view (91° horizontal, 46° vertical, 110° diagonal), it captures a broad perspective.
The built-in microphone enables audio recording and listen-in capabilities, while smart motion, sound, and AI features (including human and vehicle detection) enhance surveillance. Its 100ft night vision with color imaging ensures 24/7 protection.
With an enhanced wide dynamic range, special modes (Corridor and Mirror), and a durable white metal enclosure, this PoE camera simplifies installation and is ideal for outdoor use. Overall, it is a reliable and efficient security solution for various settings.
Complete Control with Camius 2K Security IP Cameras
Camius 2K security IP cameras offer extensive customization, allowing you to fine-tune image settings directly in the NVR. Adjust IR settings, including IR-cut mode, delay, LED mode, and LED light levels. Control your camera’s view with features like Lens Flip, Angle Flip, Corridor mode, and WDR. Save your preferences with the ‘Default’ tab, ensuring consistent operation. Enjoy maximum security and peace of mind with complete control over your surveillance system.
Smart Motion Detection
Camius PoE dome and bullet security cameras feature advanced smart video motion detection technology. They detect motion, pedestrians, vehicles, or a combination, with improved accuracy. Users can set up detection areas and schedules easily. When motion is detected, the PoE NVR system triggers recording and other actions. Optimize disk space by using motion recording exclusively or alongside 24/7 recording for easy access to triggered footage.
NVR Security System with 24/7 continuous recording and monitoring
Select the recording type you need, such as normal or motion, and set up a schedule that suits your requirements. This feature can be applied to multiple channels simultaneously, making it easy to configure your system. Once enabled, you can access the recorded event on your NVR and CAMIUS VIEW smartphone app. The recording guide is available at this link.
Push Notifications
After setting up the recording schedule, you will receive push notifications through the Camius View smartphone app and be able to access the recorded events. You can choose from push notifications, such as those triggered by hard drive errors, low storage space, disconnection of cameras or complete systems, and Motion, Human, and Vehicle Detection.

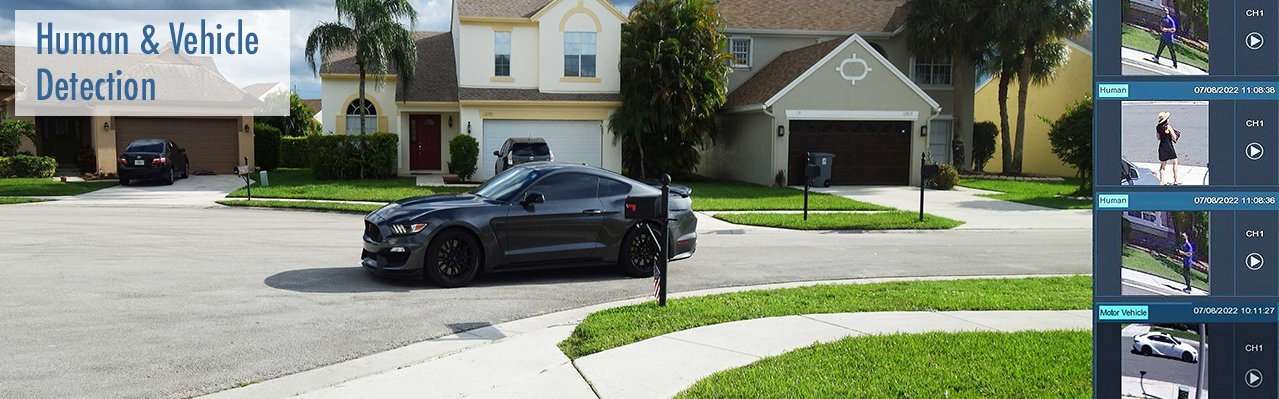

Advanced AI Analysis for Enhanced Detection Capabilities
The newest 2K cameras from Camius are equipped with AI analysis for advanced detection capabilities, surpassing traditional video motion detection. Users can create detection zones for movement patterns and location tracking. Activate specific detections for precise reports and analytics.
AI Detection triggers video recording in special color and tags, and can initiate email or push notifications. Options include Human and Vehicle Detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), and Cross Counting (CC).
NVR Software and Camius View app
Camius security systems go beyond the HDMI monitor and smartphone app. The free NVR software can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius NVR and individual Camius cameras on one screen. Follow this guide to add the NVR to the software
The Smartphone Security Camera App Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app.
Web Browser Access
You can access and control your Camius NVR system using a web browser including Chrome, Mozilla Firefox, Safari, etc. Click here for more details
What’s in the box:
- 8 Channel NVR with 3TB HDD (IPVAULT1128PR 3TB HDD)
- 4 x 2K Dome Security Camera (IRIS528R)
- 4 x 2K Bullet Security Camera (BOLTX536R)
- 8 x 60ft CAT5E cable
- NVR’s power supply with a power cord, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Quick Setup Guide
Camius 8 Wired Security Camera System Technical Specifications:
Specifications for Camius NVR (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
BOLTX536R Specifications:
- Shape: Bullet
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
IRIS528R Specifications:
- Shape: Dome
- Lens (Field of View): 2.8mm (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
- Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
IP cameras common specifications
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
