High Bandwidth of Camius 8 Channel NVR
The 4K 8 Channel NVR with built-in 8 Power over Ethernet ports is a reliable, easy-to-setup solution that brings out the best in Camius IP cameras. The 4K UHD output and Gigabit WAN port deliver unmatched quality and bandwidth, while the Camius View App and advanced VMS software give you the ability to live view, playback, and control your PoE NVR system remotely and securely.
More bandwidth for transmission and recording means higher quality. Camius offers some of the highest levels of bitrate in an 8 channel NVR. The available bandwidth is 128 Mbps! Continuous recording for security cameras from Camius can utilize up to 128Mbps recording bandwidth on the Network Video Recorder to provide each channel with enough bandwidth to stream, record, process, and analyze in 4K quality.

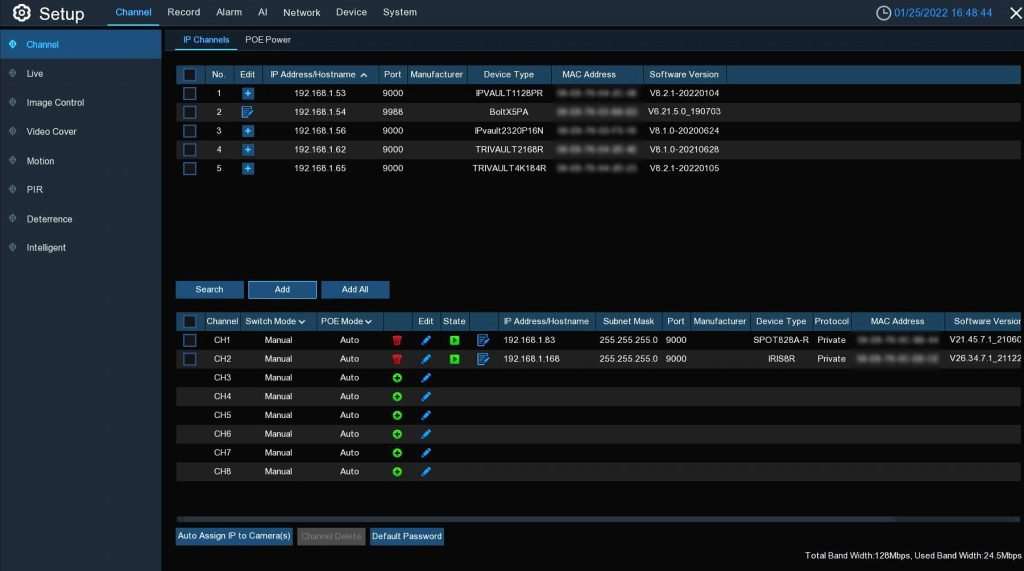

Add 8 IP cameras to the PoE DVR
This 8 Channel NVR supports up to 8 IP PoE security cameras. The built-in 8 Ports LAN (Power-Over-Ethernet) interface enables for plug-and-play installation of Camius IP cameras, while other manufacturers can be added via an external PoE network switch.
Plug-N-Play Installation
Camius 8 Channel NVR system is optimized for Camius PoE IP cameras. A single Ethernet cable is used to deliver power, video, audio, and infrared streams, as well as bidirectional commands and alerts. Using Power Over Ethernet with IP cameras and NVRs helps centralize power for the entire security system, making it more reliable. Cable distance can be up to 300 feet, and cable type can be CAT5 and up.
The Latest Audio and Video Compression
Camius security systems support H.265 video compression, which is considered the best video compression standard for optimizing video clarity, hard disk usage, and network bandwidth. The video quality of an H.265 codec is higher than that of an H.264 stream with the same settings. Using H.265 also reduces file size, which means less bandwidth is required to transfer a higher-quality stream.
Compatible IP Security Cameras
Camius IP cameras, which work seamlessly with Camius NVR, support resolutions of up to 8 megapixels. Features of IP cameras from other brands that conform to the ONVIF protocol may be limited to basic video motion detection. If you want a straightforward plug-and-play setup, make sure to use the Camius PoE 8 Channel NVR with Camius PoE IP cameras.
Smart Motion and Sound Detection

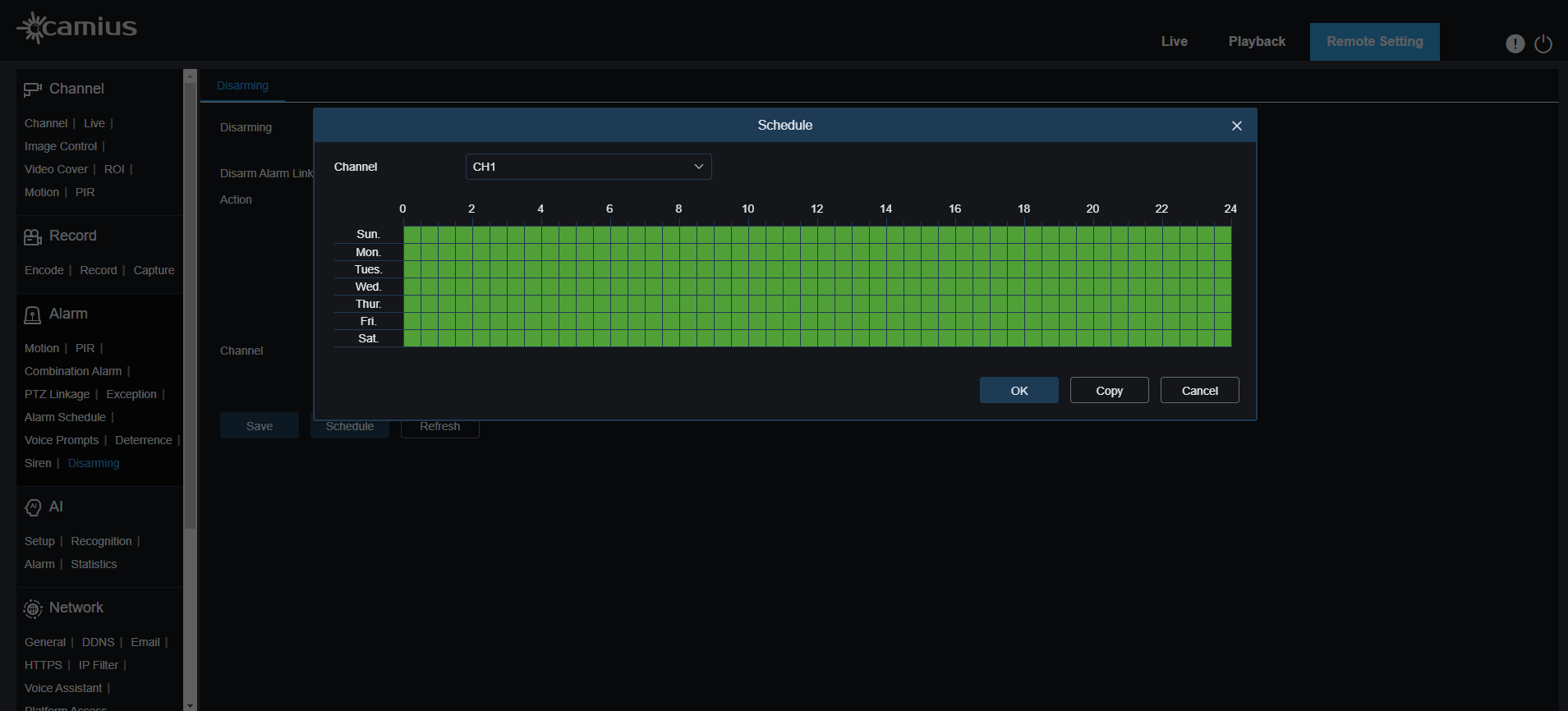

It allows users to set detection areas under setup for IP cameras and NVR recorders; a schedule is available for detection hours and days. Motion and Sound detection trigger recording and other actions on your Camius 8 Channel NVR. You can set motion recording as the only recording method to save disk space, or activate motion recording alongside normal 24/7 recording.
Detection powered with AI
Camius NVRs and cameras come equipped with cutting-edge human and vehicle detection capabilities. This intelligent feature accurately identifies and distinguishes between human and vehicle movement, minimizing false alarms and providing precise alerts for enhanced security monitoring. This ensures a more focused and efficient surveillance system, allowing users to prioritize responses based on the nature of detected objects.
Camius NVRs and cameras offer advanced security features such as line crossing and perimeter intrusion detection. With these capabilities, users can set up virtual boundaries and receive immediate alerts if any unauthorized entry or crossing occurs. This proactive system enhances overall security by providing real-time notifications, allowing for quick response and intervention. Whether safeguarding a property or monitoring a specific area, Camius ensures robust protection through innovative technologies like line crossing and perimeter intrusion detection.
AI Detection will trigger push notifications in addition to video recording in a special color and tag.
Time-Lapse recording
Time-Lapse recording is a Camius PoE NVR 8 Channel system feature that stores an image every set duration that, when combined into a video file, will produce a Time-Lapse video. Time-Lapse can be used for various purposes, like construction, nature, or seasonal change. This feature is controlled using captured images and captured schedules.
Customized Notifications
Security camera alerts on a smartphone can be customized using the Camius View app. Notification types include motion detection, hard disk status, and Intelligent detection. Schedules for detection and delivery are available on the NVR, and the Push Notification section on the Camius View app allows the user to enable or disable specific alerts.
NVR storage
Camius PoE NVR 8 Channel supports 1 internal SATA hard drive with a capacity of up to 10 Terabytes. Camius NVRs provide a dedicated section with details about the health of installed hard drives.

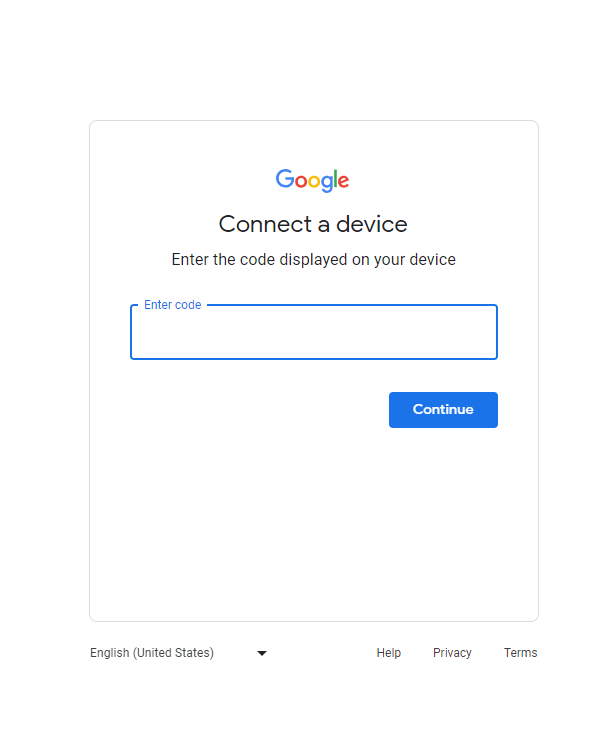

Recording to Cloud
You can upload photos and videos to your Dropbox or Google Drive account that triggered by a specific detection event.
Live View & Playback
You can upload photos and videos to your Dropbox or Google Drive. Camius 8 Channel NVR can show and record ultra HD 4K video at 45fps, 4MP at 90fps, and full 1080p at 180fps, as well as see live IP cameras in 1/4/6/9 display split and select auto sequence mode.
Supported network protocols and ports of the 8 Channel NVR
- 1 x VGA, 1 x HDMI display video output up to 4K (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), 3840×160 (4K))
- 1 Wired Audio Output
- DHCP, PPPoE, DDNS, UPnP, P2P, Static IP, RTSP, and FTP network protocols
- WAN (1 RJ45 100/1000 Base-T)
- 1 x 2.0 USB (front) and 1 x 2.0 USB (rear) for a USB mouse, software upgrade, and backup
NVR Software
Camius security systems extend beyond the HDMI monitor and smartphone app. The free NVR software can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station, allowing users to monitor live video and audio streams as well as playback and manage IP cameras with access to device settings. This software is ideal for multiple installations because it can combine cameras connected to a Camius NVR as well as individual Camius cameras on one screen.
Works with Web browsers
Camius security NVRs provide the convenience of accessing your surveillance system through web browsers like Safari, Mozilla Firefox, Chrome, Opera, Edge. This means you can easily view and manage your security footage using popular web browsers, enhancing accessibility and flexibility. Whether you’re at home or on the go, the seamless integration with web browsers ensures a user-friendly experience, allowing you to monitor your security setup with ease.
Camius View App
The Smartphone App [Camius View] provides full access to your 8 channel NVR from any location. Like any iPhone, iPad, and Android security camera app, it is available on iOS and Android App stores and is ready to link into your security cameras right out of the box. 2-way audio is available for supported cameras, allowing the user to press and talk in addition to listening to audio.
General Information
- 48V power adaptor included (8 Built-in PoE ports, a single port up to 802.3af (use Camius NVR’s original power supply for functionality and safety)
- Dimensions 12 x 8.3 x 2” / 300 x 227 x 53mm
- Order model # IPVault1128PR 4TB HDD
Resources:
What’s included:
- 1 x 8 channel NVR
- 1 x Pre-installed 4TB internal hard drive
- 1 x 48V power supply with a power cord
- 1 x 3ft HDMI cable
- 1 x 3ft Network cable
- 1 x USB mouse
- 1 x Set of screws for the chassis
- 1 x Installation Guide
Specifications for Camius NVR (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording

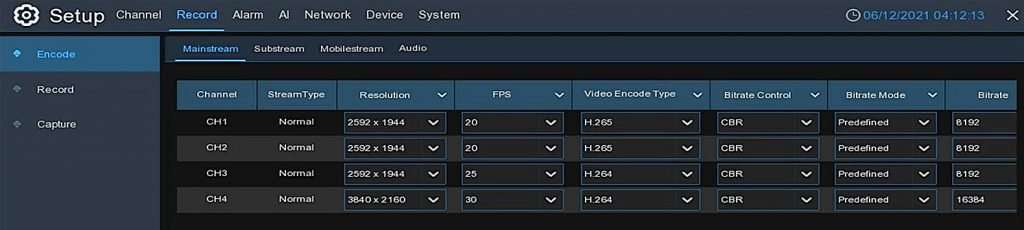

- Encoding:
- Mainstream: 30 fps 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720
- Substream: 30 fps 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080
- Mobilestream: 30 fps 320 x 240, 640 x 480
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- AI Functions: Supports advanced analytics for Camius IP cameras, including Face detection, Pedestrian & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting, Object Detection, Sound and Rare Sound Detection, Video Tampering, Region Entrance, Region Exiting, Licence Plate, Heat Map, etc.
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
