The advanced hardwired PoE NVR system includes 6 IP cameras with audio monitoring, recording, and AI detection. Camius security camera system delivers 24/7 recording with remote access, motion, intelligent sound, human & vehicle detection, cross counting, and analytics. The 8-channel NVR Recorder has a built-in power-over-ethernet switch, making the setup easy and quick. Camius security NVR assigns a unique IP address to the Camius IP camera. No more complicated IP configuration.
Plug-N-Play IP camera system with 8 Channel PoE DVR
Plug and Play PoE IP security camera systems are even simpler using Camius PoE cameras with one of the PoE NVRs (PoE DVR) from Camius. Once the Ethernet cable is plugged in, you instantly add PoE cameras; recording starts immediately without going through settings. It also makes adding a new PoE camera to your PoE NVR system a breeze.

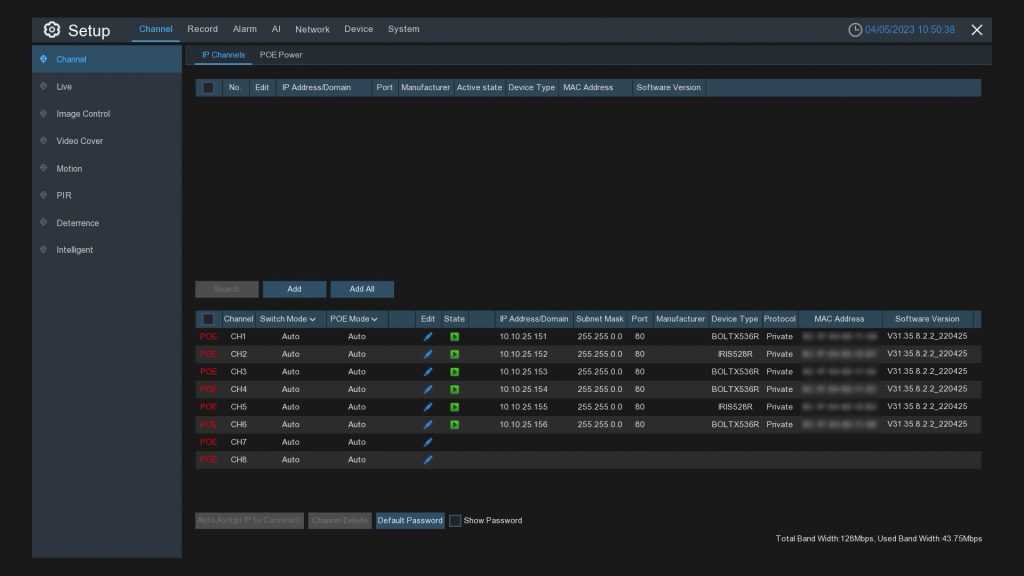

Adding IP camera to NVR
Once the camera is plugged into the NVR PoE port, you will see PoE power consumption by selecting the ‘PoE Power tab.
Latest video and audio compression with the highest bandwidth in the industry
Video compression is important when choosing a security system; it determines video clarity, hard disk usage, and network bandwidth. Camius security systems support not only H.264 but H.265, which is considered the best video compression standard to optimize all three areas. As a result, it saves up to 50 percent on the recorder’s storage space and improves bandwidth efficiency to maximize your eight-channel 4K security NVR & internal hard drive storage. In addition, using the NVR, you can control Camius camera audio settings.
The Powerful 5MP Dome Camera for Enhanced Security
The 5MP dome camera is a top-of-the-line security camera that boasts several advanced features to enhance your security. It offers superior 2K video resolution (2880 x 1620) with a smooth 30 fps playback, ensuring that you can capture every detail in high quality. With its ultra-wide field of view (110° horizontal, 58° vertical, and 133° diagonal) and integrated microphone for audio recording and live audio monitoring, you can monitor your surroundings closely.
High-Performance Outdoor Security Camera for Enhanced Surveillance
The high-performance outdoor security camera is a top-of-the-line surveillance tool that offers advanced features for enhanced security. Its 2K video resolution (2880 x 1620) with 30 frames per second and advanced 1/2.7” Progressive CMOS Image Sensor ensure crystal-clear footage. With its wide field of view and 3.6mm lens (91° horizontal, 46° vertical, 110° diagonal), this camera captures a broad perspective.
Security Camera NVR with High Capacity Storage
To ensure maximum security, we recommend that you back up recorded events immediately to prevent losing footage if the system is set to overwrite. With reliable storage provided by Camius NVRs, you can have peace of mind knowing that your surveillance system is operating at optimal performance and that your footage is secure.
Instant Notifications and Customizable Alerts for Ultimate Property Security
Get push alerts to your smartphone, email notifications, and record to the cloud triggered by alarm events.

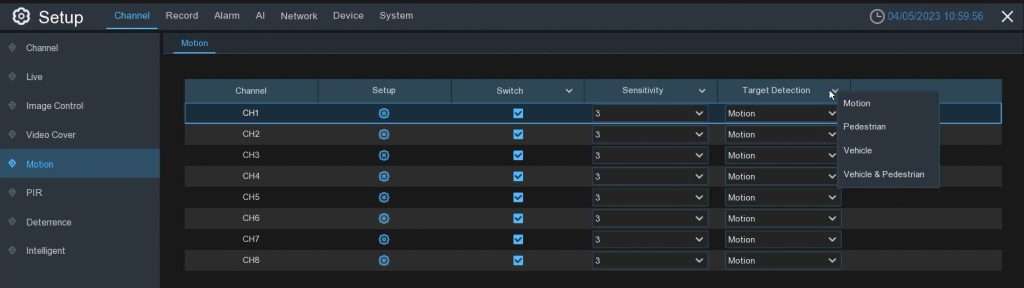

Enhance Your Security with Smart Motion Detection on Camius PoE Cameras
Camius PoE dome security cameras come equipped with smart video motion detection technology. The detection levels are greatly improved with the ability to detect motion, pedestrians, vehicles, or a combination of both. Users can easily set up detection areas for IP cameras and schedule detection hours and days.
When motion is detected, the PoE NVR system recording is triggered, along with other actions on your Camius NVR. You can save disk space by setting motion recording as the only recording method or activating both motion recording and standard 24/7 recording to access footage triggered by motion easily.
Follow this motion detection guide.
PoE Security Camera System Recording
Select the recording type you need, such as normal or motion, and set up a schedule that suits your requirements. This feature can be applied to multiple channels simultaneously, making it easy to configure your system. Once enabled, you can access the recorded event on your NVR and CAMIUS VIEW smartphone app. The recording guide is available at this link.
Detection powered with AI
The newest 2K wired security cameras from Camius come with AI analysis for advanced detection capabilities. This feature goes beyond traditional video motion detection by allowing users to create detection zones for movement patterns and location tracking. With AI detection, you can activate specific detections to receive precise reports and analytics. In addition to triggering video recording in a special color and tag, AI detection can initiate email or push notifications. The available AI Detection options include Human and Vehicle detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), and Cross Counting (CC).
Push Notifications
After setting up the recording schedule, you will receive push notifications through the Camius View smartphone app and be able to access the recorded events. You can choose from push notifications, such as those triggered by hard drive errors, low storage space, disconnection of cameras or complete systems, and Motion, Human, and Vehicle Detection.
Detection powered with AI
The newest 2K wired security cameras from Camius come with AI analysis for advanced detection capabilities. This feature goes beyond traditional video motion detection by allowing users to create detection zones for movement patterns and location tracking. With AI detection, you can activate specific detections to receive precise reports and analytics. In addition to triggering video recording in a special color and tag, AI detection can initiate email or push notifications. The available AI Detection options include Human and Vehicle detection (PD&VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), and Cross Counting (CC).
NVR Software
Camius security systems go beyond the HDMI monitor and smartphone app. The free NVR software can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius NVR and individual Camius cameras on one screen.
NVR Camera App
Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app.
Web Browser View
You can access and control your Camius NVR system using a web browser including Chrome, Mozilla Firefox, Safari, etc.

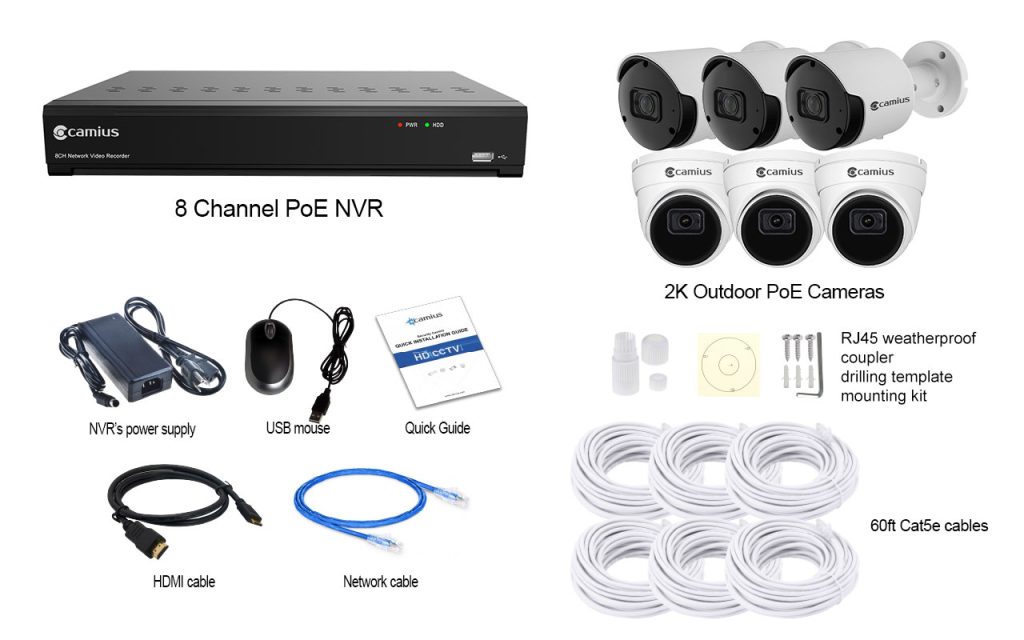

What’s in the box:
- 8 Channel NVR with 3TB HDD (IPVAULT1128PR 3TB HDD)
- 3 x 2K Dome Security Camera (IRIS528R)
- 3 x 2K Bullet Security Camera (BOLTX536R)
- 6 x 60ft CAT5E cable
- NVR’s power supply with a power cord, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Installation Guide
Camius 8 Wired Security Camera System Technical Specifications:
Specifications for Camius NVR (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
Camius 2K Cameras Technical Specifications:
BOLTX536R:
- Shape: Bullet
- Lens (Field of View): 3.6mm (Horizontal: 91°, Vertical: 46°, Diagonal: 110°)
- Weight / Dimensions: Approx. 14oz (397g) / Φ 2.8” x 6” (70.9 x 152.7 mm)
IRIS528R:
- Shape: Dome
- Lens (Field of View): 2.8mm (Horizontal: 110°, Vertical: 58°, Diagonal: 133°)
- Weight / Dimensions: Approx. 15oz (420g) / Φ 3.94” x 3.54” (100 x 90 mm)
- Camera Type: IP network (NTSC/PAL)
- Video:
- Resolution: MainStream: 2K 2880×1620 @ 30fps, SubStream: 1280×720 @ 30fps, MobileStream: 640×480 @ 30fps
- Compression: H.264, H.265, H.264+, H.265+ (SubStream supports MJPEG in BOLTX536R)
- Image Sensor: 1/2.7” Progressive CMOS
- Min. Illumination: Color 0.002 Lux @ F1.2; B/W 0 lux @ IR ON
- Bitrate: MainStream: 8192Kbps, SubStream: 4096 Kbps, MobileStream: 1536 Kbps
- Bitrate Control: Predefined or user-defined (CBR or VBR)
- I-Frame: 1 – 120
- Audio:
- Built-in Microphone Control: On/Off, adjustable volume
- Adjustable volume
- Compression: G.711A/G.711U
- Recording: Supports MainStream or SubStream mode, 24/7 normal recording, pre-recording enabled
- Image Control Settings: 3D noise reduction, IR-CUT mode, SmartIR, WDR, backlight, HLC, white balance, shutter, mirror, angle trad, corridor
- Video Cover: 4 areas
- ROI: 8 regions
- Night Vision: 100ft (30m)
- Detection:
- Motion Detection: Enabled by default
- Sound Detection: Disabled by default
- AI Detection: Face, human & vehicle, perimeter intrusion, line crossing, cross counting, heat map, queue length, license plate, rare sound detection
- Alarms: Post recording, send email, FTP picture upload, cloud picture, enable recording
- Push Notifications: Includes storage error and AI detections with Camius Network Video Recorder integration
- Network:
- Protocols: DHCP, DNS, PPPoE, SNMP, HTTP, HTTPS, RTSP, TCP, UPNP, Multicast, P2P
- Email: Notifications to 3 receivers, configurable SMTP
- Disk: Micro SD slot, max 256GB (SD card not included)
- Cloud Recording: Dropbox
- User Management: Admin + multiple users with permissions management
- Language: English, Spanish, Portuguese, French
- Maintenance: Logs, load default settings, firmware upgrade, parameter management, auto reboot
- Reset: On-camera reset button (or via network using the camera’s web browser settings)
- Remote Access: PC/Mac software, web browser, mobile apps (iOS & Android)
- Security: Complicated password, IP address filter
- Ingress Protection: IP66
- Power Source: PoE (IEEE802.3af) / DC12V
- Ethernet: RJ45 (10/100BASE-T)
- Power Consumption: ≤ 4W/5.5W (IR on), ≤ 2W/3W (IR off)
- Included: Camera, mounting kit, R45 waterproof coupler, mounting template, quick setup guide
