Sale!

4K 8 Channel DVR Recorder with hard drive 3TB – TRIVAULT4K184R

$269.00

-10%

For the upgraded version of this DVR, check the model TRIVAULT4K184R2

TRIVAULT4K184R DVR recorder is the perfect upgrade if you still have existing coaxial cables, power sources, and even analog cameras of various kinds like CVI, TVI, AHD, or CVBS. In addition, it works with IP cameras too. Audio processing and Intelligent Detection are also supported, in addition to remote app access and management. Camius Security Camera DVR works with 8 (eight) analog and 4 IP security cameras. It allows viewing and recording up to 12 HD (high definition) security cameras. The security 8 (eight) channel DVR supports H.264 and H.265 video and G711a audio compression.

What’s in the box:

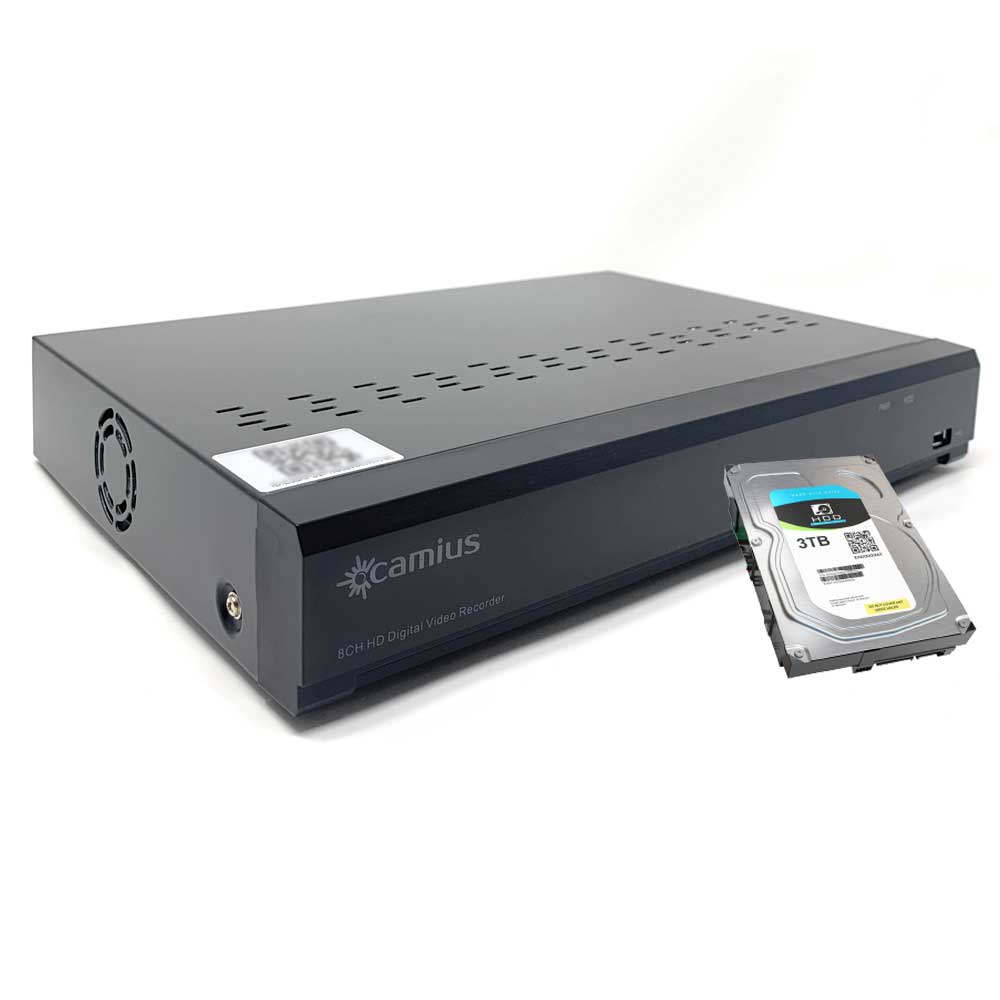

  • 8 Channel DVR 3TB HDD (Model: Trivault4K184R)
  • Power supply, HDMI, Network cable, USB mouse, installation guide, and set of screws for the security digital video recorder’s chassis.
  • Note: Doesn’t include cameras

Out of stock

The latest Hybrid 4K DVR recorder is the perfect upgrade if you still have existing coaxial cables and power sources and even analog cameras of various kinds like CVI, TVI, AHD, or CVBS. In addition, it works with IP cameras too. Audio processing and Intelligent Detection are also supported as remote app access and management. Camius Security DVR works with 8 (eight) analog and 4 IP security cameras. It allows viewing and recording of up to 12 HD (high definition) security cameras. The security 8 (eight) channel DVR supports H.264 and H.265 video and G711a audio compression.

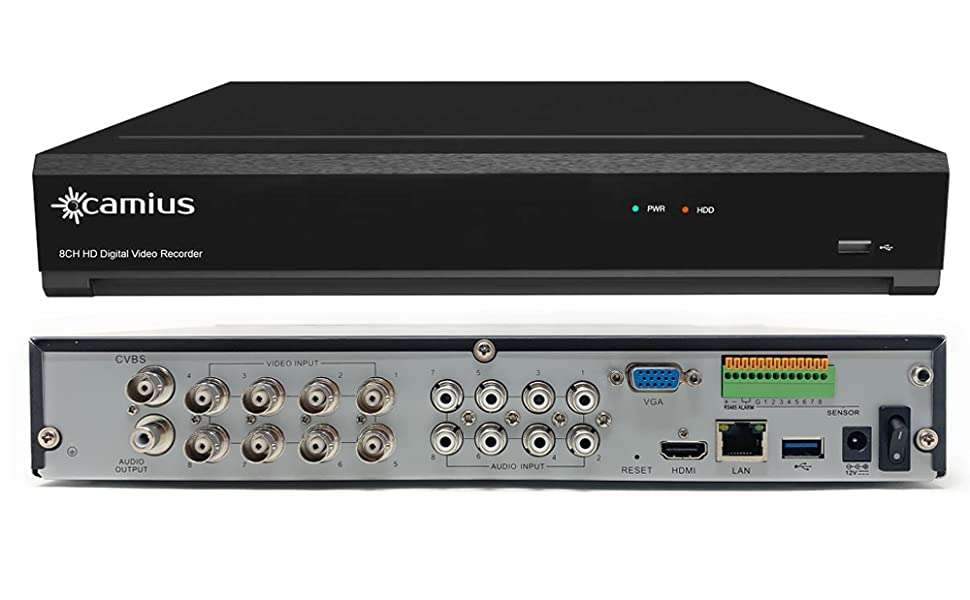

TRIvault4K184R rear panel tilted e1630456950427

TRIVAULT4K184R FEATURES WITH ICONS

Hybrid DVR recorder

  • The security DVR recorder accepts 8 Analog Video Channels (BNC) + 4 Channel IP (over the network)
  • Add up to 12 IP channels if no analog video inputs are in use
  • Works in various modes as a security DVR or hybrid XVR (allowing to add not only analog but IP channels to the recorder as a network video recorder)

4K184R MAIN STREAM ANALOG IP

Compatible Security Cameras

4K184R AHD CVI TVI SUPPORT

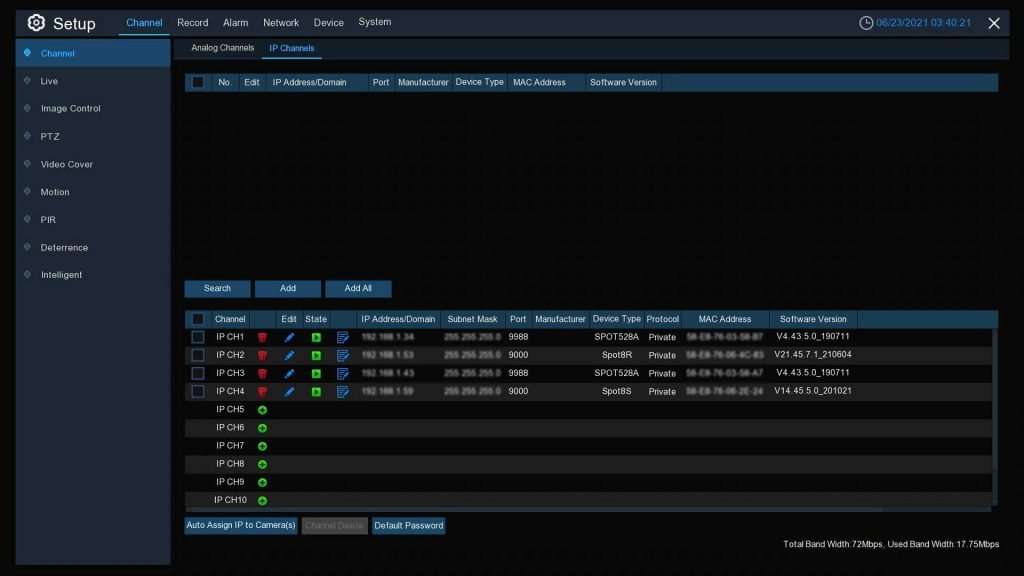

  • We recommend Camius IP cameras up to 8MP for full features and functionality; 3rd party camera support may be limited. Camius recorders are optimized for Camus IP cameras.

trivault4k184 ip cameras added 1

You can control analog camera image color settings, including brightness, contrast, and saturation from the DVR interface.

TRIVAULT4K184R analog image control 1

For 4K video, 2-way audio, and deterrence features, we recommend adding Camius Spotlight 4K PoE cameras with Intelligent and AI detection.

TRIVAULT4K184R enable light warning

Storage & Compression

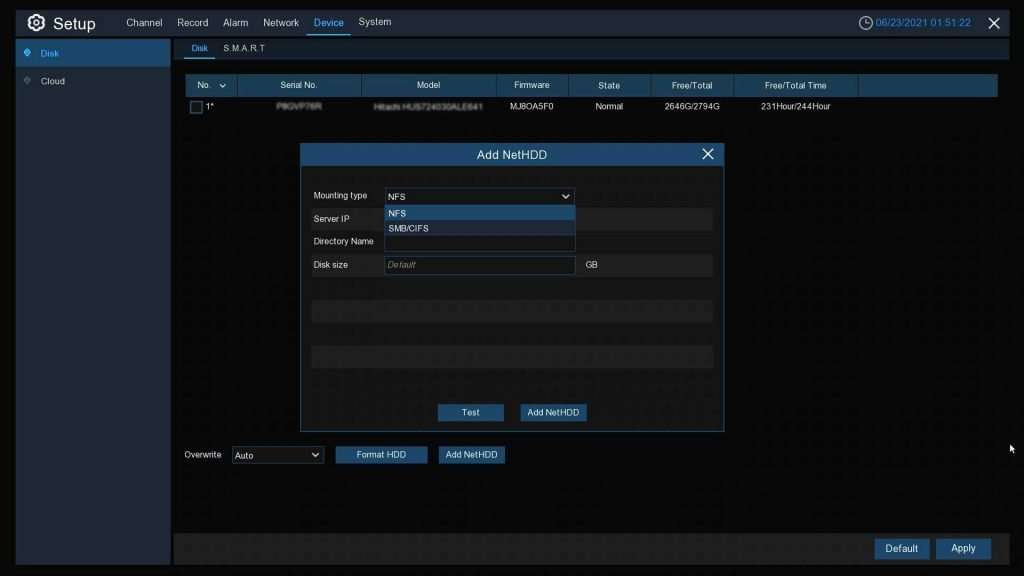

It fits one internal SATA 3.5″ Hard drive up to 10TB. S.M.A.R.T. feature gives a complete evaluation of your DVR recorder’s hard drive disk, displaying any errors. You can also add network-attached storage (NAS) using the ‘NetHDD’ feature.

4K184R SMART

4K184R ADD NET HDD

4K Live View

Camius 4K 8 Channel DVR comes with 3 video outputs to add a monitor/TV for live view

  • 1 x HDMI output which supports 4K video 3840×2160
  • 1 x VGA output that supports 1080P video (1920×1080)
  • 1 x CVBS (or BNC) for Spot-out monitor to call out certain camera

While you are in ‘Wizard Setup’ mode, choose an output resolution that matches your monitor. The DVR should adjust the output resolution automatically to match the best resolution of your monitor at the system startup.

Resolution resolution range1080p to 4K

Please note that some legacy monitors could fail to communicate their acceptable resolution, in which case, please plug the DVR into a newer monitor and change the resolution manually to the lowest setting, then save and plug the older monitor back to see if it’s supported.

Set the monitor resolution notice

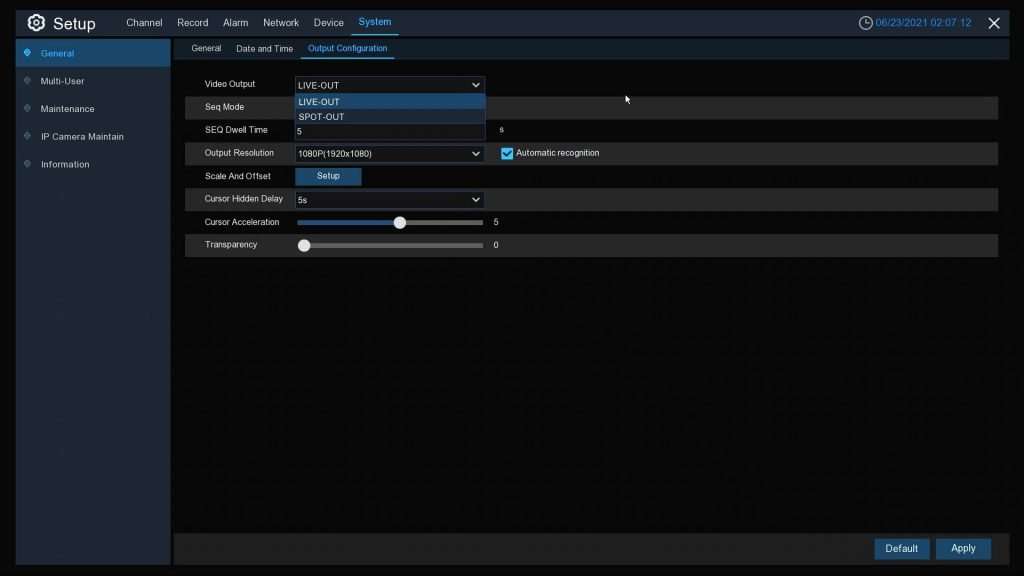

After completing the Start Wizard, you can adjust the Display Output Resolution further using the following Menu Path: Setup – System – General – Output Configuration.

Select the output resolution suitable for your TV/Monitor. 1080P(1920 x 1080) will suit most monitors. If your DVR supports 4K output resolution, you can select either 2K (2560 x 1440) or 4K (3840 x 2160) to take advantage of the higher resolution that your 4K TV provides.

trivault4k184r spot out

You can also adjust the size & position of the display screen to match your monitor/TV by using the ‘Scale and Offset’ feature; click the tab ‘Setup’, which allows you to:

Scale is to adjust the size of the displayed screen by scale.

X Offset is to move the displayed screen to the left or right.

Y Offset is to move the displayed screen up or down.

Scale display

Click once or long-press the left button of your mouse on the arrow to adjust the size and position, or you can scroll the supplied USB mouse’s wheel to adjust. Click the right button of your mouse to exit, and click Apply to save your modifications.

Security DVR with Audio, Alarm & RS485 Ports

The DVR recorder has 8 (eight) wired audio inputs and 1 Output (RCA). Also, the recorder comes with 8 wired alarm inputs and one output in addition to the RS485 port.

About the Network Settings of the DVR

The DVR recorder supports multiple network protocols, including DHCP, PPPoE, UPNP, RTSP, etc. You can use a built-in P2P code to access the DVR remotely to enable on-demand. You can also use DDNS port forwarding the remote monitoring purpose.

Hybrid Security Camera DVR with Intelligent Video Analysis

Camius security DVR offers Intelligent Detection using innovative analysis. This goes beyond video motion Detection as it allows the user to create zones to detect movement patterns, location, etc. Intelligent Detection will trigger Push notifications in addition to video recording in a particular color and tag. All Camius IP cameras are compatible with this DVR. Camius BoltVM5, GuardMA, SPOT8S, SPOT8R, Spot828A, SPOT828A-R, Scout20PTZ, and IRIS8R offer Intelligent detection with analytics. Sound Detection works with 5 Megapixel PoE cameras (BoltX5PA, BoltX5R, IRIS5R).

4K184R PID

Hybrid DVR Security Recorder with the Video Management Software and Remote Apps

Monitor your Camius Security System DVR remotely from anywhere globally using a built-in P2P service or static IP /DDNS with port forwarding. View and control your Camius system with a free video management software designed for PC and Mac users and the Camius View phone app for iOS and Android devices

On how to add the 4K DVR to your smartphone app, click here

what is IP camera

For the security system DVR technical specifications:

  • Click here for the 8 Channel DVR recorder’s technical specifications

General information about the Camius 8 Channel DVR:

  • Included power supply 12VDC / 2A (we recommend using Camius DVR’s original power supply for full functionality and safety)
  • Dimensions 12 x 9 x 2” / 300 x 227 x 53mm
  • Net Weight: 2.5lb (with hard drive) / Gross weight: 4.3lb (with packaging)
  • Order model # Camius Trivault4K184R 3TB HDD
  • DVR security recorder is sold without any cameras

Additional information

Weight9 lbs
Dimensions18 × 13 × 11 in
Recorder Channels

12 Channels

Recorder Analog Channels

8

Recorder IP Channels

4

Recorder Cloud Storage

Dropbox or Google Drive

Recorder Email Alerts

Yes

Recorder Ethernet Port

100/1000M

Recorder HDMI Cable

Included

Recorder Mouse

Included

Recorder Power

12VDC/2A

Recorder Spot Output

Programmable Spot monitor output that can be activated on its CVBS (BNC) port that display a customized screen with specific cameras in static or sequence modes

Recorder Remote Control

Included

Recorder Video Analysis

Yes

Recorder Video Output

HDMI+VGA

Recorder Video Compression

H.264/H.265

Recorder Type

Hybrid DVR for Analog and IP cameras

Recorder Bitrate

16K

PC Software

VMS, VMS Pro

Mac Software

VMS, VMS Pro

Browser Access

Supports

iOS App

Camius View

Android App

Camius View

Pre-Installed Storage

3TB HDD

Recorder Internal SATA Ports

1

Recorder SMART HDD Check

Yes

Recorder Storage Capacity

max. 10TB, Support adding NAS (net HDD)

Recorder Wired Alarm I/O

Yes

Recorder Wired Audio I/O

Yes

RTSP

Yes
