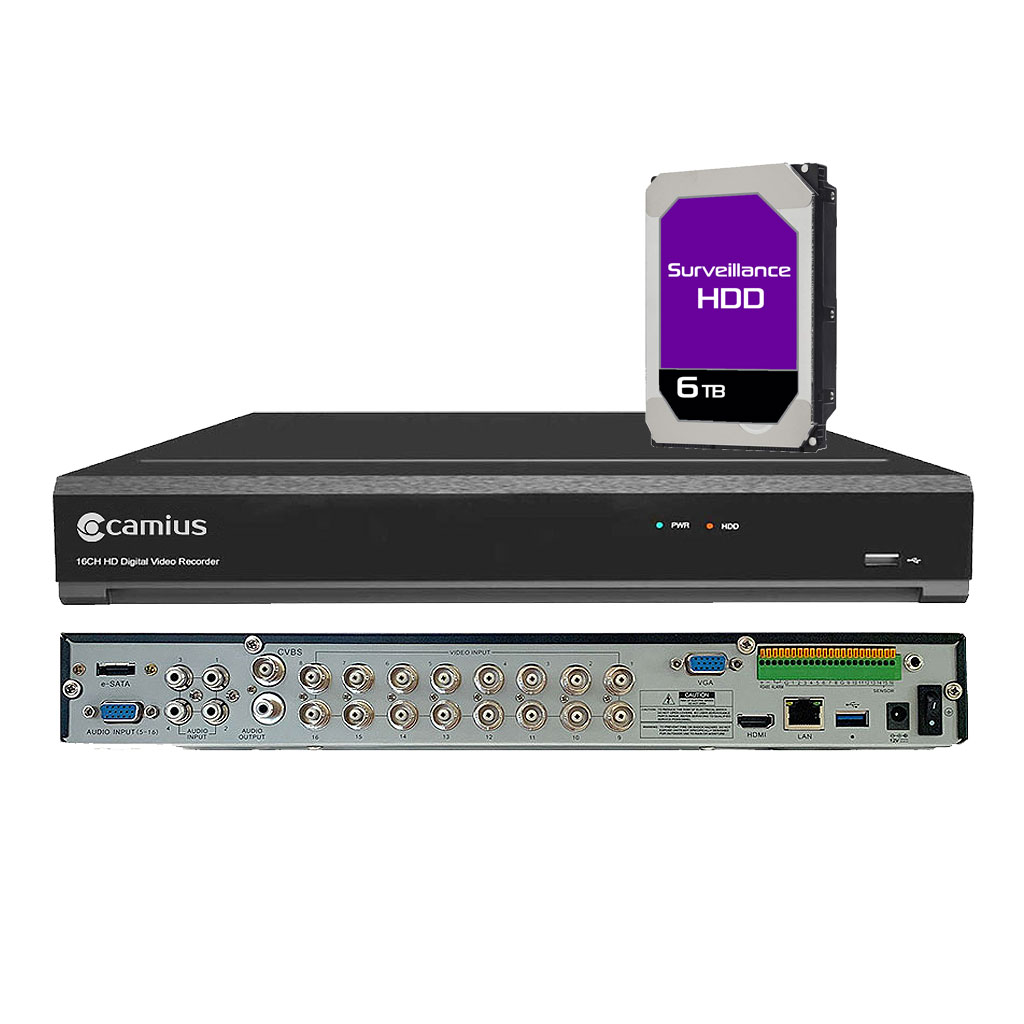

16 Channel DVR 6TB – 4K Security Recorder with Pre-Installed Hard Drive

Model: TRIVAULT4K2168R

Video & Channel Configuration

• Total Channels in Hybrid XVR mode: 24 (supports up to 16 analog + 8 IP channels simultaneously (24 total), or 24 IP cameras when used in IP-only mode)
• Analog Channels: 16 BNC, supporting AHD, TVI, CVI, and CVBS cameras (auto-adaptive).
• IP Channels: 8 IP channels (expandable to 24 total if analog inputs are disabled).
• Total Bandwidth: 192 Mbps (Incoming 128 Mbps / Outgoing 64 Mbps)

Display & Playback

• Display Resolution:

Analog Channels (Main Stream):

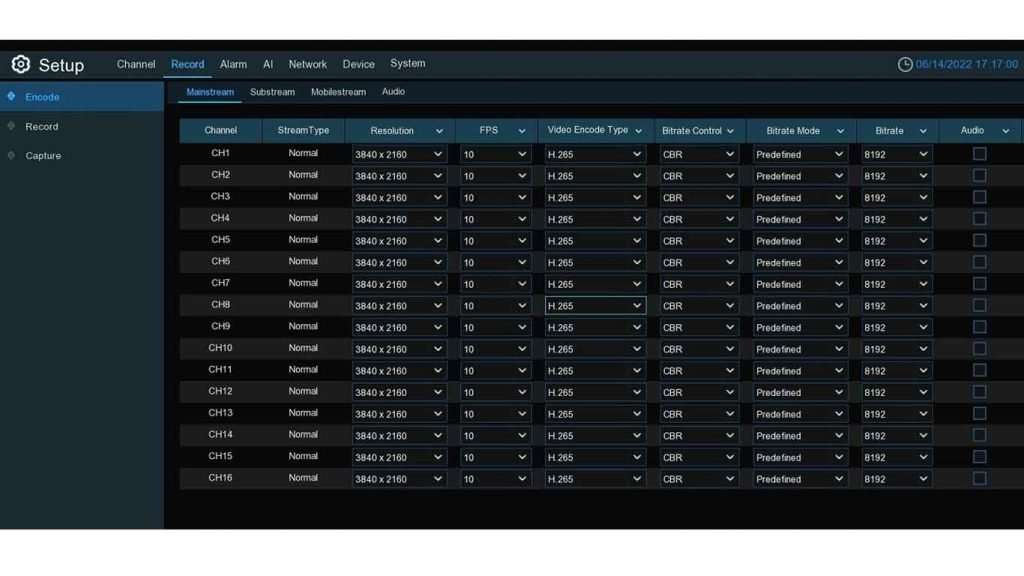

• • 8 MP (3840×2160): 10 fps record / 15 fps display
  • 5 MP (2592×1944): 15 fps record / 20 fps display
  • 4 MP (2560×1440): 20 fps record / 30 fps display
  • 1080 P (1920×1080): NTSC 30 fps / PAL 25 fps record per channel
  • 720 P / 960 H: 30 fps record per channel

IP Channels:

• • Up to 4 K / 4 MP / 1080 P / 720 P @ 30 fps per channel

Note: Frame rate and total channel count depend on total bandwidth load across analog and IP inputs.

• View Layouts: 1 / 4 / 8 / 9 / 16 / 20 / 24 split-screen configurations.
• Auto Sequence: Supported.
• Playback:
  • Search up to 16 channels simultaneously.
  • Multi-channel playback supported (number of channels depends on resolution and decoding bandwidth).
  • Playback speed: Fast forward/backward (2x, 4x, 8x, 16x), slow motion (1/2x, 1/4x, 1/8x, 1/16x).

Video Functions

• Channel Settings: Channel name, time display, covert (on/off).
• Image Control: Brightness, contrast, saturation, hue (for analog and IP channels).
• Privacy Masking (Video Cover): Up to 4 areas per channel.
• PTZ Control: RS-485, Preset, Cruise, PTZ Linkage.
• Auto Signal Detection: Automatically detects connected camera type.

Detection & Deterrence

• Motion Detection: Available on all analog and IP channels.
• PIR Detection: With compatible IP cameras.
• Alarm Triggers: Motion, I/O, PIR, intelligent (AI) detection.
• Deterrence: Light and siren control (with Camius spotlight 4K PoE cameras: SPOT828A-RB, SCOUT4KPTZ4X); Smart Illumination (White Spotlights) apply to FB4KPRO (4k analog outdoor camera)

Compression & Recording

• Video Compression: H.265 / H.264.
• Audio Compression: G.711A / G.711U.
• Streams: Mainstream, Substream, Mobile, Audio
• Recording Modes: Continuous, Motion, I/O, PIR, Schedule, Manual.
• Pre-record: 5 seconds.
• Post-record: Adjustable (10–300 seconds).
• Snapshot / Time-lapse Capture: Supported (max 1080P, interval 5s–1hr).

Alarm & I/O

• Alarm Inputs: 16 wired zones (NO/NC selectable).
• Alarm Output: 1 relay output (30V DC / 2A or 125V AC / 0.5A).
• RS-485 Interface: For PTZ control.
• Alarm Features: Motion, PIR, I/O, Intelligent, Combination Alarm, PTZ Linkage.
• Exception Alarms: Disk full, disk error, video loss, network failure.
• Notifications: Buzzer, Push notification via Camius View App, on-screen message.

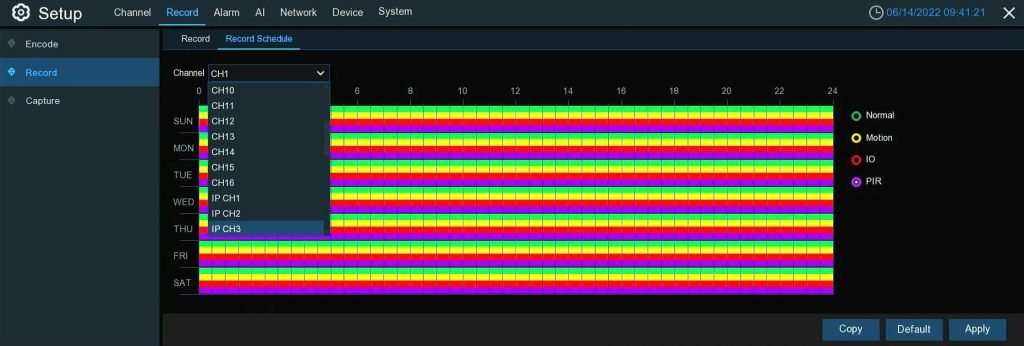

• Scheduling: Fully configurable per channel.

AI & Smart Detection

• AI Functions: Human and vehicle detection, face detection, perimeter intrusion, line crossing, sound, license plate detection, etc.
• Analytics: People and vehicle counting, heat maps (when paired with Camius AI IP cameras).
• AI detection on up to 8 channels simultaneously. AI functions are mutually exclusive per channel.

Network Features

• Protocols: DHCP, PPPoE, SNMP, UPnP, HTTP/HTTPS, RTSP, P2P.
• Ports: HTTP, RTSP, Media, HTTPS.
• DDNS: Supported.
• Email Alerts: SMTP (SSL/TLS).
• FTP Upload: Supported — upload snapshots or clips from motion or alarm events to a remote FTP folder.
• Cloud Storage: Dropbox, Google Drive.
• IP Filter: Allow/Block IP addresses.
• Remote Access:
  • Camius View App for iOS & Android,
  • Camius VMS Software for PC and Mac.
  • Browser access (HTTP/HTTPS)
• Note: The TRIVAULT4K2168R operates fully offline. Recording, playback, and export do not require an internet connection. Network and motion features can be disabled when not needed.

Storage

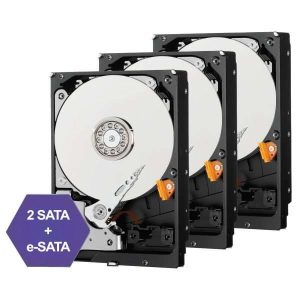

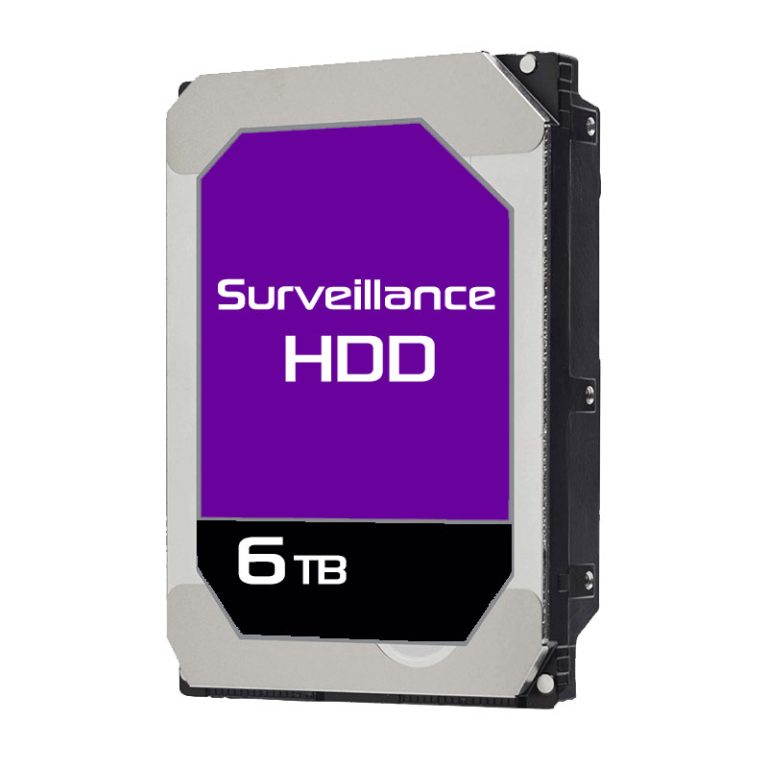

• Internal Drives: 2 × SATA (up to 14TB each).
• External Storage: 1 × eSATA
• Network Storage: NAS (NetHDD) supported.
• Recording Management: Overwrite and redundancy options.
• HDD Format Options:
  • Format entire hard disk – erases all data (including videos, events, logs, analytics).
  • Format record partition – erases videos, snapshots, logs; keeps analytic information.
  • Format general partition – erases only analytic information; videos and snapshots remain.

System Management

• Users: 1 Admin + 31 User accounts.
• Settings: Device name, audio input type (base-band or coaxial), date/time, output resolution.
• Maintenance: Auto reboot, logs, firmware upgrade via USB or network.

Video Outputs

• HDMI: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P, 2K, 4K
• VGA: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P
• CVBS: BNC output, 704×576

Interfaces

• USB: 1 × USB 2.0 (front), 1 × USB 3.0 (rear).
• LAN: RJ45 10/100/1000 Base-T.
• RS-485: A/B terminals for PTZ control.
• Alarm I/O Block: 16 inputs, 1 relay output.
• Audio: 4 RCA inputs + 1 output, expandable to 16 via DB9 connector.

Power & Environmental

• Power Supply: DC 12V / 5A (Input 100–240V, 50/60Hz).
• Power Consumption: ≤20W (excluding HDDs).
• Operating Temperature: 32°F–104°F (0°C–40°C).
• Humidity: ≤90% (non-condensing).

Physical

• Dimensions: 380 × 320 × 53 mm (15 × 13 × 2 in).
• Net Weight: 2.45 kg (5.4 lbs, without HDD).
• Gross Weight: 3.37 kg (7.4 lbs, with packaging).

In the Box

• DVR unit
• Power adapter
• HDMI cable
• Audio cable
• Network (Ethernet) cable
• USB mouse
• DVR Quick Installation Guide

The above specifications provide a comprehensive overview of the TRIVAULT4K2168R’s powerful features, making it an excellent choice for high-resolution, smart video surveillance.
