16 Channel 4K PoE Security Camera System with 320 Mbps NVR
Camius 4K PoE Hardwired Outdoor Security Camera System is built for businesses and large residential properties. It includes four 8MP Ultra HD PoE spotlight cameras with bright white lights, red and blue deterrent lights, a siren, and two-way audio to help prevent crime. The system supports expansion up to 16 cameras, making it a scalable solution for professional surveillance.
Key Features of This 16 Channel 4K PoE Security Camera System
4 Outdoor 4K PoE Security Cameras
Simplify PoE cameras installation with a single cable providing both power and data transfer
320 Mbps 16 Channel NVR Bandwidth
Top-tier bandwidth range of 320 Mbps for smooth high-res video and audio streaming & recording
AI Detection for People and Vehicles
Stay ahead with AI-powered motion, human, vehicle, sound, face, license detection & more
4K Cameras with Built In Two Way Audio
Communicate in real-time with built-in microphones and speakers for added security and protection
Professional 16 Channel 4K NVR for Business and Commercial Use
Camius 16 Channel NVR supports 4K capabilities and high recording bandwidth, providing smooth and uninterrupted recording for businesses of all sizes. It supports 320 Mbps (megabits per second) of recording bandwidth, accommodating stunning 4K CCTV camera system footage for all connected cameras. The advanced network video recorder supports both internal and external hard drives for extended recording capacities, making it an ideal choice for business surveillance.
Easy Installation of the 16 Channel PoE Security Camera System
Camius PoE wired security cameras and NVRs offer plug-and-play surveillance, requiring minimal setup and configuration. The addition of new cameras to the 16 Channel NVR is streamlined, creating a hassle-free surveillance system suitable for businesses.

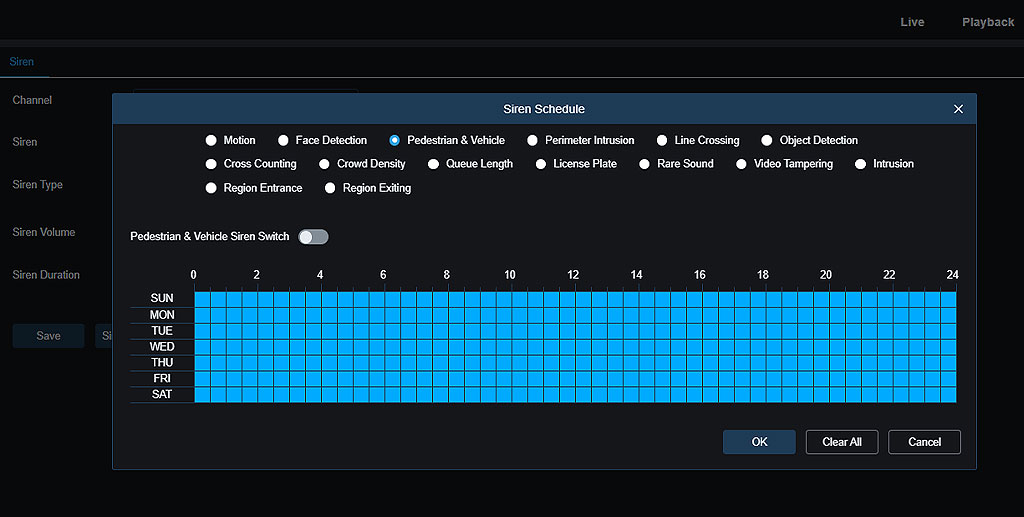

4K Cameras with Alarm Lights and Siren Control
Camius 4K outdoor cameras feature a built-in siren with loud siren and adjustable volume levels, ensuring flexibility in deterring potential security breaches for businesses or homes. Users have the freedom to customize each camera’s siren’s schedule and select specific events to trigger its activation, providing a personalized approach to security measures.
Built In White Spotlights
Illuminate and protect your property with motion-activated lights
Red and Blue Deterrence Alarm Lights
Deter intruders from your property with red and blue lights
Built In Siren for Active Deterrence
Louf siren for active intruder deterrence, triggered by motion, AI detection
4K PoE Security Cameras with Two Way Audio
The CCTV Camera 2 Way audio system also supports 2-way audio communication using the Camius View App, providing an additional layer of security and convenience.
Listen and Talk Through the Camera
Communicate in real-time with built-in microphones and speakers for added security and protection
24 Hour Continuous Recording with 16 Channel 4K NVR
At Camius, we’re all about giving you peace of mind, which is why our security camera system records round-the-clock, so you never miss a thing. Whether you want continuous coverage or prefer motion-triggered recording, we’ve got you covered. Our NVR supports two internal and one external high-capacity hard drives, ensuring you’ve got plenty of space to store all your footage.
Dual SATA Hard Drive Support. No Monthly Fees
Enjoy 24/7 recording with local storage for months, 2 x 14TB SATA + 14TB e-SATA capacity—no subscription fees!
Remote Monitoring for the 16 Channel 4K Security Camera System
Camius NVR security camera system offer various monitoring options, including access via free NVR software, web browser, a smartphone app. The NVR software can turn any device into a surveillance station, while the smartphone app provides remote access, playback, and control of the security cameras, offering businesses convenient and flexible management options.
Live & Remote Viewing
Enjoy live monitoring via HDMI TV, PC, Mac, smartphone app, and web browser

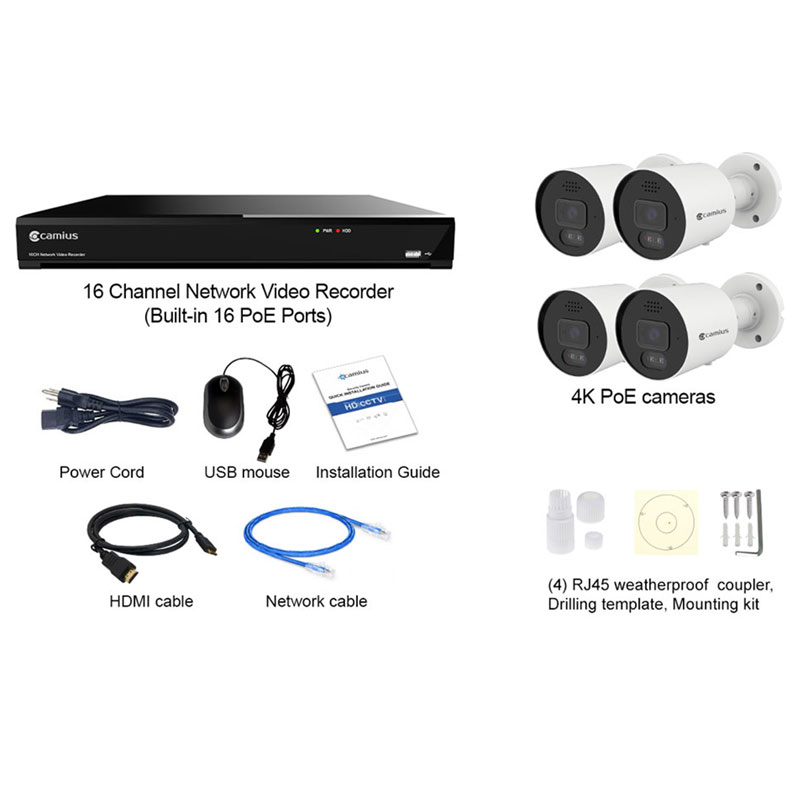

What’s in the box:
- 1 x IPVAULT2320PR 4TB HDD (16 Channel NVR, pre-installed 4 terabyte HDD storage)
- 4 x SPOT828A-RB (8MP PoE Spotlight cameras)
- 1 x Power cord, HDMI & Network Cables, USB mouse, Quick Setup Guide
16 Channel 4K PoE Security Camera System Specifications
16 Channel 4K PoE NVR Specifications IPVAULT2320PR
Bandwidth
- 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T)
- Voice Command: Home Device: Google Assistant, Amazon Alexa
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.
Storage
- Two Internal SATA Hard Drive Ports: up to 12 terabyte
- One e-SATA
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: The NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
4K PoE Outdoor Camera Specifications SPOT828A-RB
Video
Imaging Device: 1/2.8″ Progressive CMOS
Effective Pixels 8MP / 4K (3840 × 2160) at 30 Fps (NTSC), 25 Fps (PAL)
3 Streams: Main, Sub and Mobile stream
Bitrate: 256Kbps ~ 16Mbps
Min. Illumination: Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens: Fixed, 2.8 mm
Max. Aperture Ratio F No. 1.0
Field of View: Horizontal: 106°, Vertical: 56°, Diagonal: 126°
Minimum Object Distance: 6.7ft ( 2m)
Video Cover (Privacy) & ROI (Region of Interest): Available
Audio
Built-in microphone: Yes
Built-in Speaker: Yes
Siren: Yes
Image Control
Number of IR LEDs: One (with maximum distance of 82ft /25m)
Warm Light: Two (with maximum distance of 66ft / 20m)
Red & Blue Light: One of each
Image Setting Full Color Mode/Day & Night Mode/ Schedule
Image control options: Wide Dynamic Range WDR, Digital Noise Reduction 3D DNR, White Balance, Corridor Mode, Angle Adjustment, Electronic Shutter Speed (1/5 ~ 1/20000s)
Events / Alarms / AI
Smart Motion and Sound Detection
Deterrence and Siren: Triggered by selected events with customizable schedule
AI Detection: Face, Human & Vehicle, Perimeter Intrusion, License Plate, Line Crossing, Cross Counting(CC), Stationary Object Detection(SOD), and more (customizable schedule)
Alarms: Post recording, Send email, FTP, Cloud Recording/Picture Upload, Push notifications
Device
On-Board Storage Micro SD slot, up to 256GB
Record to Camius NVR/DVR
Record to Dropbox (you can also record to Google Drive when installed with Camius NVR or DVR)
Network
Speed: RJ45(10/100BASE-T)
Protocols: TCP/IP,HTTP, DHCP,DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPV6, Onvif Profile S/G/T
Access
Web Browser Viewer: Google Chrome V.57 above Internet Explorer 10/11, Safari V12.1 above, Mozilla Firefox V.52 above, Edge V.79 above
Camius Video Management Pro Software (For PC and Mac computers)
Camius View App (iOS/Android)
General
Operating Conditions -31°F to 140°F (-35～+60°C) / less than ≤ 90% RH
Weatherproof: IP67 rated
Power Source: PoE (IEEE802.3af) or DC 12V
