Ultimate Protection with Camius 4K Spotlight Security Camera System
Elevate your home or business security with the Camius 8 Channel NVR security system. Featuring two (2) high quality 4K PoE Spotlight Cameras, this system provides unparalleled protection with crystal-clear resolution, bright lights, and a powerful siren. Expandable and equipped with ample storage, it offers a complete security solution for your property.
Looking for the Best PoE Security Camera System
Enjoy easy installation with Camius’ plug-and-play PoE technology. The 8-channel NVR security system includes a built-in power-over-Ethernet switch, which automatically assigns unique IP addresses to each camera. This package comes with all the essential accessories, making it ideal for anyone looking for a professional-grade security setup without complicated configurations.
The Camius 8-channel NVR provides a high recording bandwidth of 128 Mbps, surpassing many other security camera brands.
2 Way Audio Security Camera System features

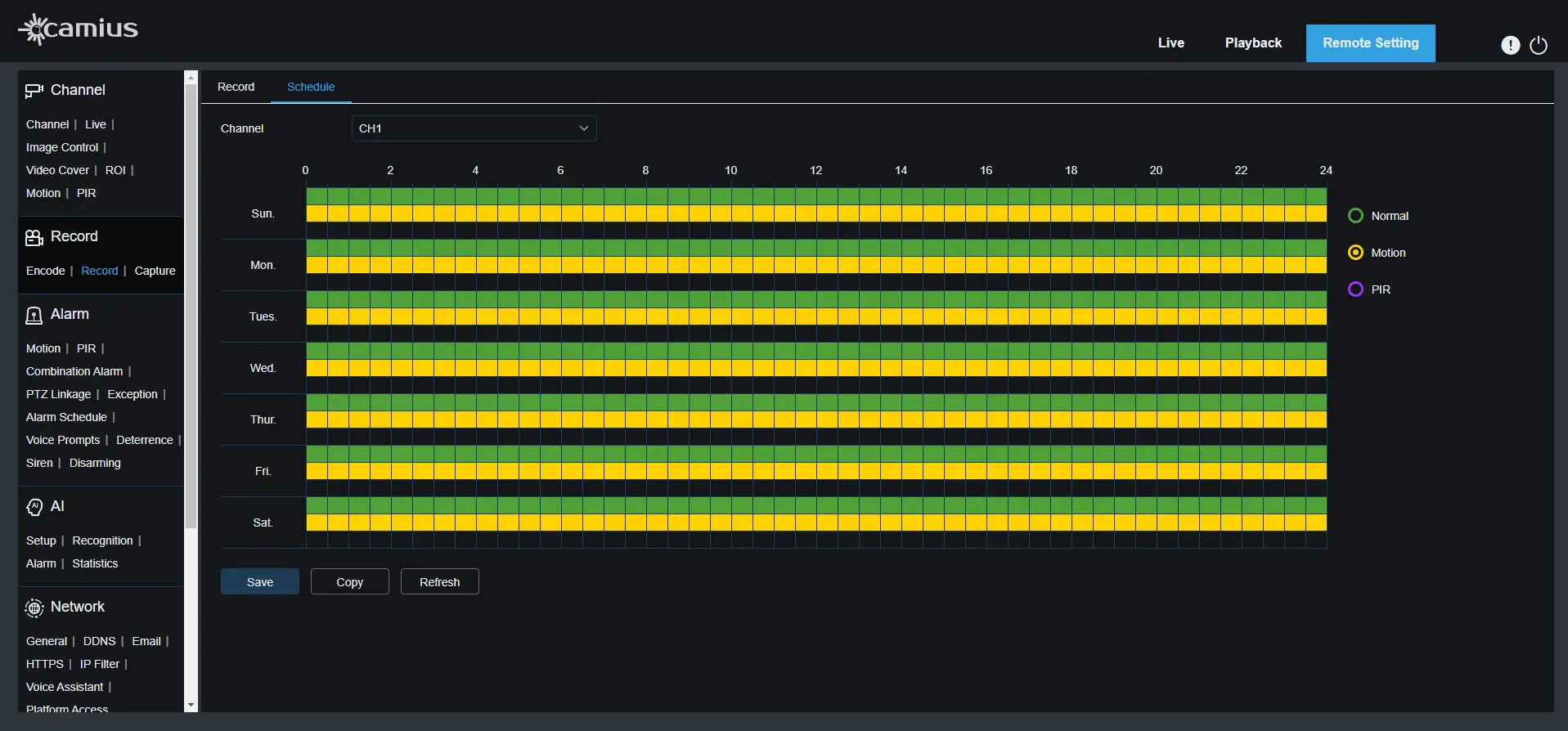

The Camius 4K PoE Security Camera System with Audio offers flexible recording options tailored to your needs. You can choose continuous recording 24/7, capturing every moment for comprehensive coverage, or motion-triggered recording that only activates when movement is detected, saving significant hard disk space.
This system includes generous storage capacity, allowing you to store recorded footage for weeks or even months. Whether reviewing past events or collecting evidence, you’ll have access to extensive data without any subscription fees. The Camius 4K PoE Spotlight Security System is a cost-effective solution for long-term security needs, providing peace of mind with every moment captured, stored, and ready for review.
4K Outdoor PoE Camera
The Camius 4K PoE Spotlight Cameras (SPOT828A-RB) are designed to provide unmatched clarity and deterrence. These robust cameras capture every detail in crystal-clear 4K resolution which is 3840 x 2160 with 30 frames per second, ensuring that nothing goes unnoticed. The bright lights and loud deterrent alarm are designed to scare away any intruders and prevent break-ins, enhancing the security of your premises. In addition, the camera is equipped with a built-in speaker for 2-way audio, allowing you to communicate directly through the camera. This feature adds an extra layer of security, enabling you to warn off intruders or interact with visitors without being physically present.
Deterrence
The security cameras have built-in deterrent features, including white LEDs, blue and red warning lights, and a powerful siren, making them your first line of defense against intruders. You can customize the deterrence and siren settings to be triggered by certain events, including AI-powered human and vehicle detection and perimeter intrusion. You can also set your own schedule for the lights and siren to be triggered.
Intelligent 4K Surveillance Camera with Advanced Detection
Harness the power of AI with Camius 4K PoE surveillance camera system. Featuring smart motion, sound, human & vehicle detection, and perimeter intrusion capabilities, these cameras provide accurate alerts and peace of mind. Customize your surveillance with advanced detection algorithms, select your schedule and type of alarm (alert) you’d like to receive whether it is an email notification, push notifications directly to your smartphone or tablet, pop-up message on the TV screen connected to the recorder, record to cloud (Google Drive or Dropbox), ensuring you’re always aware of potential threats.
Weatherproof Power over Ethernet Security Cameras for All Seasons
The Camius 4K PoE spotlight cameras are built to withstand the elements. With an IP67 rating, robust high quality metal enclosure, they perform flawlessly in rain, snow, wind or heat. Designed for durability, these cameras are suitable for indoor and outdoor use, making them perfect for guarding against intruders or monitoring harsh weather conditions throughout the year.
4K Surveillance Camera System that Works with Any Device

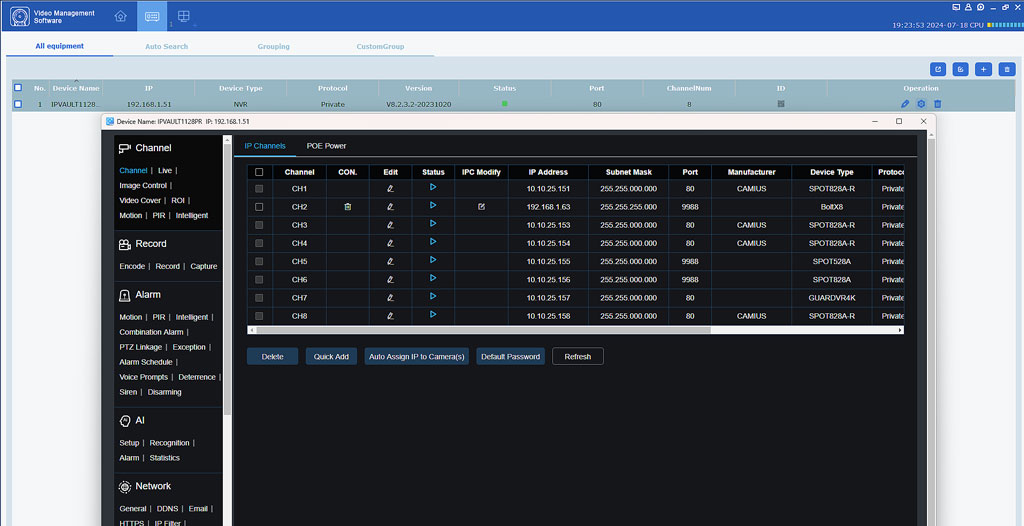

Stay connected to your property from anywhere in the world with the Camius View smartphone app, available for iOS and Android. This intuitive app allows you to view live footage, playback recorded events, and even control the lights and siren remotely. Compatibility with multiple web browsers means you can also access your 4K surveillance camera system on a computer locally or even remotely. In addition you get a free NVR software for desktop

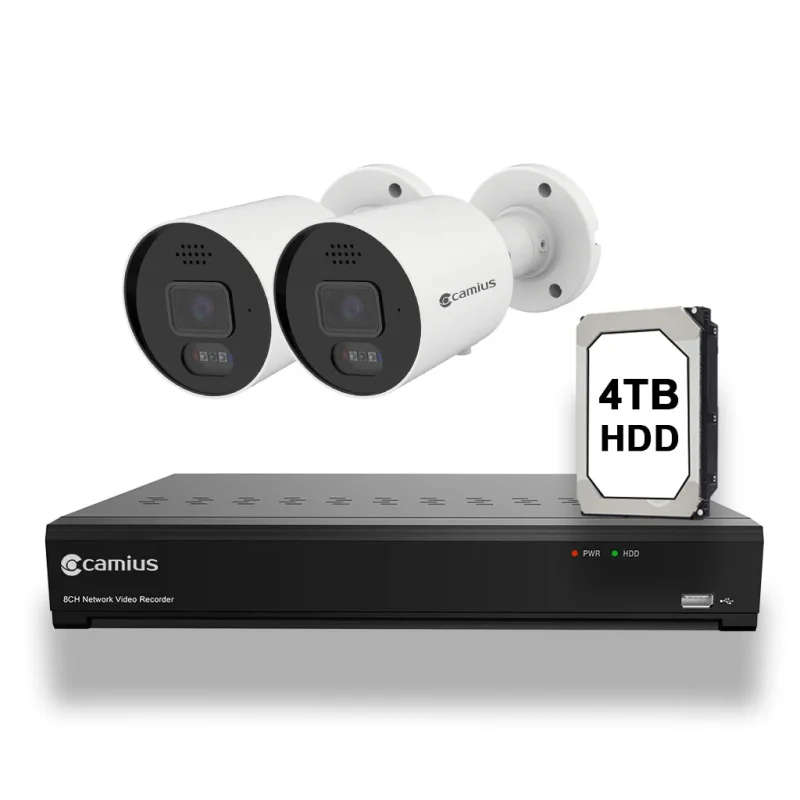

Included:
- 8 Channel NVR with 4TB HDD (IPVAULT1128PR 4TB HDD)
- (2) 4K PoE Spotlight Cameras (SPOT828A-RB)
- (2) 60-foot CAT5E cables
- NVR’s power supply, 3ft HDMI cable, 3ft ethernet cable, USB mouse, Quick Setup Guide
Specifications for Camius NVR (IPVAULT1128PR)
- Recording Bandwidth: Up to 128 Mbps
- Camera Support: View and record up to 8 HD IP cameras
- Network Interface: 8 LAN ports (Power-over-Ethernet) for seamless installation of Camius IP PoE cameras
- Camera Compatibility: Supports 4K (8 Megapixels) IP cameras
- Video Quality: Live view and playback resolutions up to 4K at 45fps, 4MP at 90fps, 2MP at 180fps
- Bitrate: Supports bitrate ranging from 64K to 16M
- Recording Modes: Dual or mainstream recording options, with features like Pre-recording (5sec), Schedule Recording, Capture Schedule, and Event triggered recording
- Encoding:
- Mainstream: 4K (3840 x 2160), 5.3MP (3072 x 1728), 2K (2880 x 1620), 2592 x 1944, 2592 x 1520, 2304 x 1296, 1080P (1920 x 1080), 1280 x 960, 1280 x 720 @ 30fps
- Substream: 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080 @ 30fps
- Mobilestream: 320 x 240, 640 x 480 @ 30fps
- Audio Control: Manage Camius IP camera audio settings and volume
- Storage Capacity: Accommodates 1 internal SATA Hard drive up to 10TB; supports Net HDD (NAS) expansion
- Video Outputs: HDMI output supporting up to 4K resolution, VGA – 1080P video resolution
- Management Features: Includes user and logs management
- Alarm: Notifications via email and smartphone push notifications; supports FTP and Cloud (Dropbox/Google Drive) uploads, show a message NVR buzzer sound
- Deterrence: Available for supported Camius IP cameras, featuring lights and siren capabilities for enhanced security measures
- Playback Capabilities: Supports Date & Time search, as well as various search types including Normal, IO, PIR, Sound, Manual, Motion, and Intelligent; Smart Search functionality for efficient video retrieval
- Playback Modes: Fast forward / backward options (2x, 4x, 8x, 16x), as well as slow forward playback (1/2x, 1/4x, 1/8x, 1/16x) for detailed video analysis
- Intelligent Analytics: Supports advanced analytics for supported Camius IP cameras, including Face detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Cross Counting, Sound Detection & more (some new features are in beta)
- User Interface: Front and rear USB ports for mouse control, backup, and firmware upgrades
- Language Options: Multiple menu languages available (English, Spanish, Portuguese, French, etc)
- Compatibility: Works with PC, Mac, and web browsers; Camius View app available for iOS and Android
- Network Protocols: Supports DHCP, PPPOE, DDNS, HTTPS, RTSP, UPNP; optimized for seamless network integration; P2P (peer to peer) for remote access
- WAN Connectivity: 1 RJ45 100/1000 Base-T1 port for wide area network (WAN) connection, ensuring high-speed data transfer capabilities over Ethernet
- Cloud Integration: Compatible with Dropbox and Google Drive for secure cloud storage
- Maintenance: Firmware upgrades and parameter management; reset button to load default settings, resetting the password
- Environmental Conditions: Operating temperature range of 32°F to 104°F (0°C to +40°C); designed for reliable performance in various environments
- Power Supply: DC48V/1.5A; PoE (IEEE 802.3af) with 48V power supply for 8 built-in PoE ports, ensuring stable power delivery
- Dimensions: Compact design measuring 12 x 9 x 2 inches (300 x 227 x 53mm) for easy integration into diverse setups
- Package Contents: Includes IPVAULT1128PR NVR, power supply, power cord, HDMI cable, network cable, USB mouse, screws for HDD installation, and NVR Installation Guide
Note: Design and specifications are subject to change without notice as we continually enhance our products. For the latest information, please visit Camius Website.
Spot828A-RB Specifications
Video
- Imaging Device: 1/2.8″ Progressive CMOS
- Effective Pixels 8MP / 4K (3840 × 2160) at 30 Fps (NTSC), 25 Fps (PAL)
- 3 Streams: Main, Sub and Mobile stream
- Bitrate: 256Kbps ~ 16Mbps
- Min. Illumination: Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
- Lens: Fixed, 2.8 mm
- Max. Aperture Ratio F No. 1.0
- Field of View: Horizontal: 106°, Vertical: 56°, Diagonal: 126°
- Minimum Object Distance: 6.7ft ( 2m)
- Video Cover (Privacy) & ROI (Region of Interest): Available
Audio
- Built-in microphone: Yes
- Built-in Speaker: Yes
- Siren: Yes
Image Control:
- Number of IR LEDs: One (with maximum distance of 82ft /25m)
- White Light: Two (with maximum distance of 66ft / 20m)
- Red & Blue Light: One of each
- Image Setting: Full Color Mode /Day & Night Mode / Smart Illumination
- Image control options: Wide Dynamic Range WDR, Digital Noise Reduction 3D DNR, White Balance, Corridor Mode, Angle Adjustment, Electronic Shutter Speed (1/5 ~ 1/20000s)
Events / Alarms / AI
- Smart Motion (Motion/Pedestrian/Vehicle/Pedestrian & Vehicle)
- Sound Detection
- Deterrence: White Light, Warning Light (Red and Blue) I Light Warning and Strobe Mode (select events triggering it and customize schedule)
- Siren: Triggered by selected events with customizable schedule
- AI functions: Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing, Object Detection, Cross Counting, Rare Sound, Intrusion and more (customizable schedule)
- Alarms: Post recording, Send Email, Email Push Platform, Light, Siren, FTP Picture/Video Upload, Recording (Customized Schedule for each alarm event)
Device:
- On-Board Storage Micro SD slot, up to 256GB
- Record to Camius NVR/DVR
- Record to Dropbox (you can also record to Google Drive when installed with Camius NVR or DVR)
Network
- Speed: RJ45(10/100BASE-T)
- Protocols: TCP/IP,HTTP, DHCP,DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPV6, Onvif Profile S/G/T
Access
- Web Browser Viewer: Google Chrome V.57 above Internet Explorer 10/11, Safari V12.1 above, Mozilla Firefox V.52 above, Edge V.79 above
- Camius Video Management Pro Software (For PC and Mac computers)
- Camius View App (iOS/Android)
General
- Operating Conditions -31°F to 140°F (-35～+60°C) / less than ≤ 90% RH
Weatherproof: IP67 rated
Power Source: PoE (IEEE802.3af) or DC 12V
