16 Channel DVR with Hard Drive Storage 16TB - Ready to Record
Secure Your Property with Futureproof DVR Recorder 16CH
This DVR supports up to 24 HD security cameras, including 16 analog cameras over coax and 8 IP cameras over Ethernet. It also supports 4K resolution, remote access, and adjustable bitrate and frame rate. These features make it an excellent choice for a wide range of applications, from small businesses to large-scale surveillance systems.
Why Camius Offers The Best CCTV DVR Recorder
This 4K Camera DVR recorder supports up to 16 analog CCTV cameras. CVBS, AHD, HD CVI, and HD TVI cameras (up to 4K video resolution) are compatible with the DVR. In addition to analog cameras over coax, the 4K Hybrid DVR works with IP network cameras. The security recorder supports up to 24 HD channels in XVR mode. Camius IP cameras are recommended since the Camius DVR recorders are optimized for plug-and-play setup, functionality, and features. Non-Camius IP camera compatibility and features may be limited.
Conver Analog Channels to IP with Camius Security Cam DVR
The total default bandwidth is 64 Mbps. Converting all analog channels to IP channels will increase the maximum bandwidth to 192 Mbps. By decreasing one analog channel, you can increase bandwidth by 8 Mbps. Add 16 analog and 8 IP channels to the Camius surveillance digital video recorder. Camius IP (network) cameras are recommended for full functionality; 3rd party IP camera support may be limited to basic video and motion detection features. Camius IP cameras to the DVR are easy and offer advanced features. Follow this how-to guide about adding IP cameras to Camius DVR.
Camius Security Camera DVR 16 Channel with 4K HDMI and Spot Output
Camius 4K DVR comes with three video outputs so you can add a monitor or TV for live viewing. The HDMI output supports 4K video (3840×2160), the VGA output supports 1080P video (1920×1080), and the CVBS (or BNC) output is for the spot monitor to call out a specific camera.

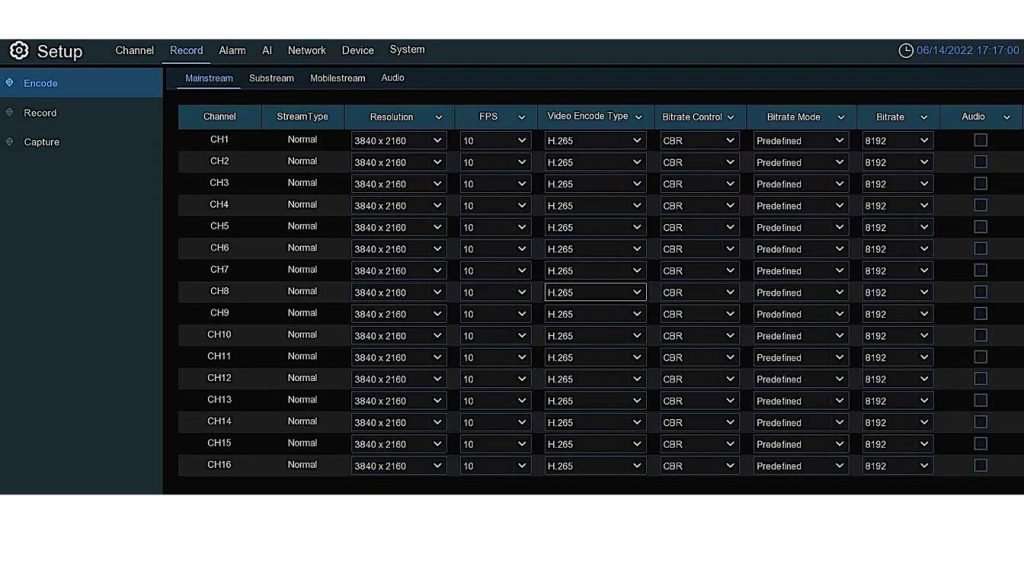

Camius Security DVR Recorders with 24/7 Recording
Camius DVR recorders capture analog cameras in razor-sharp 4K (8 MP) at a 10 frames per second (fps). And that’s not all – it also works with IP cameras. You’ve got full control over the audio settings too! Don’t miss out on checking out the lineup of Camius analog cameras and IP cameras that you can add to this DVR for an all-in-one surveillance solution.
Record 4K Video and Audio with Camius 4K Hybrid DVR 16 Channel
The newest 4K DVR from Camius can record audio. If you want to use this feature with analog cameras, you’ll need to install Camius 4K analog CCTV camera [FB4KPRO], which has a built-in microphone. For the detailed guide on how to activate audio, click on this link. Besides recording 4K video synchronized with audio, you can control audio camera settings within the DVR. The below picture shows Camius IP camera audio settings.
![The newest 4K DVR from Camius can record audio. If you want to use this feature with analog cameras, install Camius' latest 4K analog camera [FB4KAOC], which has a built-in microphone, and select 'Coaxial Audio' as the 'General - Audio Input Type' option.](https://www.camius.com/wp-content/uploads/2022/06/TRIVAULT4K2168R-Audio-IP-cameras.jpg "4K 16 Channel Dvr Recorder For Cameras - 16Tb Hdd 8")
16 Channel DVR CCTV Recorder with Email Notifications
4K CCTV DVR Recorder with Smart Motion, Sound, AI Detection (Human, Vehicle, Perimeter Intrusion detection)
This DVR for security cameras offers intelligent detection using AI analysis. This goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. This advanced detection will trigger push notifications in addition to video recording in a special color and tag. In AI mode, you can apply one of the functions for analog and IP cameras.
Why Choose Camius 16 Channel DVR Camera System
Alarm Recording: Automatically record videos or snapshots during alarm events and save them to Dropbox or Google Drive.
Time-Lapse: Capture long periods in short, easy-to-review clips.
Smart Playback: Quickly find footage by date, time, or event using the built-in Event List and Smart Search.
User Control: Set user roles and permissions for better security.
Privacy Zones: Mask areas you don’t want recorded or viewed.
System Tools: Auto-reboot and restore default settings to keep your DVR running smoothly, customize or disable menu timeouts
Remote Access: Monitor your DVR through any browser locally or remotely via DynDNS. Use Camius software on Windows or Mac for full control from your desktop. Stay connected with the Camius View app for real-time viewing and control from your phone
What’s in the box:
- 16 Channel DVR with pre-installed 2 (two) 8TB hard drive disks (model: Trivault4K2168R 16TB HDD)
- Power supply, HDMI cable, network cable, audio cable, USB mouse, quick setup guide, and set of screws
Please note that cameras are not included in this offer.
Technical Specs of Camius 16 Channel DVR Recorder for Cameras with Hard Drive 16TB
Model: TRIVAULT4K2168R
Video & Channel Configuration
- Total Channels in Hybrid XVR mode: 24 (supports up to 16 analog + 8 IP channels simultaneously (24 total), or 24 IP cameras when used in IP-only mode)
- Analog Channels: 16 BNC, supporting AHD, TVI, CVI, and CVBS cameras (auto-adaptive).
- IP Channels: 8 IP channels (expandable to 24 total if analog inputs are disabled).
- Total Bandwidth: 192 Mbps (Incoming 128 Mbps / Outgoing 64 Mbps)
Display & Playback
- Display Resolution:
Analog Channels (Main Stream):
- 8 MP (3840×2160): 10 fps record / 15 fps display
- 5 MP (2592×1944): 15 fps record / 20 fps display
- 4 MP (2560×1440): 20 fps record / 30 fps display
- 1080 P (1920×1080): NTSC 30 fps / PAL 25 fps record per channel
- 720 P / 960 H: 30 fps record per channel
IP Channels:
- Up to 4 K / 4 MP / 1080 P / 720 P @ 30 fps per channel
Note: Frame rate and total channel count depend on total bandwidth load across analog and IP inputs.
- View Layouts: 1 / 4 / 8 / 9 / 16 / 20 / 24 split-screen configurations.
- Auto Sequence: Supported.
- Playback:
- Search up to 16 channels simultaneously.
- Multi-channel playback supported (number of channels depends on resolution and decoding bandwidth).
- Playback speed: Fast forward/backward (2x, 4x, 8x, 16x), slow motion (1/2x, 1/4x, 1/8x, 1/16x).
Video Functions
- Channel Settings: Channel name, time display, covert (on/off).
- Image Control: Brightness, contrast, saturation, hue (for analog and IP channels).
- Privacy Masking (Video Cover): Up to 4 areas per channel.
- PTZ Control: RS-485, Preset, Cruise, PTZ Linkage.
- Auto Signal Detection: Automatically detects connected camera type.
Detection & Deterrence
- Motion Detection: Available on all analog and IP channels.
- PIR Detection: With compatible IP cameras.
- Alarm Triggers: Motion, I/O, PIR, intelligent (AI) detection.
- Deterrence: Light and siren control (with Camius spotlight 4K PoE cameras: SPOT828A-RB, SCOUT4KPTZ4X); Smart Illumination (White Spotlights) apply to FB4KPRO (4k analog outdoor camera)
Compression & Recording
- Video Compression: H.265 / H.264.
- Audio Compression: G.711A / G.711U.
- Recording Streams: Mainstream and Substream per channel.
- Recording Modes: Continuous, Motion, I/O, PIR, Schedule, Manual.
- Pre-record: 5 seconds.
- Post-record: Adjustable (10–300 seconds).
- Snapshot / Time-lapse Capture: Supported (max 1080P, interval 5s–1hr).
Alarm & I/O
- Alarm Inputs: 16 wired zones (NO/NC selectable).
- Alarm Output: 1 relay output (30V DC / 2A or 125V AC / 0.5A).
- RS-485 Interface: For PTZ control.
- Alarm Features: Motion, PIR, I/O, Intelligent, Combination Alarm, PTZ Linkage.
- Exception Alarms: Disk full, disk error, video loss, network failure.
- Notifications: Buzzer, Push notification via Camius View App, on-screen message.
- Scheduling: Fully configurable per channel.
AI & Smart Detection
- AI Functions: Human and vehicle detection, face detection, perimeter intrusion, line crossing, sound, license plate detection, etc.
- Analytics: People and vehicle counting, heat maps (when paired with Camius AI IP cameras).
- AI detection on up to 8 channels simultaneously. AI functions are mutually exclusive per channel.
Network Features
- Protocols: DHCP, PPPoE, SNMP, UPnP, HTTP/HTTPS, RTSP, P2P.
- Ports: HTTP, RTSP, Media, HTTPS.
- DDNS: Supported.
- Email Alerts: SMTP (SSL/TLS).
- FTP Upload: Supported — upload snapshots or clips from motion or alarm events to a remote FTP folder.
- Cloud Storage: Dropbox, Google Drive.
- IP Filter: Allow/Block IP addresses.
- Remote Access:
- Camius View App for iOS & Android,
- Camius VMS Software for PC and Mac.
- Browser access (HTTP/HTTPS)
- Note: The TRIVAULT4K2168R operates fully offline. Recording, playback, and export do not require an internet connection. Network and motion features can be disabled when not needed.
Storage
- Internal Drives: 2 × SATA (up to 14TB each).
- External Storage: 1 × eSATA
- Network Storage: NAS (NetHDD) supported.
- Recording Management: Overwrite and redundancy options.
- HDD Format Options:
- Format entire hard disk – erases all data (including videos, events, logs, analytics).
- Format record partition – erases videos, snapshots, logs; keeps analytic information.
- Format general partition – erases only analytic information; videos and snapshots remain.
System Management
- Users: 1 Admin + 31 User accounts.
- Settings: Device name, audio input type (base-band or coaxial), date/time, output resolution.
- Maintenance: Auto reboot, logs, firmware upgrade via USB or network.
Video Outputs
- HDMI: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P, 2K, 4K
- VGA: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P
- CVBS: BNC output, 704×576
Interfaces
- USB: 1 × USB 2.0 (front), 1 × USB 3.0 (rear).
- LAN: RJ45 10/100/1000 Base-T.
- RS-485: A/B terminals for PTZ control.
- Alarm I/O Block: 16 inputs, 1 relay output.
- Audio: 4 RCA inputs + 1 output, expandable to 16 via DB9 connector.
Power & Environmental
- Power Supply: DC 12V / 5A (Input 100–240V, 50/60Hz).
- Power Consumption: ≤20W (excluding HDDs).
- Operating Temperature: 32°F–104°F (0°C–40°C).
- Humidity: ≤90% (non-condensing).
Physical
- Dimensions: 380 × 320 × 53 mm (15 × 13 × 2 in).
- Net Weight: 2.45 kg (5.4 lbs, without HDD).
- Gross Weight: 3.37 kg (7.4 lbs, with packaging).
In the Box
- DVR unit
- Power adapter
- HDMI cable
- Audio cable
- Network (Ethernet) cable
- USB mouse
- DVR Quick Installation Guide
The above specifications provide a comprehensive overview of the TRIVAULT4K2168R’s powerful features, making it an excellent choice for high-resolution, smart video surveillance.
FAQs About 16 Channel DVR Recorder for Security Cameras
What kind of DVR do you need for security cameras?
You need a DVR that matches your cameras’ format, such as AHD, TVI, CVI, or CVBS for analog systems. A hybrid DVR is best if you want to add IP cameras as well. Camius DVRs support from low resolution to 4K analog and IP cameras, offer AI detection, remote viewing, and storage up to 16TB upgradable to 42TB, making them ideal for home or business security.
Can I use any DVR with my security cameras?
Not all DVRs are universally compatible with every security camera. Compatibility depends on the surveillance camera’s technology—analog (CVBS), HD analog (TVI, AHD, CVI), or digital IP. Using just “any DVR” may lead to issues like limited resolution, missing features, or complete incompatibility. Camius 16 channel DVR systems are hybrid and support multiple video formats, including low-resolution CVBS, HD Analog (AHD, CVI, TVI) up to 4K over coax and IP cameras up to 4K as well over the network, ensuring flexible connectivity with both Camius analog and network cameras and many third-party models. For full access to smart features like AI motion detection, audio recording, and remote mobile viewing, we recommend pairing Camius cameras with a Camius DVR designed for high performance and seamless integration.
Do DVRs come with hard drive?
Yes, most DVRs come with a built-in hard drive designed to store recorded footage locally. Most manufacturers include low-capacity HDDs from 500GB to 2TB, which is barely enough for a couple of days of recording with 4K video resolution. However, not all DVRs are created equal when it comes to storage capacity and performance. Camius DVR systems stand out by offering pre-installed surveillance hard drives, starting from 3TB and going up to 16TB or more, depending on the model, which you can upgrade to 42TB storage by supporting 14TB per internal and external SATA port!
Unlike many brands with limited storage, the Camius 16 channel DVR comes equipped with up to 16TB of pre-installed storage, eliminating the need for frequent external backups and supporting long-term, 24/7 continuous or motion-based recording. This makes it an ideal solution for homes and businesses looking for high-capacity, high-reliability video storage without relying on external drives or cloud subscriptions.
Do I really need a DVR for security cameras?
If you’re using analog or coaxial security cameras, then yes—a DVR is a must to record, store, and access your footage. While some modern cameras (IP type only) offer alternatives like SD cards or cloud storage, these options are limited in capacity and reliability, and some require a subscription to access the footage. A Camius DVR provides continuous 24/7 recording, advanced motion-triggered events, and long-term storage without monthly fees. Our Camius 16 channel DVR with 16TB storage is built for professional-grade security, giving you complete control over your surveillance system—ideal for homes, offices, and businesses seeking dependable video retention and privacy.
What are the maximum channels for DVR?
The maximum number of channels a DVR can support depends on the type and model. A DVR channel refers to the number of cameras you can connect and record from at the same time. Most DVRs come in options like 4, 8, 16, 32, or 64 channels. Some advanced systems go up to 128 channels for very large setups.
At Camius, our 16 channel DVR systems are ideal for medium to large properties, allowing you to connect up to 24 cameras that include 16 HD analog cameras and additional 8 IP cameras over the network, thanks to our hybrid DVR technology. This gives you more flexibility and future expansion options without replacing your system.
Unlike basic DVRs, Camius DVRs support high-resolution video (up to 4K), AI detection, and large storage capacities (up to 16TB)—making them a powerful choice for home and business security systems. If you need more than 24 channels, Camius NVR systems are available with up to 32 channels and support for 12MP resolution, ideal for all-IP camera setups.
Will any DVR work with security cameras?
No, not every DVR works with every camera. The DVR must match the camera’s signal type, such as AHD, TVI, CVI, or CVBS. Hybrid DVRs like Camius models support both analog and IP cameras, giving you more flexibility for upgrades and expansion.
