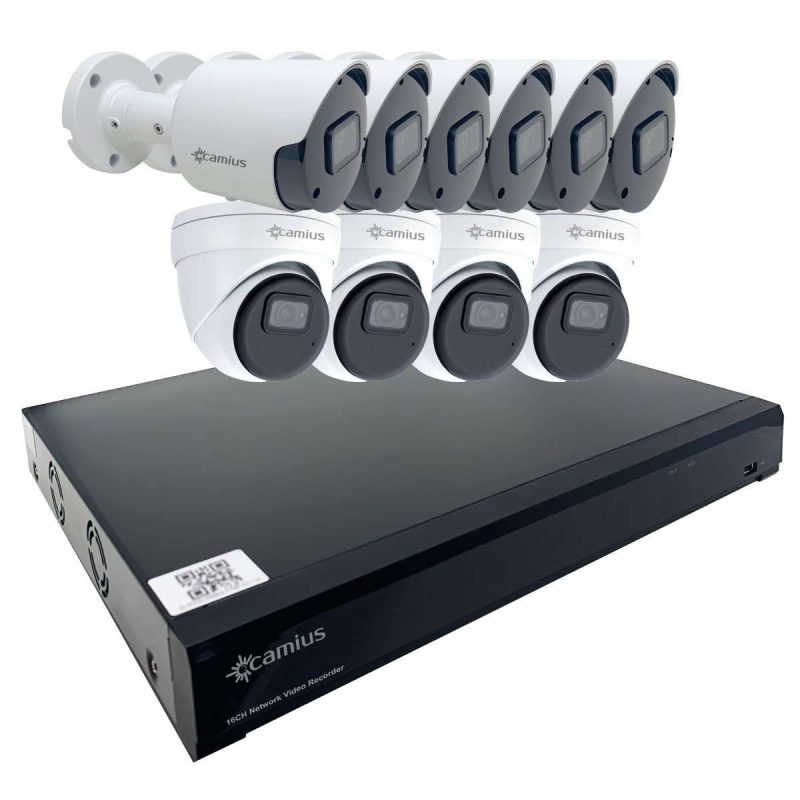

Camius 4K 16 Channel NVR system with 10 5 megapixels Power over Ethernet security cameras delivers super HD 2K video and audio in addition to Smart Motion, Sound, Human & Vehicle Detection Detection, and more. In addition, the 16 Channel NVR with the highest recording bandwidth will satisfy any business owner’s security requirements. You can add up to 30TB of internal and external storage to this advanced NVR surveillance system for weeks or months of recorded footage.
Plug-N-Play Camius PoE IP Cameras and Network Video Recorders
The 16 Channel NVR has a 16-port built-in power-over-ethernet interface that makes the surveillance camera installation easy and fast. In addition, the network video recorder assigns a unique IP address to Camius IP cameras. As a result, users do not require a complicated camera configuration.
Camius 5MP PoE Dome Camera
The Camius 5MP PoE Dome Security Camera boasts impressive features that make it an ideal choice for those looking for a high-quality surveillance solution. With its 1/2.7” Progressive CMOS Image Sensor, the camera captures crisp and clear 2K video at 30 frames per second, with a resolution of 2880 (H) x 1620 (V). The camera also features a super wide-angle 2.8mm lens, which provides a 110-degree field of view, ensuring you can capture a wide area with just a single camera. In addition to video, the camera also includes a built-in microphone, enabling listen-in and audio recording capabilities. The camera’s motion and sound detection, as well as its AI detection, including human and vehicle, cross counting, rear sound detection, and more, ensure you’ll always know what’s happening. Other features like 100ft night vision in color, a wide dynamic range, corridor, mirror modes, and a white metal enclosure complete the package. Overall, the Camius 5MP PoE Dome Security Camera is an excellent choice for anyone who values quality, versatility, and performance in their surveillance system.


Camius 5MP Outdoor PoE Security Camera
The Camius 5MP PoE camera is a standout outdoor bullet camera that offers a range of impressive features. It boasts 2K video quality with a resolution of 2880 (H) x 1620 (V), and it captures 30 frames per second with the help of a 1/2.7” Progressive CMOS Image Sensor. It’s 3.6mm lens provides a wide field of view, with a horizontal 91°, vertical 46°, and diagonal 110° angle. What sets this camera apart is its AI detection capabilities, which include human and vehicle detection, perimeter intrusion, line crossing detection, cross-counting detection, and reports. It also has motion and sound detection and a built-in microphone for recording audio. The Camius 5MP PoE camera features 100ft night vision, which captures color images even in low light conditions and offers wide dynamic range, corridor, and mirror mode options. The camera’s sturdy white metal enclosure makes it suitable for outdoor use and helps it withstand harsh weather conditions. Overall, the Camius 5MP PoE camera offers a range of advanced features, making it an excellent choice for those looking for high-quality outdoor surveillance solutions.



Advanced 16CH NVR recorder
The 16CH NVR network video recorder has a built-in power-over-ethernet switch, making the setup easy and quick. Camius security NVR assigns a unique IP address to the Camius IP camera. No more complicated IP configuration.
Note that if you set up the Camius IP camera’s password before adding it to the NVR, we recommend resetting it using the on-camera reset button. If the camera has no password set, it will start playing on the NVR (refer to the ‘State’ in green, which means you added the camera successfully).
Once the camera is plugged into the NVR’ PoE port, you will see PoE power consumption by selecting the ‘ PoE Power tab.
Camera system for business with high bandwidth & latest video and audio compression
Camius PoE NVR Camera System offers numerous advantages for those looking for a reliable security system. With the ability to support up to 16 PoE audio and video surveillance cameras, it offers high scalability to meet changing needs. Additionally, the system boasts a high bandwidth of up to 256 Mbps, enabling smooth and seamless transmission of video footage. Including H.264 and H.265 video compression further optimizes storage space and network bandwidth utilization, providing an efficient and cost-effective solution for video surveillance. These features make Camius PoE NVR Camera System a top choice for those seeking an advanced and versatile surveillance solution.
4K Live View
Camius 16 Channel NVR (network video recorder) comes with 3 video outputs to add a monitor/TV for live view
- 1 x HDMI (HDMI2) output for the primary monitor, which supports 4K video (3840×2160)
- 1 x HDMI (HDMI2) video output for a secondary monitor that supports 1080P display resolution
- 1 x VGA output
Follow this guide if you need to adjust the monitor’s resolution
Camius 16 channel NVR has an additional HDMI output for a secondary monitor that you can customize.






Network Video Recorder Storage
The NVR can fit two internal SATA (SSD) hard drives and an external eSata port for additional storage. While the security camera system allows for saving footage to an FTP or Cloud (such as Dropbox or Google Drive), reliable storage is a crucial component of an intelligent security camera system. Camius NVRs feature a dedicated section that provides information about the health of the installed hard drives using the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) process. This technology runs in the background and on-demand, updating users on the hard drive’s health.



Super HD 2K Video Resolution
These PoE cameras record 5 Megapixels of video, 2.5 times the pixels of an HD 1080p security camera. Instead of 1920 × 1080, over 2,000,000 pixels, this super HD 2K PoE security camera system can record at a pixel ratio of 2880 x 1620. More pixels delivered by the security camera allow you to get more enhanced picture details when you zoom in.


Surveillance cameras with Enhanced Night Vision
2K PoE cameras offer color night vision view mode in ambient light conditions. Camius cameras adjust the displayed stream to include color on a video at night. This allows the user to distinguish colors on a subject, like a red vehicle or a blue shirt. Even the moon or starlight is enough to keep the camera in Color Night Mode. In complete darkness, cameras deliver a black-and-white picture. The camera’s infrared distance is 100 feet.
24 Hour Recording
The Camius NVR system provides users with various recording modes to suit their needs and preferences. With continuous recording, users can capture footage around the clock, ensuring no activity goes unnoticed. Scheduled recording allows users to specify specific times during the day or week when they want their cameras to be active, which can help conserve storage space and reduce unnecessary footage. Motion detection recording is another popular option, which triggers the camera to start recording when motion is detected, thereby minimizing the amount of footage that needs to be reviewed. Finally, the Camius NVR system also offers alarm-triggered recording, which starts recording when an alarm is triggered, providing users with critical footage that can be used to investigate incidents and help identify potential threats. Overall, the Camius NVR system’s flexible recording modes provide users with the control and customization they need to create a video security system that works best for them.
10 Camera Surveillance System with Audio
These Camius dome security cameras with audio recording allow you also to listen to audio life. You can also turn on and off the camera’s audio. Sound Detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode.
Highly customizable image control settings
Camius 2K IP cameras have highly customizable image settings, which you can control directly in the network video recorder. You can select the best IR settings, including the IR cut mode, IR cut delay, IR LED way, and even the level of IR LED lights (low beam light). In addition, you can also control the camera’s view using the Lens Flip, Angle Flip, selecting Corridor mode, enabling WDR (wide dynamic range), and even more. You can save default settings by clicking on the ‘Default‘ tab.
In addition, the dome camera delivers a 110-degree view, reducing the number of blind spots. While the bullet camera provides a 91-degree view.


Alarms
You can enable alarm settings using the NVR. Alarms include a recorder’s buzzer sound, sending email alerts, push notifications to the CAMIUS VIEW smartphone camera app, recording, pre-recording, and uploading images to Cloud through the NVR (Dropbox or Google Drive). Note, Voice prompts are in beta.
You can schedule an alarm for each camera and select the following events to trigger it:
- Motion Detection
- Stationary Object or Sound Detection in Intelligent mode
- AI detection includes Human & Vehicle Detection (PD&VD), Cross Counting (CC), Perimeter Intrusion detection (PID), or Line Crossing detection (LCD). You can enable one of the AI functions.
- ‘Exception’ that includes No Space on your Hard Drive Disk, Disk error or failure, Video Loss


Smart Motion Detection
Camius NVR network video recorder allows motion detection to monitor and record all the activity in your home and business. You can also select your motion target detection that includes not any video motion but Pedestrian, Vehicle, or Pedestrian & Vehicle as your target. Please note motion detection recording and alarm schedule are not enabled by default and need to be turned on by a user.
Best Wired Security Cameras Outdoor System with Sound Detection
Camius 2K IP cameras support Sound Detection in Intelligent mode
Sound detection is triggered when a sudden loud noise occurs near the camera; it alerts the user and records in Intelligent mode. You can set up alarms triggered by Sound detection, and if you click on ‘Intelligent,‘ make sure to enable Sound detection by checking the switch box.
10 Camera System for Home and Business with AI Detection
Camus’s 10 camera security system offers detection using AI analysis. It goes beyond video motion detection, allowing the user to create zones for detecting movement patterns, location, etc. You can activate one of the AI detections to get precise reports and analytics. AI Detection will trigger recording, email, or push notifications in addition to video recording in a unique color and tag.
AI Detection includes:
- Human & Vehicle Detection (PD & VD)
- Perimeter Intrusion Detection (PID)
- Line Crossing Detection (LCD)
- Cross Counting (CC)
- More AI functions are in the Beta version
You can enable Human & Vehicle Detection in AI mode and then allow push notifications on your mobile app. Make sure to select Schedule and save it.


Free NVR software and Remote Apps
NVR PoE camera system goes beyond the HDMI monitor and smartphone app. The free NVR software (VMS) can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station. Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings. This software is excellent for multiple installations as it can combine cameras connected to a Camius DVR or NVR and individual Camius cameras on one screen. The software also displays. Click here for the guide on adding the NVR to your Camius VMS software
Camius View App
The Smartphone Security Camera App Camius View offers complete access to your cameras from any location. Click here on how to add your security cameras to the app. The mobile app is available on iOS and Android App stores and is ready to link to your security cameras. You can use your smartphone security camera App to view and playback any Camius security camera, listen to audio, and control the system entirely, including restarting it remotely.
You can control your NVR system using your smartphone app.

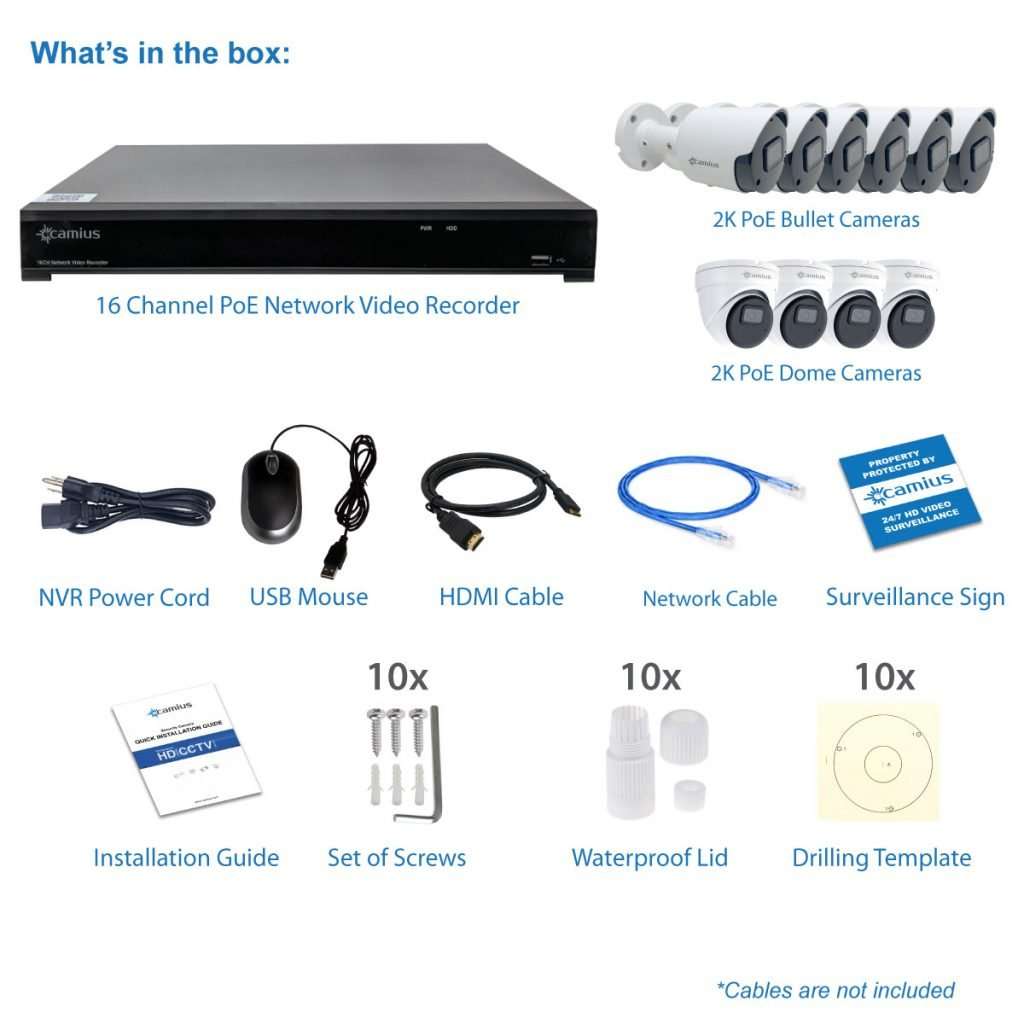

What’s in the box:
- 16 Channel NVR (IPVAULT2256PR)
- 6 x 2K PoE Bullet Camera (BOLTX536R)
- 4 x 2K PoE Dome Camera (IRIS528R)
- NVR’s power cord, HDMI cable, Network cable, USB mouse, Installation Guide, Tech support info
- Note: this bundle includes no hard drive(s) and cables. You can order an additional hard drive and Cat5E cables on Camius.com
