Get the Best PoE 4K Security Camera System with 320 Mbps 16 Channel NVR
Camius 4K PoE Hardwired Outdoor Security Camera System is designed for businesses and large residential installations, offering bright white light in addition to red and blue lights, siren, and 2-way audio that is proven to deter criminals. This advanced IP camera security system is for businesses and large houses

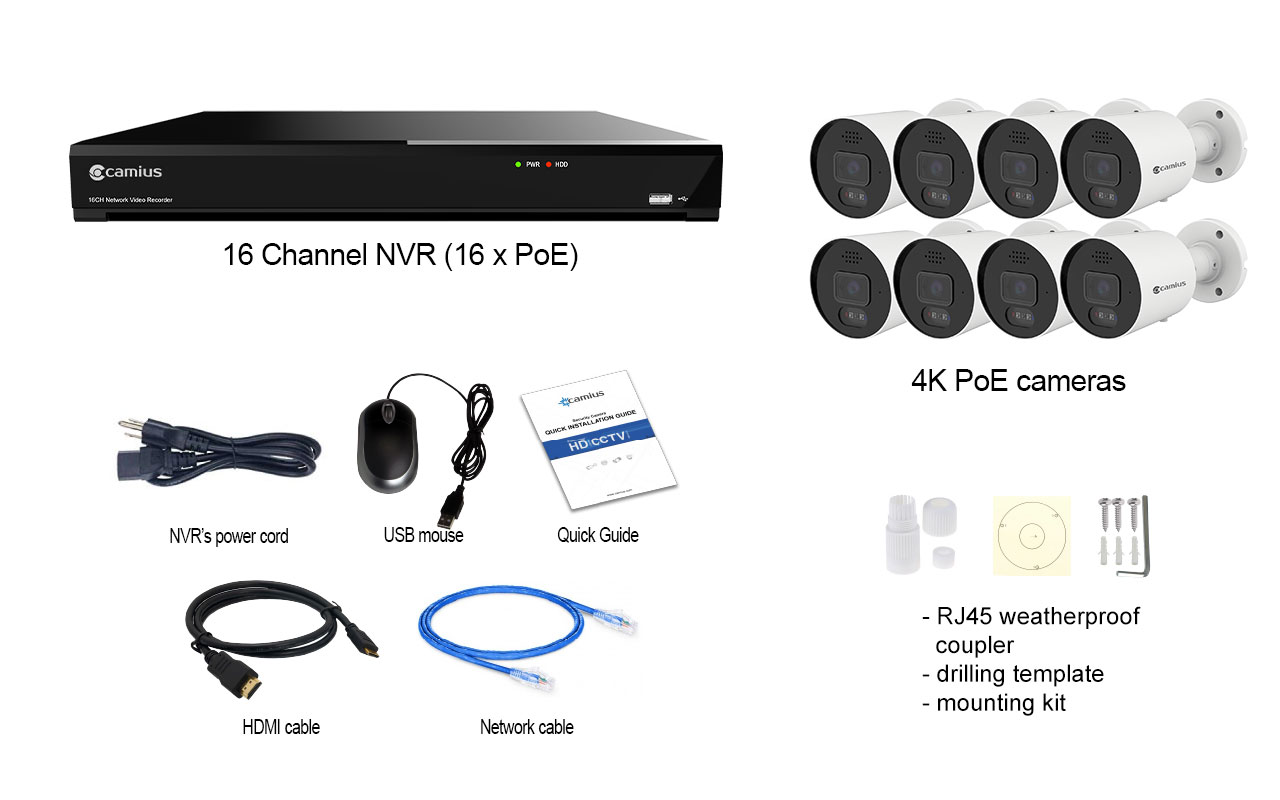

What’s in the box:
- 1 x IPVAULT2320PR 16 Channel NVR with local storage
- 8 x SPOT828A-RB (4K PoE outdoor cameras)
- 1 x Power cord, HDMI & Network Cables, USB mouse, Quick Setup Guide
Best 4K Outdoor Security Camera System Features
Power Over Ethernet Outdoor Security Cameras
Simplify PoE cameras installation with a single cable providing both power and data transfer
320 Mbps NVR 16 Channel Bandwidth
Top-tier bandwidth range of 320 Mbps for smooth high-res video and audio streaming & recording
AI Powered Security Cameras
Stay ahead with AI-powered motion, human, vehicle, sound, face, license detection & more
4K Cameras with Two Way Audio Talk
Communicate in real-time with built-in microphones and speakers for added security and protection
Security Cameras PoE Outdoor System with 320 Mbps True 4K NVR
Camius 16 Channel NVR supports 4K capabilities and high recording bandwidth, providing smooth and uninterrupted recording for businesses of all sizes. It supports 320 Mbps (megabits per second) of recording bandwidth, accommodating stunning 4K CCTV camera system footage for all connected cameras. The advanced network video recorder supports both internal and external hard drives for extended recording capacities, making it an ideal choice for business surveillance.
4K Camera Security PoE System with Easy Plug-N-Play Setup
Camius PoE wired security cameras and NVRs offer plug-and-play surveillance, requiring minimal setup and configuration. The addition of new cameras to the 16 Channel NVR is streamlined, creating a hassle-free surveillance system suitable for businesses.
Deterrence with Camius 4K PoE Outdoor Camera
Camius PoE 4K security camera system deters unwanted activity and ensuring peace of mind. They’re not just cameras; they’re your eyes and ears, alerting you to motion, sound, pedestrian, vehicle and more detection with impressive precision. With their advanced features, including color night vision powered by white spotlights and attention-grabbing red and blue lights triggered by specific alarm events, these cameras stand as formidable deterrents against potential threats.

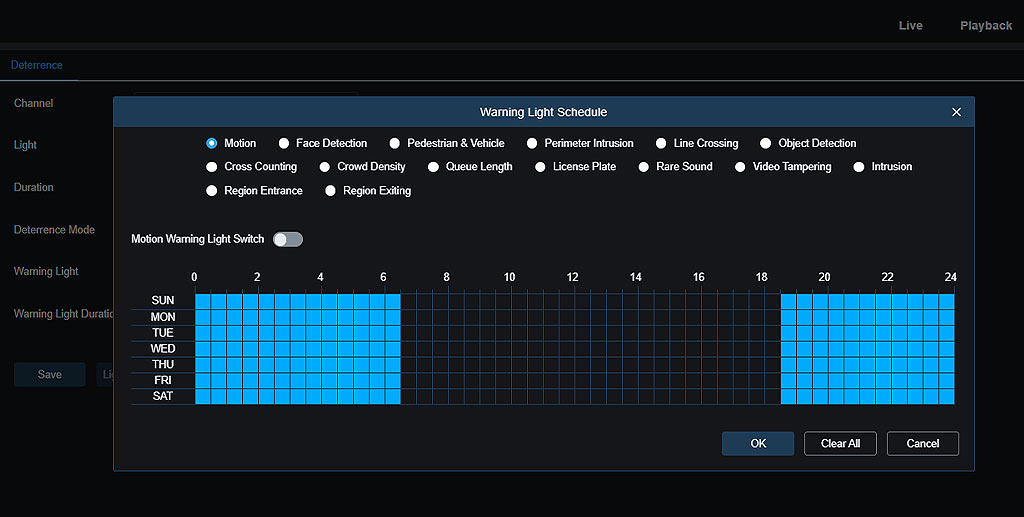

4K NVR Camera System with Controllable Siren and Alarm Lights
Camius’ 4K outdoor cameras feature a built-in siren with loud siren and adjustable volume levels, ensuring flexibility in deterring potential security breaches for businesses or homes. Users have the freedom to customize each camera’s siren’s schedule and select specific events to trigger its activation, providing a personalized approach to security measures.
Built-In Spotlights
Illuminate and protect your property with motion-activated lights
Red and Blue Alarm Lights
Deter intruders from your property with red and blue lights
Built-In Siren
Louf siren for active intruder deterrence, triggered by motion, AI detection
PoE Wired Security Cameras with 2 Way Audio
The CCTV Camera 2 Way audio system also supports 2-way audio communication using the Camius View App, providing an additional layer of security and convenience.
Two Way Audio
Communicate in real-time with built-in microphones and speakers for added security and protection
4K PoE Security Camera System with 24/7 Recording
At Camius, we’re all about giving you peace of mind, which is why our security camera system records round-the-clock, so you never miss a thing. Whether you want continuous coverage or prefer motion-triggered recording, we’ve got you covered. Our NVR supports two internal and one external high-capacity hard drives, ensuring you’ve got plenty of space to store all your footage.
2 x SATA HDD. No Monthly Fees
Enjoy 24/7 recording with local storage for months, 42TB storage capacity—no subscription fees!
Best 4K PoE Security Camera with Remote Monitoring and Management
Camius NVR security camera system offer various monitoring options, including access via free NVR software, web browser, a smartphone app. The NVR software can turn any device into a surveillance station, while the smartphone app provides remote access, playback, and control of the security cameras, offering businesses convenient and flexible management options.
Fully Supported Applications
Enjoy live monitoring via PC, Mac, smartphone app, or browser
IP Camera 4K PoE Outdoor System Technical Information
PoE Camera System 4K 16 Channel NVR Specs (IPVAULT2320PR)
Bandwidth: 320 Mbps
Performance
- Recording Compression: Audio: G.711A/ G.711U, Video: H.264/H.265/H.264+/H.265+
- Speed: 12MP: 30fps, 8MP: 120fps, 4MP: 240fps 2MP: 480fps
- Playback: 1080P: 480fps, Max 16CH
Network
- Protocols: RTSP, SNMP, DDNS, HTTP/HTTPS, TCP, UDP, FTP, MQTT, HLS, SMTP, UPNP, Onvif (profile S/G/T)
- Voice Command: Home Device: Google Assistant, Amazon Alexa
Video Output
- 1 VGA output, which supports resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, and 1920×1080.
- HDMI 1 output, mainly used for the main monitor, supporting resolutions like 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440 (2K), and 3840×2160 (4K)
- HDMI 2 is used for the secondary spot monitor, supporting resolutions up to 1080p (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080), as well as EDID and Async
Ports and Interfaces
- Ethernet: 2 RJ45 ports for fast network connectivity.
- PoE: 16 RJ45 ports support Power Over Ethernet (PoE) for easy IP camera connection
- USB: Front USB 2.0, rear USB 3.0 & USB 2.0 for versatile connectivity.
- Audio I/O: 1 input & 1 output for audio recording and playback.
- RS485: 1 interface for device communication.
- Alarms: 16 inputs & 1 output for comprehensive alarm system integration.
Storage
- Two Internal SATA Hard Drive Ports: up to 12 terabyte
- One e-SATA
Device Access:
- Web Browser Application: compatible with IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
- Video Management Software for Windows PC and Mac computers
- Camius View mobile app (iOS/Android)
General:
- Menu Supported Languages: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
- Dimension (W x D x H): 14.88 x 12.48 x 1.97 inches / 378 x 317 x 50mm
- Input Voltage/Current: Built-in power supply of ATX 280 watts
- Power Consumption: The NVR uses about 12 watts of power, not counting the hard disk
- Operating Temperature/Humidity: Camius NVR’s working temperature is ranging from 14°F to 122°F (-10°C to +50°C), and the humidity should be kept below 90% RH
4K PoE Camera Specifications (SPOT828A-RB)
Video
Imaging Device: 1/2.8″ Progressive CMOS
Effective Pixels 8MP / 4K (3840 × 2160) at 30 Fps (NTSC), 25 Fps (PAL)
3 Streams: Main, Sub and Mobile stream
Bitrate: 256Kbps ~ 16Mbps
Min. Illumination: Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON
Lens: Fixed, 2.8 mm
Max. Aperture Ratio F No. 1.0
Field of View: Horizontal: 106°, Vertical: 56°, Diagonal: 126°
Minimum Object Distance: 6.7ft ( 2m)
Video Cover (Privacy) & ROI (Region of Interest): Available
Audio
Built-in microphone: Yes
Built-in Speaker: Yes
Siren: Yes
Image Control
Number of IR LEDs: One (with maximum distance of 82ft /25m)
Warm Light: Two (with maximum distance of 66ft / 20m)
Red & Blue Light: One of each
Image Setting Full Color Mode/Day & Night Mode/ Schedule
Image control options: Wide Dynamic Range WDR, Digital Noise Reduction 3D DNR, White Balance, Corridor Mode, Angle Adjustment, Electronic Shutter Speed (1/5 ~ 1/20000s)
Events / Alarms / AI
Smart Motion and Sound Detection
Deterrence and Siren: Triggered by selected events with customizable schedule
AI Detection: Face, Human & Vehicle, Perimeter Intrusion, License Plate, Line Crossing, Cross Counting(CC), Stationary Object Detection(SOD), and more (customizable schedule)
Alarms: Post recording, Send email, FTP, Cloud Recording/Picture Upload, Push notifications
Device
On-Board Storage Micro SD slot, up to 256GB
Record to Camius NVR/DVR
Record to Dropbox (you can also record to Google Drive when installed with Camius NVR or DVR)
Network
Speed: RJ45(10/100BASE-T)
Protocols: TCP/IP,HTTP, DHCP,DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, IPV6, Onvif Profile S/G/T
Access
Web Browser Viewer: Google Chrome V.57 above Internet Explorer 10/11, Safari V12.1 above, Mozilla Firefox V.52 above, Edge V.79 above
Camius Video Management Pro Software (For PC and Mac computers)
Camius View App (iOS/Android)
General
Operating Conditions -31°F to 140°F (-35～+60°C) / less than ≤ 90% RH
Weatherproof: IP67 rated
Power Source: PoE (IEEE802.3af) or DC 12V
FAQ About PoE 4K Security Camera System
What is the best hardwired security camera system?
Determining the best hardwired security camera system depends on various factors such as specific needs, budget, and desired features. However, Camius offers a range of high-quality hardwired security camera systems renowned for their reliability, clarity, and advanced functionalities. The Camius UltraHD 4K PoE Security Camera System is a standout choice, known for its superior resolution, robust build, and seamless integration with Camius NVRs (Network Video Recorders).
For optimal performance, the best hardwired security camera system should meet several criteria:
- 4K Video Support: The NVR should be capable of supporting 4K video resolution, ensuring crisp and detailed footage. Camius 16 channel NVR records offer 256 and 320 Mbps (megabits per second) bandwidth, which is one of the highest in the industry
- High Capacity Hard Drives: It should accommodate high-capacity hard drives capable of storing at least a month’s worth of recordings, ensuring continuous surveillance without frequent data management.
- Deterrence Features: The system offering deterrence, such as built-in sirens or bright LED spotlights, enhances security measures and deter potential intruders.
- Accurate Motion Detection: Advanced motion detection technology should prevent false alarms triggered by non-threatening movements, such as pets or tree branches.
- Compatibility: The system should be compatible with various devices, including smartphones, tablets, and PCs, allowing users to monitor their property remotely from any location.
The Camius PoE Security Camera Systems excels in these areas, making it an ideal choice for users seeking comprehensive surveillance solutions tailored to their specific requirements.
Are wired security cameras better?
Wired security cameras offer several advantages over their wireless counterparts, making them preferable in many scenarios. One key advantage is reliability. Wired cameras establish a direct connection to the recording device, which eliminates potential signal interference or dropout issues commonly associated with wireless systems. This direct connection also ensures more stable and consistent video feeds, providing clearer images for enhanced security monitoring.
Moreover, wired setups eliminate the need for battery replacements or recharging, offering uninterrupted surveillance capabilities. However, in cases where foot traffic is low and budget constraints prohibit extensive wiring, or wiring is non-feasible, Camius offers wire-free battery-operated wireless security cameras with NVR. These cameras are equipped with 4K video resolution, audio capabilities, and deterrence features. They provide a flexible solution that combines the benefits of wireless installation with the reliability and advanced features of wired systems, ensuring comprehensive security coverage tailored to different needs and environments.
Do wired security cameras need Wi-Fi?
Wired security cameras do not require Wi-Fi to operate. Instead, wired cameras utilize physical cables (e.g., Ethernet cables for PoE cameras) to establish connections with the recording device or network infrastructure.
How do wired security cameras get power?
Wired security cameras typically receive power through the same cables used for data transmission, a configuration known as Power over Ethernet (PoE). PoE technology simplifies installation and reduces cable clutter by combining power and data transmission over a single Ethernet cable. PoE-enabled cameras draw power from a PoE switch or injector connected to the network, eliminating the need for separate power outlets near each camera. This centralized power delivery method enhances system reliability and scalability, making it a preferred choice for professional-grade surveillance installations. Camius offers a range of PoE-enabled security cameras and NVR recorders designed to streamline plug-n-play installation and ensure consistent power supply for uninterrupted surveillance operations.
