Upgrade to 4K Analog Surveillance with Camius BNC Camera System
Enhance your security with the cutting-edge Camius 8 4K BNC Camera DVR System. This hybrid solution seamlessly integrates analog BNC cameras with advanced digital video recording, providing crystal-clear 4K video quality without the hassle of rewiring. Ideal for homeowners, business owners, DIY enthusiasts, and professional installers alike.
Future Proof DVR Security Camera System
- 8 channel hybrid DVR supports 8 BNC analog cameras and 4 IP cameras
- Massive 8TB hard drive for ample recording storage
- Remote access via smartphone app, tablet, or computer
- Smart motion detection, human/vehicle detection for enhanced monitoring
Superior Performance of Camius 4K Analog Security Cameras with BNC DVR
Superior 4K Analog Security Camera Performance
- 4 x 4K analog vandal-proof dome cameras with wide-angle view
- 4 x 4K analog bullet cameras with DVR controlled lights for full color night vision, IP66 weatherproof for outdoor use (built-in microphone)
- Expandable with Camius PoE IP cameras with audio, spotlights, siren
Ample storage capacity of Camius DVR recording system
As many other security systems of Camius, this DVR recording system comes with large hard drive of 8 terabyte to accommodate months of the higher video streams from 4K cameras while still providing ample recording time.

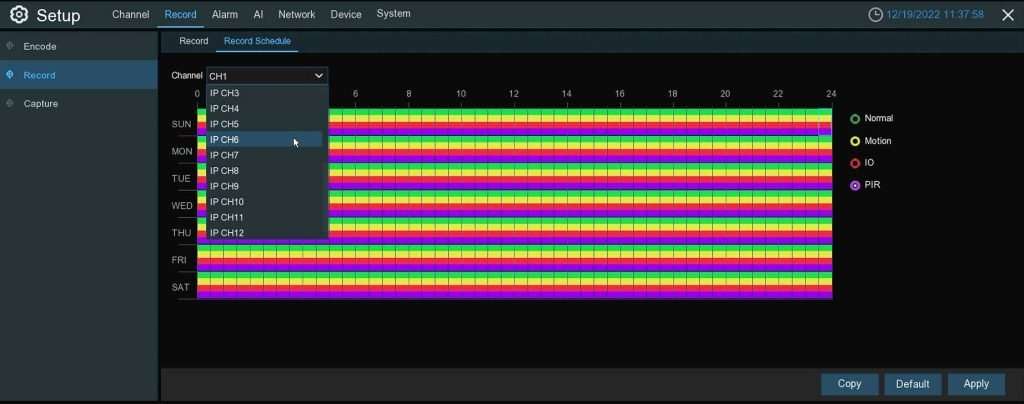

Security Camera DVR 8 Channel with 24/7 Continuous Recording
Camius DVR systems provide 24/7 continuous recording, ensuring round-the-clock surveillance for maximum security. With ample storage capacity and customizable recording settings, users can capture and review footage anytime, offering peace of mind for both home and business environments.
Standalone and Online Remote Access

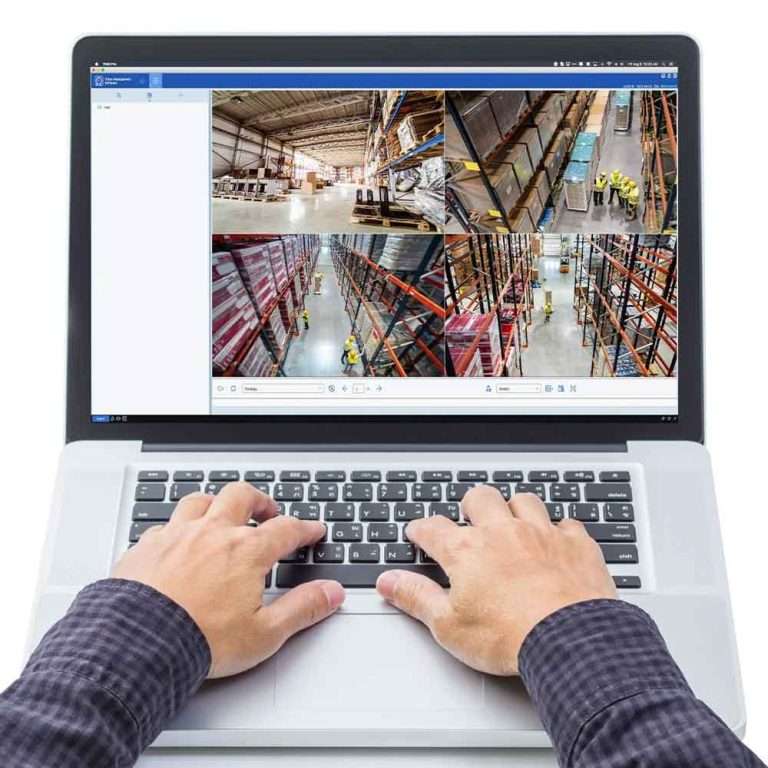

You can remotely view live footage or playback recordings from the hybrid DVR using smartphone apps, web browsers or desktop software, allowing monitoring from anywhere.
What’s included:
- 1x TRIVAULT4K184R2 8TB HDD
- 4x FD4KATC2 4K Analog Dome Cameras: These vandal-proof dome cameras deliver stunning 4K resolution and wide-angle views, perfect for indoor surveillance
- 4x FB4KPRO 4K Analog Bullet Cameras: Equipped for outdoor use, these 4K bullet cameras offer superior clarity and reliability, even in challenging environments.
Accessories: Includes essential accessories such as the DVR’s power adapter, HDMI cable, network cable, USB mouse, and installation guide
Please note that camera cables, power supplies, and splitters are not included and can be purchased separately.
Technical Specifications
- Model: TRIVAULT4K184R2
Channels: 12 (Analog + IP)
- Analog Channels: 8 (supports CVBS, TVI, CVI, AHD up to 4K resolution)
- IP Channels: 4 (or 12 if no analog channels are in use)
Image Control:
- Analog: Select camera type, Date & Time Format, Covert, Color settings (Hue/Brightness/Contrast/Saturation).
- IP: IR-CUT mode, IR-CUT delay, Lens Flip, Angle Flip, Backlight, 3D Noise reduction, WDR, AGC, White balance, Shutter, Time Exposure, Defog mode (subject to IP camera’s features).
Recording Bandwidth:
- In: 32Mbps ~ 96Mbps (a single disabled analog channel increases bandwidth by 8Mbps).
- Out: 96Mbps.
PTZ Support: Analog and IP digital PTZ cameras.
Motion Detection: Supports both Analog and IP cameras.
PIR Detection: Enabled for Camius IP cameras with PIR sensors.
Deterrence: Enabled for Camius IP cameras with siren and light features.
Intelligent Features:
- PID (Perimeter Intrusion), LCD (Line Crossing), SOD (Stationary Object), Sound Detection, Video Tampering.
Compression:
- Video: H.264 / H.265.
- Audio: G711A.
Display Resolution:
- Analog: 8MP @ 15fps, 5MP @ 20fps, 4MP/1080P/720P/960H @ 30fps.
- IP: 4K/4MP/1080P/720P. (Note: Single IP channel preview up to 4K @ 30fps; multi-channel preview only in Substream mode).
Recording:
- Mainstream: Analog 8MP 3840×2160 @ 10fps, 5MP @ 14fps, 4MP @ 18fps, 1080P @ 30fps NTSC, 25fps PAL (each channel).
- Substream: Analog 704×480 NTSC @ 10fps, 704×576 PAL @ 10fps, IP 1920×1080 @ 30fps (each channel).
- Mobile stream (IP channels): 640×480 @ 30fps.
Capture Settings:
- Capture resolution: 1920×1080, 1280×720, 960×480.
- Stream Type: Main/Substream.
- Alarm Quality Settings: Highest, Higher, Medium, Low, Lower, Lowest.
Network & Remote Access:
- Network: DHCP, PPPoE, Port Configuration (HTTP, Client Port, RTSP, HTTPS, UPNP, TCP).
- Remote Access: P2P (ON/OFF), DDNS, Email alerts.
- Cloud Support: Dropbox, Google Drive for video and picture uploads.
System Management:
- Device: 1 Internal SATA HDD up to 10TB capacity.
- Maintenance: Firmware upgrades, auto-reboot, and parameter management.
- Multi-User Management: Admin + 30 users.
Power & Environmental:
- Power Supply/Consumption: DC12V 2A / 11W (without hard drive).
- Operating Temperature/Humidity: 0°C~+40°C (32°F ~ 104°F) / Less than 90% RH.
Physical Dimensions: 12 x 9 x 2” (300 x 227 x 53mm).
Included:
- DVR Unit
- Power Supply
- HDMI Cable
- Network Cable
- USB Mouse
Note: Design and specifications are subject to change without prior notice. For updated information, visit www.camius.com.
FAQ
Can you get 4K over BNC?
Yes, 4K resolution can be transmitted over BNC using HD CVI, HD TVI, or AHD camera technologies. To fully harness 4K resolution, you need a 4K-capable security DVR recorder. Camius offers complete solutions with 4K security camera DVRs and 4K outdoor analog surveillance cameras, designed for seamless installation without rewiring.
What does a BNC camera mean?
A BNC camera refers to an analog security camera that uses a BNC connector to transmit video signals via coaxial cable. These cameras are compatible with DVR Security Camera System like Camius analog DVR recorder for cameras, offering reliable video transmission and easy installation in both new and existing setups
Are PoE cameras better than BNC?
Yes, IP PoE cameras offer several advantages over BNC cameras, using a single Ethernet cable for both power and data transmission, simplifying installation. However, for those with existing coaxial wiring, switching to Camius 4K analog systems is more cost-effective since no rewiring is required. Moreover, users can add Camius IP cameras to these analog systems using Cat5 or Cat6 wiring, with the addition of a network or power switch, allowing the Camius analog DVR to act as an NVR for IP cameras.
What is a BNC security camera?
A BNC security camera is an analog camera that uses a BNC (Bayonet Neill–Concelman) connector to transmit video signals via coaxial cables to a DVR for recording and viewing. These cameras are popular for their reliability and compatibility with various DVR systems. Camius offers 4K BNC cameras that provide high-definition surveillance using existing coaxial wiring, making it an efficient upgrade for users who want enhanced video quality without rewiring.
How far can you run a BNC cable security camera?
A BNC cable security camera can typically run up to 300 feet with standard coaxial cables (RG59) without losing signal quality. For longer distances, up to 500 or 1000 feet, higher-grade cables like RG6 or amplifiers can be used. Camius systems ensure optimal video transmission quality, even over extended cable runs, while offering compatibility with both analog and IP cameras, providing flexible installation options.
