Why To Upgrade Your Security with the Camius DVR for Security Cameras
Crystal-Clear Footage, Remote Access, and More!
Why should you upgrade your security? Well, it’s simple. With the ultimate Camius DVR for security cameras, you’ll enjoy crystal-clear footage, remote access, and a whole lot more! This powerful DVR can handle up to 24 HD cameras, giving you the flexibility to use your existing low resolution, 1080p and even 4K analog cameras or upgrade to IP cameras without any hassle. Capture every detail in stunning 4K resolution and optimize storage and network performance with customizable settings. Plus, with remote access, you can view and control your cameras from anywhere in the world. Upgrade your security today and experience the ultimate peace of mind!
Cameras compatible with the Camius 16 channel DVR 4K
This 4K XVR system recorder supports up to 16 analog CCTV close circuit cameras . CVBS, AHD, HD CVI, and HD TVI cameras (up to 4K video resolution) are compatible with the DVR. In addition to analog cameras over coax, the 4K Hybrid DVR works with IP network cameras. The security recorder supports up to 24 HD cameras. Camius IP cameras are recommended since the 16 Channel DVR 4K recorders are optimized for plug-and-play setup, functionality, and features. Non-Camius IP camera compatibility and features may be limited.
Future proof 16 Camera DVR
The total default bandwidth is 64 Mbps. Converting all analog channels to IP channels will increase the maximum bandwidth to 192 Mbps. By decreasing one analog channel, you can increase bandwidth by 8 Mbps. Add 16 analog and 8 IP channels to the Camius surveillance digital video recorder.Â
4K Analog Cameras for Camius 16 Channel Camera DVR
This 4K XVR system recorder supports up to 16 analog CCTV close circuit cameras . CVBS, AHD, HD CVI, and HD TVI cameras (up to 4K video resolution) are compatible with the DVR. In addition to analog cameras over coax, the 4K Hybrid DVR works with IP network cameras. The security recorder supports up to 24 HD channels in XVR mode. Camius IP cameras are recommended since the Camius DVR recorders are optimized for plug-and-play setup, functionality, and features. Non-Camius IP camera compatibility and features may be limited.

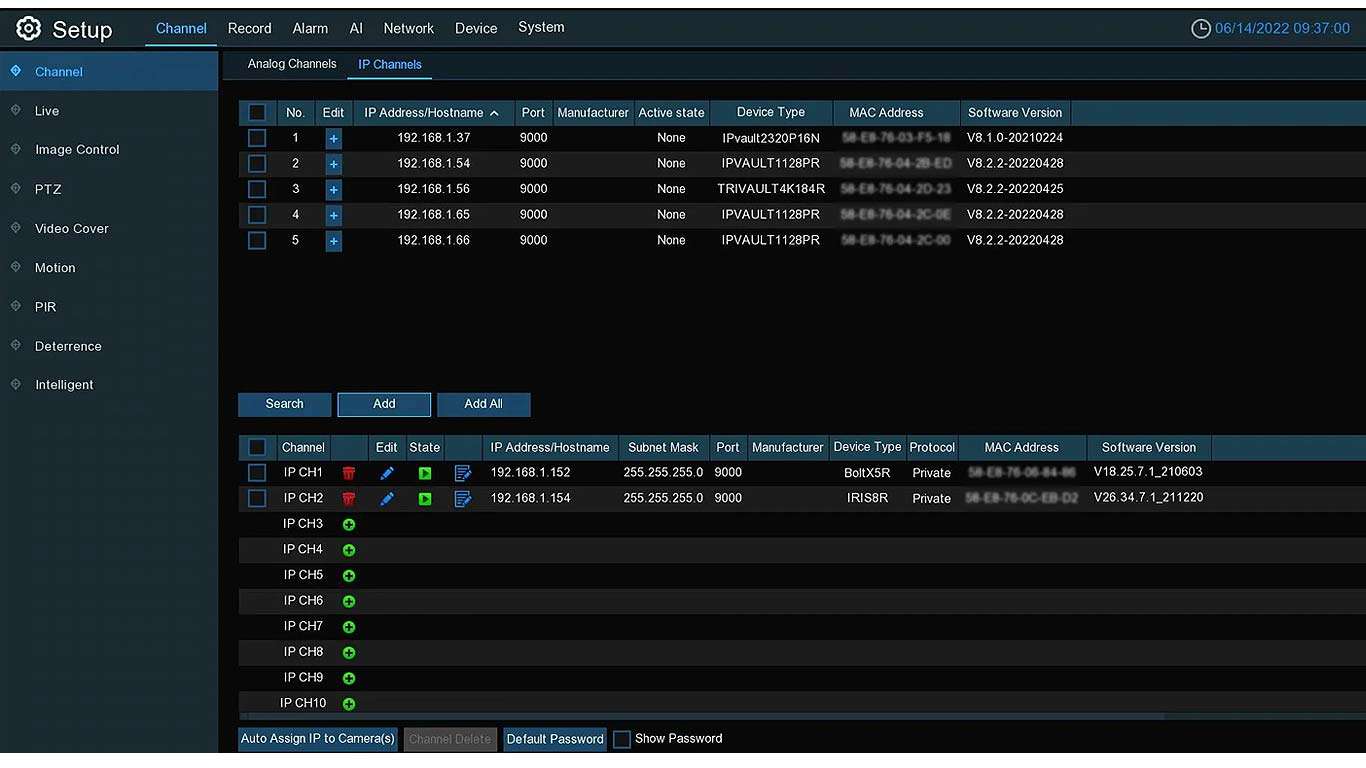

Expand your surveillance security cameras to 24 camera system
Are you looking for a surveillance system that won’t break the bank and will keep you up to date with the latest technology? Look no further than Camius! We’ve got your back with a solution that’s both affordable and future-proof.Â
Ultra HD DVR for Cameras Recording
The 4K Professional Security DVR for security cameras fits 2 internal SATA hard drives with a capacity of up to 14TB each. In addition, the 4K DVR has an e-SATA port for an external hard drive maximum capacity of 14TB.Â

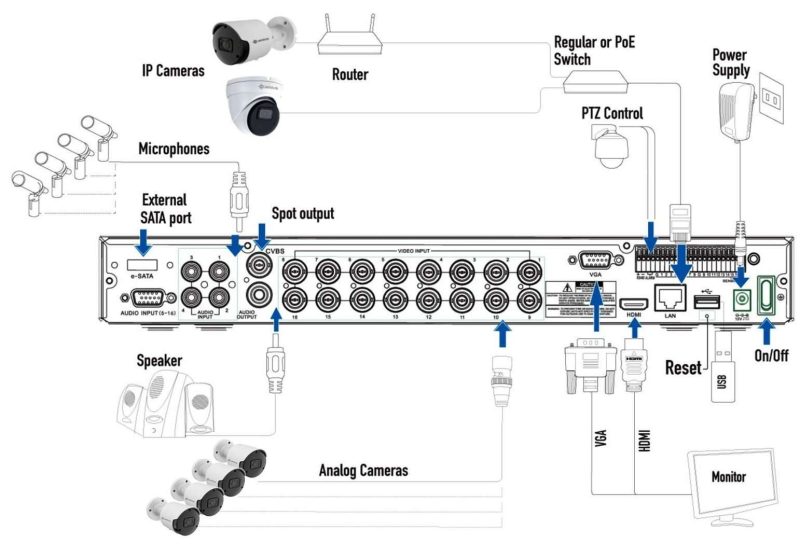

Analog Security Camera Recorder with HDMI, Spot, VGA video outputs
Experience the versatility of the Camius 4K DVR, equipped with three video outputs that allow you to easily connect a monitor or TV for live viewing. With an HDMI output supporting 4K video, a VGA output supporting 1080P video, and a CVBS (or BNC) output for the spot monitor, you have the flexibility to call out specific cameras as needed.
Unlock advanced functionality with the security camera DVR, featuring multiple ports for seamless performance. Connect a Pan Tilt Zoom camera (PTZ) using the RS485 port, while enjoying the convenience of WLAN, DHCP, PPPOE, DNS, DDNS, RTSP, HTTPS, and P2P protocols. With the RJ-45 port (100/1000M), you can ensure fast and reliable network connectivity. Additionally, the DVR offers 16 audio inputs and one output for enhanced audio monitoring, as well as 16 alarm inputs and one output for comprehensive security integration.
Professional Security DVR with 4K Recording
The security DVR supports the recording of analog channels with 4K (8MP) with ten frames per second (fps) and IP at 1 to 30 fps (depending on the IP camera capabilities. You can even control audio settings.
Camius Security DVR Recorders with Audio Recording

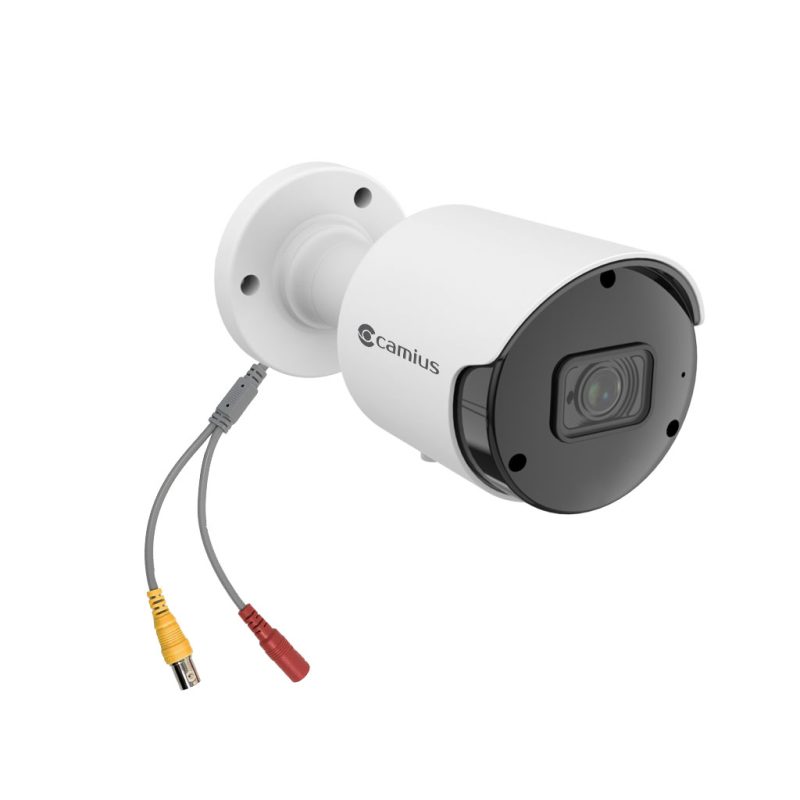

The newest 4K DVR from Camius can record audio. If you want to use this feature with analog cameras, install Camius’ latest 4K analog camera [FB4KAOC], which has a built-in microphone, and select ‘Coaxial Audio’ as the ‘General – Audio Input Type’ option. Then, enable ‘Audio’ under the DVR’s ‘Record – Encode – Mainstream’ setting. You will need a special Camius audio video power coaxial cable to utilize the audio feature fully. Besides recording 4K video synchronized with audio, you can control audio camera settings within the DVR. The below picture shows Camius IP camera audio settings.

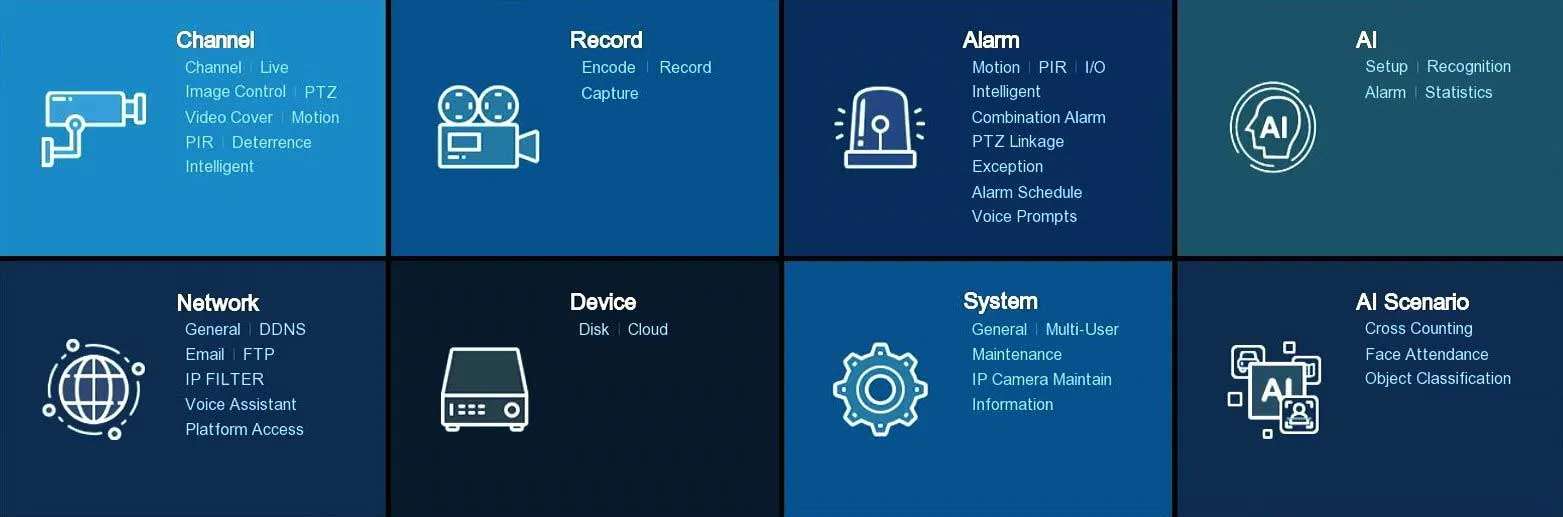

Record to Dropbox or Google Drive, Time-Lapse Recording, Easy Playback Search, and More!
You can enable recording videos or pictures triggered by your alarm events to Dropbox or Google Drive.
- Time-lapse recording (controlled by the Capture feature)
- Playback search with Date/Time, Event List, Smart Search
- Privacy Zone set up
- System Auto-reboot
- Restore to default settings
- Set the menu timeout or turn it off completelyÂ
- DVR with web browser viewing
- Remote access using a PC/Mac software, Camius View security camera app
Stay One Step Ahead with Camius DVR Recorders: Enhanced Alarm Features for Ultimate Home and Business Security
Camius DVR recorders are designed to provide comprehensive security for your home or business. With various alarm features enabled, you can rest assured that you’ll be promptly alerted to any potential threats. Whether it’s motion detection, intrusion detection, or other alarm triggers, Camius DVR recorders ensure that you stay informed and in control, giving you peace of mind knowing that your property is protected.
Analog Camera CCTV DVR with Smart Motion, Sound, Human, Vehicle Detection and more!
Upgrade your security to the next level with our advanced DVR for security cameras. With Intelligent Detection powered by AI analysis, you can go beyond basic motion detection. Create custom zones to detect specific movement patterns and locations. Receive instant push notifications, special color-coded video recordings, and tags when Intelligent & AI Detection is triggered. Whether you’re using analog or IP cameras, our AI mode offers a range of functions to enhance your surveillance capabilities. Stay ahead of potential threats with our user-friendly and intelligent DVR system.
What’s in the box:
- 16 Channel DVR with pre-installed one 8TB hard drive disk (model: Trivault4K2168R 8TB HDD)
- Power supply, HDMI cable, network cable, audio cable, USB mouse, quick setup guide, and set of screws
Please note that cameras are not included in this offer.
Camius TRIVAULT4K2168R Technical Specifications:
Model: TRIVAULT4K2168R
Video & Channel Configuration
- Total Channels in Hybrid XVR mode: 24 (supports up to 16 analog + 8 IP channels simultaneously (24 total), or 24 IP cameras when used in IP-only mode)
- Analog Channels: 16 BNC, supporting AHD, TVI, CVI, and CVBS cameras (auto-adaptive).
- IP Channels: 8 IP channels (expandable to 24 total if analog inputs are disabled).
- Total Bandwidth: 192 Mbps (Incoming 128 Mbps / Outgoing 64 Mbps)
Display & Playback
- Display Resolution:
Analog Channels (Main Stream):
- 8 MP (3840×2160): 10 fps record / 15 fps display
- 5 MP (2592×1944): 15 fps record / 20 fps display
- 4 MP (2560×1440): 20 fps record / 30 fps display
- 1080 P (1920×1080): NTSC 30 fps / PAL 25 fps record per channel
- 720 P / 960 H: 30 fps record per channel
IP Channels:
- Up to 4 K / 4 MP / 1080 P / 720 P @ 30 fps per channel
Note: Frame rate and total channel count depend on total bandwidth load across analog and IP inputs.
- View Layouts: 1 / 4 / 8 / 9 / 16 / 20 / 24 split-screen configurations.
- Auto Sequence: Supported.
- Playback:
- Search up to 16 channels simultaneously.
- Multi-channel playback supported (number of channels depends on resolution and decoding bandwidth).
- Playback speed: Fast forward/backward (2x, 4x, 8x, 16x), slow motion (1/2x, 1/4x, 1/8x, 1/16x).
Video Functions
- Channel Settings: Channel name, time display, covert (on/off).
- Image Control: Brightness, contrast, saturation, hue (for analog and IP channels).
- Privacy Masking (Video Cover): Up to 4 areas per channel.
- PTZ Control: RS-485, Preset, Cruise, PTZ Linkage.
- Auto Signal Detection: Automatically detects connected camera type.
Detection & Deterrence
- Motion Detection: Available on all analog and IP channels.
- PIR Detection: With compatible IP cameras.
- Alarm Triggers: Motion, I/O, PIR, intelligent (AI) detection.
- Deterrence: Light and siren control (with Camius spotlight 4K PoE cameras: SPOT828A-RB, SCOUT4KPTZ4X); Smart Illumination (White Spotlights) apply to FB4KPRO (4k analog outdoor camera)
Compression & Recording
- Video Compression: H.265 / H.264.
- Audio Compression: G.711A / G.711U.
- Recording Streams: Mainstream and Substream per channel.
- Recording Modes: Continuous, Motion, I/O, PIR, Schedule, Manual.
- Pre-record: 5 seconds.
- Post-record: Adjustable (10–300 seconds).
- Snapshot / Time-lapse Capture: Supported (max 1080P, interval 5s–1hr).
Alarm & I/O
- Alarm Inputs: 16 wired zones (NO/NC selectable).
- Alarm Output: 1 relay output (30V DC / 2A or 125V AC / 0.5A).
- RS-485 Interface: For PTZ control.
- Alarm Features: Motion, PIR, I/O, Intelligent, Combination Alarm, PTZ Linkage.
- Exception Alarms: Disk full, disk error, video loss, network failure.
- Notifications: Buzzer, Push notification via Camius View App, on-screen message.
- Scheduling: Fully configurable per channel.
AI & Smart Detection
- AI Functions: Human and vehicle detection, face detection, perimeter intrusion, line crossing, sound, license plate detection, etc.
- Analytics: People and vehicle counting, heat maps (when paired with Camius AI IP cameras).
- AI detection on up to 8 channels simultaneously. AI functions are mutually exclusive per channel.
Network Features
- Protocols: DHCP, PPPoE, SNMP, UPnP, HTTP/HTTPS, RTSP, P2P.
- Ports: HTTP, RTSP, Media, HTTPS.
- DDNS: Supported.
- Email Alerts: SMTP (SSL/TLS).
- FTP Upload: Supported — upload snapshots or clips from motion or alarm events to a remote FTP folder.
- Cloud Storage: Dropbox, Google Drive.
- IP Filter: Allow/Block IP addresses.
- Remote Access:
- Camius View App for iOS & Android,
- Camius VMS Software for PC and Mac.
- Browser access (HTTP/HTTPS)
- Note: The TRIVAULT4K2168R operates fully offline. Recording, playback, and export do not require an internet connection. Network and motion features can be disabled when not needed.
Storage
- Internal Drives: 2 × SATA (up to 14TB each).
- External Storage: 1 × eSATA
- Network Storage: NAS (NetHDD) supported.
- Recording Management: Overwrite and redundancy options.
- HDD Format Options:
- Format entire hard disk – erases all data (including videos, events, logs, analytics).
- Format record partition – erases videos, snapshots, logs; keeps analytic information.
- Format general partition – erases only analytic information; videos and snapshots remain.
System Management
- Users: 1 Admin + 31 User accounts.
- Settings: Device name, audio input type (base-band or coaxial), date/time, output resolution.
- Maintenance: Auto reboot, logs, firmware upgrade via USB or network.
Video Outputs
- HDMI: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P, 2K, 4K
- VGA: 1024×768, 1280×720, 1280×1024, 1440×900, 1080P
- CVBS: BNC output, 704×576
Interfaces
- USB: 1 × USB 2.0 (front), 1 × USB 3.0 (rear).
- LAN: RJ45 10/100/1000 Base-T.
- RS-485: A/B terminals for PTZ control.
- Alarm I/O Block: 16 inputs, 1 relay output.
- Audio: 4 RCA inputs + 1 output, expandable to 16 via DB9 connector.
Power & Environmental
- Power Supply: DC 12V / 5A (Input 100–240V, 50/60Hz).
- Power Consumption: ≤20W (excluding HDDs).
- Operating Temperature: 32°F–104°F (0°C–40°C).
- Humidity: ≤90% (non-condensing).
Physical
- Dimensions: 380 × 320 × 53 mm (15 × 13 × 2 in).
- Net Weight: 2.45 kg (5.4 lbs, without HDD).
- Gross Weight: 3.37 kg (7.4 lbs, with packaging).
In the Box
- DVR unit
- Power adapter
- HDMI cable
- Audio cable
- Network (Ethernet) cable
- USB mouse
- DVR Quick Installation Guide
The above specifications provide a comprehensive overview of the TRIVAULT4K2168R’s powerful features, making it an excellent choice for high-resolution, smart video surveillance.
